Workshop trolley "Bearings and Bushings"
KL-4999-260
3423468
Universally applicable for repairs on wheel bearings, steering and axle systems on passenger cars and vans.
The ideal mobile workstation for quick and organized maintenance work.
Content / range of application:
• Various drive parts for driving the tool kits
• Forcing out and pressing in wheel hub / bearing units
• Pulling of wishbones from the support joint clamping hole
• Forcing out and pressing in wheel bearings and wheel hubs
• Forcing off glued and stuck cardan shafts
• Forcing out and pressing in suspension / guide joints, silent blocks and joint bearings
• Pulling off stuck screwed wheel bearing units
• Including helpful hand tools
- Description
- Accessoires
- Technical data
- Manual
- Consists of
- Spare parts
- Similar
- Eigenschappen Fabrikant
- Documenten
- Certificaten
- Videos
- Handleidingen
- Tekeningen
- Deeplink
- Extra informatie
- Cross selling
Description
The assembly trolley "MODULO 260" with its unique composition is the ideal, mobile workstation for fast, organised, and efficient repairs.
Content / range of application:
• Various drive parts such as hydraulic cylinder 17t KL-0040-2500, ring ratchet/open-end spanners, impact extractors 4.8 kg - KL-0049-31 as well as pull/thrust spindles (mechanical, hydraulic), quick-clamping nuts and adapters of the KL-0039-..series for driving the tool kits.
• Articulated handle KL-4007-411 as well as power spanner/socket spanner sockets (SK / TX / XZN) for loosening and tightening of wheel bearing central screws.
• Locking ring pliers KL-0192-5 for the disassembly and assembly of wheel bearing locking rings.
• Wire brush for derusting and cleaning various components.
• Wheel hub puller KL-0041-38.. as well as wheel bearing tool kits of the KL-0041-4.. Series for pressing out and in of wheel hubs and wheel bearing units, for example on VW, Audi, Seat, Škoda and Ford, Mazda, Volvo.
• Pullers of the KL-0174-.. Series for pulling standard wheel bearings as well as pressing out bonded and stuck cardan shafts.
• Hooks for impact extractors KL-0049-360 A for pulling of wishbones from the suspension joint clamping hole.
• Wheel bearing tool kits of the KL-0039-.. series for pressing out and in of nearly all standard wheel bearings and wheel hubs.
• Silent block tool kits of the KL-0039-.. series for pressing out and in of silent blocks and joints bearings.

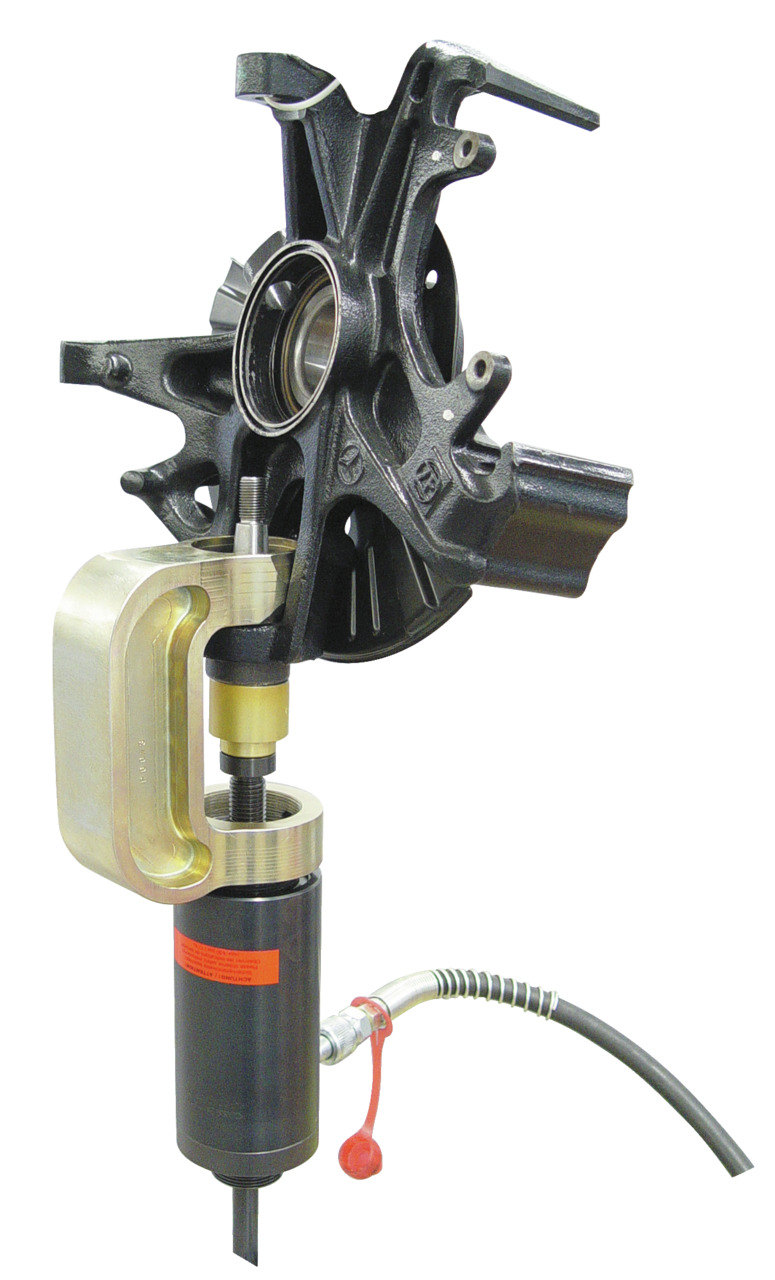

• Pressing devices of the KL-0326-1.. series for pressing out and in support/guide joints; for example, on Mercedes and VW T4.
• Pressing devices of the KL-0610-1.. series for pressing out and in silent blocks on rear axle trailing arms; for example, on Ford, Mazda, Volvo.
• Wheel bearing tool KL-2211-111.. for pulling stuck screwed wheel bearing units; for example, on Subaru.
Assembly trolley specifications:
• Dimensions H 985 x W 1200 x D 635 mm
• Beech multiplex worktop, 30 mm thick, oiled
• Total load carrying capacity: 1000 kg / mobile operation: 750 kg
• 2 fixed castors Ø 200 mm and 2 swivel castors Ø 125 mm with total brake
• Sheet steel, corrosion-resistant, scratch-resistant powder-coated in GEDORE blue
• Extra wide drawers W 998 x D 474 mm with full extension, loadable up to 70 kg
• Automatic drawer retraction with single pull-out stop and central locking system
• Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
