Description
Universally applicable for repairs on wheel bearings, steering and axle systems on passenger cars and vans.
The assembly trolley "MODULO 250" with its unique composition is the ideal, mobile workstation for fast, organised, and efficient repairs.

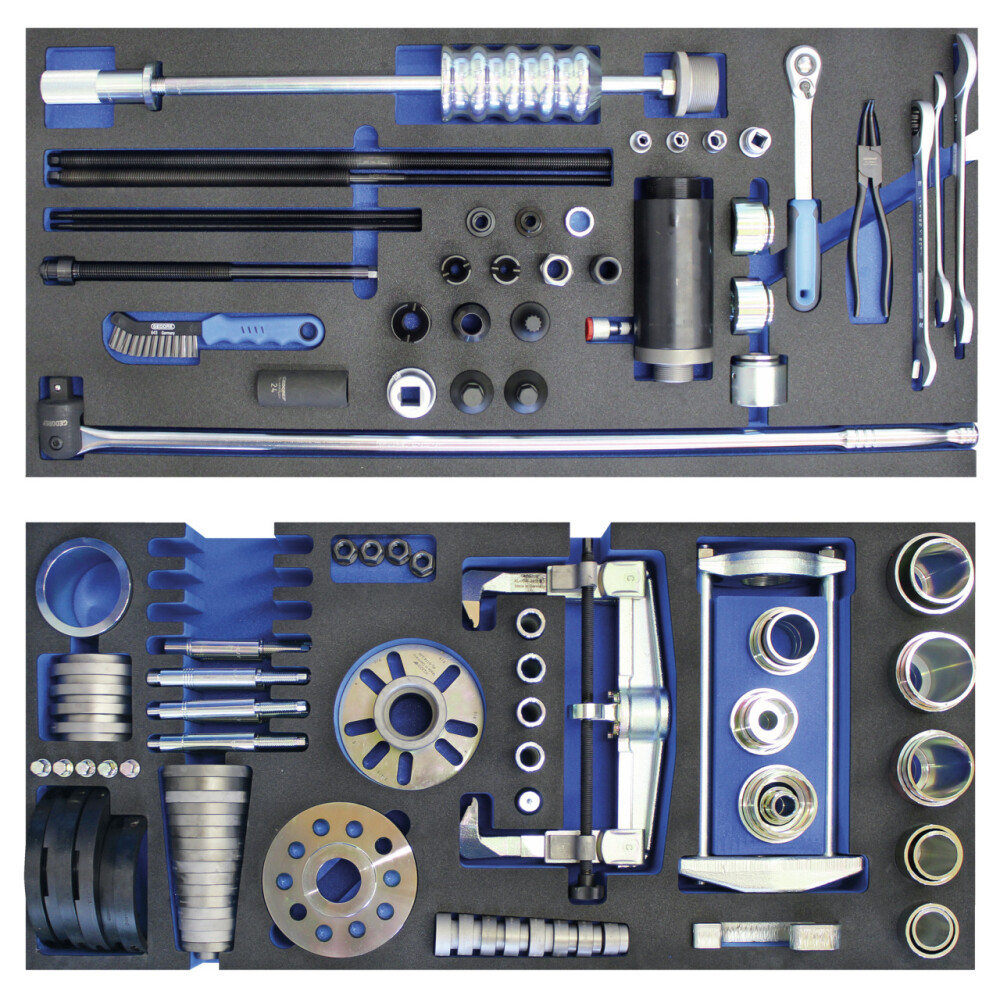

Content / range of application:

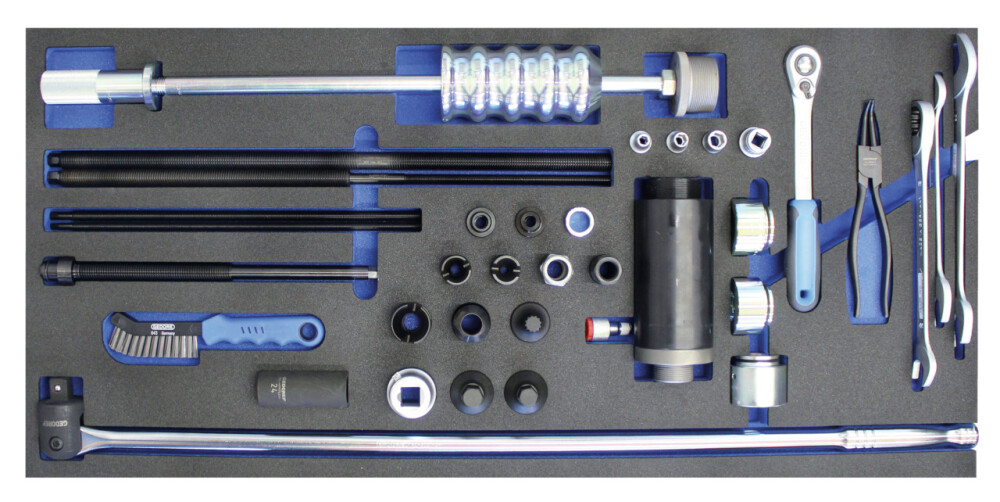

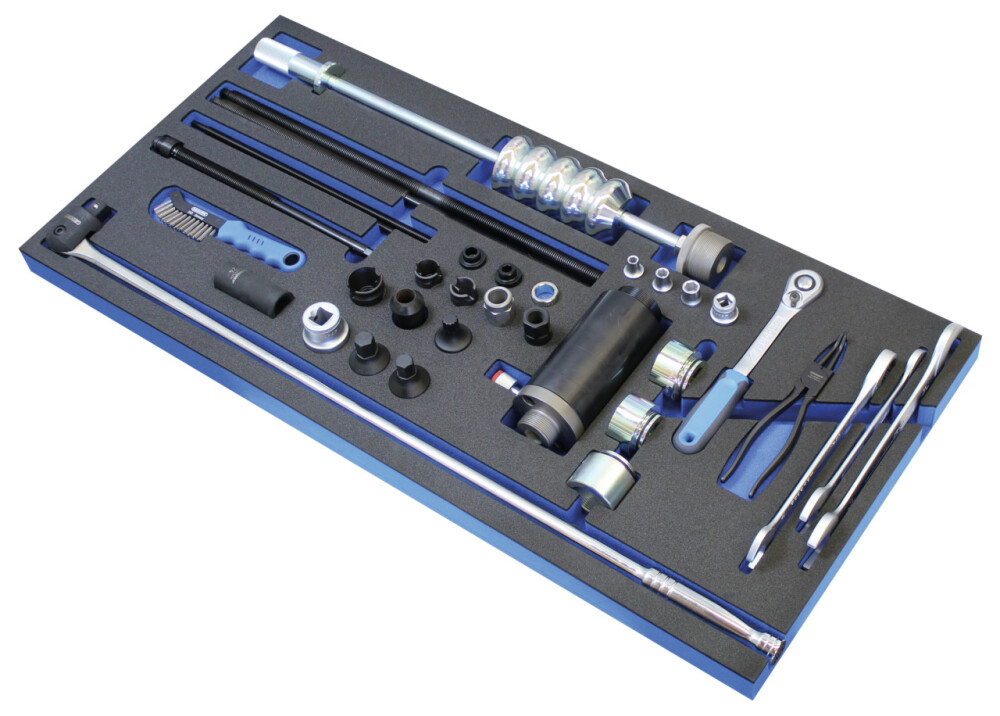

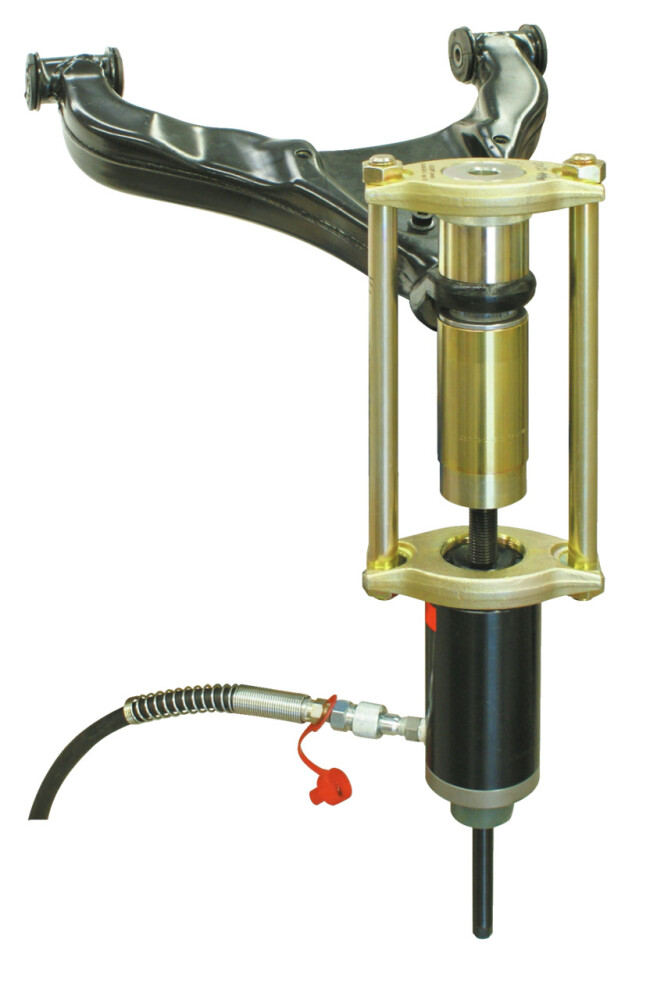

• Various drive parts such as hydraulic cylinder 17t KL-0040-2500, ring ratchet/open-end spanners, impact extractors 4.8 kg - KL-0049-31 as well as pull/thrust spindles (mechanical, hydraulic), quick-clamping nuts and adapters of the KL-0039-..series for driving the tool kits.
• Articulated handle - KL-4007-411 as well as power spanner/socket spanner sockets (SK / TX / XZN) for loosening and tightening of wheel bearing central screws.
• Locking ring pliers - KL-0192-5 for the disassembly and assembly of wheel bearing locking rings.
• Wire brush for derusting and cleaning various components.

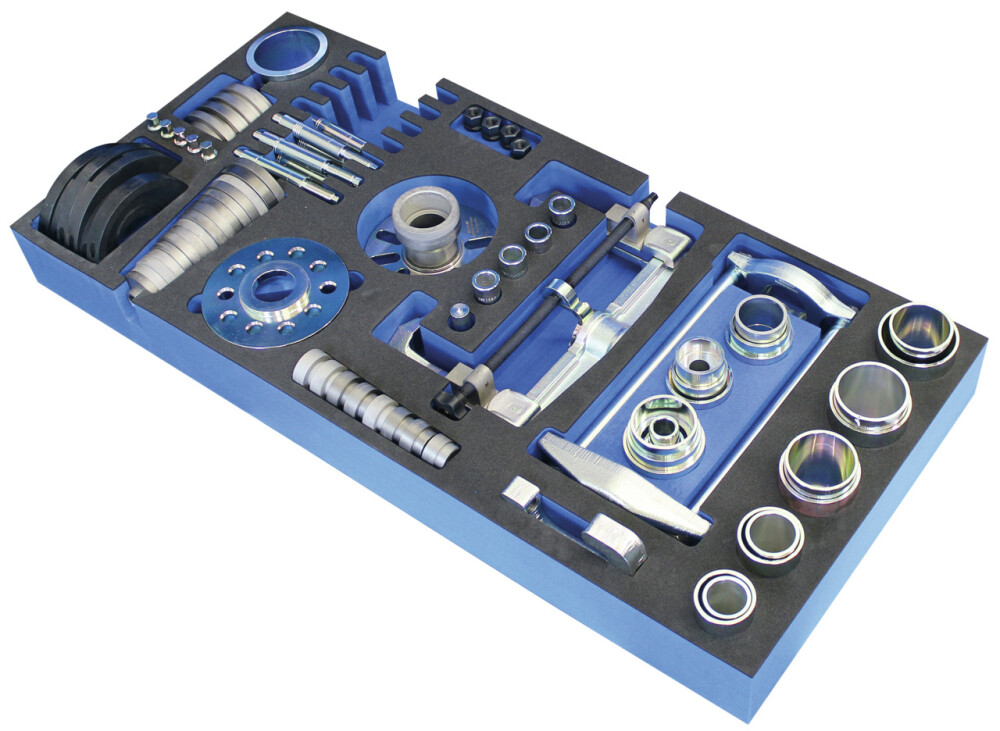

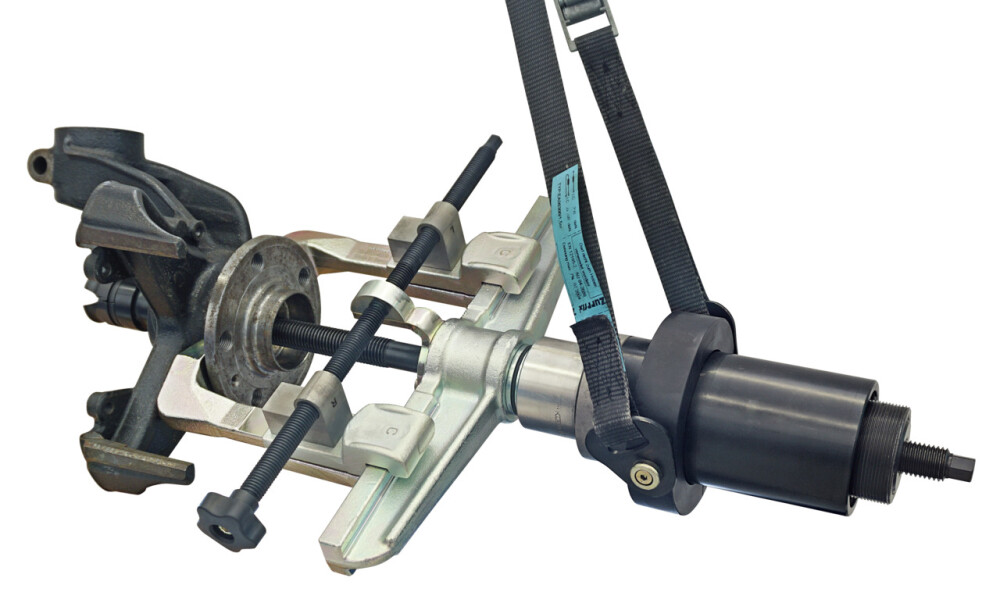

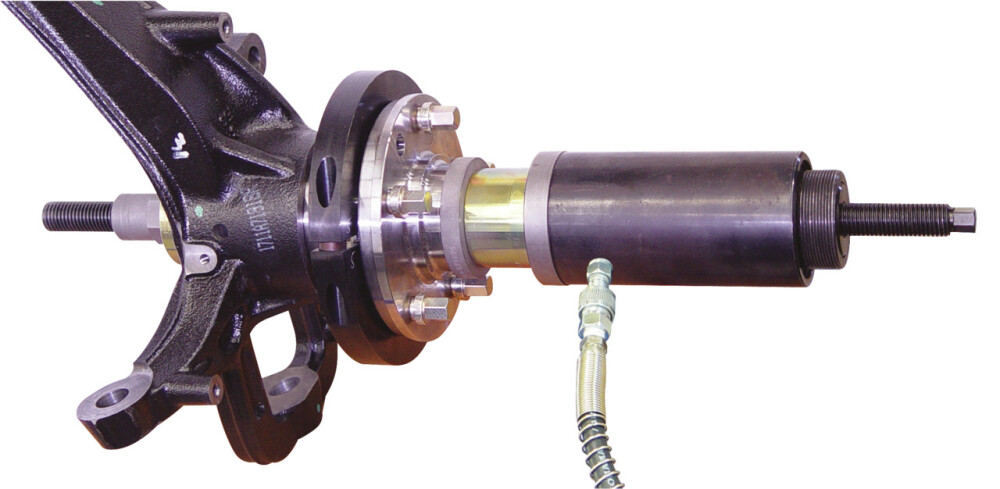

• Wheel hub puller - KL-0041-38.. as well as wheel bearing tool kits of the KL-0041-4.. Series for pressing out and in of wheel hubs and wheel bearing units, for example on VW, Audi, Seat, Škoda.
• Pullers of the KL-0174-.. Series for pulling standard wheel bearings as well as pressing out bonded and stuck cardan shafts.

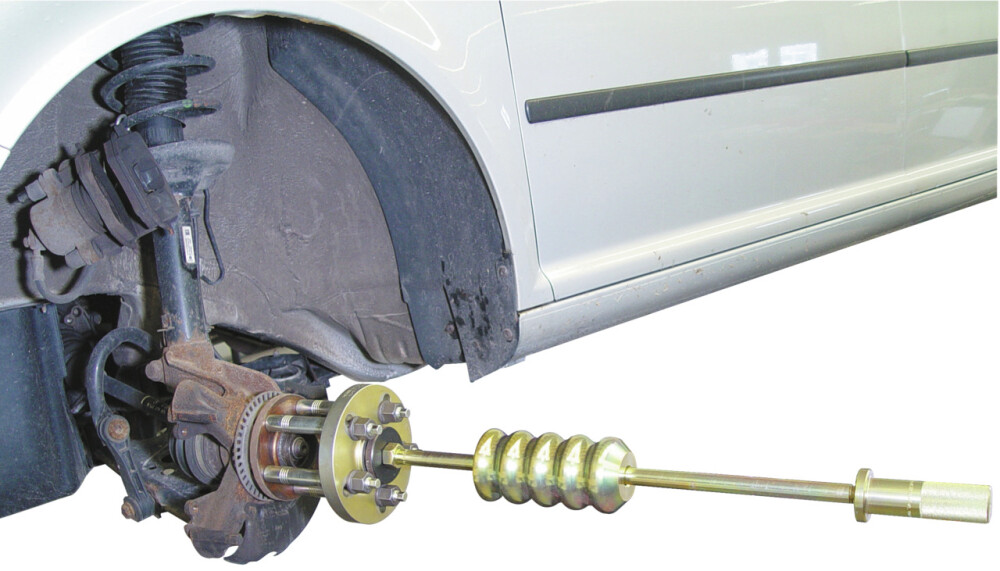

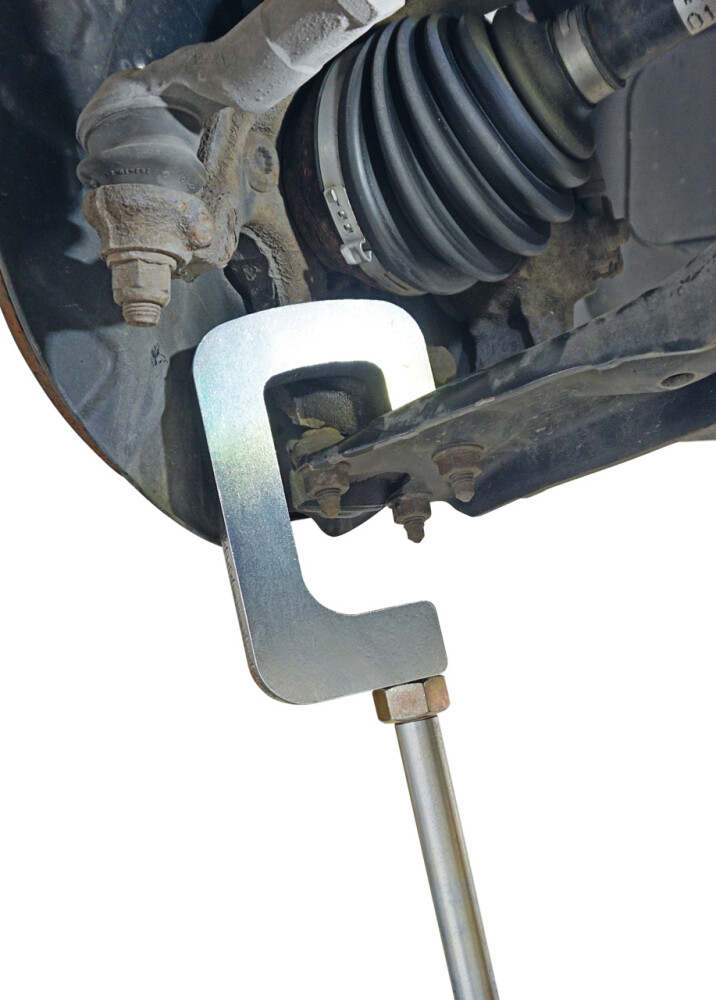

• Hooks for impact extractors - KL-0049-360 A for pulling of wishbones from the suspension joint clamping hole.

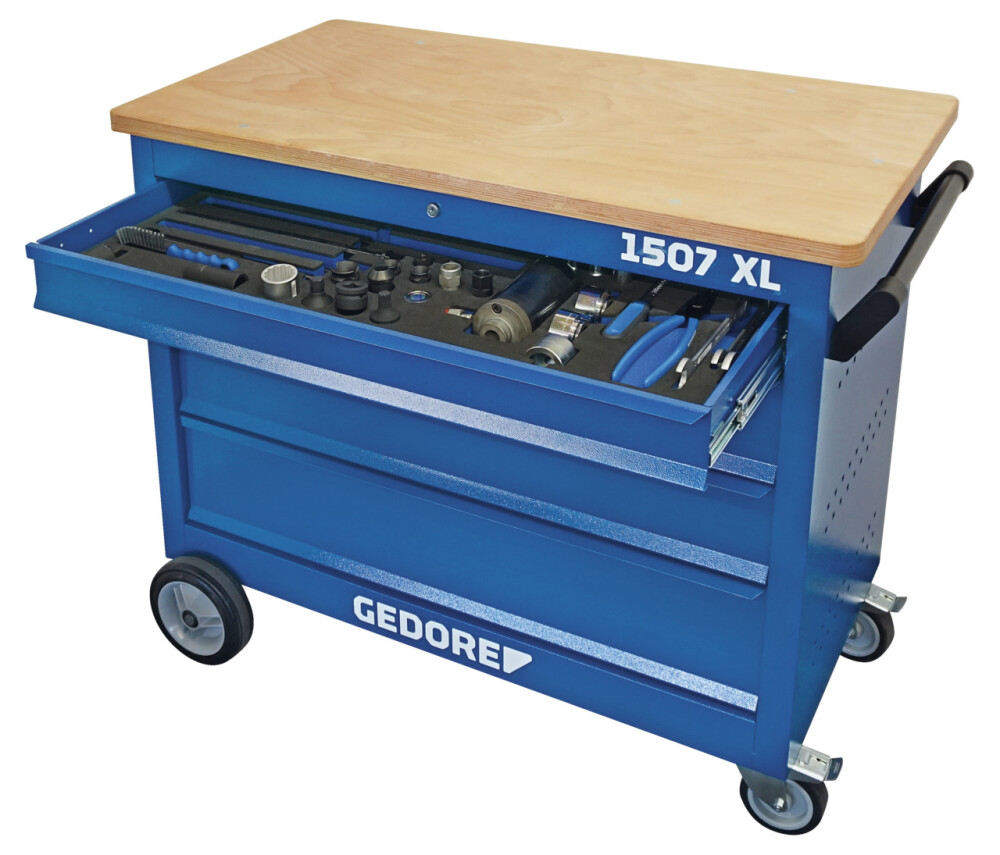

Assembly trolley specifications:
• Dimensions H 985 x W 1200 x D 635 mm
• Beech multiplex worktop, 30 mm thick, oiled
• Total load carrying capacity: 1000 kg / mobile operation: 750 kg
• 2 fixed castors Ø 200 mm and 2 swivel castors Ø 125 mm with total brake
• Sheet steel, corrosion-resistant, scratch-resistant powder-coated in anthracite
• Extra wide drawers W 998 x D 474 mm with full extension, loadable up to 70 kg
• Automatic drawer retraction with single pull-out stop and central locking system
• Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
