Workshop trolley "Bearings and Bushings"
KL-4999-250
3413349
Universally applicable for repairs on wheel bearings,
steering and axle systems on passenger cars and vans.
The ideal mobile workstation for quick and organized
maintenance work.
Content / range of application:
• Various drive parts for operating the tool kits
• Forcing out and forcing in of wheel bearings and wheel hubs
• Removal and forcing in of wheel hubs / wheel bearing units
• Pulling off wishbones from the suspension joint clamping bore
• Forcing out bonded and jammed joint shafts
• Various helpful hand tools
- Description
- Accessoires
- Technical data
- Manual
- Consists of
- Spare parts
- Similar
- Eigenschappen Fabrikant
- Documenten
- Certificaten
- Videos
- Handleidingen
- Tekeningen
- Deeplink
- Extra informatie
- Cross selling
Description
The assembly trolley "MODULO 250" with its unique composition is the ideal, mobile workstation for fast, organised, and efficient repairs.

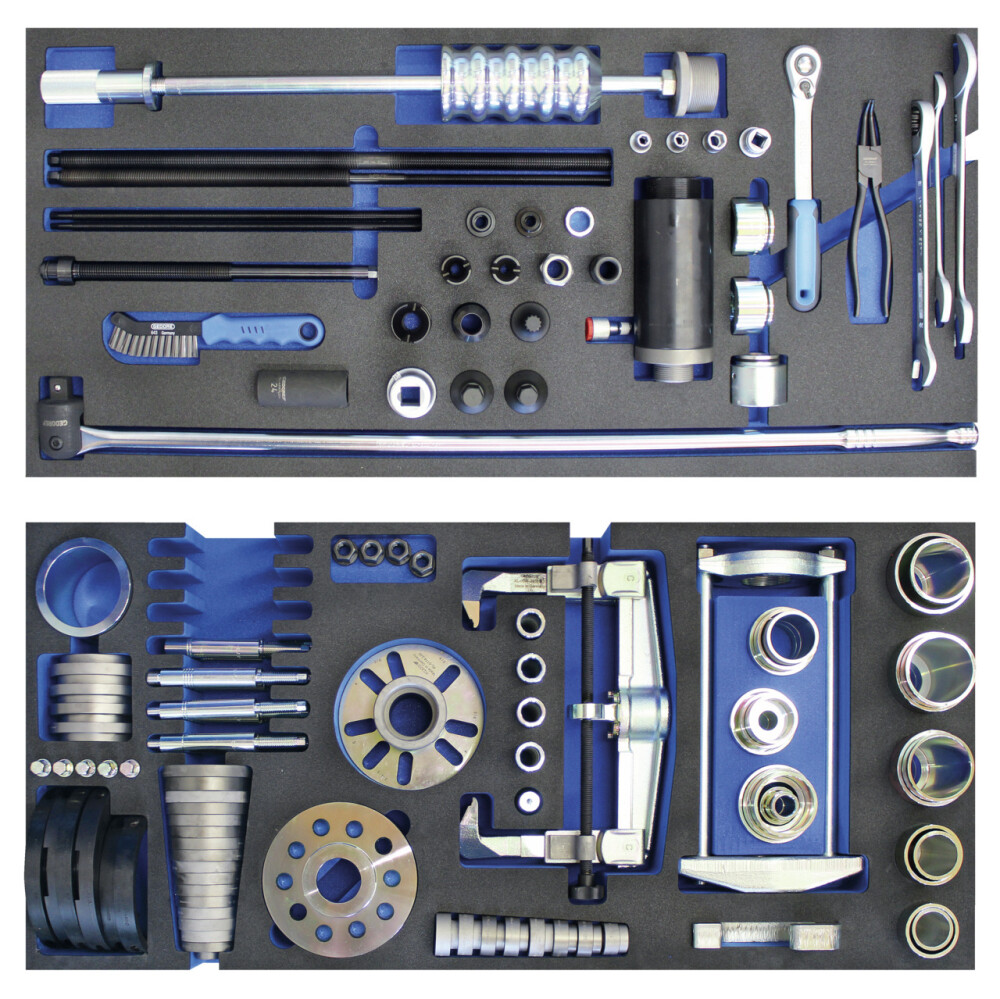

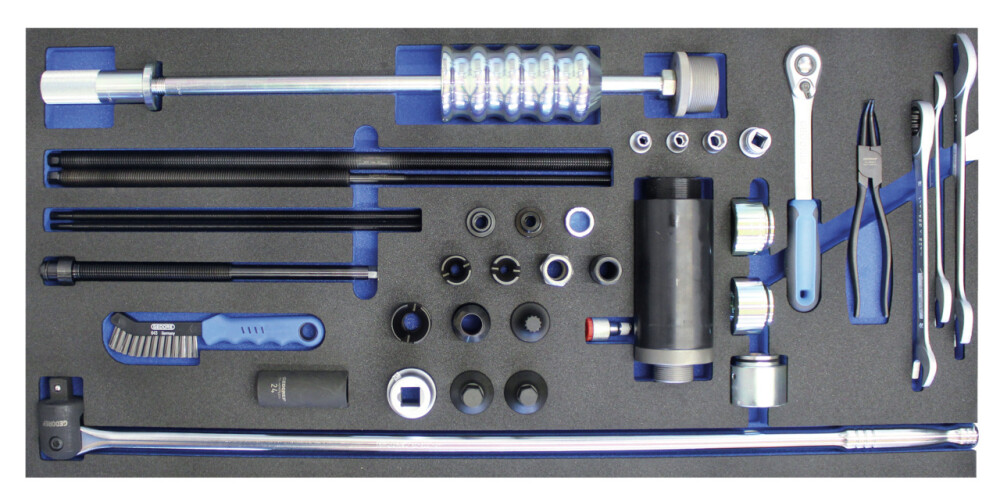

Content / range of application:

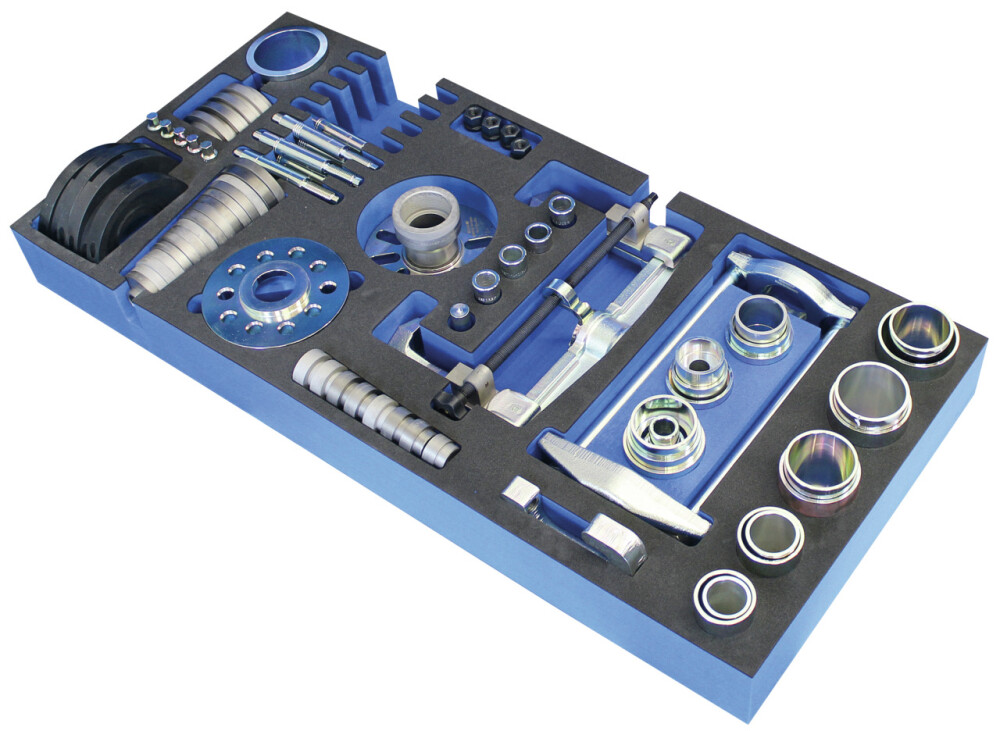

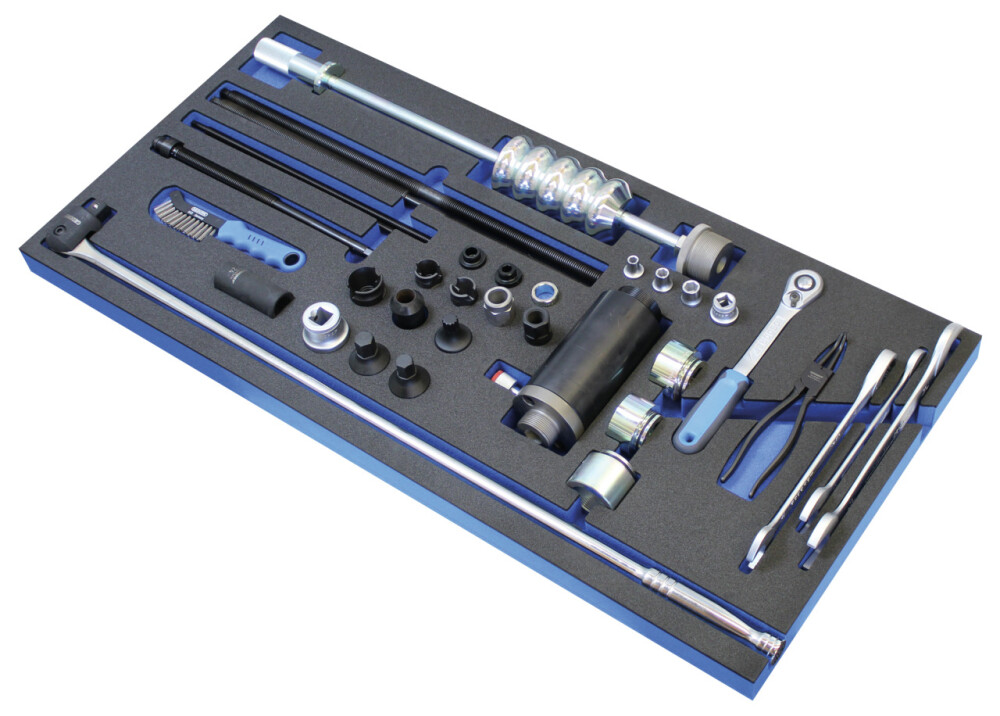

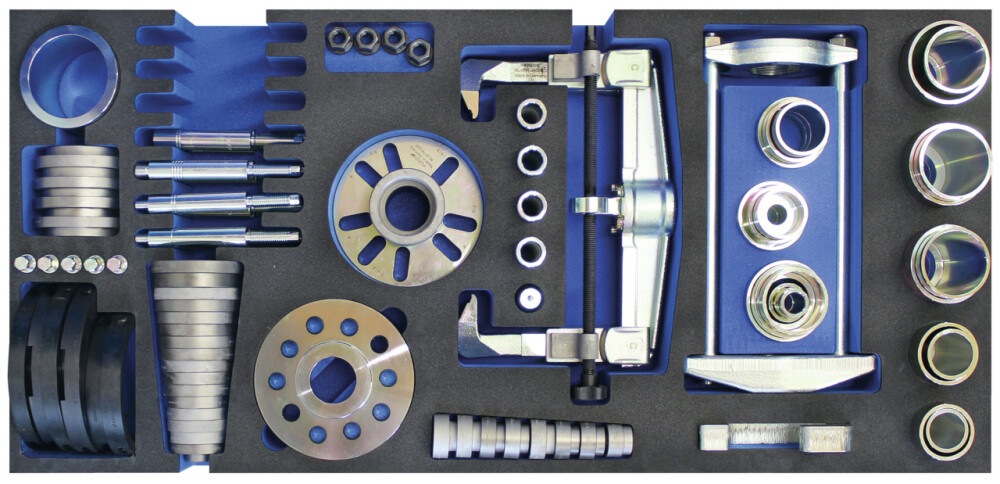

• Various drive parts such as hydraulic cylinder 17t KL-0040-2500, ring ratchet/open-end spanners, impact extractors 4.8 kg - KL-0049-31 as well as pull/thrust spindles (mechanical, hydraulic), quick-clamping nuts and adapters of the KL-0039-..series for driving the tool kits.
• Articulated handle - KL-4007-411 as well as power spanner/socket spanner sockets (SK / TX / XZN) for loosening and tightening of wheel bearing central screws.
• Locking ring pliers - KL-0192-5 for the disassembly and assembly of wheel bearing locking rings.
• Wire brush for derusting and cleaning various components.

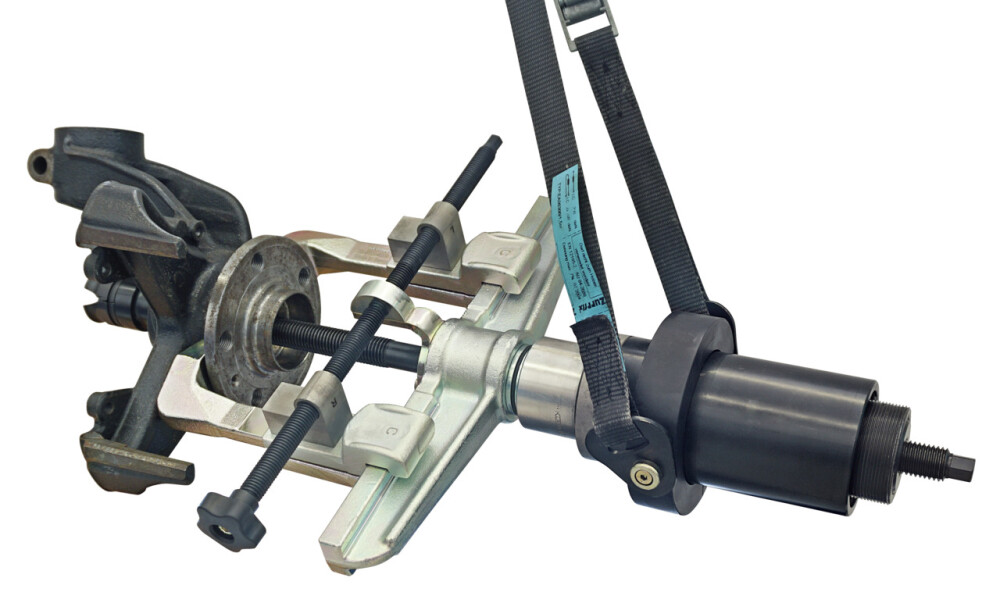

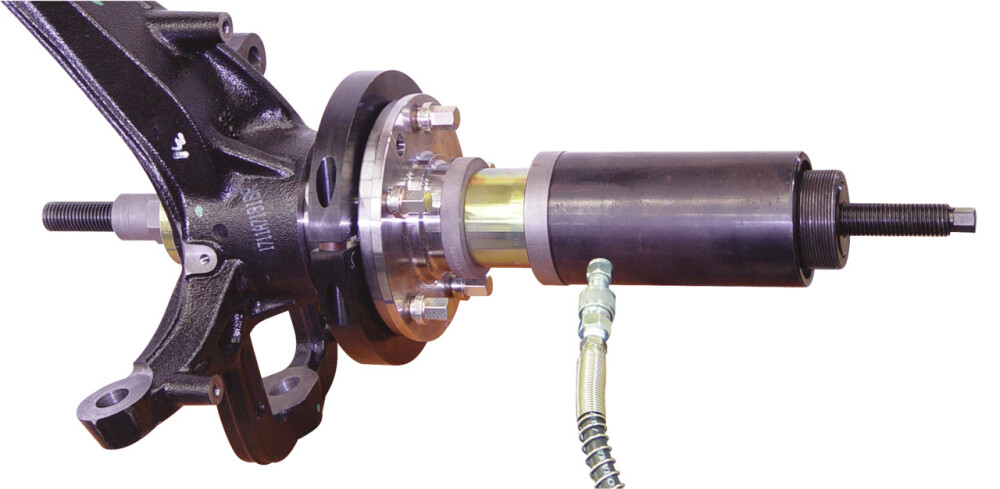

• Wheel hub puller - KL-0041-38.. as well as wheel bearing tool kits of the KL-0041-4.. Series for pressing out and in of wheel hubs and wheel bearing units, for example on VW, Audi, Seat, Škoda.
• Pullers of the KL-0174-.. Series for pulling standard wheel bearings as well as pressing out bonded and stuck cardan shafts.

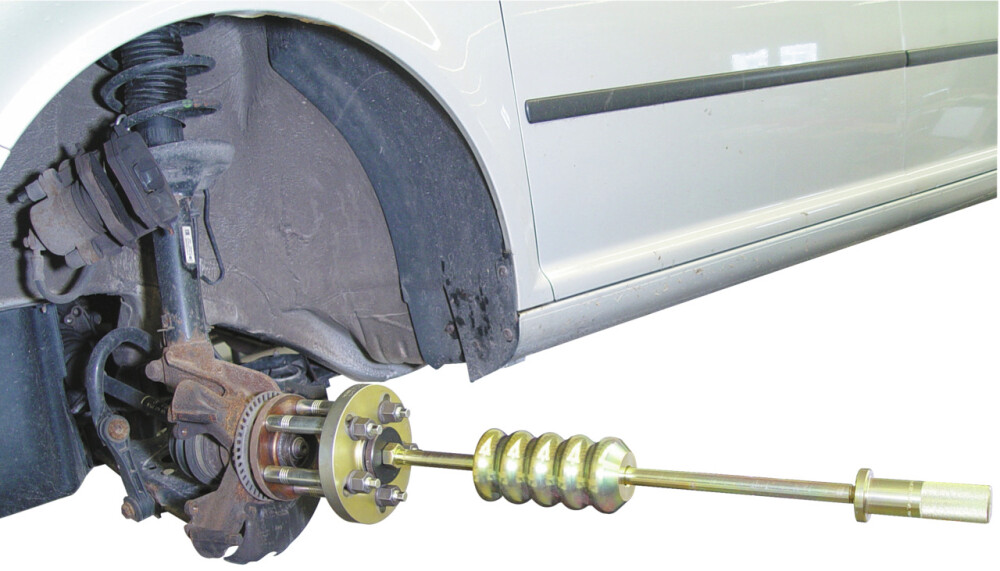

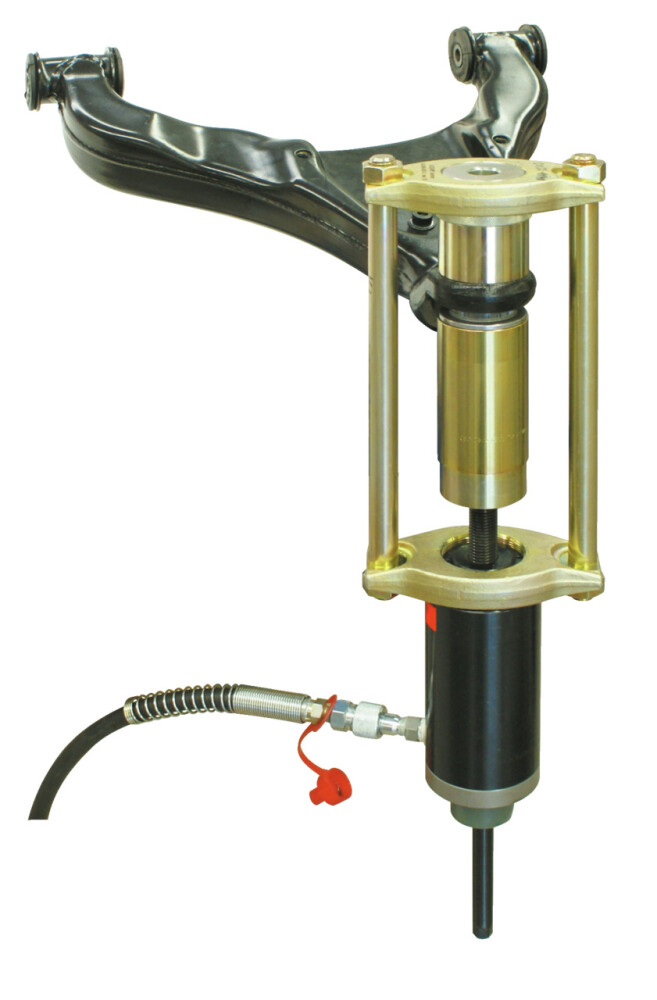

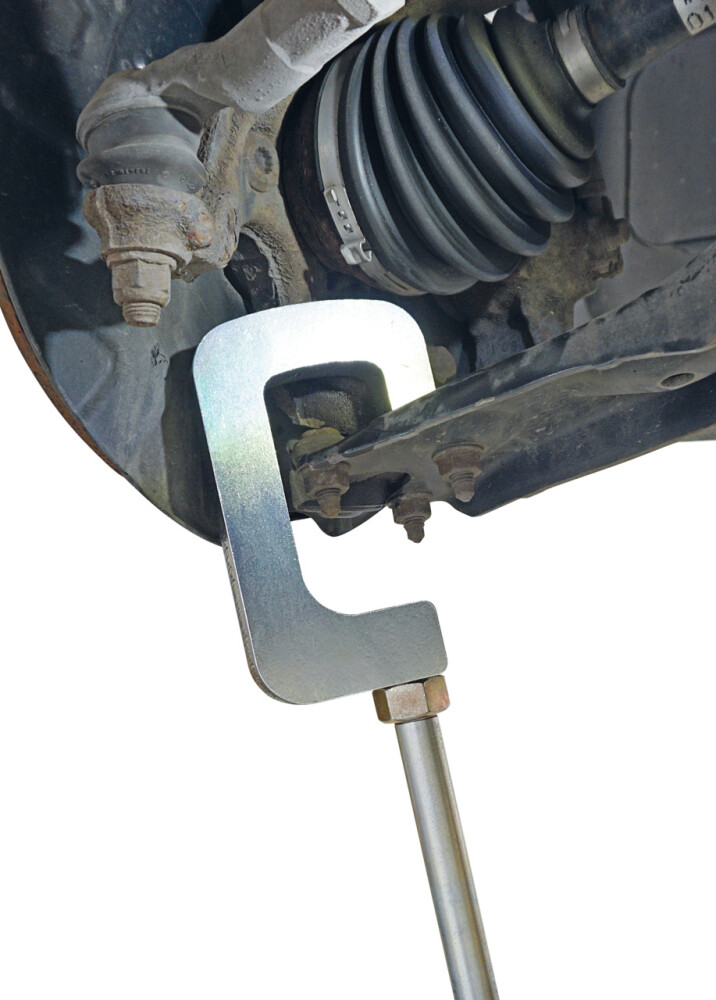

• Hooks for impact extractors - KL-0049-360 A for pulling of wishbones from the suspension joint clamping hole.

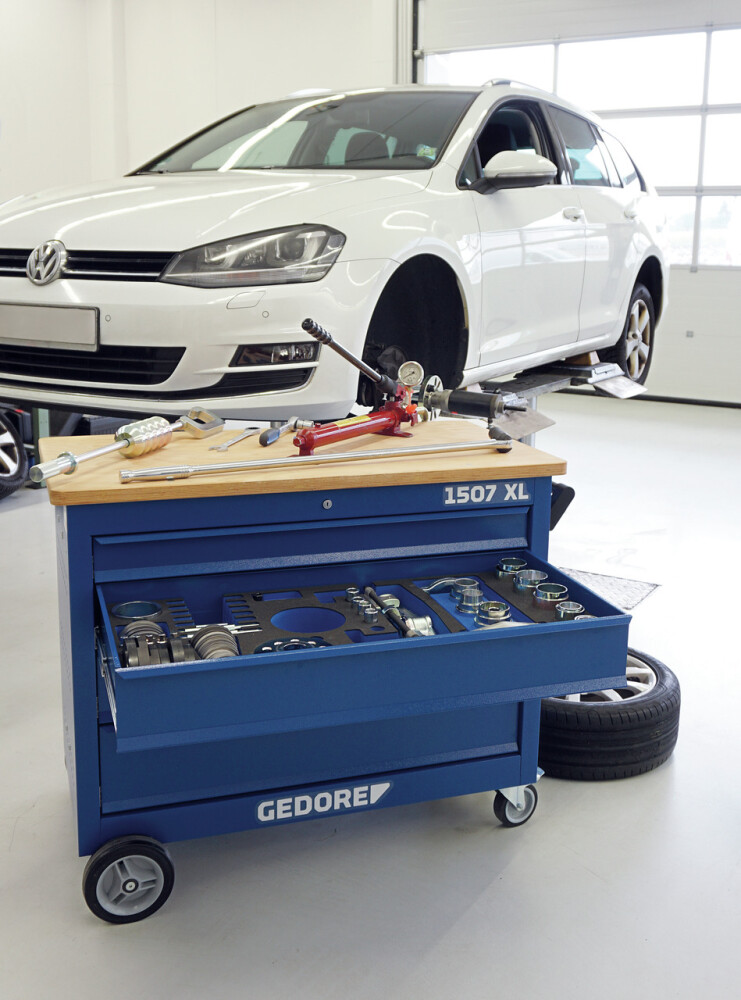

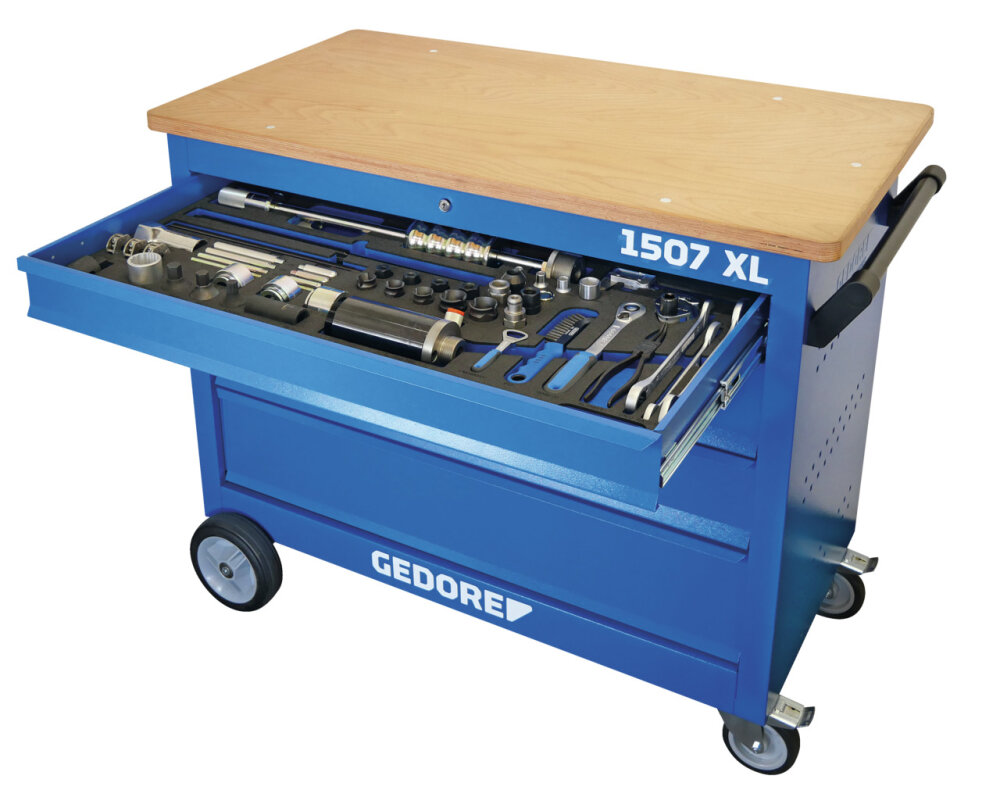

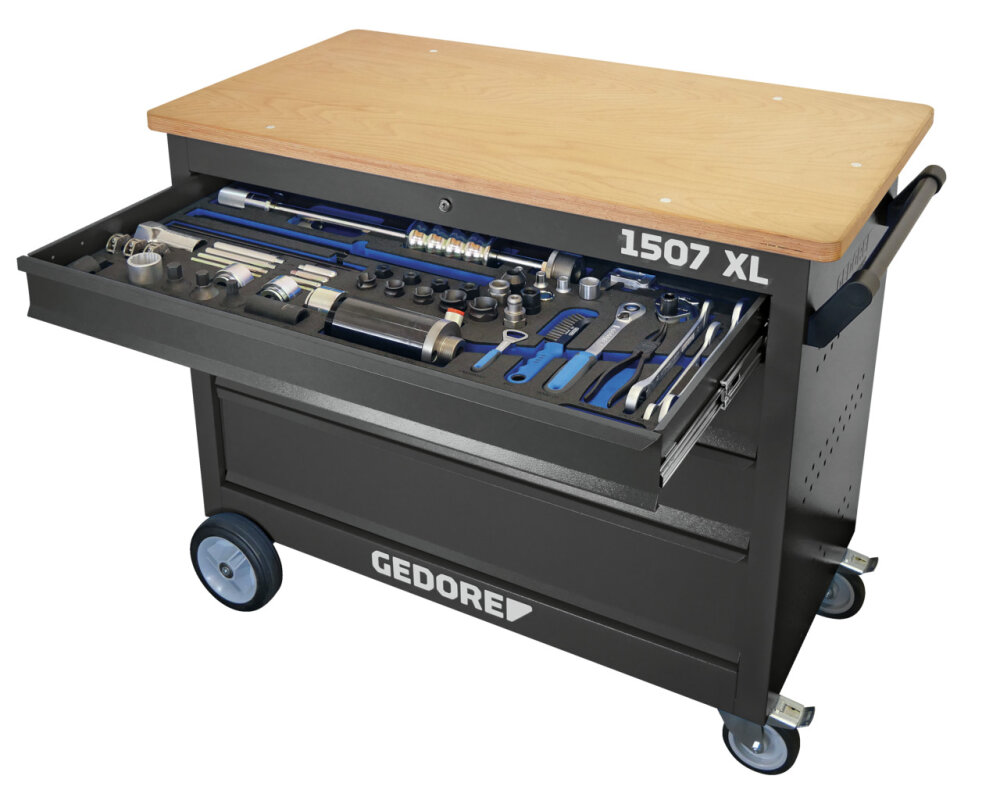

Assembly trolley specifications:
• Dimensions H 985 x W 1200 x D 635 mm
• Beech multiplex worktop, 30 mm thick, oiled
• Total load carrying capacity: 1000 kg / mobile operation: 750 kg
• 2 fixed castors Ø 200 mm and 2 swivel castors Ø 125 mm with total brake
• Sheet steel, corrosion-resistant, scratch-resistant powder-coated in GEDORE blue
• Extra wide drawers W 998 x D 474 mm with full extension, loadable up to 70 kg
• Automatic drawer retraction with single pull-out stop and central locking system
• Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
• Side panels with Euro perforation 10 x 38 mm for fastening hooks and tools
• 2 GEDORE heavy-duty wheels with roller bearings (fixed castors Ø 200 mm)
• 2 GEDORE smooth-running wheels with ball bearings (swivel castors Ø 125 mm), both with total brake
• Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue
