Description

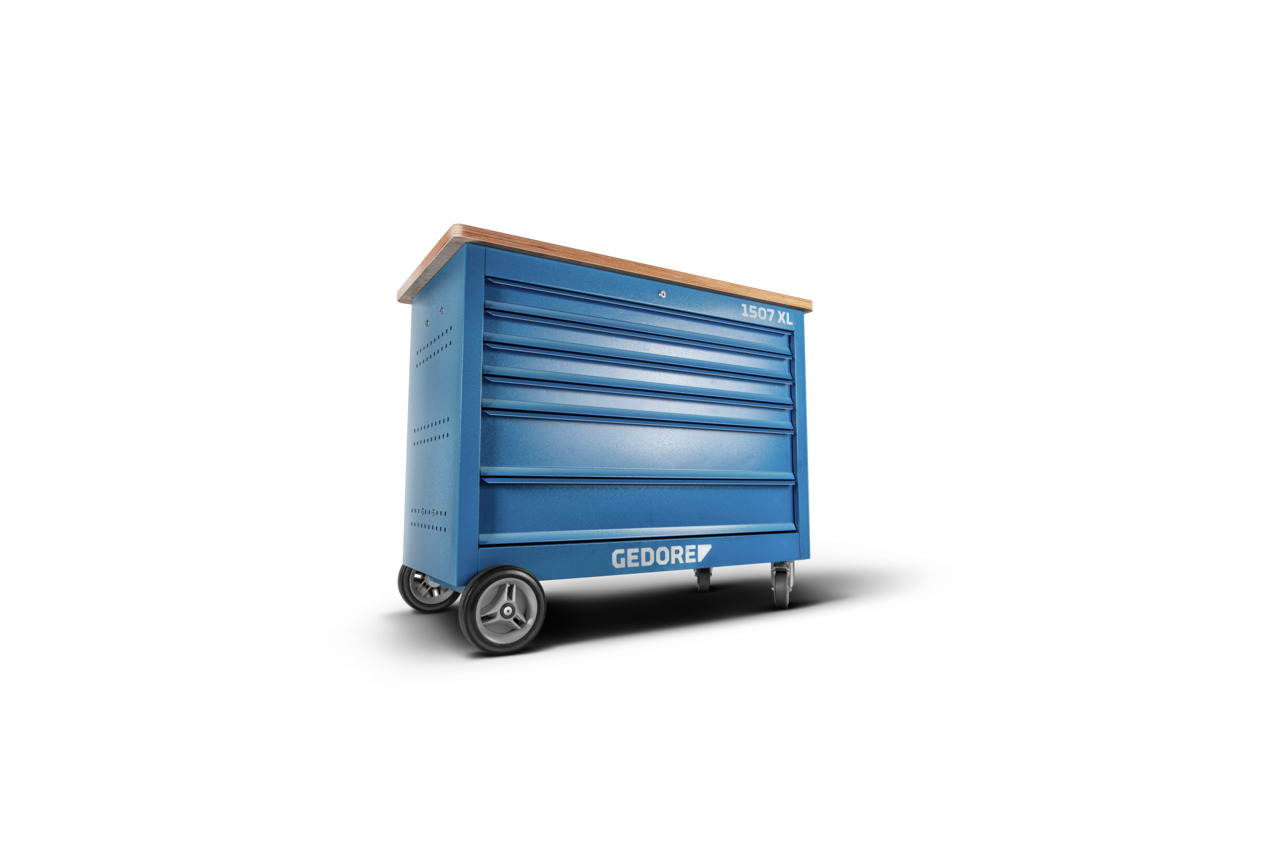

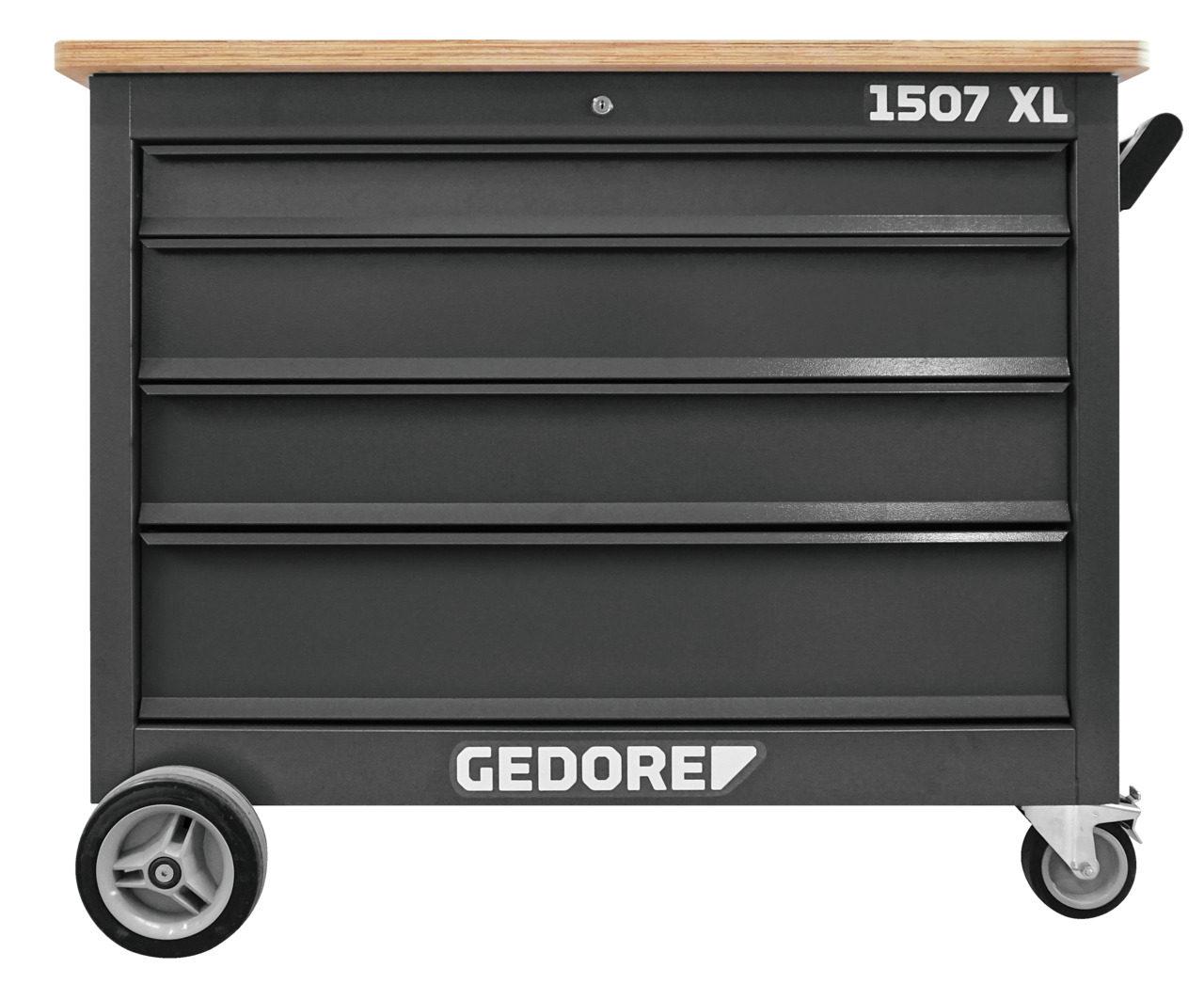

The robust MODULO tool/assembly trolley - KL-4999-120 A (GEDORE 1507 XL) with 4 extra-wide drawers and a 30 mm thick and solid beech multiplex worktop offers in combination with, for example, our KL-0039-... Wheel and silent block tool inserts and the stationary spring compressor KL-5501 B, a professional mobile workstation for professional and efficient chassis or axle repairs directly on the vehicle.

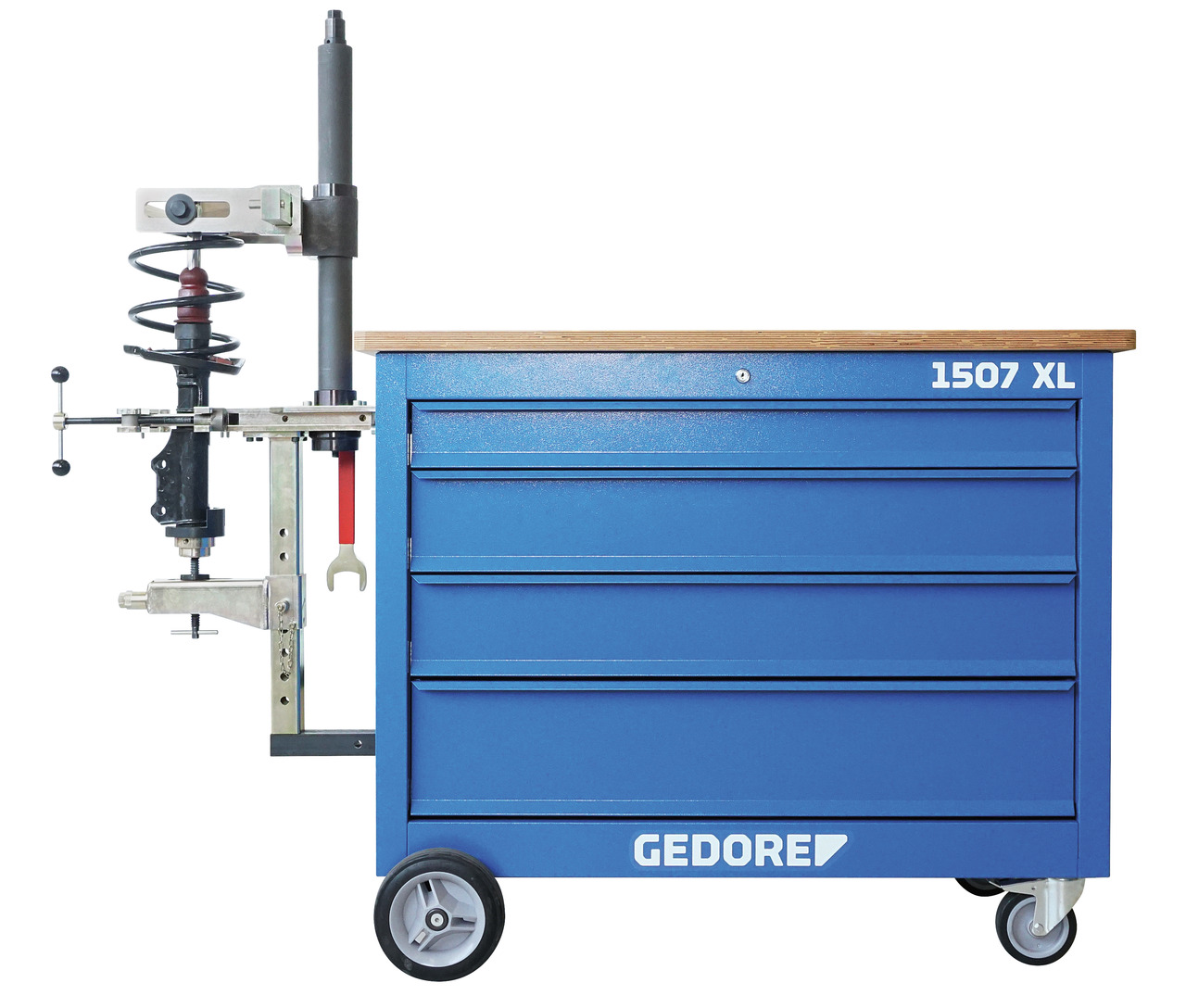

The specially reinforced side wall on the tool/assembly trolley enables simple, quick, and reliable assembly of the stationary spring compressor - KL-5501 B in conjunction with the MODULO fastening kit - KL-5501-211.
Body:
Dimensions: H 985 x W 1200 x D 635 mm
30 mm thick multiplex laminated beech wood board, surface additionally protected by linseed oil varnish
Worktop offset to the rear allows flush parking against the wall
One drawer unit in trolley width
Manoeuvrable and easy to steer with drive/steer handle
Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
Drawers:
Version with 4 drawers
Central locking with cylinder clock
Wide drawers (W 998 x D 474 mm) with full extension, removable
Single pull-out stop prevents more than one drawer from being opened, one-hand operation
Ball bearing guide rails with self-closing mechanism
Load capacity per drawer 70 kg
Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
GEDORE High-performance chassis:
Total load capacity 1000 kg, in mobile operation 750 kg
2 GEDORE heavy-duty wheels with roller bearings (fixed castors, 200 mm)
2 GEDORE easy-running wheels with ball bearings (swivel castors, 125 mm), both with total brake each
The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
Options:
Can be optionally fitted with GEDORE tool modules
Further drawer versions upon request
Special colours and designs on request
Delivery without tools and accessories
