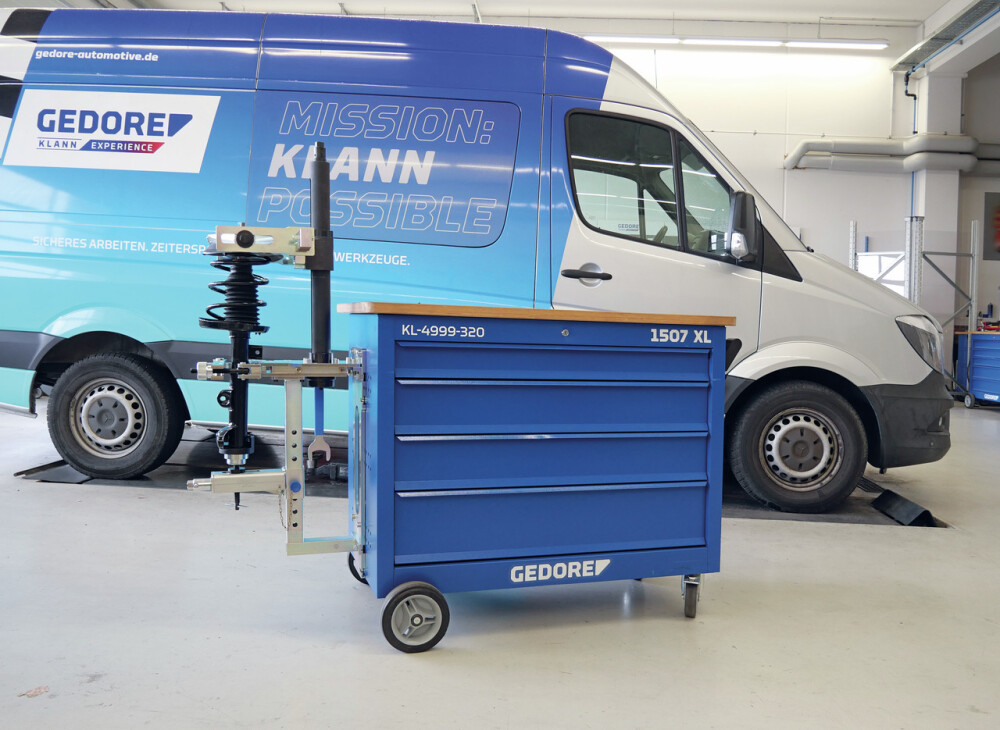

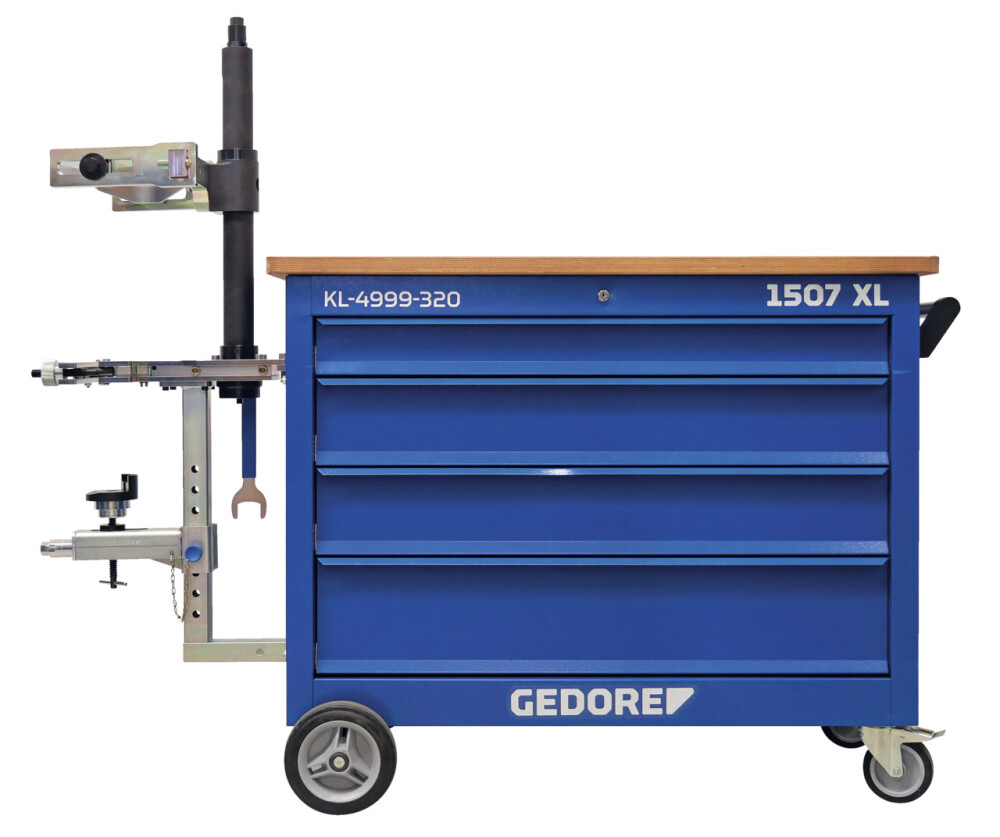

Workshop trolley "Springs and shock absorbers"
KL-4999-320
3514021
Universally suitable on chassis systems of passenger cars and vans.
Mobile workstation with extensive special tool assortment for fast, efficient maintenance work, especially in the area of spring and shock absorber replacement.
Scope of delivery:
• Robust workshop/assembly trolley with four full-extension drawers with ball-bearings
• Stationary spring compressor for safe tensioning of chassis springs on McPherson spring struts

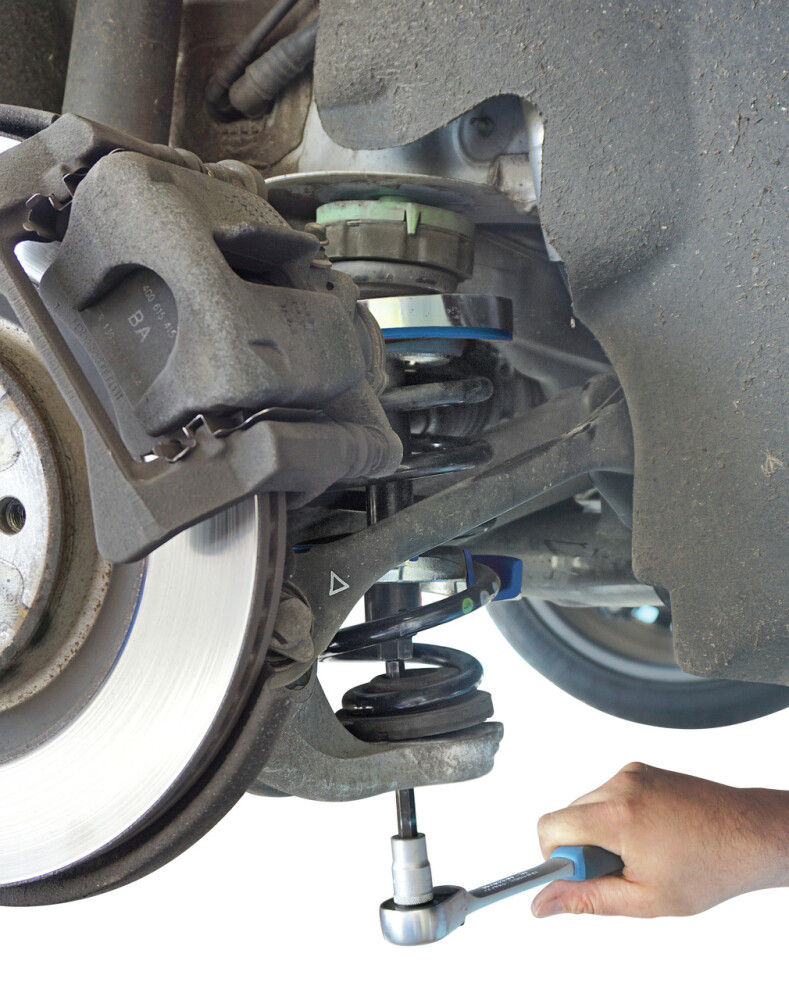

• Internal-type spring compressor with hold-down device for safe tensioning of chassis springs on wishbones and multi-link axles
• Removal and installation aid for pre-tensioning McPherson spring struts with spring strut clamping hole, for a faster removal and installation

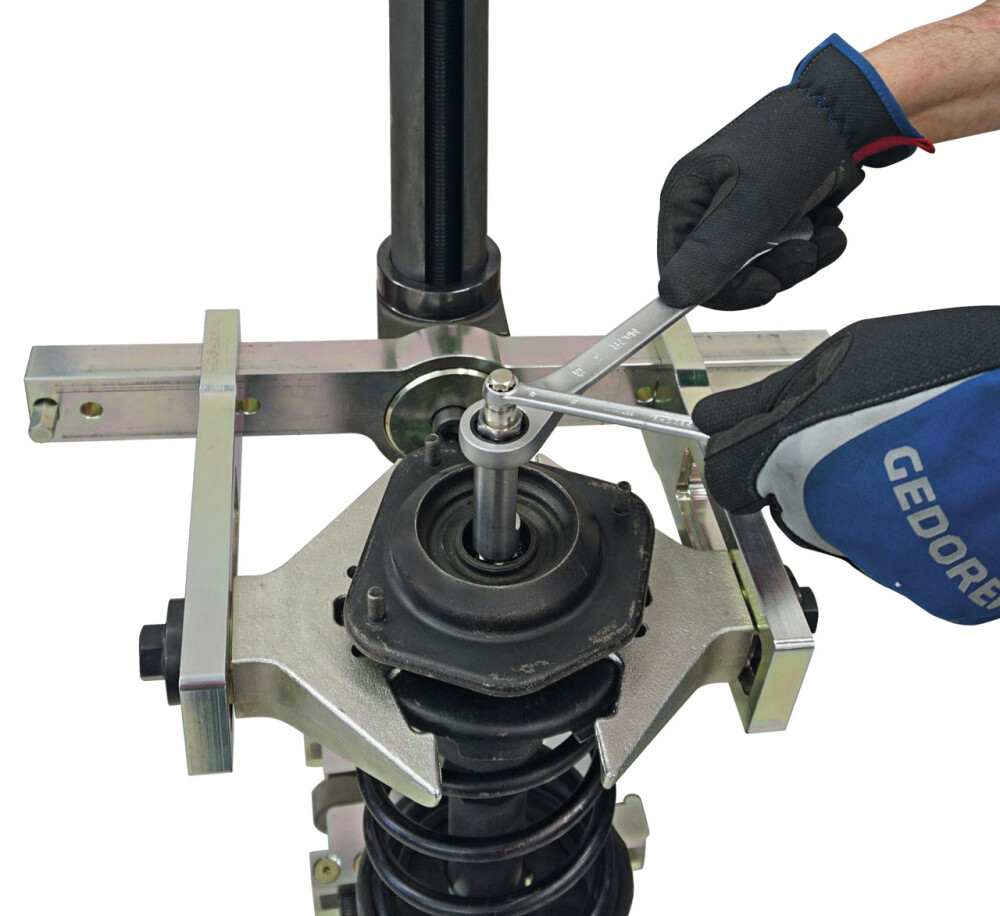

• Special sockets for unscrewing and tightening of shock absorber piston rod screw connections on McPherson spring struts
• Special socket spanner for counter-holding defective strut bearing nuts on VAG vehicles
• Spreading tool for damage-free spreading of spring strut clamping holes as well as support joint mounting devices
• Support device for safely supporting wheel suspensions during maintenance work on the chassis
• Including many other accessory parts and supplements
1x KL-5501 B - Spring compressor stationary
1x KL-5501-40 - Hand crank
1x KL-5501-31 - Spring collar adaptor ring, Ø 60/90mm
1x KL-5501-1435 A - Retaining adaptor for shock absorber
1x KL-5501-41 - Protective cover for spring compressor
1x KL-5501-210 - Assembly set, KL-5501 B, adjustable
1x KL-0056-11 B - Shock absorber piston rod tool kit
1x KL-0033-10 - Internal spring compressor compact
1x KL-0033-16 - Pair of pressure plates, size 0A
1x KL-0033-300 - Holding-down tool set

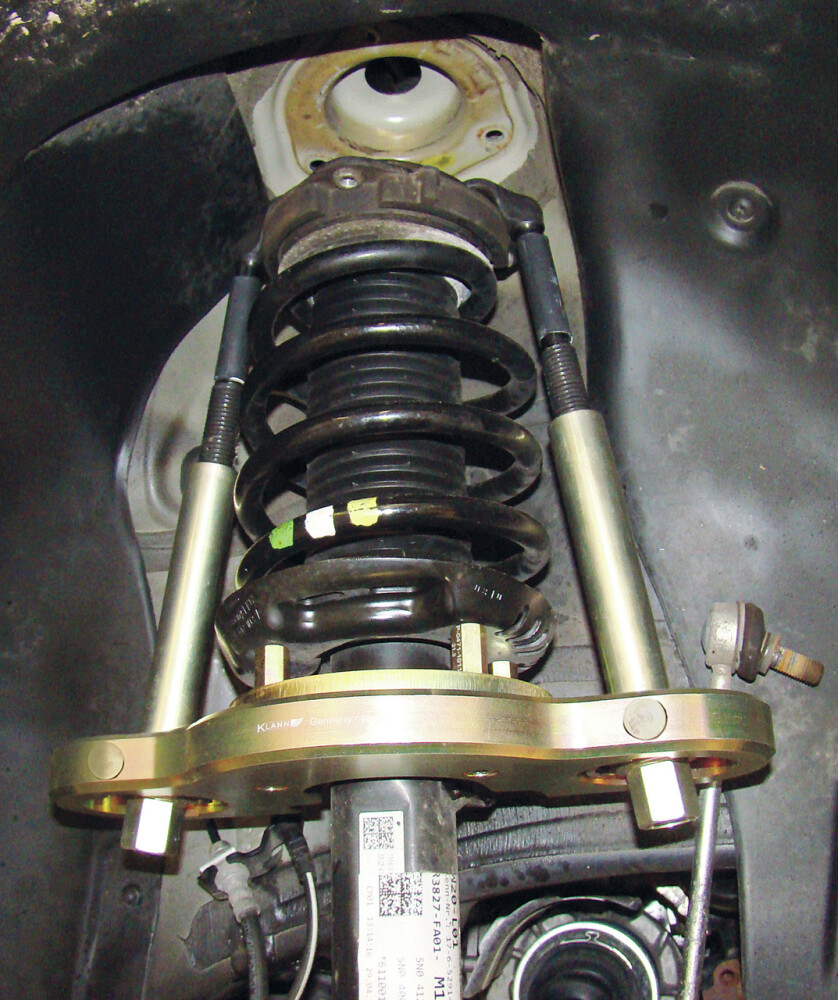

1x KL-0029-200 - Removal and mounting aid (base tool)
1x KL-0029-110 A - Upgrade kit, VW-Audi, size 1 + 2 + 3
1x KL-0029-122 - Upgrade kit for KL-0029-120 A, KYB
1x KL-0029-150 A - Upgrade kit, Ford, size 5 + 8
1x KL-0029-160 A - Upgrade kit, BMW, size 6
1x KL-0029-170 - Upgrade kit, VW T5, size 7

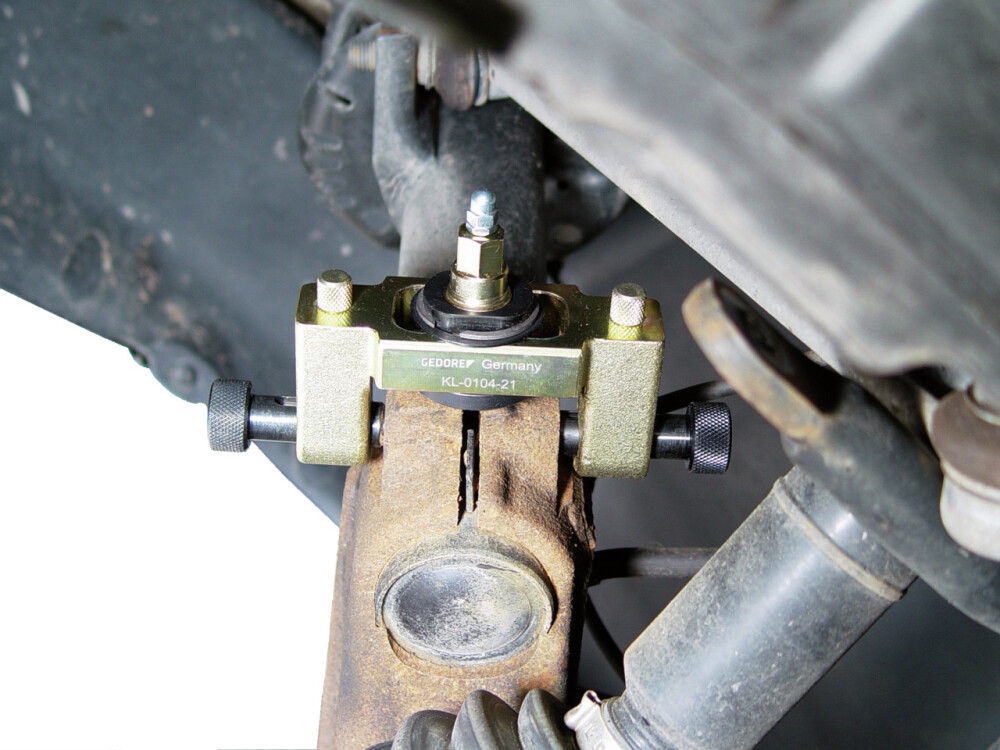

1x KL-0104-21-2 B - Spreader tool, adjustable
1x KL-0104-2122 A - Thrust screw with wedge No. 2 (a=2.0 mm, b=8.0 mm)
1x KL-0104-2124 - Thrust screw with wedge No. 4 (a=5.5 mm, b=9.5 mm)
1x KL-0104-2125 - Thrust screw with wedge No. 5 (a=12.5 mm, b=17.0 mm)
1x KL-0104-2141 - Bolt with thread, M10
1x KL-0050-60 - Special socket strut mount, 13 mm (waf)
1x KL-0050-61 - Special socket strut mount, 14 mm (waf)
1x KL-0145-120 A - Supporting device for wheel hubs
1x 7 R 13 - Combination ratchet spanner UD-Profile 13 mm
1x 7 R 27 - Combination ratchet spanner UD-Profile 27 mm

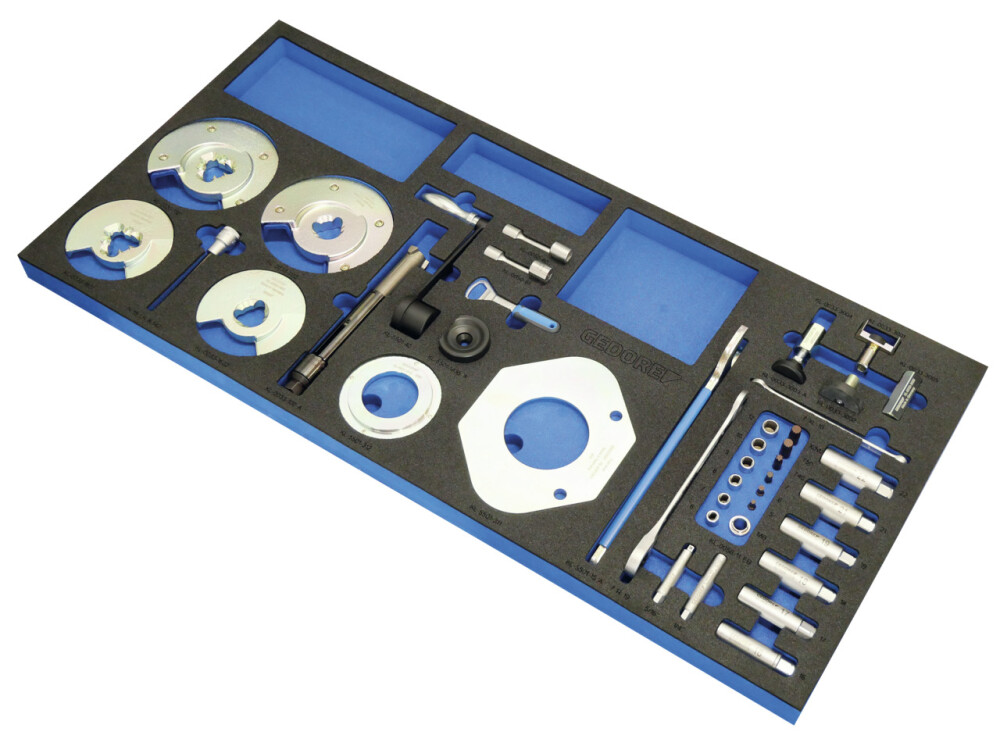

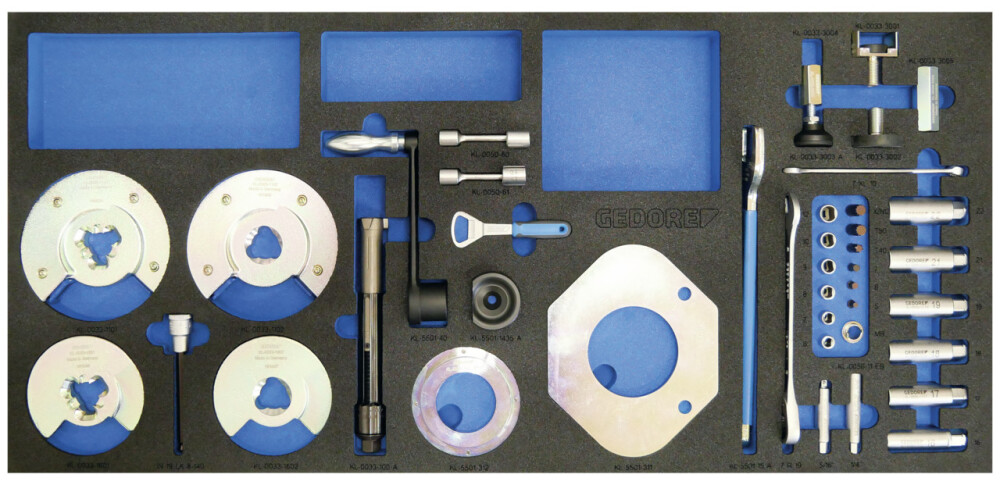

1x KL-4999-3201-1 - Foam insert

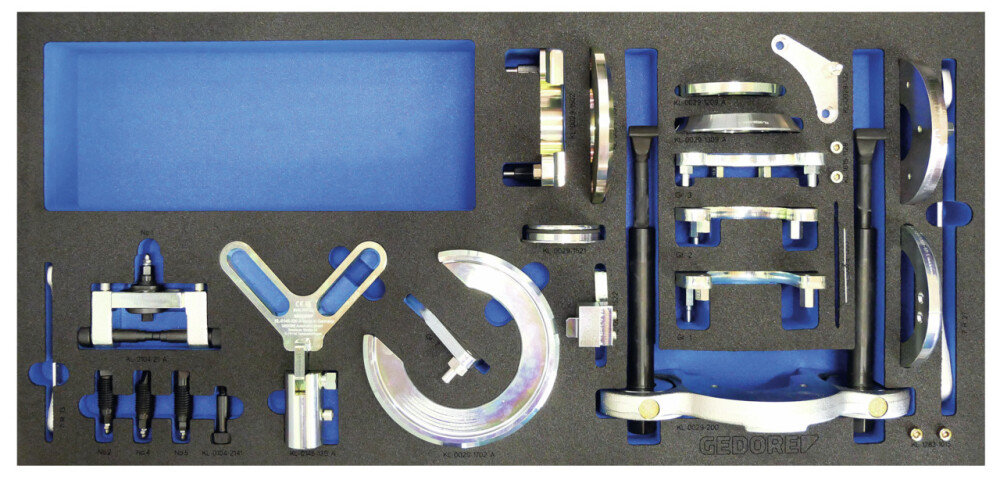

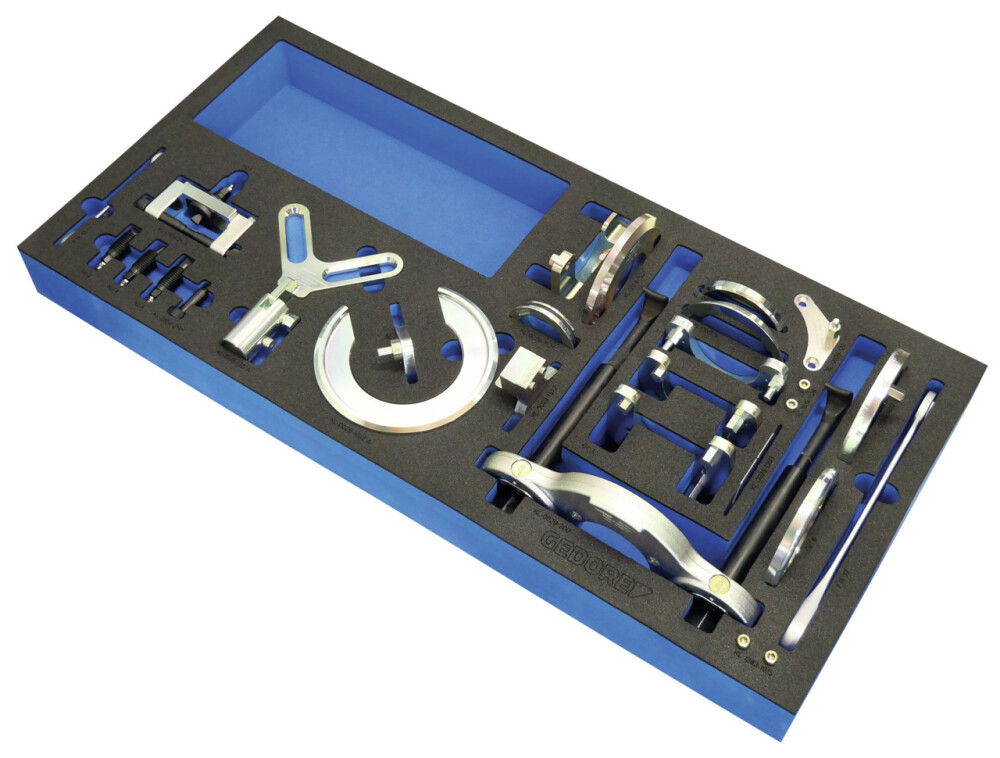

1x KL-4999-3202-1 - Foam insert
1x KL-4999-1280 - Surface-mount worktop
1x KL-4999-120 A - Workshop trolley with 4 draws
