Glow Plug Tool Set, Universal, M10x1
KL-0132-52 KB
3431592
Universally suitable for diesel engines with M10x1 glow plug thread, e.g. on VW-Audi, BMW, Mercedes, etc.

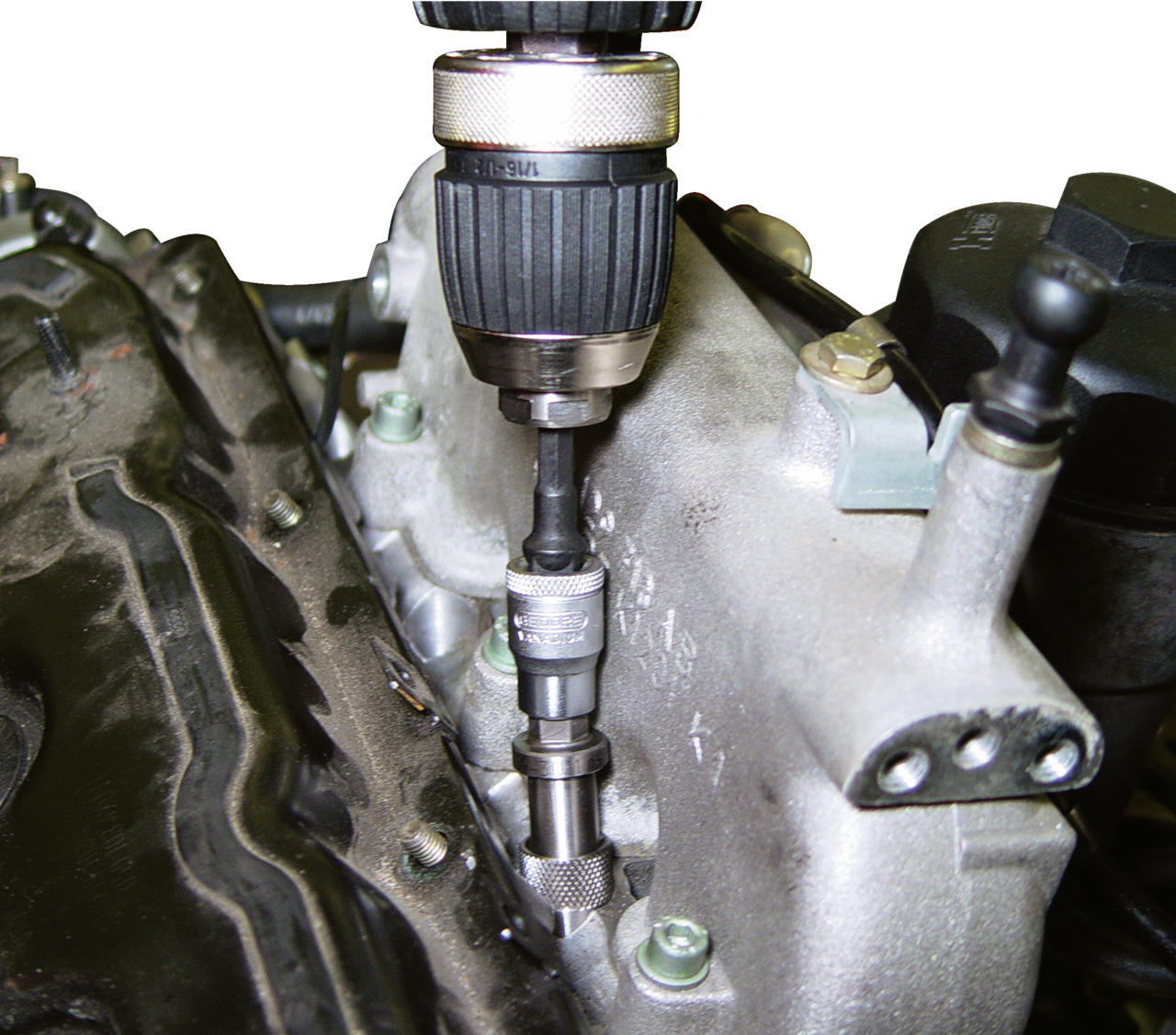

• For a simple boring out of torn glow plugs
• For recutting and cleaning the original thread on the cylinder head
• For pulling off the glow plugs
• Including special guide sleeves for VW-Audi, BMW and Mercedes engines
• No need to remove or replace the cylinder head
BMW: M47, N47, B47, N57.
Mercedes: OM611, OM612, OM613, OM646, OM647, OM648.

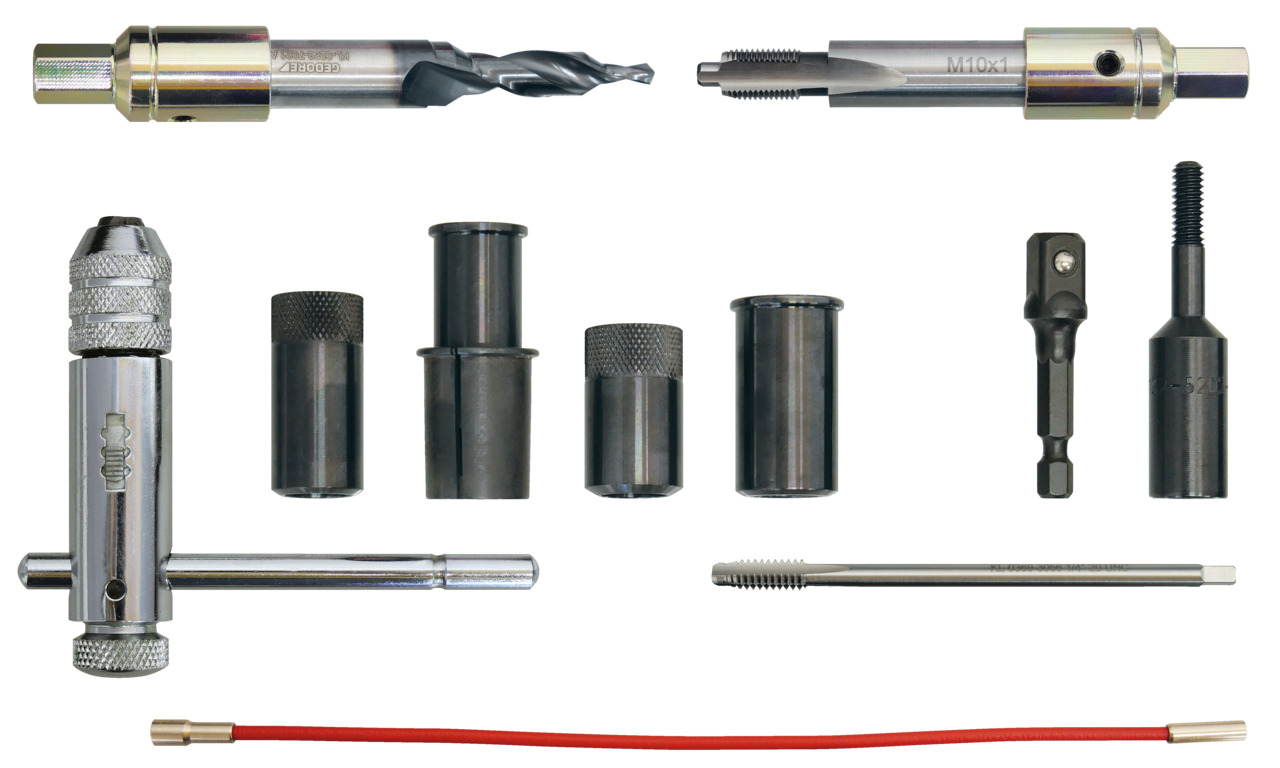

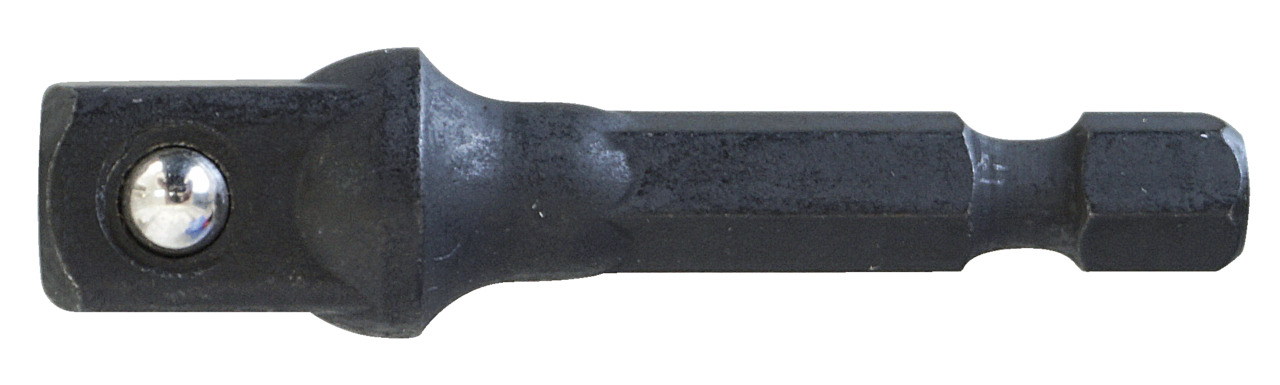

1x KL-4007-2510 - Adapter for drill 3/8" square

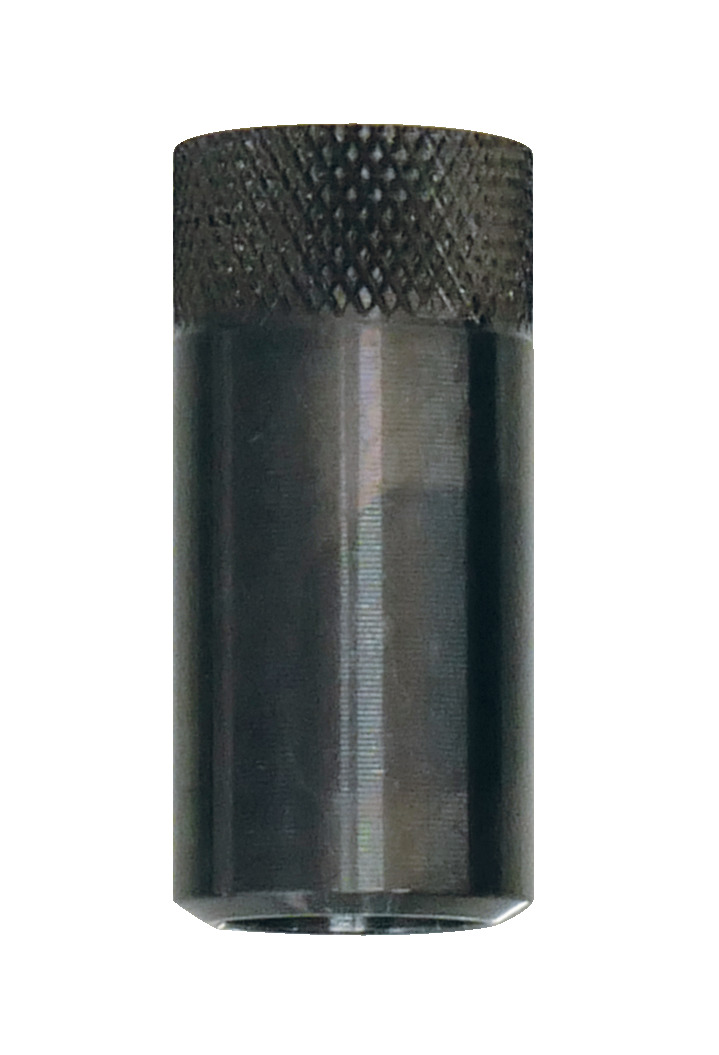

1x KL-0283-7003 - Guide sleeve diameter 13 mm
1x KL-0132-5201 - Guide sleeve for Mercedes

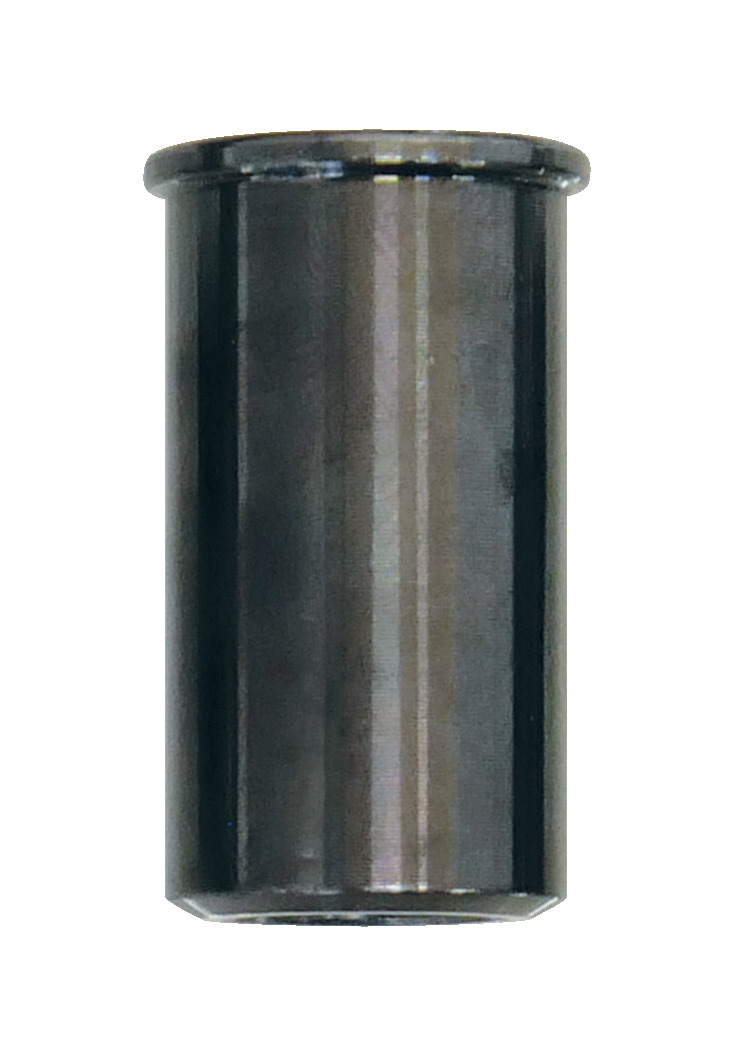

1x KL-0283-7005 - Guide sleeve VW

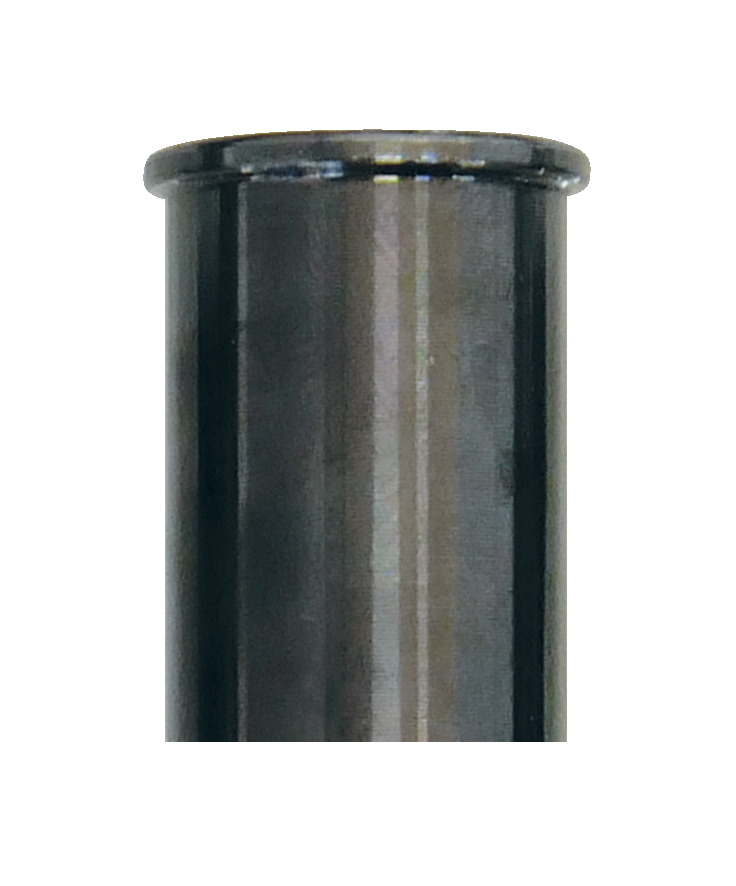

1x KL-0369-3015 - Centring sleeve long

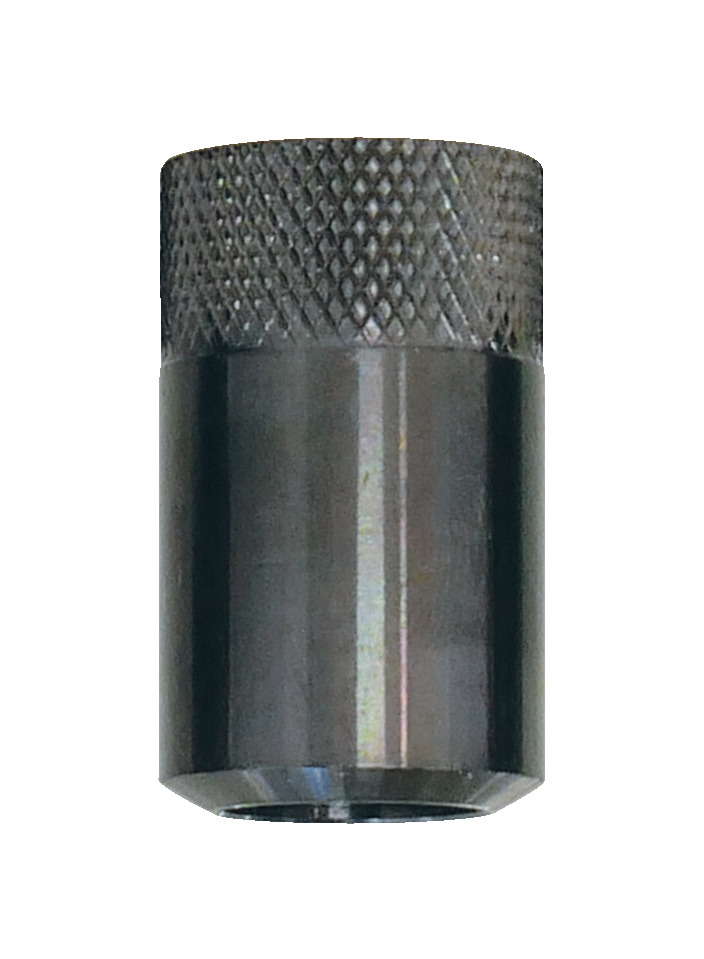

1x KL-0283-7004 - Guide sleeve BMW

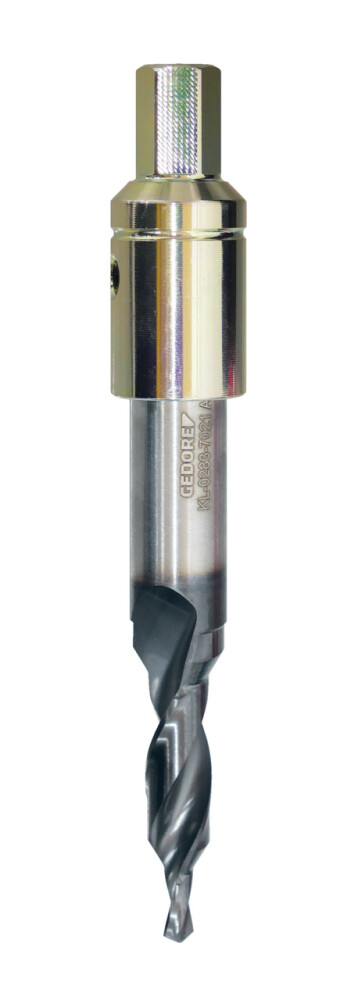

1x KL-0283-7021 A - Tapping drill diameter 4.8 / diameter 9 for M10x1
1x KL-0283-7022 - Tap M10x1

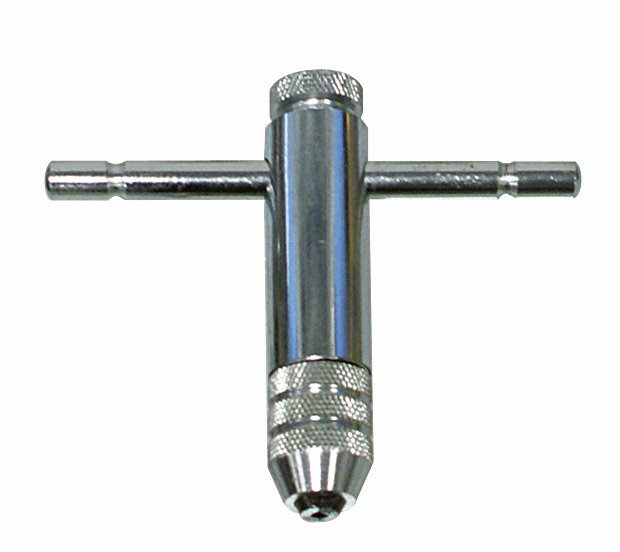

1x KL-0369-306 - Tool holder with square insert 2.4 - 5.5

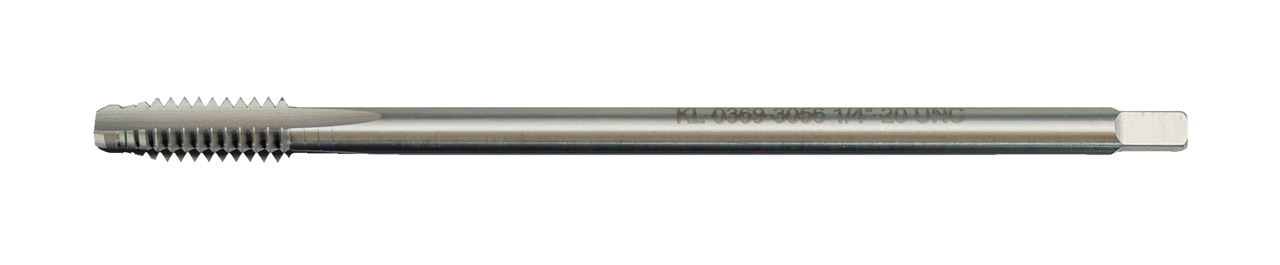

1x KL-0369-3056 - Drill ¼"-20 UNC with drilling head
1x KL-0132-5202 - Pull bolt 1/4"-20 UNC with drill head
1x KL-0126-221 - Magnetic lifter flexible

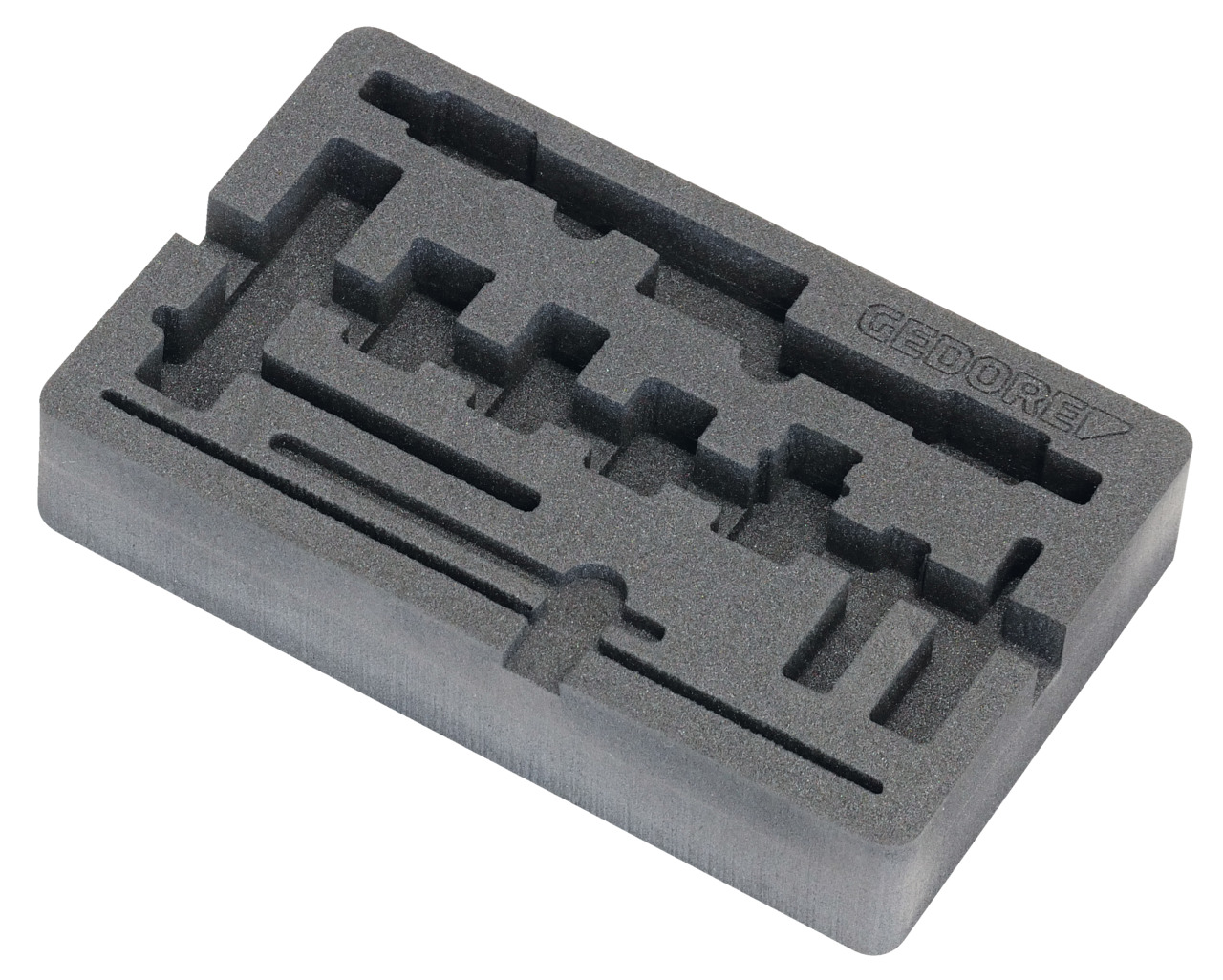

1x KL-0132-5290-1 B - Foam insert
1x KL-4990-9224 - Plastic case
