7

M9x1

No

KL-0132-61 K

3025837

No

Automotive

Construction and commercial vehicles

Universal fit for diesel engines with a mounting thread for glow plugs from M9x1. Especially suitable for, for example, Alfa, Fiat, Lancia, Opel and Saab 1.9 as well as 2.4 D / TiD / JTD / JTDM / CDTI engines. Installed in Alfa 147, 156, 159, 166, GT; Opel Astra H, Astra V, Signum, Vectra C, Zafira; Saab 9-3; Fiat Croma, Stilo; Lancia Thesis etc.

Suitable for glow plug thread M9x1, e.g. On Opel, Saab, Fiat, etc.

• For quickly and easily boring out damaged or torn glow plugs

• The original mounting thread is fully retained

Diesel

Fiat: 192A5.000, 841G.000, 841H.000, 937A5.000, 939A2.000, 939A3.000, 939A8.000.

Opel: Z19DTH, Z19DTJ.

82055980

Alfa Romeo 147 (937)

Alfa Romeo 156 (932)

Alfa Romeo 159 (939)

Alfa Romeo 166 (936)

Alfa Romeo GT (937)

Fiat Croma II (194)

Fiat Stilo (192)

Lancia Thesis (841)

Opel Astra H (A04)

Opel Signum CC (Z03)

Opel Vectra C (Z02)

Opel Zafira B (A05)

Saab 9-3 II (YS3F / D75 / D79 / E50 / E79)

PSA 1.9 D

PSA 1.9 TID

PSA 1.9 JTD

PSA 1.9 JTDM

PSA 1.9 CDTI

Fiat 1.9 D

Fiat 1.9 TID

Fiat 1.9 JTD

Fiat 1.9 JTDM

Fiat 1.9 CDTI

Opel 1.9 D

Opel 1.9 TID

Opel 1.9 JTD

Opel 1.9 JTDM

Opel 1.9 CDTI

PSA 2.4 D

PSA 2.4 TID

PSA 2.4 JTD

PSA 2.4 JTDM

PSA 2.4 CDTI

Fiat 2.4 D

Fiat 2.4 TID

Fiat 2.4 JTD

Fiat 2.4 JTDM

Fiat 2.4 CDTI

Opel 2.4 D

Opel 2.4 TID

Opel 2.4 JTD

Opel 2.4 JTDM

Opel 2.4 CDTI

185 mm

235 mm

48 mm

in a case

4046459154631

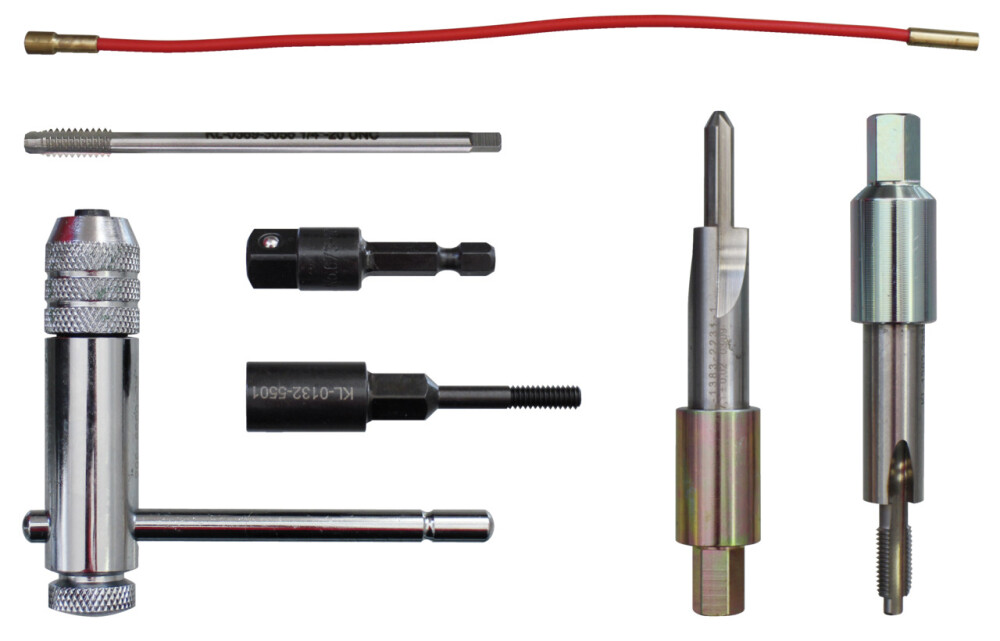

1x KL-0126-221 - Magnetic lifter, flexible

1x KL-0132-5501 - Pull bolt no. 12-24 UNC for impact extractor

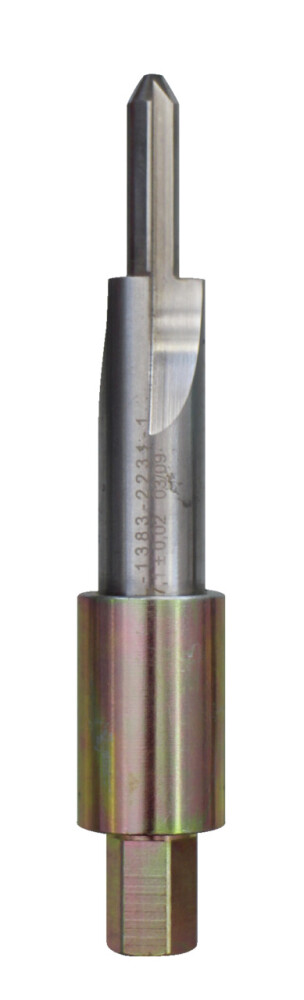

1x KL-0132-6101 - Core drill diameter 8.1 mm for M9x1

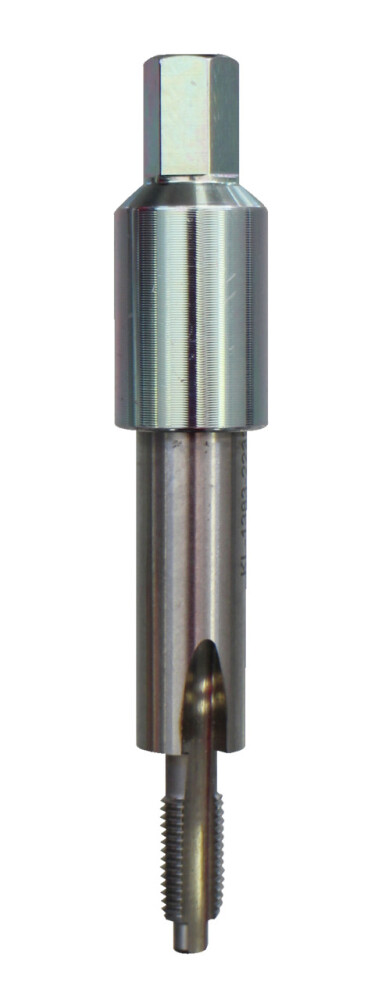

1x KL-0132-6102 - Tap M9x1

1x KL-0369-306 - Tool holder with square insert 2.4 - 5.5

1x KL-1383-2241 - Tap no. 12-24 UNC with drilling head

1x KL-4007-2510 - Adapter for drill 3/8" square

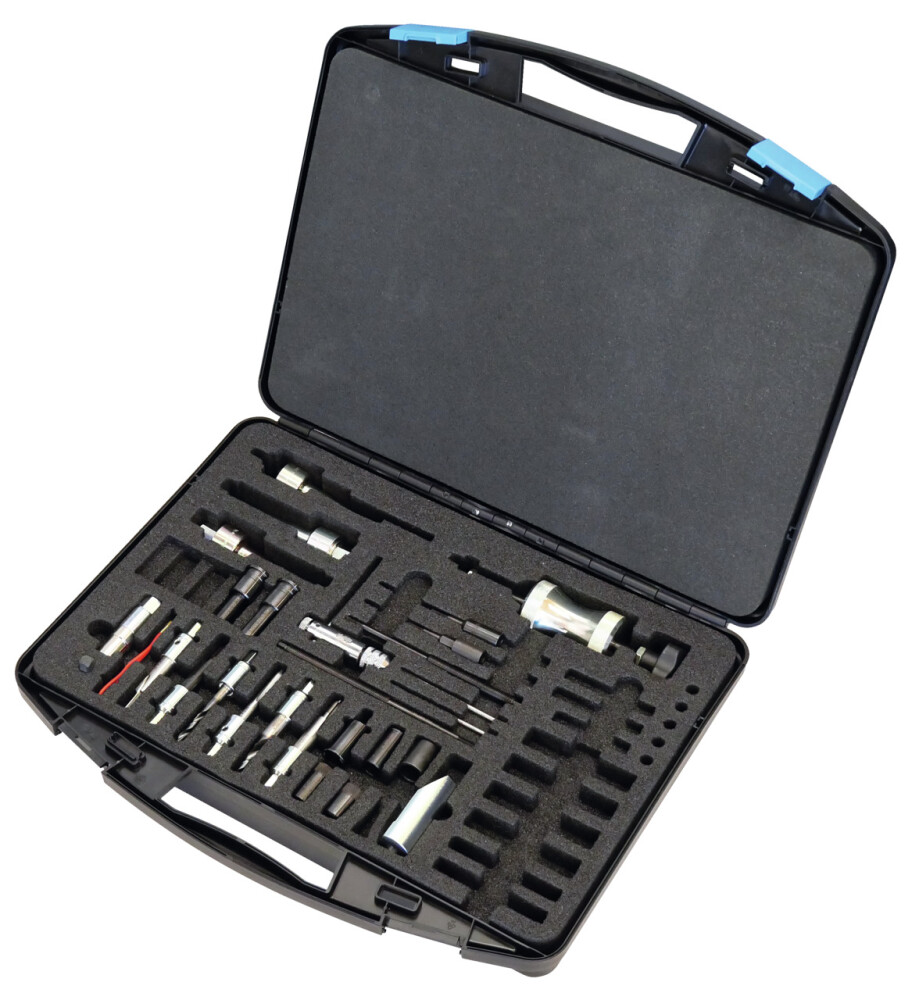

1x KL-0132-5590 A - Plastic case

Glow Plug Tool Set, Universal, M9x1

The universal KL-0132-61 KA glow plug tool set enables the quick and easy drilling out of damaged or broken-off glow plugs.

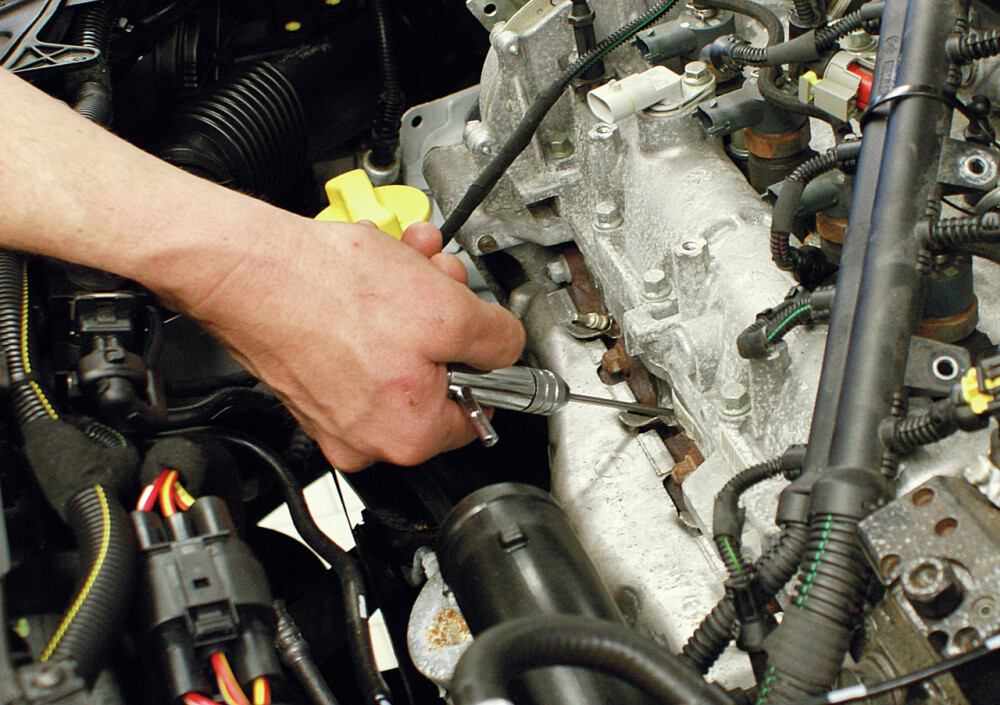

The glow plug or the glow plug head is bored out with the tapping drill.
Then, the original thread is recut and cleaned with the special tap.
Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller.

4046459154631

KL-0132-61 KA

universell✏Fiat✏Opel✏Saab

Alfa Romeo 147 (937)✏Alfa Romeo 156 (932)✏Alfa Romeo 159 (939)✏Alfa Romeo 166 (936)✏Alfa Romeo GT (937)✏Fiat Croma II (194)✏Fiat Stilo (192)✏Lancia Thesis (841)✏Opel Astra H (A04)✏Opel Signum CC (Z03)✏Opel Vectra C (Z02)✏Opel Zafira B (A05)✏Saab 9-3 II (YS3F / D75 / D79 / E50 / E79)

192A5.000(Fiat)✏841G.000(Fiat)✏841H.000(Fiat)✏937A5.000(Fiat)✏939A2.000(Fiat)✏939A3.000(Fiat)✏939A8.000(Fiat)✏Z19DTH(Opel)✏Z19DTJ(Opel)

PSA 1.9 D✏PSA 1.9 TID✏PSA 1.9 JTD✏PSA 1.9 JTDM✏PSA 1.9 CDTI✏Fiat 1.9 D✏Fiat 1.9 TID✏Fiat 1.9 JTD✏Fiat 1.9 JTDM✏Fiat 1.9 CDTI✏Opel 1.9 D✏Opel 1.9 TID✏Opel 1.9 JTD✏Opel 1.9 JTDM✏Opel 1.9 CDTI✏PSA 2.4 D✏PSA 2.4 TID✏PSA 2.4 JTD✏PSA 2.4 JTDM✏PSA 2.4 CDTI✏Fiat 2.4 D✏Fiat 2.4 TID✏Fiat 2.4 JTD✏Fiat 2.4 JTDM✏Fiat 2.4 CDTI✏Opel 2.4 D✏Opel 2.4 TID✏Opel 2.4 JTD✏Opel 2.4 JTDM✏Opel 2.4 CDTI

thread repair✏thread repair kit✏thread repair✏thread repair set✏glow plug tool✏glow plug tool M9x1✏tool for glow plugs
