10 mm

6

M8x1

M9x1

M10x1

No

KL-0369-25 K

2123533

No

Automotive

Construction and commercial vehicles

Fits universally for diesel engines with M8x1, M9x1 or M10x1 glow plug thread.

Especially suitable for BMW 1.6 and 2.0 diesel engines. Installed in, e.g. BMW series (E81/E82/E87/E88), 3 series (E90/E91/E92/E93), 5 series (E60/E61/F10), X1 (E84), X3 (E83); Mini Hatch (R56), Countryman (R60), Clubman (R55), Coupe (R58).

(Engine code: N47; N47 C16K1; N47 C16U1; N47 C20K1; N47 C20U1; N47 D20A; N47 D20C; N47 D20D; N47 D20K0; N47 D20K1; N47 D20O0; N47 D20O1; N47 D20U0; N47 D20U1; N47S D20B; N47S D20D; N47S D20T0; N47T D20K1; N47T D20O1; N47T D20U1)

Fits universally for diesel engines with M8x1, M9x1 or M10x1 glow plug thread.

• For cleaning the glow plug channel and the glow plug mounting thread

• Holder (glow plug mounting thread) and reamer (glow plug channel diameter) are freely combinable

• Reamer length adjustable

Diesel

BMW/Mini: N47, N47 C16K1, N47 C16U1, N47 C20K1, N47 C20U1, N47 D20A, N47 D20C, N47 D20D, N47 D20K0, N47 D20K1, N47 D20O0, N47 D20O1, N47 D20U0, N47 D20U1, N47S D20B, N47S D20D, N47S D20T0, N47T D20K1, N47T D20O1, N47T D20U1.

82076030

BMW 1er (E81 / E82 / E87 / E88)

BMW 3er (E90 / E91 / E92 / E93)

BMW 5er (E60 / E61)

BMW 5er (F07 / F10 / F11)

BMW X1 (E84)

BMW X3 (E83)

Mini II Clubman (R55)

Mini II Countryman (R60)

Mini II (R56 / R57 / R58 / R59)

BMW 1.6

BMW 2.0

4,8 mm

5,2 mm

5,8 mm

255 mm

120 mm

59 mm

in a case

4046459130109

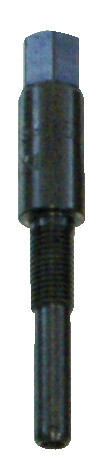

1x KL-0369-2510 A - Holder M8x1 with threaded pin

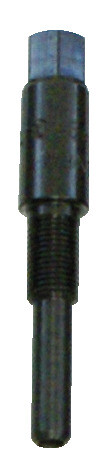

1x KL-0369-2610 A - Holder M9x1 with threaded pin

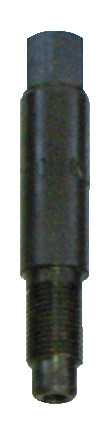

1x KL-0369-2710 A - Holder M10x1 with threaded pin

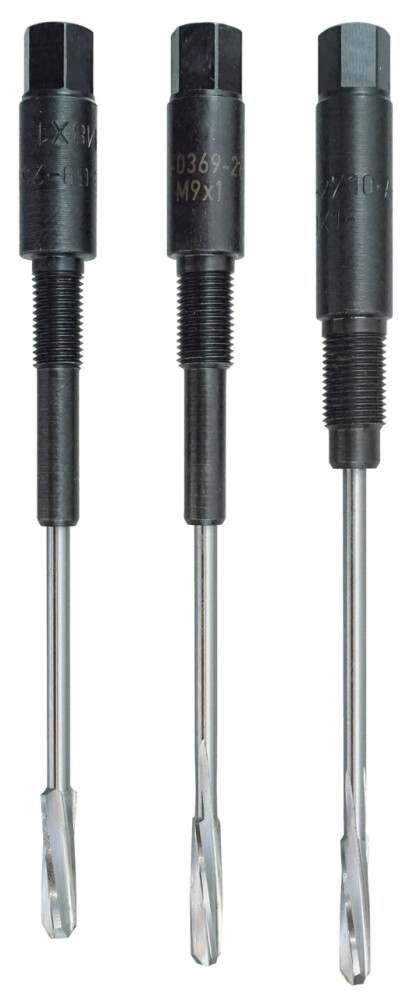

1x KL-0369-2512 A - Reamer dia. 4.8 mm (glow plug dia. D = Ø 4.0 mm)

1x KL-0369-2522 A - Reamer dia. 5.2 mm (glow plug dia. D = Ø 4.4 mm)

1x KL-0369-2732 A - Reamer dia. 5.8 mm (glow plug dia. D = Ø 5.0 mm)

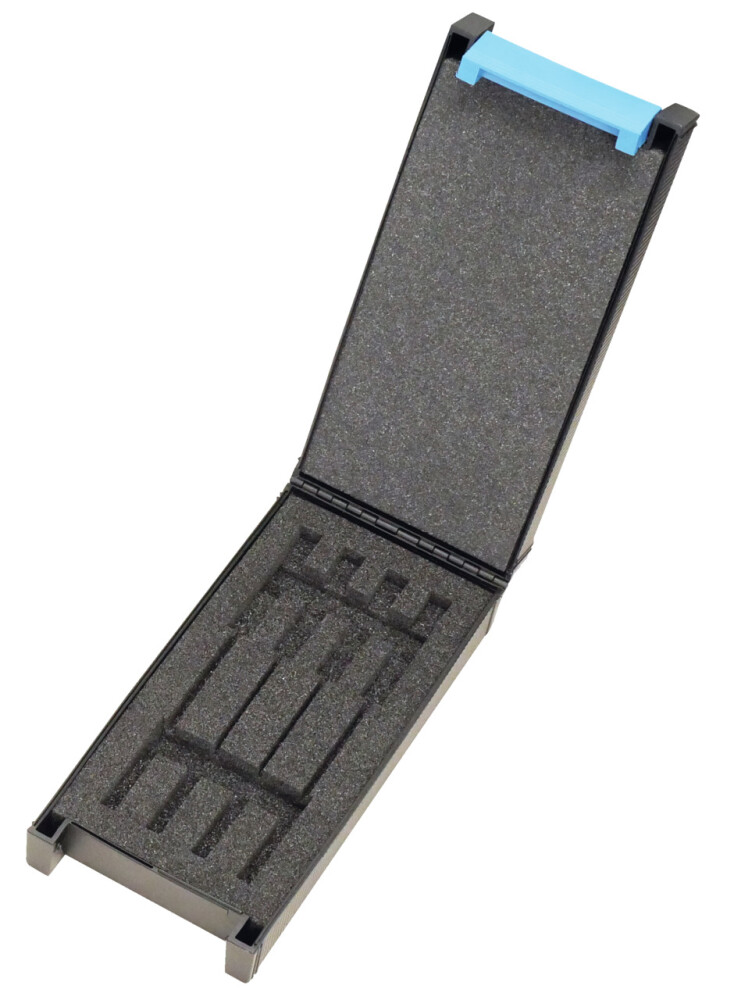

1x KL-0369-2590 - Plastic case

Reamer Set for Glow Plug Aperture, adjustable

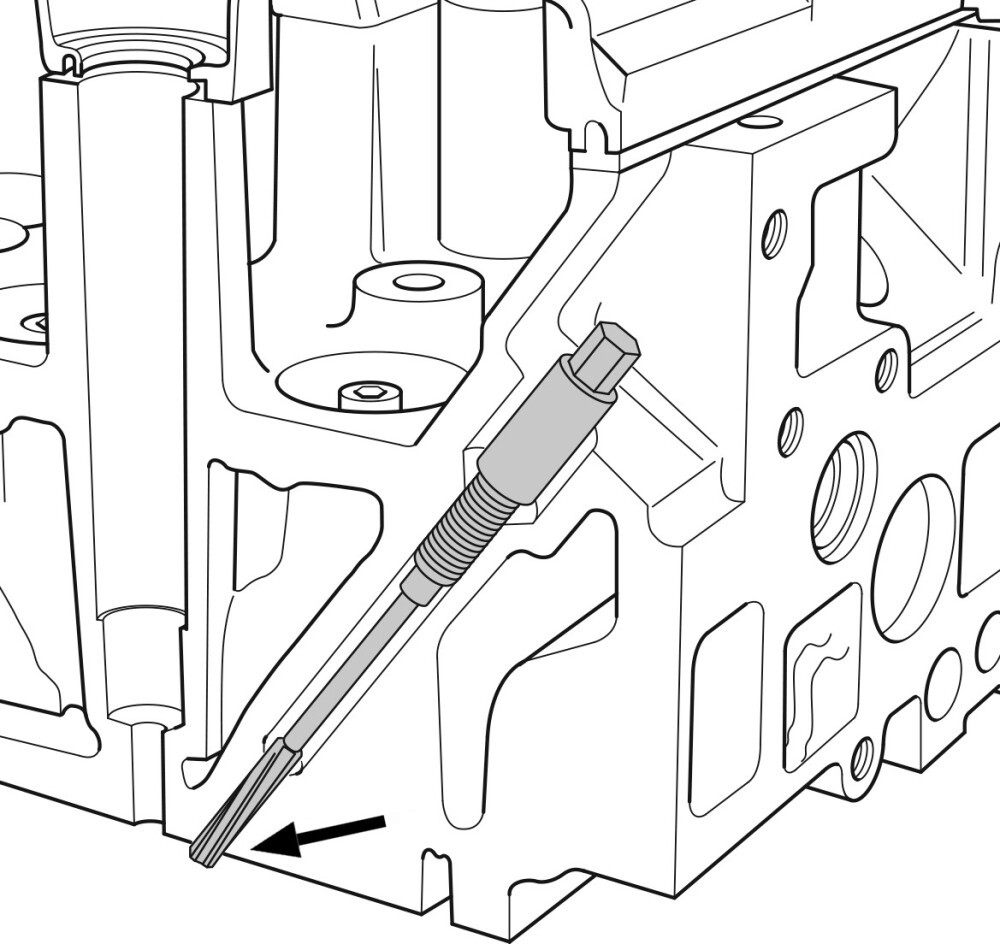

For cleaning the glow element duct as well as the glow plug mounting thread.

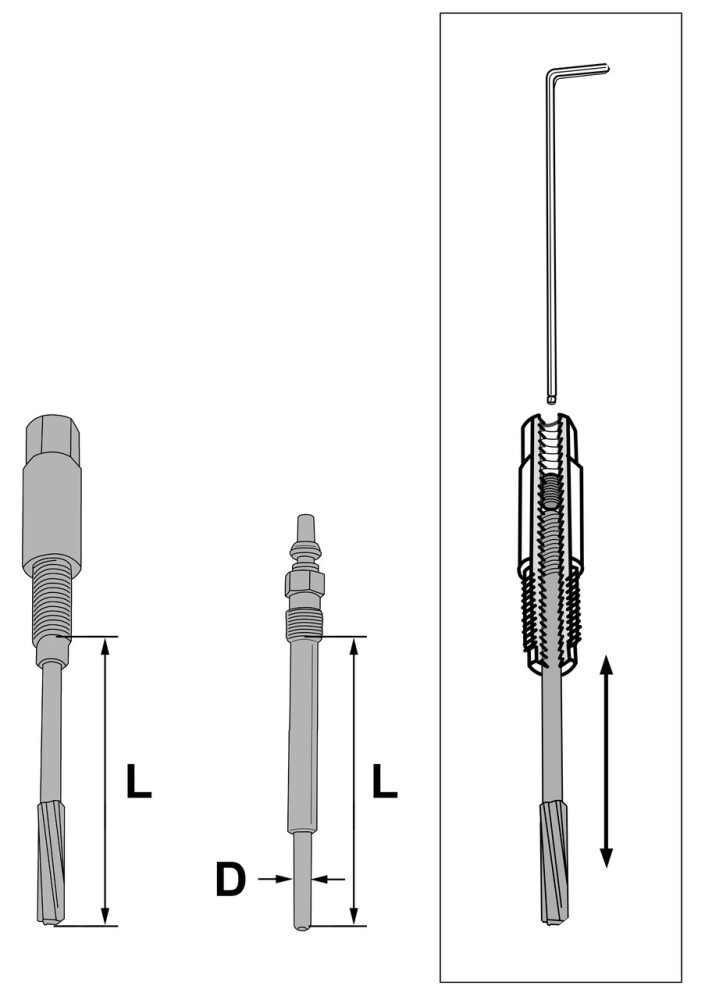

The possibility of combining the different holders (glow plug mounting thread) with the reamers (glow plug channel Ø) and the precise adjustment of the reamer length results in an almost universally applicable reamer set with reamers precisely matched to the respective engine.
By means of the cleaning groove in the holder and the specially shaped reamer, deposits and coking on the glow plug mounting thread and the glow plug channel are gently removed.

4046459130109

KL-0369-25 KA

universell✏BMW✏Mini

BMW 1er (E81 / E82 / E87 / E88)✏BMW 3er (E90 / E91 / E92 / E93)✏BMW 5er (E60 / E61)✏BMW 5er (F07 / F10 / F11)✏BMW X1 (E84)✏BMW X3 (E83)✏Mini II Clubman (R55)✏Mini II Countryman (R60)✏Mini II (R56 / R57 / R58 / R59)

N47(BMW/Mini)✏N47C16K1(BMW/Mini)✏N47C16U1(BMW/Mini)✏N47C20K1(BMW/Mini)✏N47C20U1(BMW/Mini)✏N47D20A(BMW/Mini)✏N47D20C(BMW/Mini)✏N47D20D(BMW/Mini)✏N47D20K0(BMW/Mini)✏N47D20K1(BMW/Mini)✏N47D20O0(BMW/Mini)✏N47D20O1(BMW/Mini)✏N47D20U0(BMW/Mini)✏N47D20U1(BMW/Mini)✏N47SD20B(BMW/Mini)✏N47SD20D(BMW/Mini)✏N47SD20T0(BMW/Mini)✏N47TD20K1(BMW/Mini)✏N47TD20O1(BMW/Mini)✏N47TD20U1(BMW/Mini)

BMW 1.6✏BMW 2.0

reamer✏reamer✏reamer for glow pin channel✏reamers
