Wheel Bearing Installation Tool, Ø 92mm
KL-0041-452 C

3445828

FIND A DEALER

Description
Accessoires
Technical data
Manual
Consists of
Spare parts
Similar
Eigenschappen Fabrikant
Documenten
Certificaten
Videos
Handleidingen
Tekeningen
Deeplink
Extra informatie
Cross selling

Description

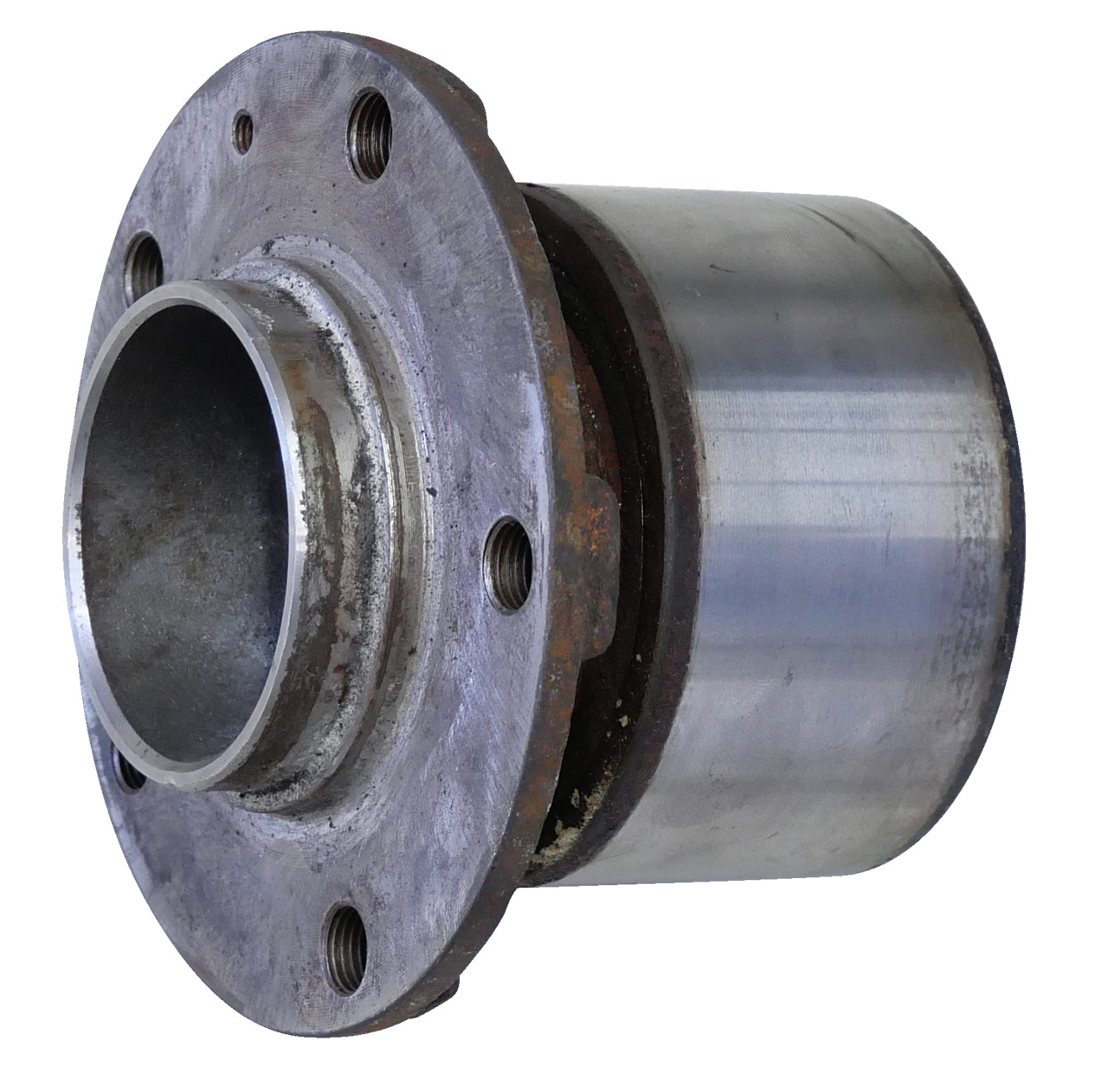

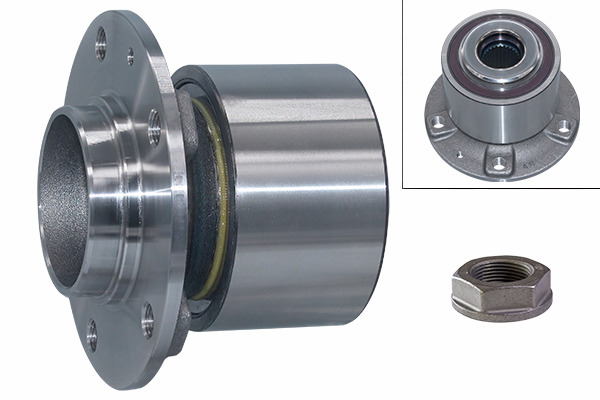

Suitable for wheel bearing units without center bore, e.g. on rear axles with wheel bearing Ø 92 mm on Toyota ProAce; Peugeot Expert, Traveller; Citroen Jumpy / Dispatch, Spacetourer; Opel Zafira Life; Fiat Scudo III, Ulysse III and many more.

Also suitable for conventional wheel bearing units and bolt circle Ø 5x108, 5x112 mm.

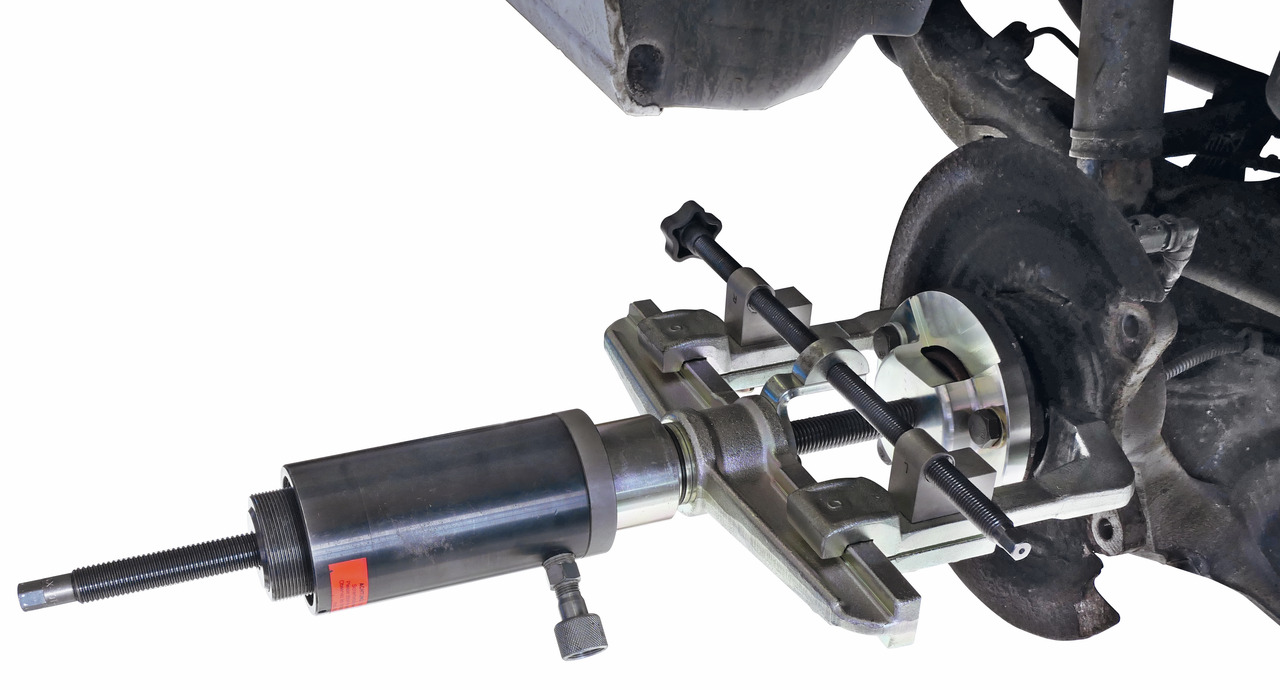

For quick and professional removal and installation of wheel bearing units directly on the vehicle.

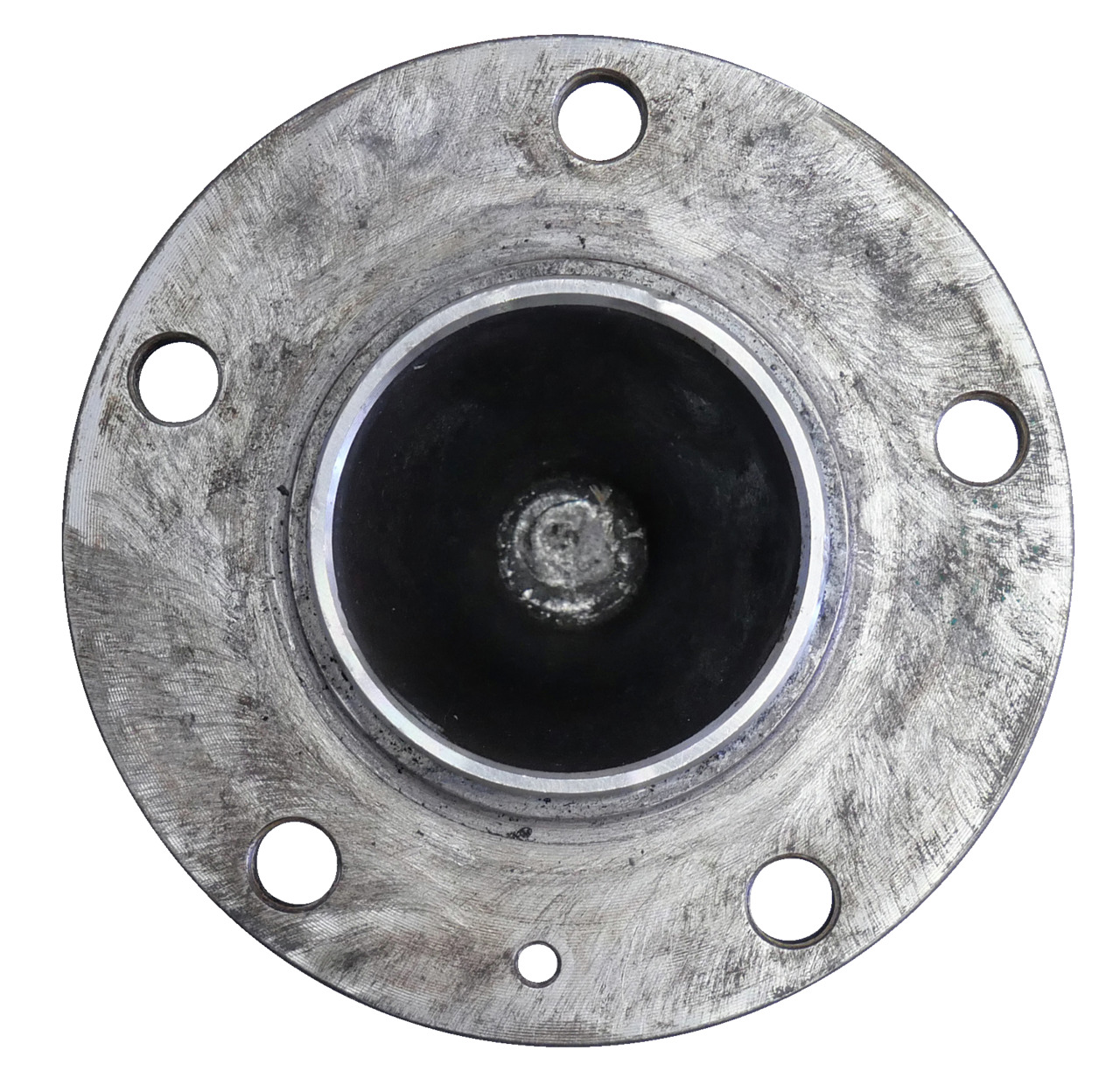

The particular construction of the tool particularly enables the removal and installation of wheel bearing units without centre bore.

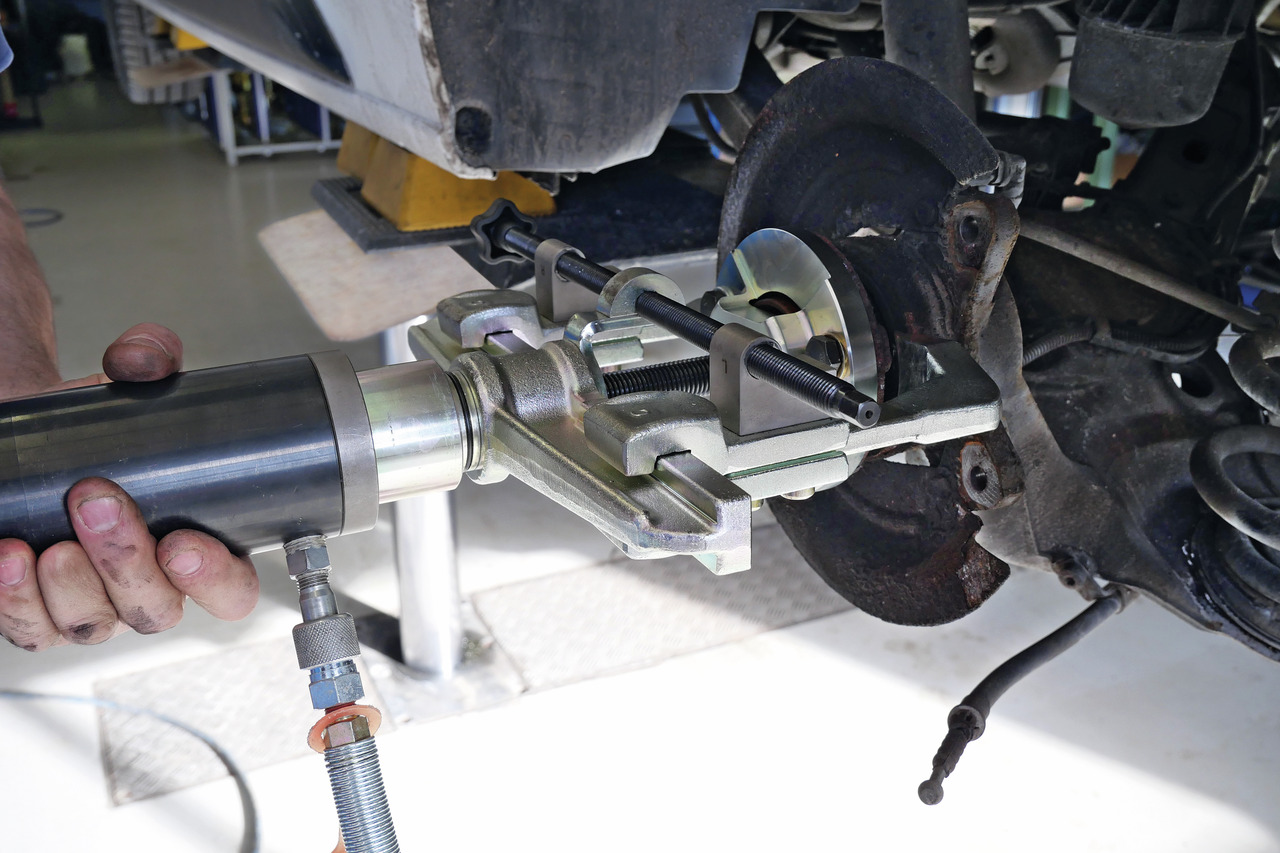

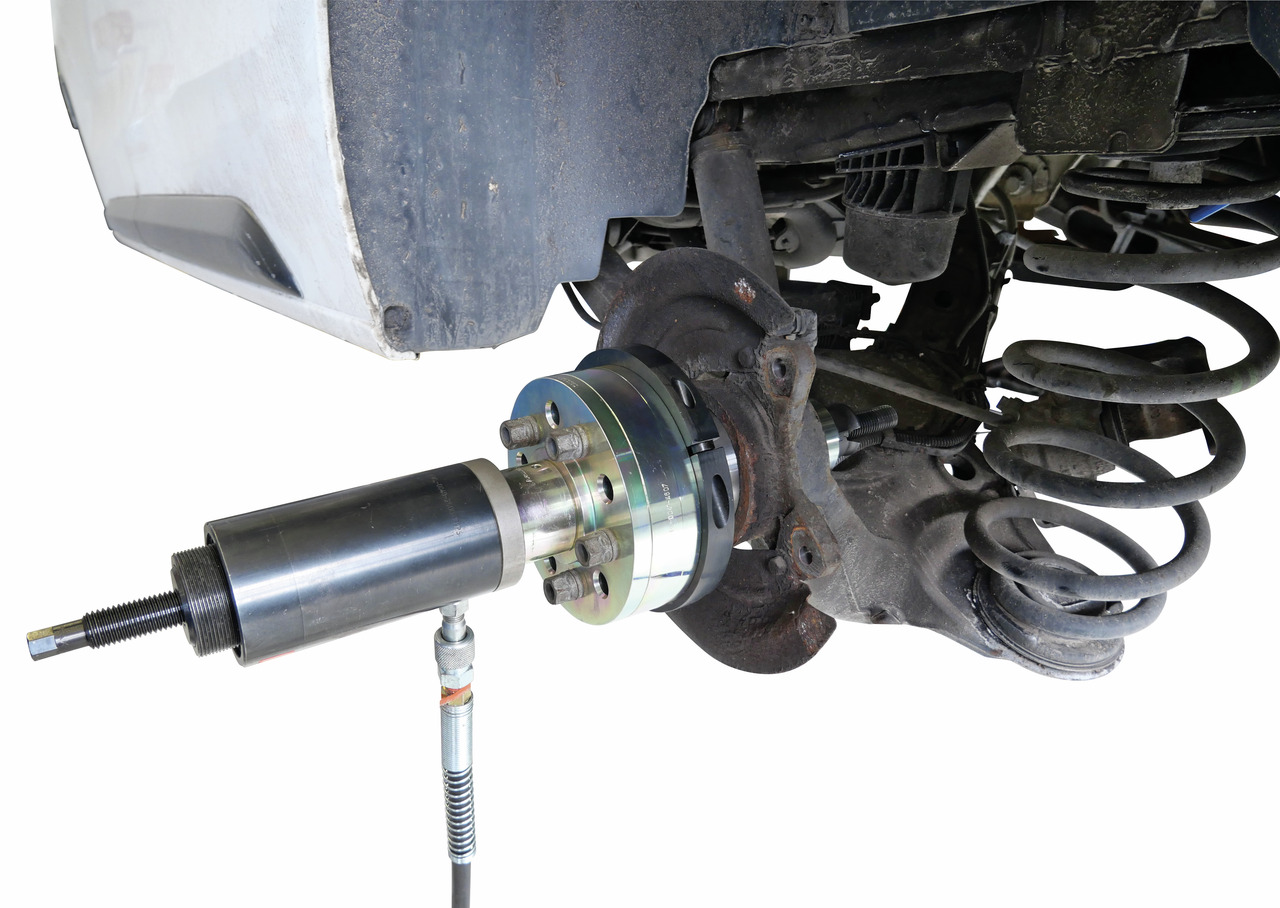

Thereby the wheel bearing is directly pulled out via the wheel hub and pressed in again damage-free via the outer ring of the wheel bearing.

We also recommend

Technical data

Wheel stud circles

5x108 / 5x112

Contents (Qty of pieces)

VDE certified

Predecessor article

KL-0041-452 B

3420728

1000 V insulated

Target groups

Automotive

Construction and commercial vehicles

Note

To remove the wheel hub bearing unit, the universal wheel hub puller KL-0041-380 ... is required.

Short text

Suitable for rear axles with wheel bearing Ø 92 mm, for example on Toyota ProAce; Peugeot Expert, Traveller; Citroen Jumpy; Opel Zafira Life; Fiat Scudo III, Ulysse III; etc.

• For removal and installation of the wheel bearing unit directly on the vehicle

• Required for wheel hubs without centre bore

• No damage to the bearing, as pressure during installation is only applied via the outer bearing ring

• Additional drive parts necessary!

Drive type

hydraulic

Required accessories

Hydraulic drive (17 t): KL-0041-3800 A - Wheel hub extractor KL-0214-2202 – Spacer ring KL-0039-1920-1 A – Pull spindle M20 KL-0039-2120-2 – Quick-clamping nut M20 KL-0040-2500 – Hydraulic cylinder 17t KL-0215-35 M25 – Hand pump 17t

Customs tariff number

82055980

Load (max.)

17 t

for outside Ø (bearing)

92 mm

Manufacturer spare part number

PSA: 98 190 747 80; 9819074780

Toyota: SU001-A6528; SU001A6528

suitable for vehicle model

Citroen C4 Grand Spacetourer (3A / 3E)

Citroen C4 Spacetourer (3D)

Citroen Jumpy / Dispatch III (V)

Fiat Scudo III

Fiat Ulysse III

Opel Vivaro C (K0)

Opel Zafira D / Life (K0)

Peugeot Expert III (V)

Peugeot Traveller (V)

Toyota ProAce II (MDZ)

Toyota ProAce Verso (MPY)

EAN

4046459195207

Parts list (Text)

1x KL-0041-4500 B - Clamping jaw pair, Ø 85/92mm

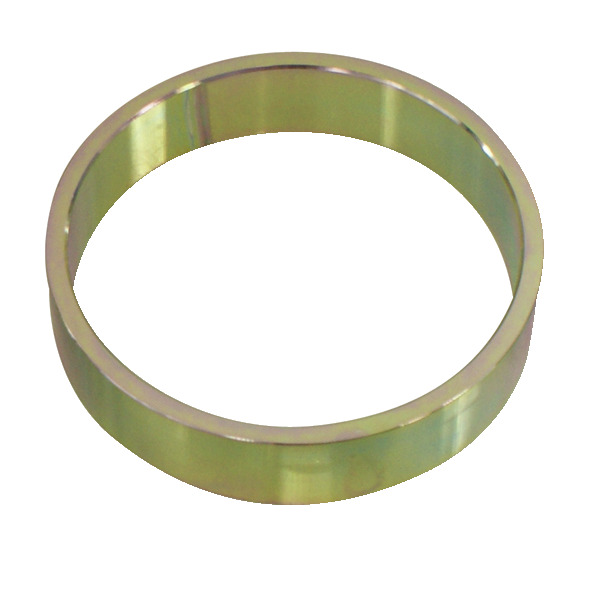

1x KL-0041-4607 - Housing

1x KL-0041-4608 D - Cover

1x KL-0039-1289 - Thrust ring, Ø 89mm

1x KL-0039-1802 - Centring sleeve, long, Ø 27.4mm

1x KL-0041-4521 - Puller plate with screw

Weight

7,8 kg

Manual - kl-0041-452c-de240612.pdf Manual - kl-0041-452c-en240612.pdf

Wheel Bearing Installation Tool, Ø 92mmKL-0041-452 C

3445828

Description

We also recommend

KL-0040-2500 Hydraulic Cylinder, 17 t

KL-0215-35 M25 Hydraulic Hand Pump with Pressure Gauge, 17t

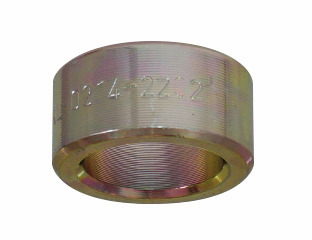

KL-0214-2202 Spacer ring, Ø30mm

KL-0039-2120-2 Quick-Action Clamping Nut, M20

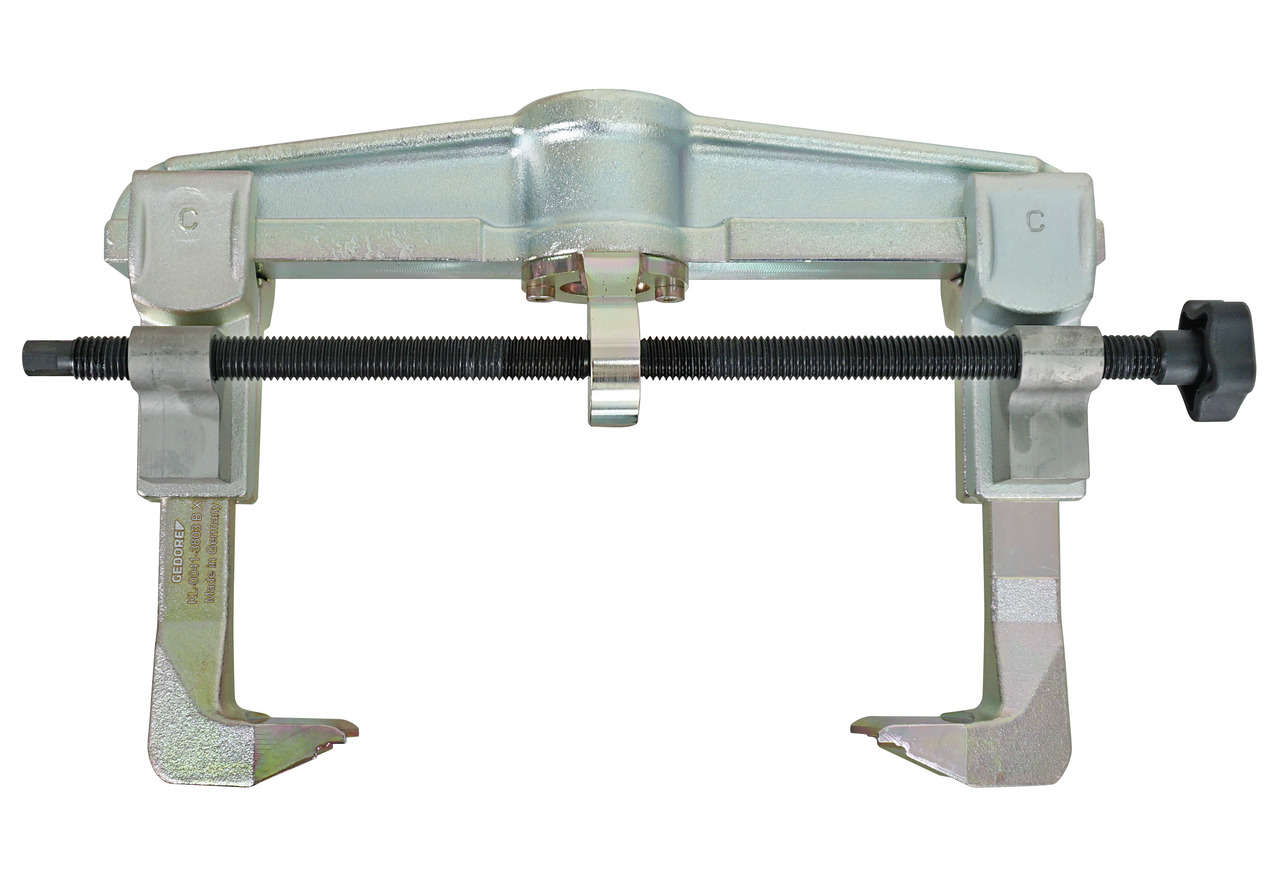

KL-0041-3800 A Wheel Hub Puller (Base Tool)

KL-0039-1920-1 A Pull Spindle, M20

Technical data

We also recommend

KL-0039-1289 Pressure Ring, Ø 89mm

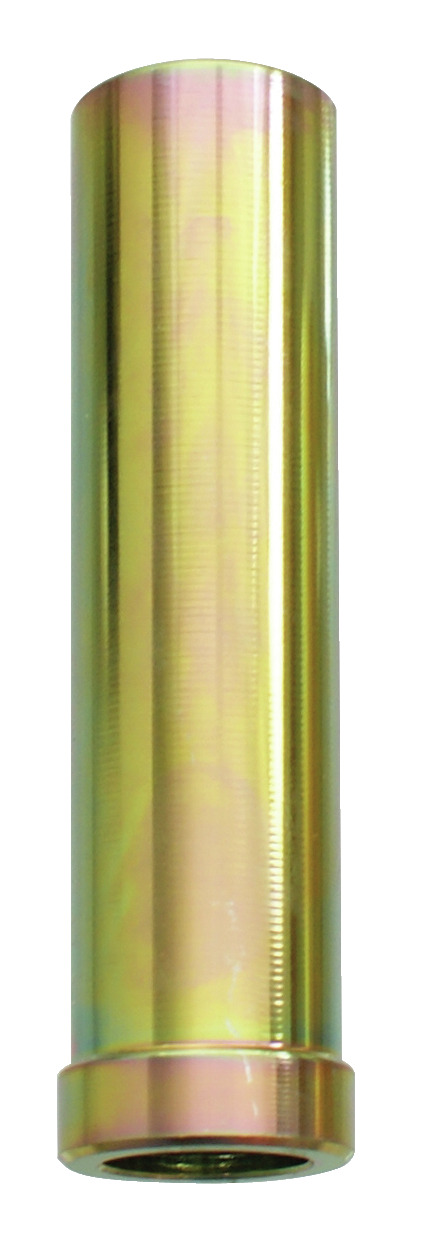

KL-0039-1802 Centring Sleeve, long, Ø 27.4mm

KL-0041-4607 Housing

KL-0041-4608 D Cover

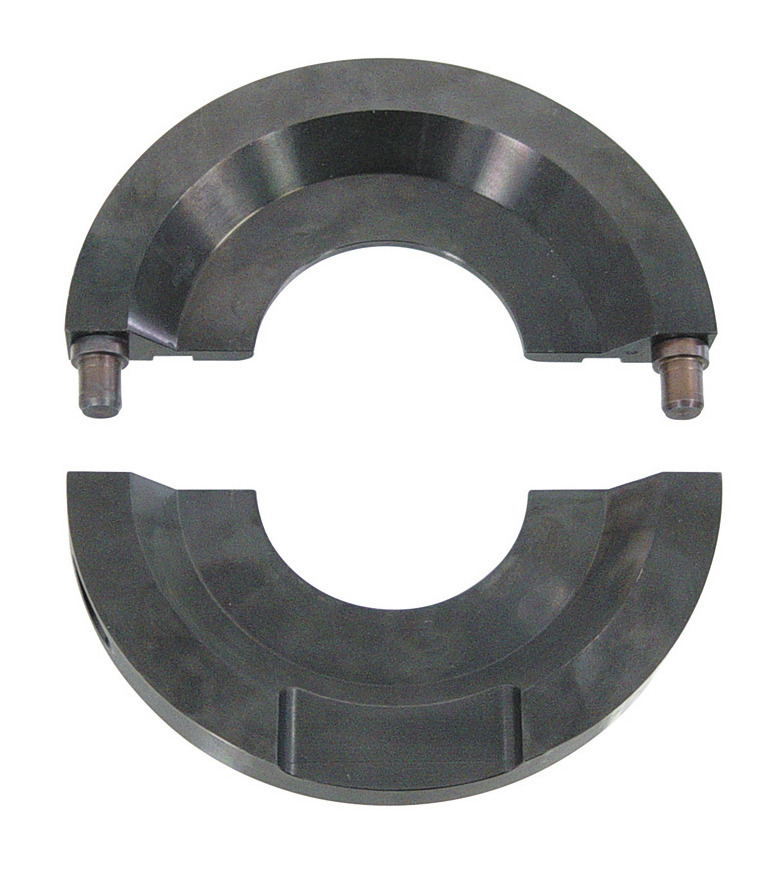

KL-0041-4500 B Clamping Jaw Pair, Ø 85/92mm

KL-0041-4521 Puller plate with screws

We also recommend

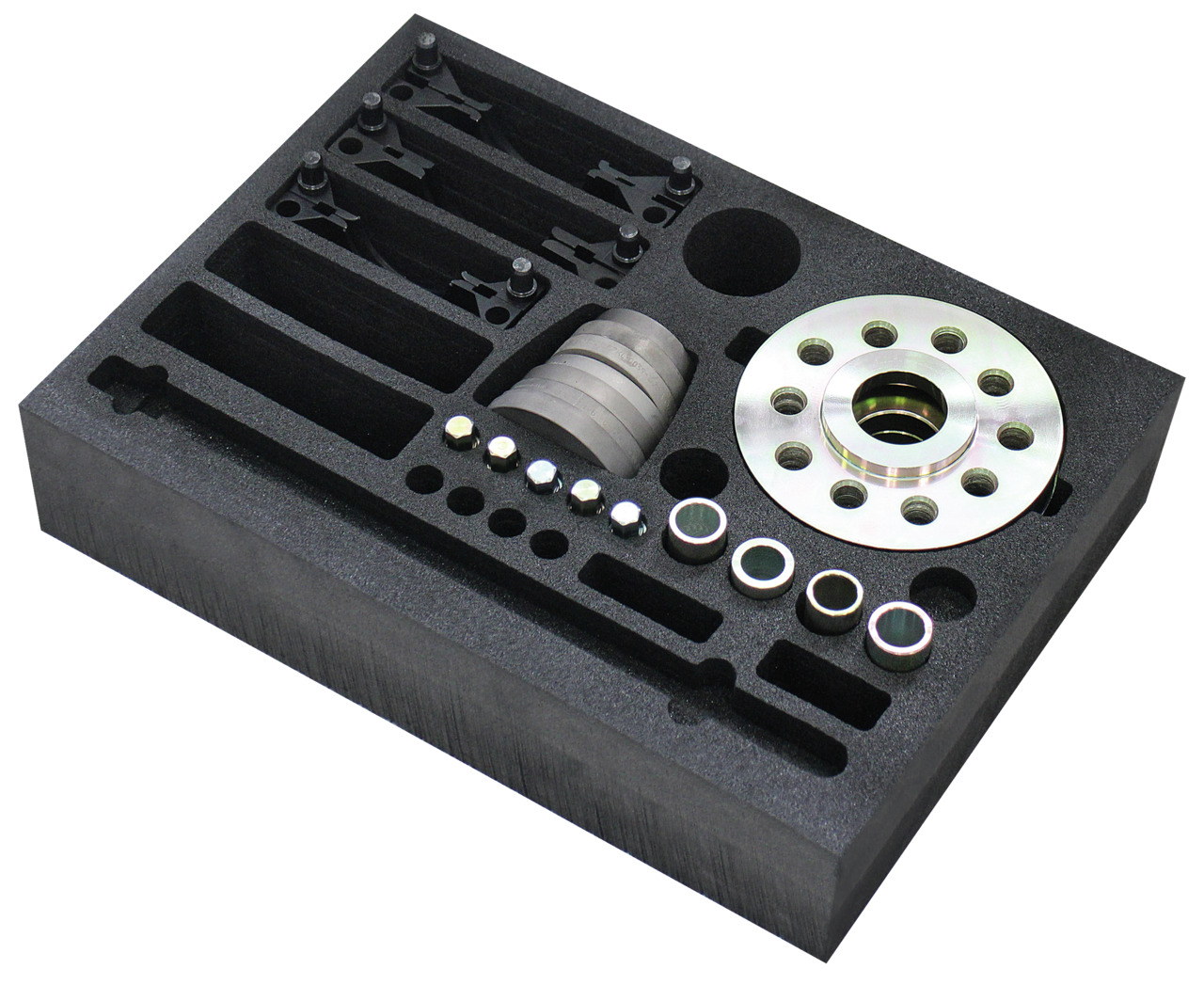

KL-0041-480 EA Wheel Bearing Tool Set

KL-0041-521 K Wheel Bearing Tool, Mercedes Vito / Viano, Front Axle

KL-0041-522 K Wheel Bearing Tool, Mercedes Vito / Viano, Front Axle

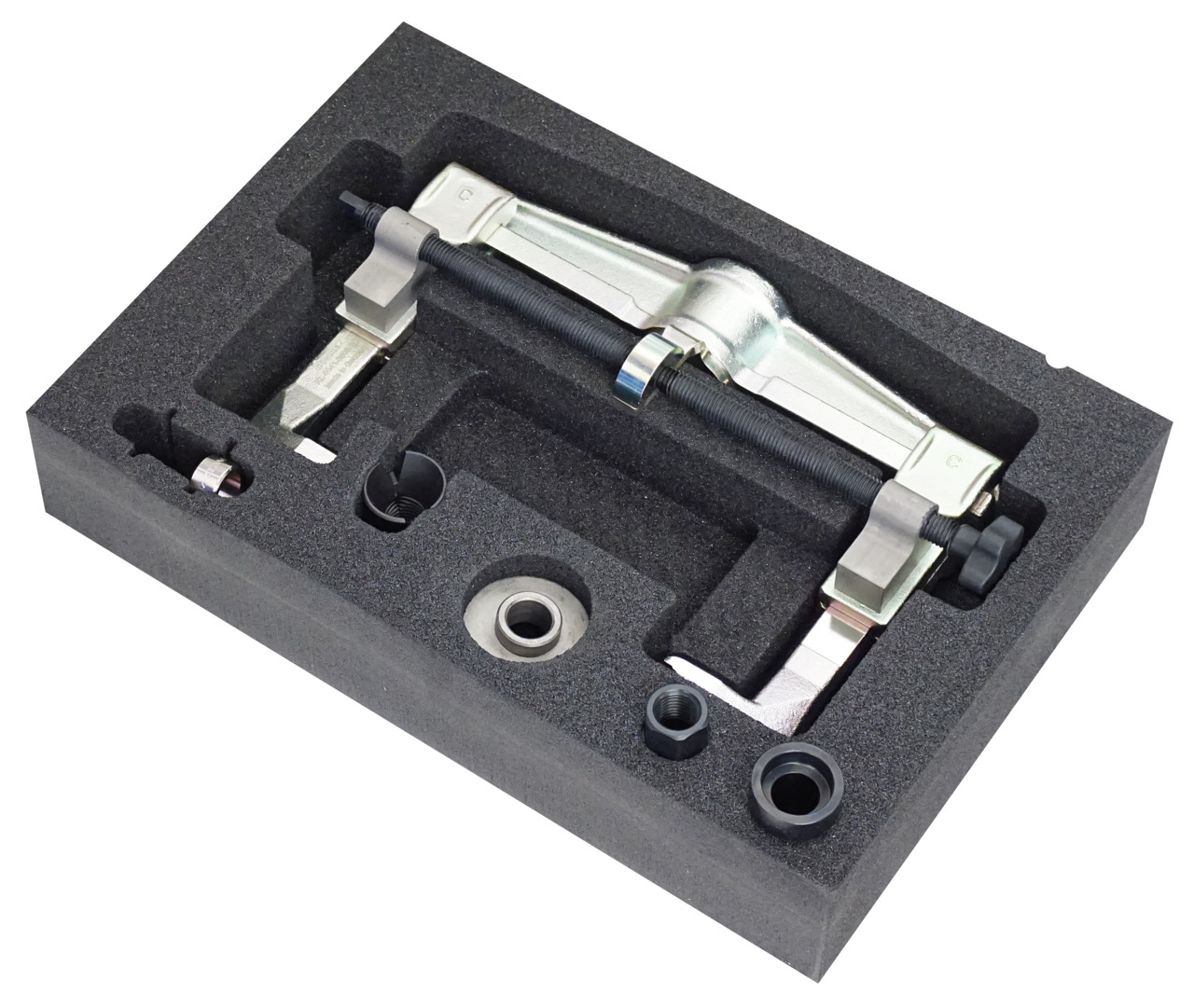

KL-0041-380 EA Wheel Hub Puller
