Wheel Bearing Tool, Mercedes Vito / Viano, Front Axle
KL-0041-521 K
3441350
Suitable for the front axle of Mercedes Vito / Viano, V-Class (W639, W447) with rear drive.
• For removal and installation of the wheel bearing unit directly on the vehicle
• Required for wheel hubs without centre bore
• No damage to the bearing, as pressure during installation is only applied via the outer bearing ring
• No need to replace the entire steering knuckle
• No wheel alignment required
• Additional drive parts necessary!
Mercedes: A 639 330 04 20; A 639 330 05 20; A 639 330 06 32; A 639 330 07 32; A 639 330 12 32; A 639 330 13 32; A 447 330 06 20; A 447 330 07 20
Mercedes Vito / Viano II (W639)
Mercedes Vito / V-Klasse III (W447)

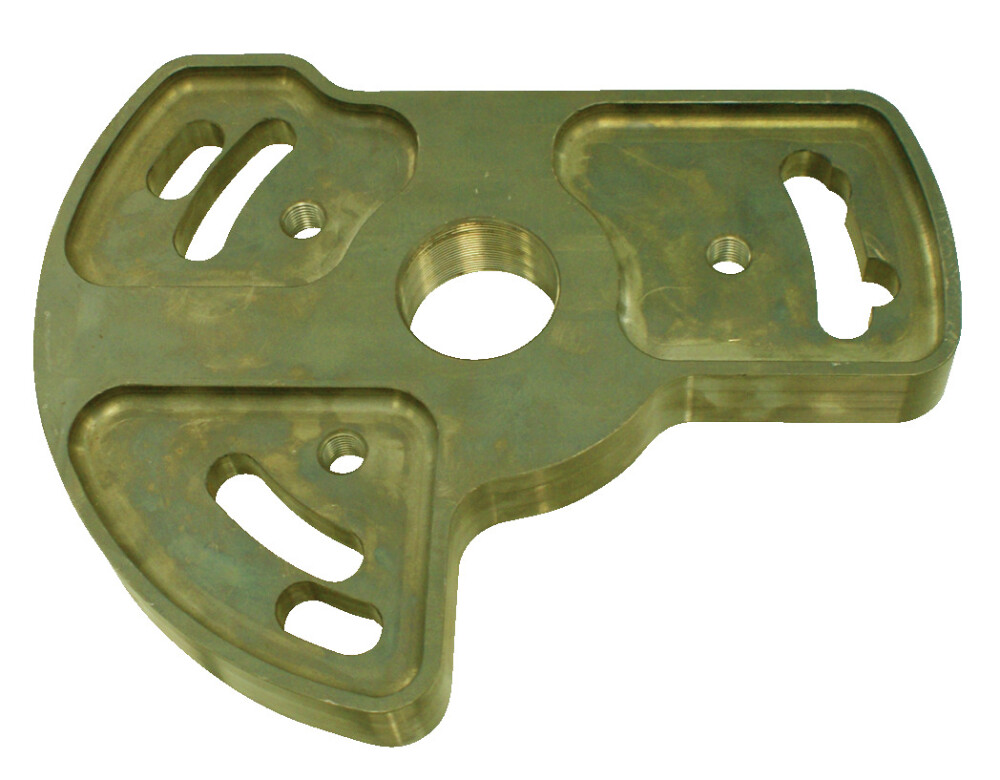

1x KL-0041-5001 - Base plate

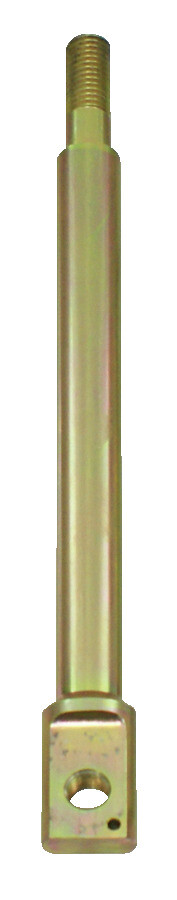

1x KL-0041-5002 - Support rod, cross hole

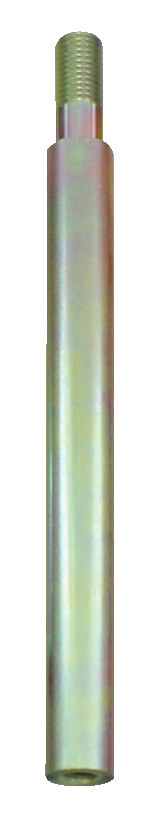

2x KL-0041-5009 - Support rod, 275 mm
3x KL-0041-5006 - Collar nut M18
1x KL-0041-5010 - Adapter
4x KL-0041-5004 - Washer, Ø 19 mm

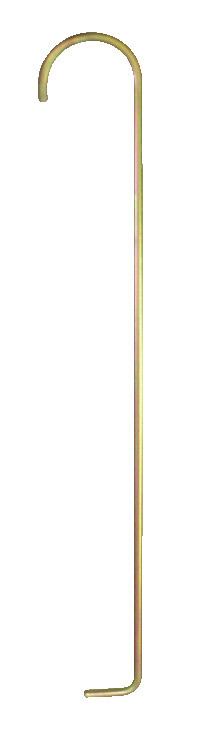

1x KL-0041-5012 - Steering knuckle retaining bracket
2x KL-0041-5005 - Cylinder screw, M14x70
1x KL-0041-5003 - Screw with cone, M16
1x KL-0041-5014 - Screw with cone, M12
1x KL-0035-0023 - Nut, M12

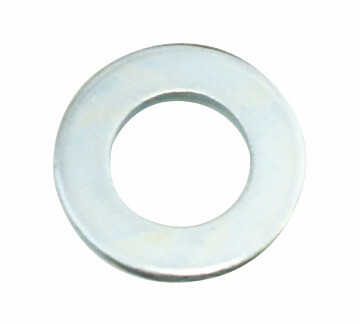

1x KL-0066-0004 - Washer, Ø 12 mm

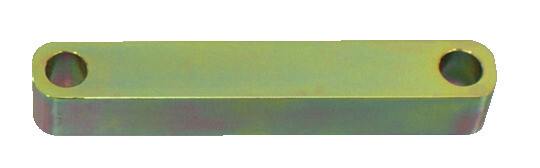

1x KL-0041-5007 - Reinforcement slat, 140 mm

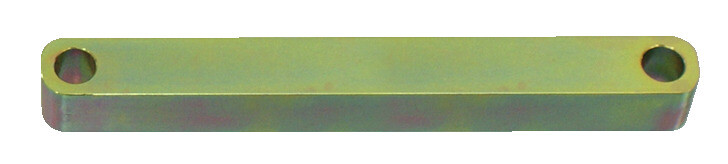

1x KL-0041-5008 - Reinforcement slat, 196 mm
1x KL-0041-5013 - Clamping nut

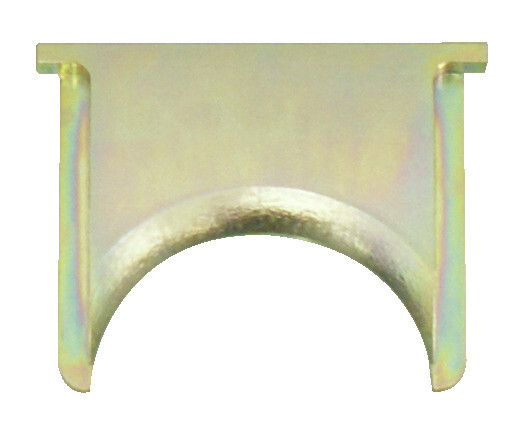

1x KL-0041-5030-2 - Closing plate
3x KL-0041-5024 - Knurled screw, M14

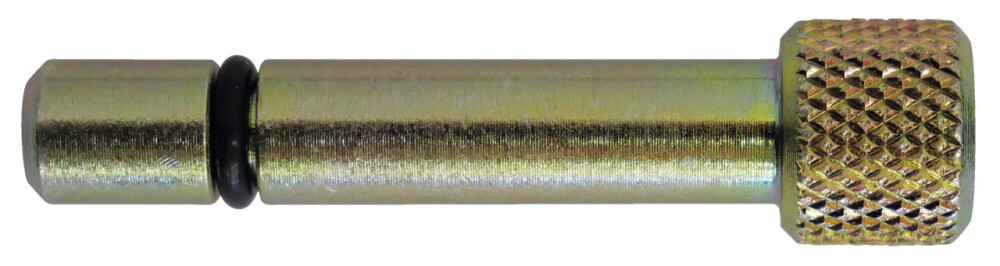

2x KL-0041-5025 - Retaining pin
1x KL-0041-503 - Pull / pressure plate, Ø 92 mm
1x KL-0039-1920-1 A - Pull spindle, M20
1x KL-0041-5211-9 - Foam insert

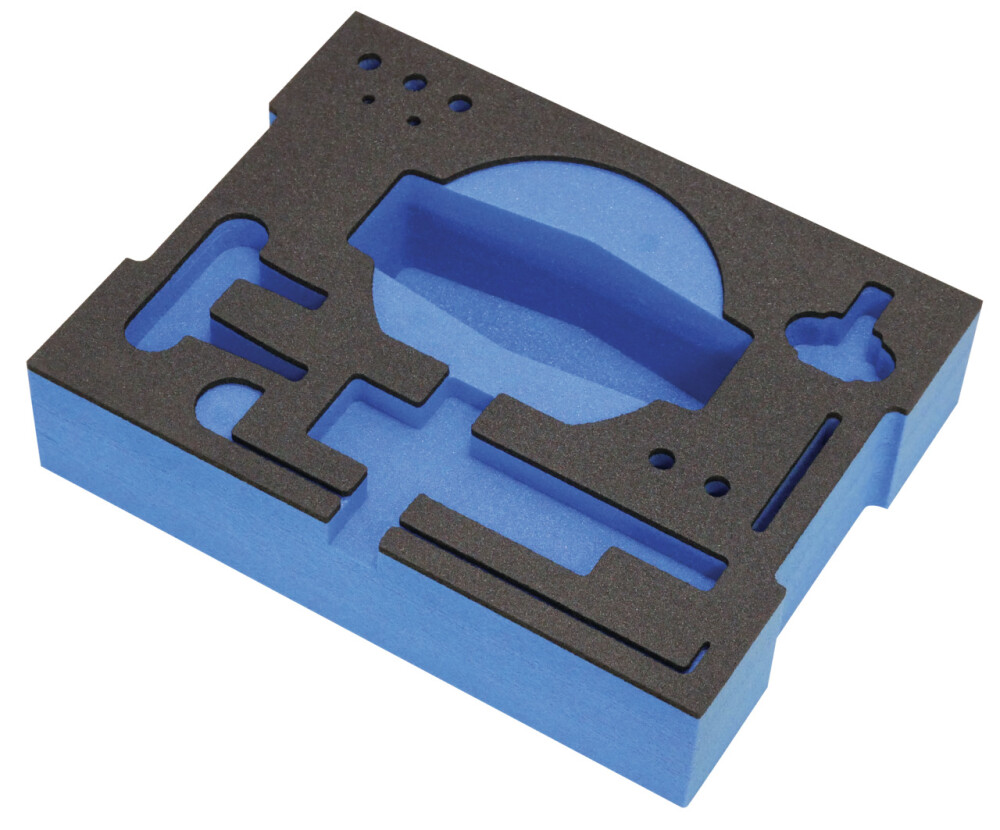

1x KL-0041-5212-9 - Foam insert
2x KL-4600-1094 - Plastic case, empty
