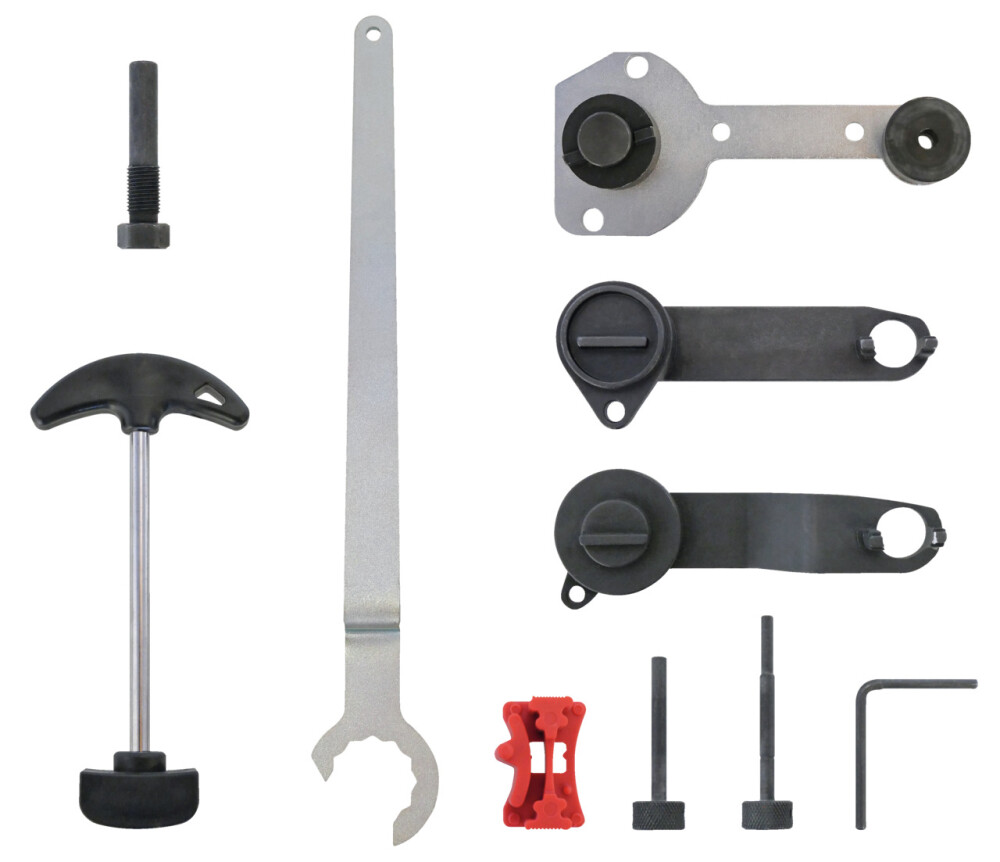

Engine timing tool set, VW-Audi (1.0/1.2/1.4/1.6 FSI/MPI/TSI/TFSI)
R15003006
3301783
Suitable for VW, Audi, Seat and Škoda with 1.0 / 1.2 / 1.4 / 1.6 (FSI, TSI, TFSI, MPI) 3• and 4-cylinder petrol engines of the EA211 series.
• For locking the intake and exhaust camshaft, flywheel and positioning the timing belt tensioner
• For professional adjustment of the timing
• To be used similarly to OEM no. T10060 A, T10340, T10476, T10476 A, T10477, T10487, T10494, T10499, T10504, T10504/1, T10504/2
VW-Audi 1.0: CHYA, CHYB, CHZJ, CHZL, CPGA, DAFA.
VW-Audi 1.2: CJZA, CJZB, CJZC, CJZD, CYVA, CYVB, CYVD.
VW-Audi 1.4: CHPA, CHPB, CMBA, CPTA, CPVA, CPVB, CPWA, CRJA, CUKB, CUKC, CVNA, CXSA, CXSB, CZCA, CZCC, CZDA, CZDB, CZEA.
VW-Audi 1.6: CWVA, CWVB.
T10060A
T10340
T10476
T10476A
T10477
T10487
T10494
T10499
T10499A
T10504
T10504/1
T10504/2
VW-Audi: 04C 109 244 B; 04C 109 244 D; 04C 109 479 G; 04C 109 479 H; 04C 109 479 J; 04C 109 479 K; 04C 121 004 E; 04C 121 004 F; 04C 121 004 J; 04C 121 600 J; 04C 121 600 L; 04C 121 600 N; 04C 121 600 P; 04C 121 600 Q; 04C 121 605; 04E 109 119; 04E 109 119 C; 04E 109 119 F; 04E 109 119 G; 04E 109 119 L; 04E 109 244 A; 04E 109 244 B; 04E 109 244 D; 04E 109 244 E; 04E 109 479 A; 04E 109 479 AA; 04E 109 479 B; 04E 109 479 C; 04E 109 479 H; 04E 109 479 N; 04E 109 479 P; 04E 109 479 T; 04E 121 121 A; 04E 121 121 E; 04E 121 121 L; 04E 121 600 AG; 04E 121 600 AL; 04E 121 600 BD; 04E 121 600 BE; 04E 121 600 BG; 04E 121 600 CB; 04E 121 600 CD; 04E 121 600 CJ; 04E 121 600 CS; 04E 121 600 CT; 04E 121 600 K; 04E 121 600 P; 04E 121 605 E; 04E 121 605 F; 04E 121 605 J; 04E 121 605 L; 04E 121 605 M; 04E 198 119; 05C 109 244; 05C 109 244 A; 05C 109 479 A; 05E 109 479; 05E 109 479 B; 05E 121 605
Audi A1 (8X)
Audi A3 (8V)
Audi A4 B9 (8W)
Audi A5 (F5)
Audi Q2 (GA)
Audi Q3 (8U)
Seat Alhambra II (71)
Seat Arona (KJ)
Seat Ateca (KH)
Seat Ibiza IV (6J / 6P)
Seat Ibiza V (KJ)
Seat Leon III (5F)
Seat Leon IV (KL)
Seat Mii (KF / KE)
Seat Toledo IV (KG)
Skoda Citigo (NF1)
Skoda Fabia III (NJ)
Skoda Karoq (NU / ND)
Skoda Kodiaq I (NS / NV)
Skoda Octavia III (5E / NL / NR)
Skoda Rapid (NH / NK)
Skoda Superb III (3V)
Skoda Yeti (5L)
VW Beetle II (5C)
VW Caddy IV (SA)
VW Golf VI (51 / 5K / AJ)
VW Golf VII (5G / AM / AN / BA / BE / BQ / BV)
VW Jetta IV (16 / AV)
VW Jetta VII (BU)
VW Passat / CC B7 (35 / 36)
VW Passat B8 (3G / CB)
VW Polo V (60 / 61 / 6R / 6C)
VW Polo VI (AE / AW / BZ)
VW Scirocco III (13)
VW Sharan II (7N)
VW T-Cross (C1 / D3)
VW T-Roc (A1 / AC / D1)
VW Tiguan I (5N)
VW Tiguan II (AD / AX / BW / BJ)
VW Touran II (5T)
VW Up! (12 / BL)
