Engine timing tool set, VW-Audi (1.0 / 1.2 / 1.4 / 1.5 TSI/TFSI)
R15003003
3301780
Suitable for VW, Audi, Seat, Cupra and Škoda with 1.0 / 1.2 / 1.4 / 1.5 (TSI, TFSI) 3- and 4-cylinder petrol engines of the EA211 series.
• For precise positioning of the camshafts
• For locking the flywheel and timing belt pulley
• For professional adjustment of the timing

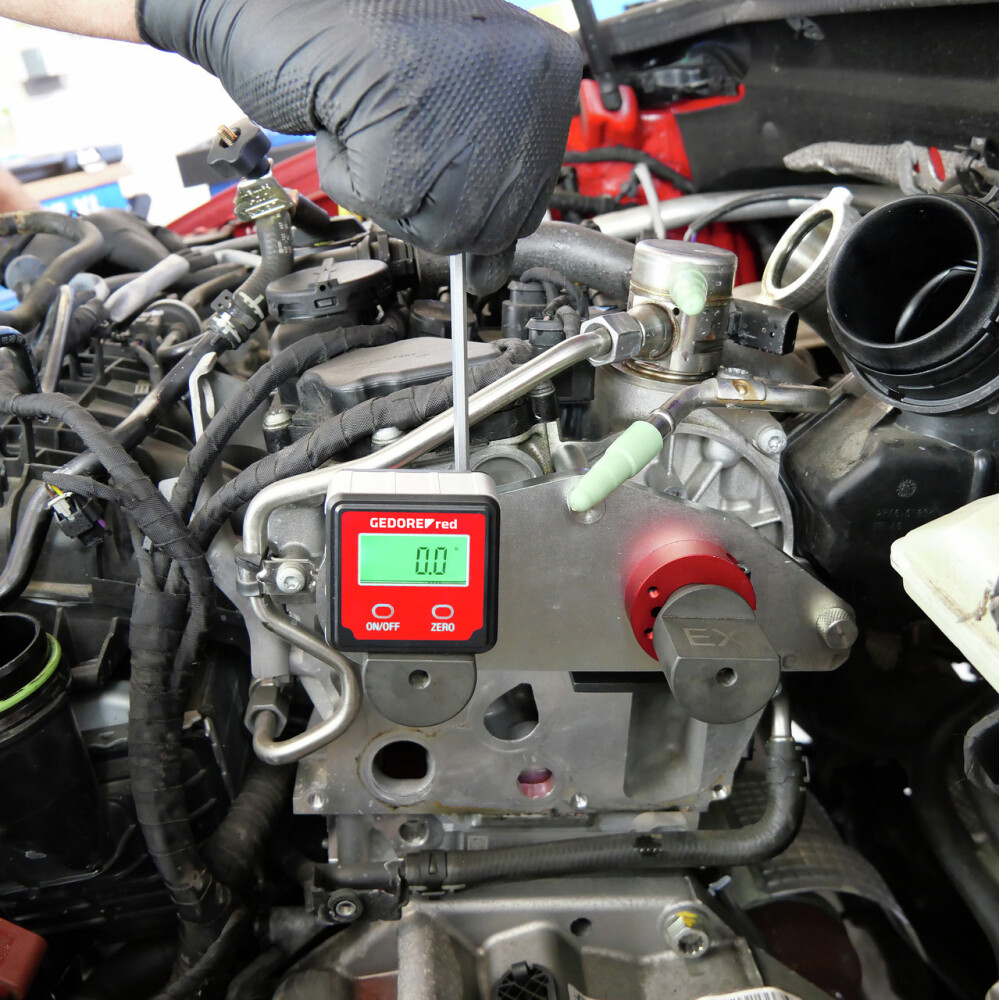

• With highly sensitive angle gauge for camshaft positioning
• No OBD interactions or complex diagnostic technology required
• Cost-effective and practical alternative solution to the OEM tool VAS 611 007
• Can be used in a similar way to OEM no. T10340, T10499, T10504/1
VW-Audi 1.0: CHZA, CHZB, CHZC, CHZD, CHZE, CHZJ, CHZK, CHZL, CPGA, DBYA, DKJA, DKLA, DKLB, DKLC, DKLD, DKRA, DKRB, DKRC, DKRF, DUSA.
VW-Audi 1.2: CJZA, CJZB, CJZC, CJZD, CYVA, CYVB, CYVC, CYVD.
VW-Audi 1.4: CHPA, CMBA, CPTA, CPVA, CPVB, CPWA, CUKB, CUKC, CXSA, CXTC, CZCA, CZDA, CZDB, CZDD, CZEA, DGEA, DGEB, DJKA.
VW-Audi 1.5: DACA, DACB, DADA, DFYA, DPBA, DPBC, DPBE, DPCA.
VAS 611007
T10340
T10499
T10499A
T10504/1
VW-Audi: 04C 109 244 B; 04C 109 244 D; 04C 109 479 G; 04C 109 479 H; 04C 109 479 J; 04C 109 479 K; 04C 121 004 E; 04C 121 004 F; 04C 121 004 J; 04C 121 600 J; 04C 121 600 L; 04C 121 600 N; 04C 121 600 P; 04C 121 600 Q; 04C 121 605; 04E 109 119; 04E 109 119 C; 04E 109 119 F; 04E 109 119 G; 04E 109 119 L; 04E 109 244 A; 04E 109 244 B; 04E 109 244 D; 04E 109 244 E; 04E 109 479 A; 04E 109 479 AA; 04E 109 479 B; 04E 109 479 C; 04E 109 479 H; 04E 109 479 N; 04E 109 479 P; 04E 109 479 T; 04E 121 121 A; 04E 121 121 E; 04E 121 121 L; 04E 121 600 AG; 04E 121 600 AL; 04E 121 600 BD; 04E 121 600 BE; 04E 121 600 BG; 04E 121 600 CB; 04E 121 600 CD; 04E 121 600 CJ; 04E 121 600 CS; 04E 121 600 CT; 04E 121 600 K; 04E 121 600 P; 04E 121 605 E; 04E 121 605 F; 04E 121 605 J; 04E 121 605 L; 04E 121 605 M; 04E 198 119; 04E 198 119 A; 05C 109 244; 05C 109 244 A; 05C 109 479 A; 05E 109 244; 05E 109 479; 05E 109 479 B; 05E 121 605
Audi A1 (GB)
Audi A1 (8X)
Audi A3 (8V)
Audi A3 (8Y)
Audi Q2 (GA)
Audi Q3 (8U)
Audi Q3 (F3)
Cupra Formentor (KM)
Cupra Leon (KL / KU)
Seat Alhambra II (71)
Seat Arona (KJ)
Seat Ateca (KH)
Seat Ibiza IV (6J / 6P)
Seat Ibiza V (KJ)
Seat Leon III (5F)
Seat Leon IV (KL)
Seat Mii (KF / KE)
Seat Tarraco (KN)
Seat Toledo IV (KG)
Skoda Citigo (NF1)
Skoda Fabia III (NJ)
Skoda Kamiq (NW)
Skoda Karoq (NU / ND)
Skoda Kodiaq I (NS / NV)
Skoda Octavia III (5E / NL / NR)
Skoda Octavia IV (NN /NX)
Skoda Rapid (NH / NK)
Skoda Scala (NW)
Skoda Superb III (3V)
Skoda Yeti (5L)
VW Arteon (3H)
VW Beetle II (5C)
VW Caddy IV (SA)
VW Caddy V (SB)
VW Golf VI (51 / 5K / AJ)
VW Golf VII (5G / AM / AN / BA / BE / BQ / BV)
VW Golf VIII (CD / CG)
VW Jetta IV (16 / AV)
VW Jetta VII (BU)
VW Passat / CC B7 (35 / 36)
VW Passat B8 (3G / CB)
VW Polo V (60 / 61 / 6R / 6C)
VW Polo VI (AE / AW / BZ)
VW Scirocco III (13)
VW Sharan II (7N)
VW T-Cross (C1 / D3)
VW T-Roc (A1 / AC / D1)
VW Taigo (CS)
VW Tiguan I (5N)
VW Tiguan II (AD / AX / BW / BJ)
VW Touran II (5T)
VW Up! (12 / BL)

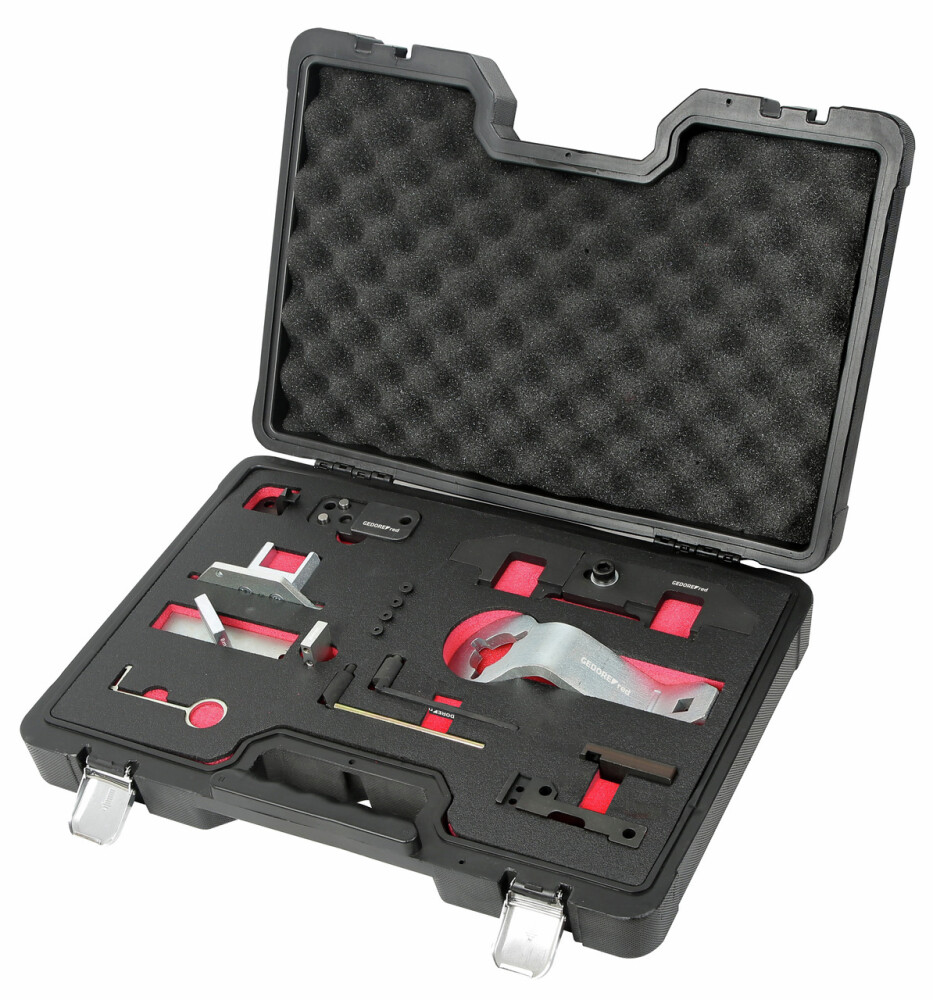

1x tension wrench Size (waf) 30
1x Digital inclinometer
1x Hexagon screwdriver with T-handle, 5 mm
1x Camshaft housing adapter plate
1x exhaust camshaft spacer (EA211 EVO)
1x intake camshaft spacer (EA211 EVO)
1x Fastening material for camshaft housing adapter plate (EA211 EVO)
1x fastening material adapter plate camshaft housing (EA211 without ACT)
1x fixing screws reference bracket 1.5 (EA211 EVO)
1x reference bracket (EA211 without ACT)
1x reference bracket 1.5 (EA211 EVO)
1x Intake camshaft adjusting bolt 1.5 (EA211 EVO)
1x Exhaust camshaft adjusting bolt 1.5 (EA211 EVO)
1x intake camshaft adjusting bolt (EA211 without ACT)
1x exhaust camshaft adjusting bolt 1.4 (TFSI COD, TSI ACT, TFSI, BlueGT TSI ACT)
1x exhaust camshaft adjusting bolt (EA211 without ACT)
1x locking pin, crankshaft
1x locking pin, short
