Silentbloc Tool, Mercedes
KL-0356-142
3274209
Suitable for Mercedes C-Class (X/S/C/W204), E-Class (S/W212,C207), CLS (W218), SL (R231).

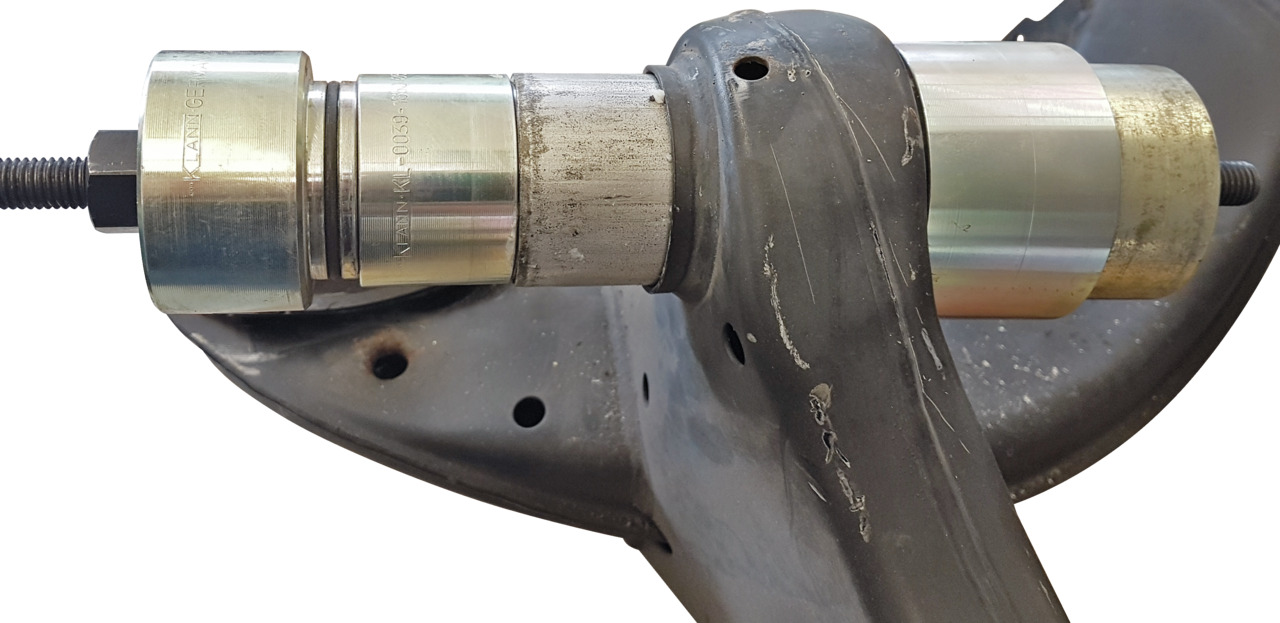

• For removal and installation of the suspension arm silent block on the rear axle beam
• No removal of the rear axle beam required
• Can be replaced even if torn fastening screw
• Additional press frame and drive parts required!
Hydraulic drive (17 t):
KL-0215-35 M25 - Hydraulic pump
KL-0040-2500 - Hydraulic cylinder 17 t
KL-0039-1920-1 A - Pull spindle

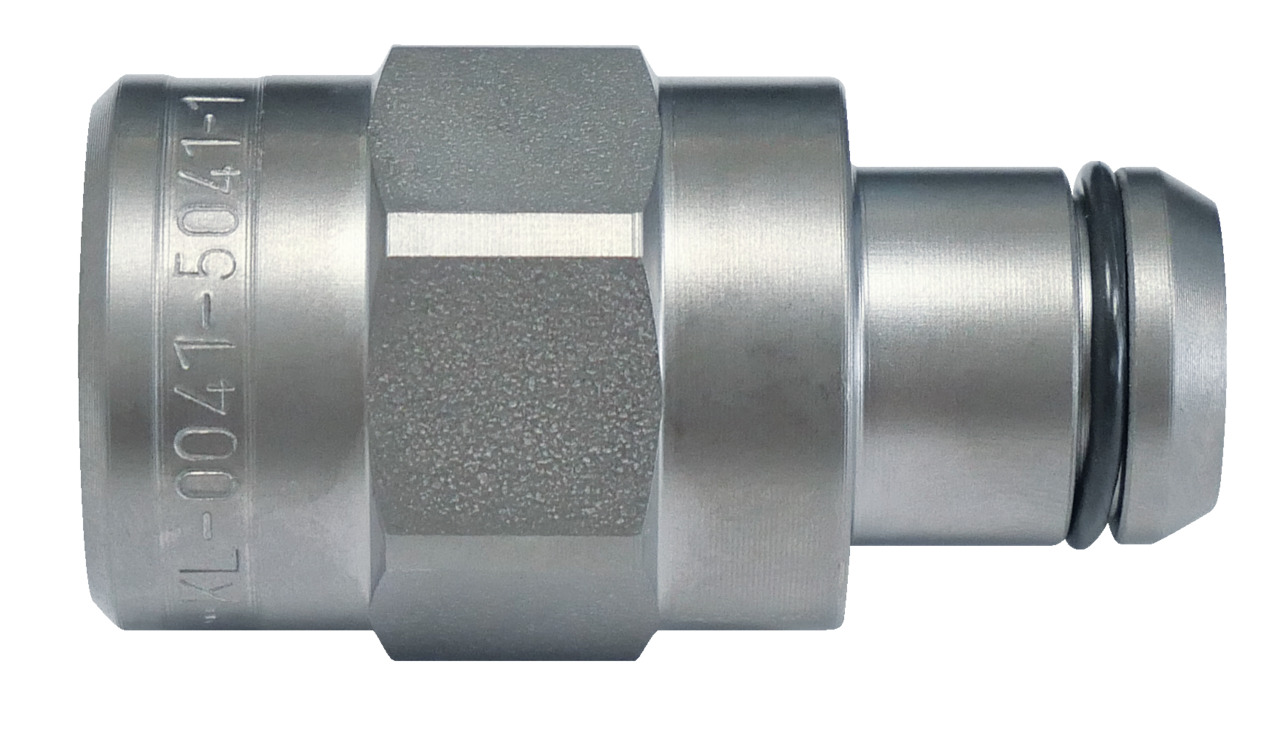

KL-0041-5041 - Clamping nut
KL-0039-2112-2 - Quick-clamping nut M12
KL-0039-1912-1 - Pull spindle M12
KL-0039-1003 - Mounting adapter

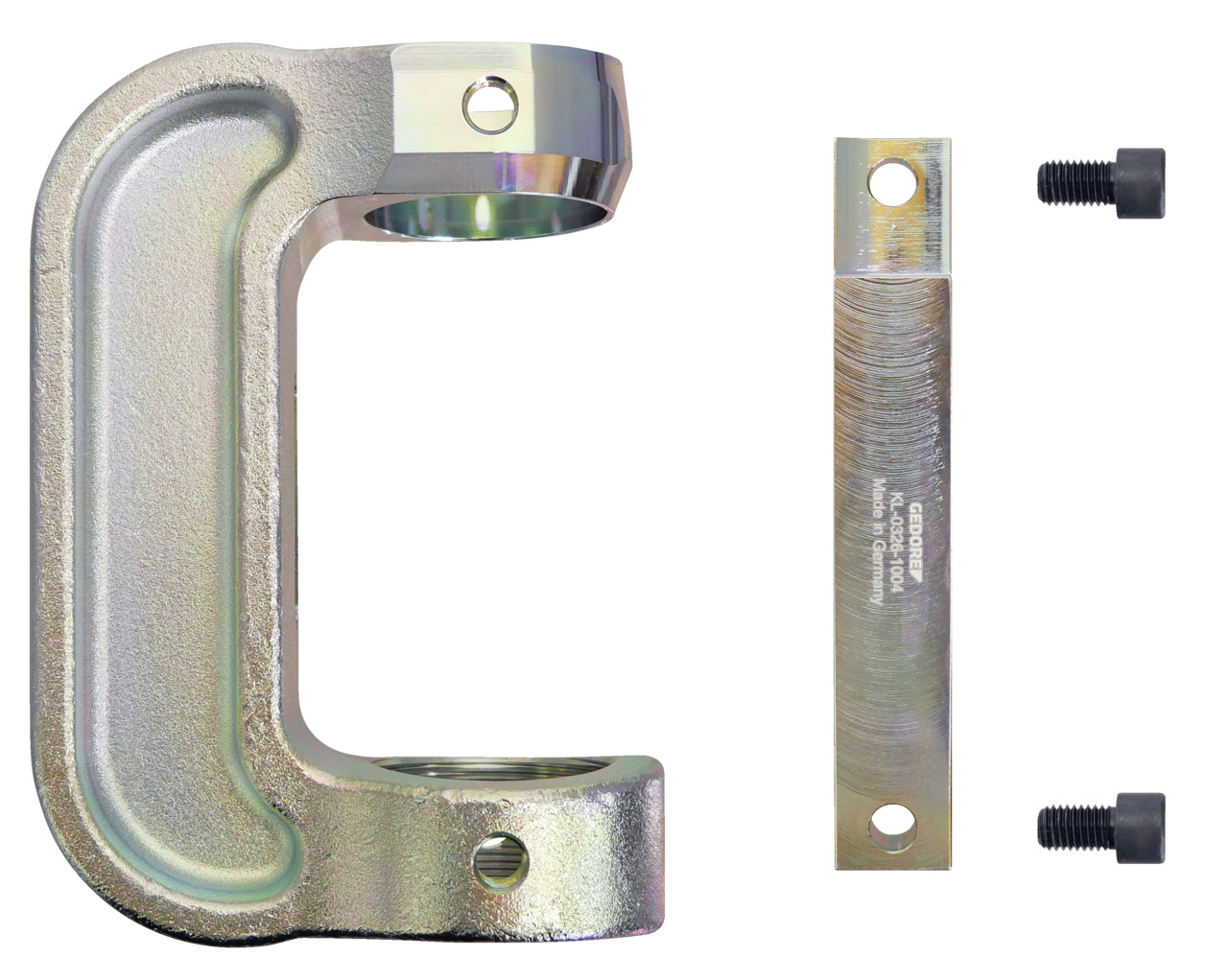

KL-0326-1000 - Press frame
Mechanical drive:

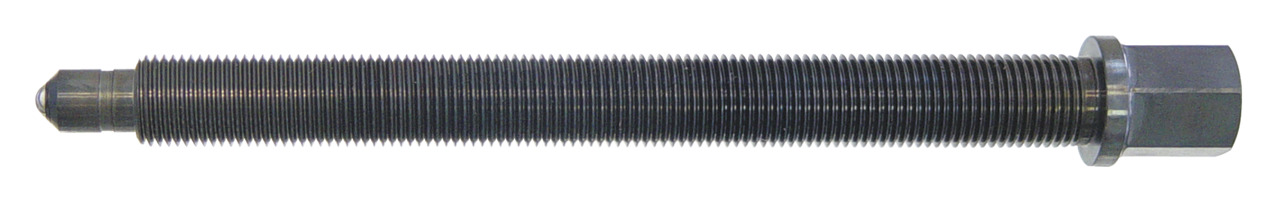

KL-0174-620 - Spindle M20
KL-0174-853 - Thrust piece

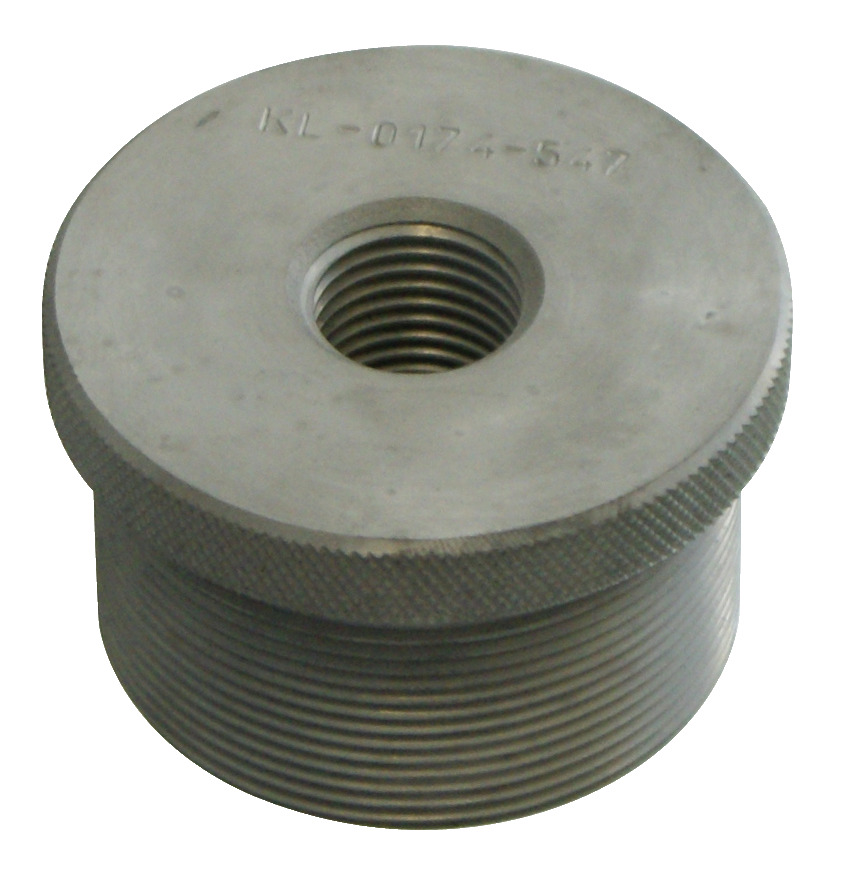

KL-0174-547 - Adapter
KL-0039-2012-1 - Pull spindle M12
KL-0039-1912-2 - Collar nut
KL-0039-2112-2 - Quick-clamping nut
KL-0039-1011 - Mounting adapter
KL-0326-1000 - Press frame
W 204 589 04 43 00
W 220 589 01 43 00
Mercedes: A 220 352 02 65; A 222 352 08 65; A 220 352 13 65; A 204 352 10 65
Mercedes C-Klasse III (C/S/W204)
Mercedes GLK (X204)
Mercedes CLS II (C/X218)
Mercedes E-Klasse IV (A/C207 / S/W212)
Mercedes SL VI (R231)

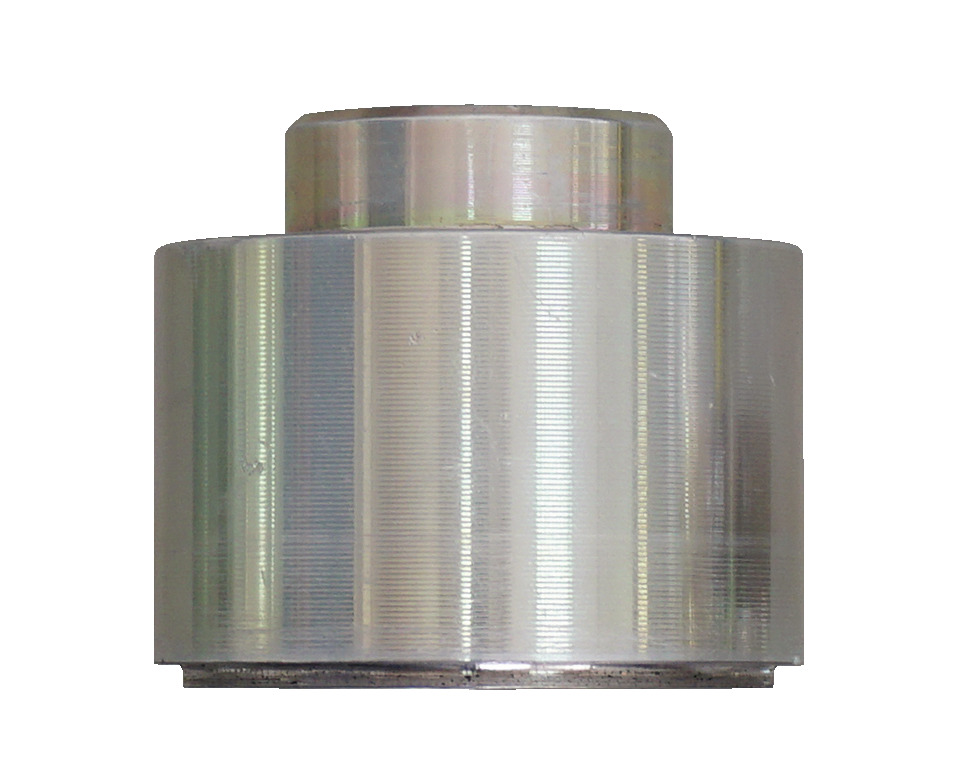

1x KL-0356-1421 - Pressure sleeve removal 50/42 mm dia.
1x KL-0039-1672 - Pressure sleeve installation 72/64 mm dia.
1x KL-0326-1111 - Adapter ring 1 with O-ring
