Silentbloc Tool, Mercedes
KL-0356-141
3268071
Suitable for Mercedes C-Class (X/S/C/W204), E-Class (S/W212, A/C207), CLS (W218), SL (R231).

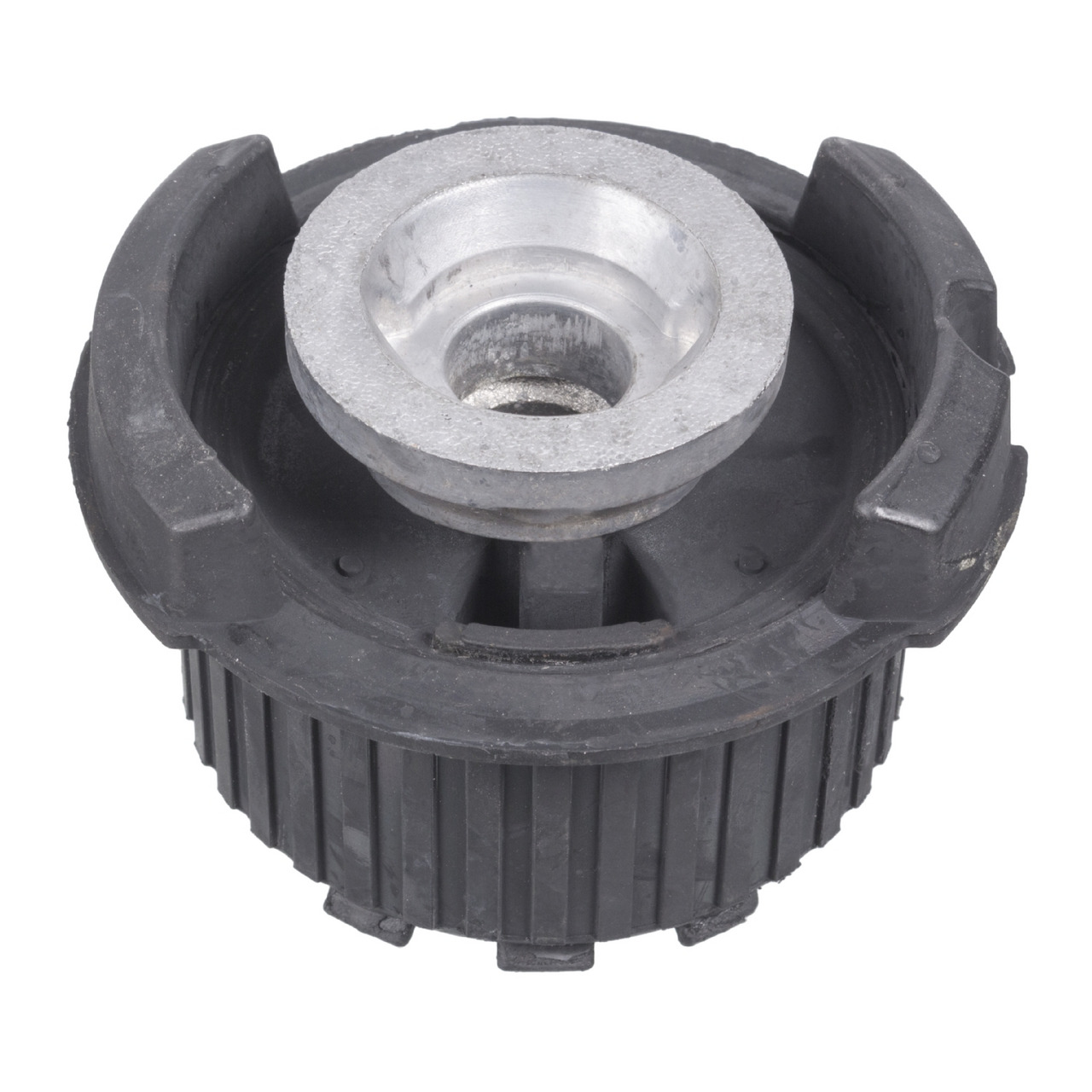

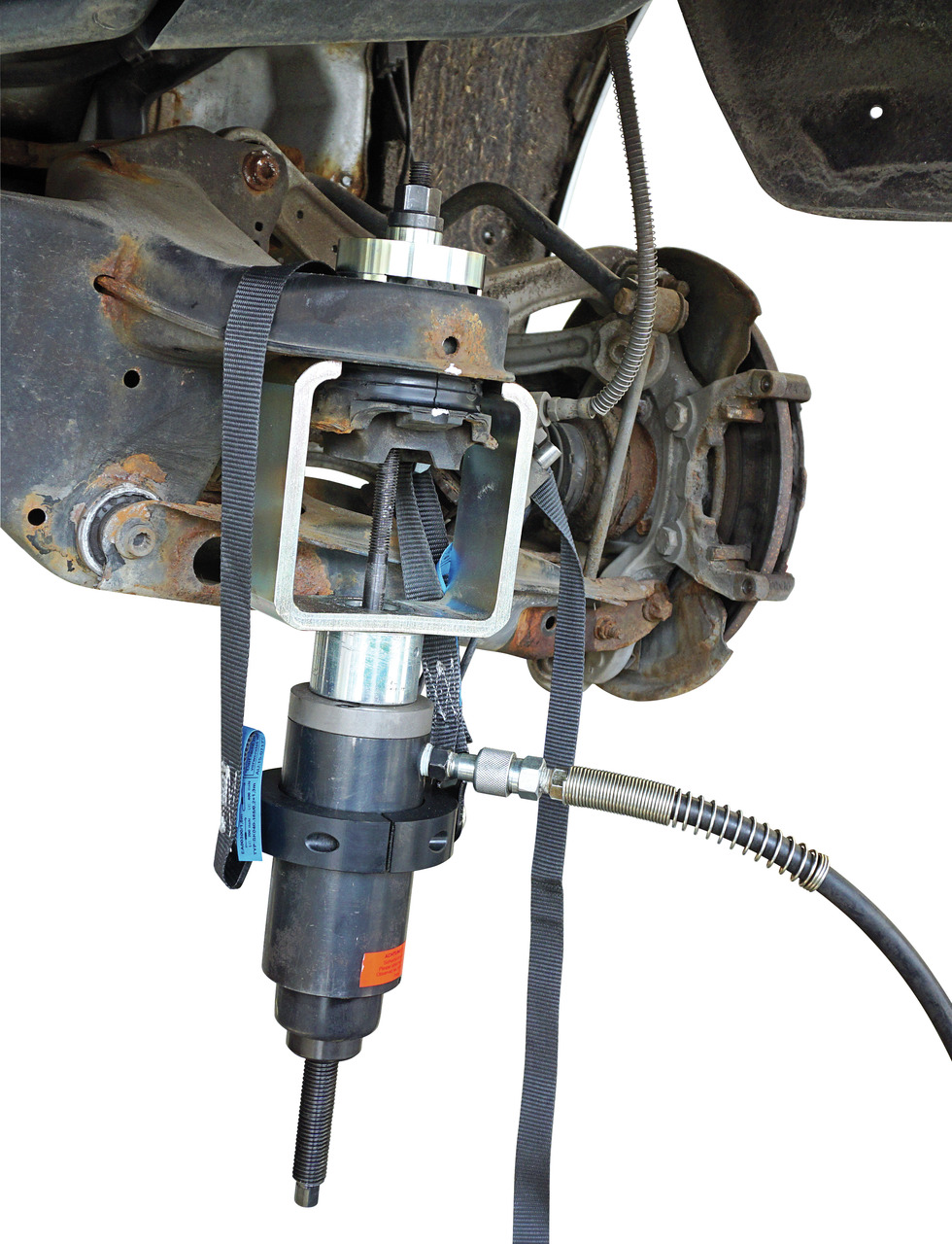

• For removal and installation of the front and rear silent block on the rear axle beam
• The rear axle beam is therefore only slightly lowered
• No removal of the rear axle beam required
• Additional drive parts necessary!
Hydraulic drive (17 t): KL-0215-35 M25 - Hydraulic pump KL-0040-2500 - Hydraulic cylinder 17 t KL-0039-1912-1 - Pull spindle M12 KL-0039-2112-2 - Quick-clamping nut M12 KL-0039-1003 - Mounting adapter mechanical drive: KL-0039-2012-1 - Pulling spindle M12 KL-0039-1912-2 - Collar nut M12 KL-0039-2112-2 - Quick-clamping nut M12
KL-0039-1011 - Mounting adapter
W 204 589 00 43 00
W 205 589 00 43 00
Mercedes: A 204 351 03 42; A 204 351 08 42; A 204 350 02 75; A 205 351 00 42; A 231 351 01 42
Mercedes C-Klasse III (C/S/W204)
Mercedes GLK (X204)
Mercedes CLS II (C/X218)
Mercedes E-Klasse IV (A/C207 / S/W212)
Mercedes SL VI (R231)

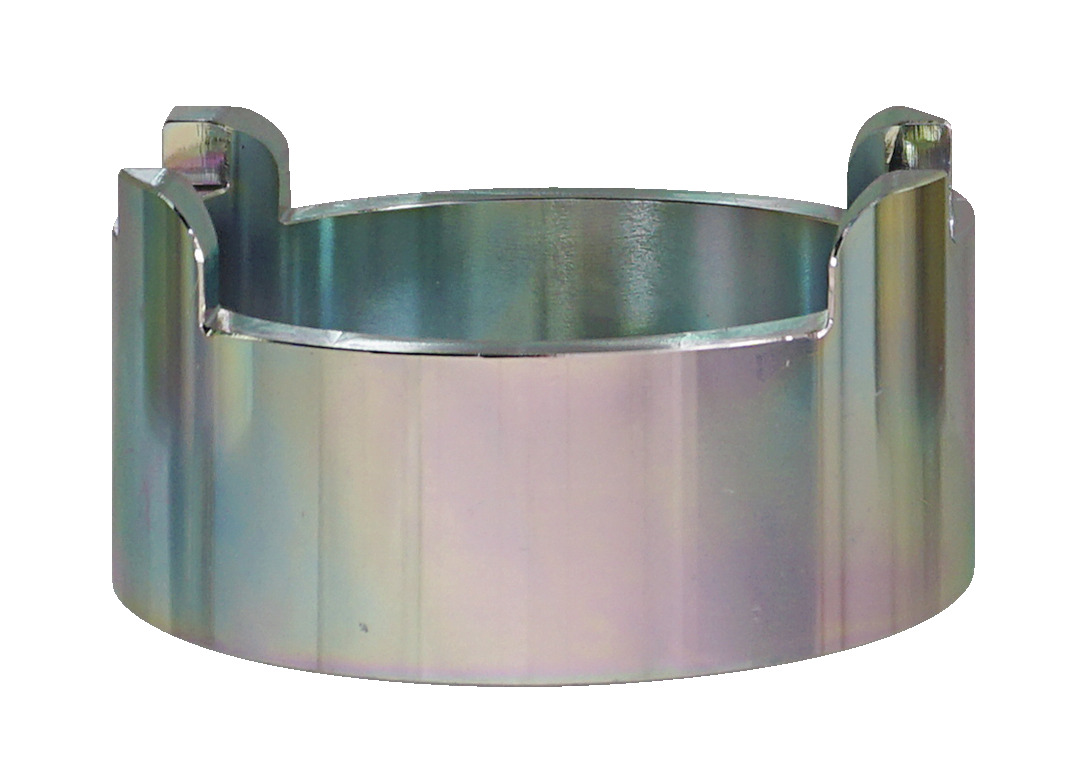

1x KL-0356-1411 - Thrust piece 99 mm dia.

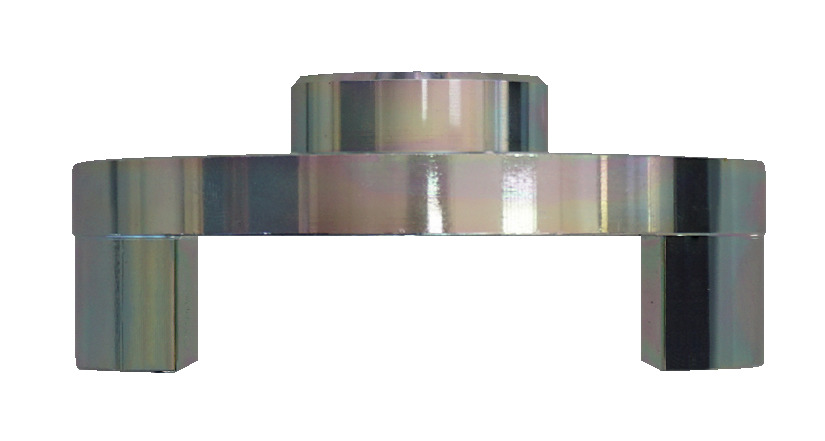

1x KL-0356-1412 - Thrust piece 87 mm dia.

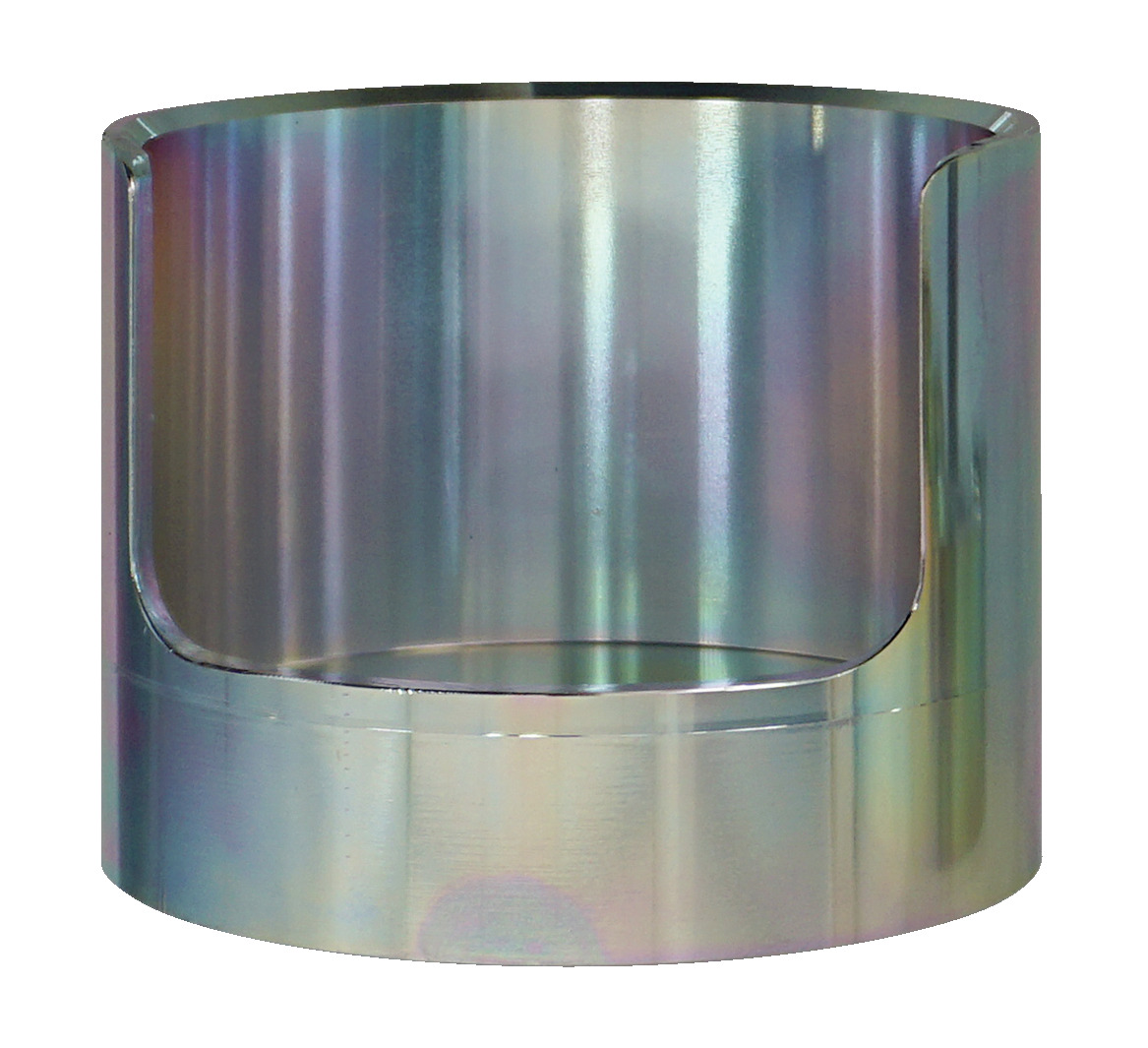

1x KL-0356-1413 - Pressure / support sleeve 105 / 85 mm dia.

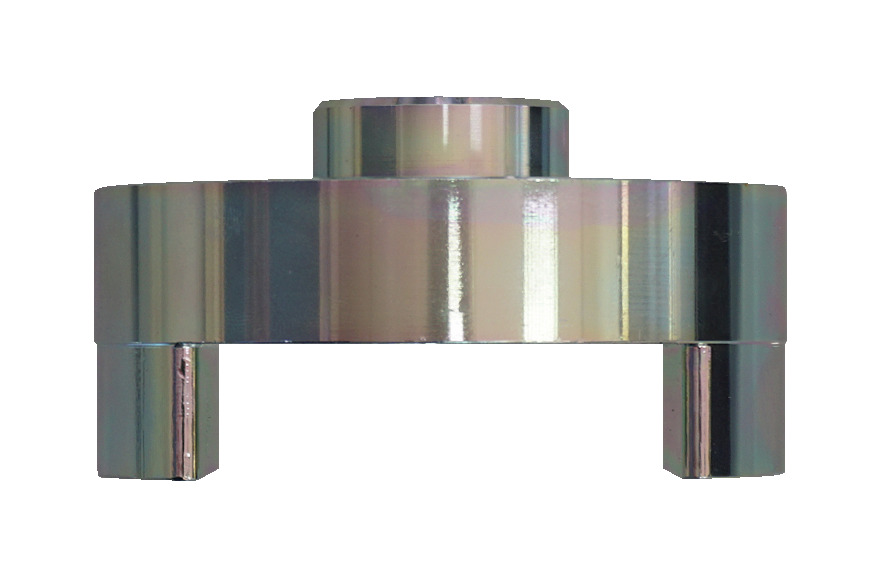

1x KL-0356-1414 - Thrust piece 80 mm dia.

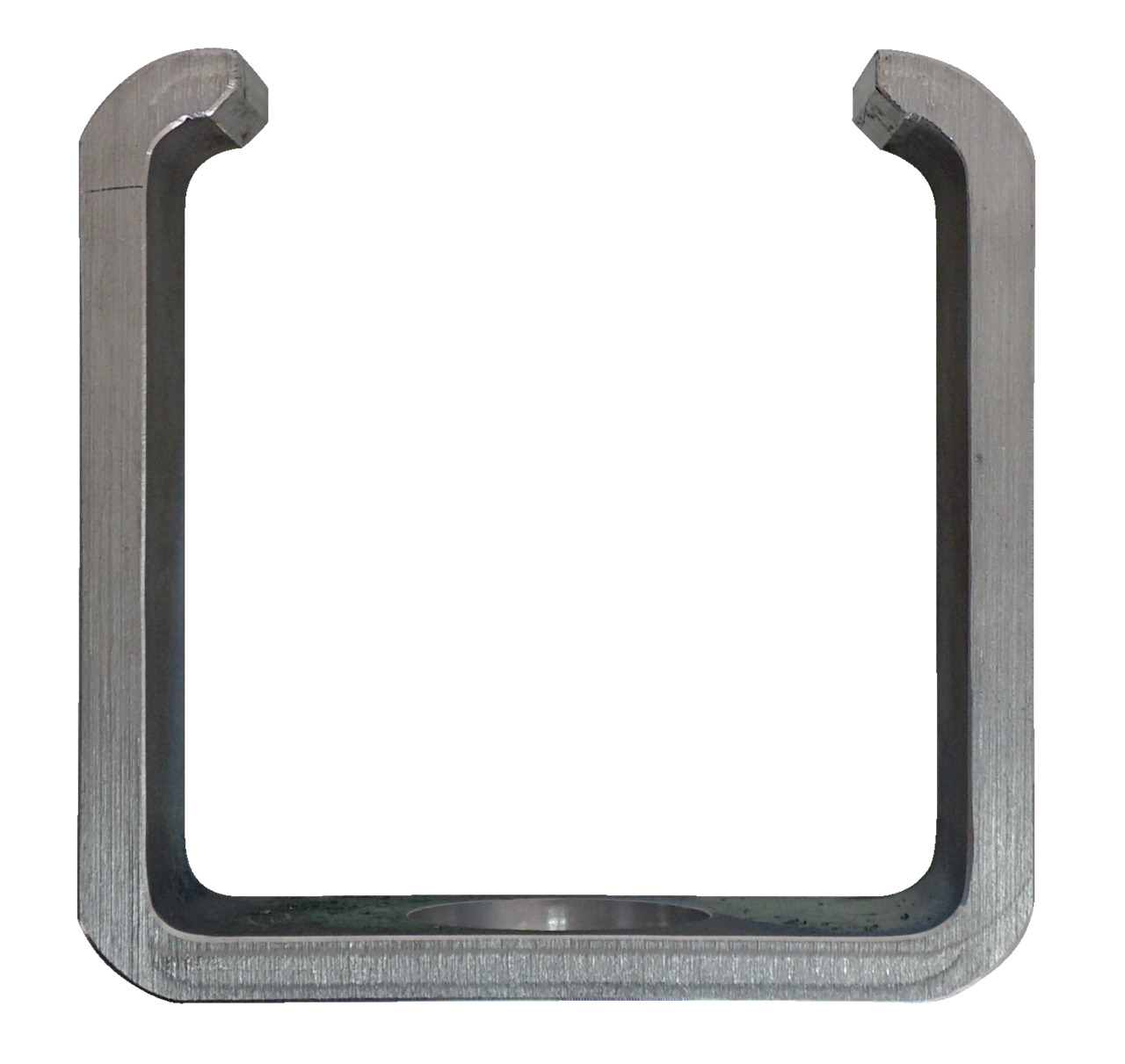

1x KL-0356-1415 - Counter-holder 93 mm
1x KL-0039-1674 - Pressure / support sleeve short 74 / 66 mm dia.
