Wheel Bearing Tool Set
KL-0041-480 A
3126366
Suitable for vehicles having a bearing Ø of 72 mm, 78 mm, 82 mm, 85 mm (with and without snap ring).
E.g. VW, Audi, Seat, Škoda, Ford, Mazda, Volvo, Porsche, etc.
• Enables quick and safe installation of wheel hub bearing units
• No damage to the bearing as it is pressed over the bearing outer ring
• Additional drive parts required!
Hydraulic drive (17 t):
KL-0040-2500 - Hydraulic cylinder 17 t
KL-0215-35 M25 - Hydraulic pump
KL-0039-2120 - Pull spindle with quick-action clamping nut
Ford: 1 463 833; 1 496 721; 6G 91 2C300 GAB; 6G912C300GAB; 6G 91 2C300 GAC; 6G912C300GAC; 1437643; 6G 91 2C300 AAB; 6G912C300AAB; 1223640; 1230907; 1232245; 1254308; 1308716; 1326487; 1336139; 1471854; 2471709; 2472584; 3M51-2C300-CA; 3M512C300CA; 3M51-2C300-CB; 3M512C300CB; 3M51-2C300-CC; 3M512C300CC; 3M51-2C300-CD; 3M512C300CD; 3M51-2C300-CE; 3M512C300CE; 3M51-2C300-CF; 3M512C300CF; 3M51-2C300-CG; 3M512C300CG; 3M51-2C300-CH; 3M512C300CH; 3M5J-1K018-CJ; 3M5J1K018CJ; ME3M5J-2C300-CH; ME3M5J2C300CH
Land Rover: 6G91-2C300U-AB; 6G912C300UAB; LR0 03157; LR003157
Mazda: BN8B-33-15XB; BN8B3315XB; BP4K-33-15XA; BP4K3315XA; BP4K-33-15XB; BP4K3315XB
Volvo: 30666130; 30666605; 30683161; 30714492; 30714730; 30730828; 30736653; 30741331; 31212698; 31262950; 31340604; 8623550; 30736501; 31360096; 31476395; 32246153
VW-Audi: 7H0 401 611 C; 7H0 401 611 D; 7H0 401 611 E; 7H0 401 611 H; 7H0 498 611; 7L0 498 611; 6C0 407 621; 6Q0 407 621 AH; 6Q0 407 621 AJ; 6R0 407 621 A; 6R0 407 621 E; 6C0 407 621 A; 6Q0 407 621 CB
1x KL-0039-1265 - Pressure ring, Ø 65mm
1x KL-0039-1272 - Pressure ring, Ø 72mm
1x KL-0039-1273 - Pressure ring, Ø 73mm
1x KL-0039-1283 - Pressure ring, Ø 83mm
1x KL-0039-1288 - Pressure ring, Ø 88mm
1x KL-0039-1289 - Pressure ring, Ø 89mm
1x KL-0039-1502 - Pressure ring, Ø 93mm
1x KL-0039-1674 - Pressure/Support sleeve, short, Ø 74/66mm
1x KL-0039-1682 - Pressure/Support sleeve, short, Ø 82/74mm
1x KL-0039-1802 - Centring sleeve, long, Ø 27.4mm

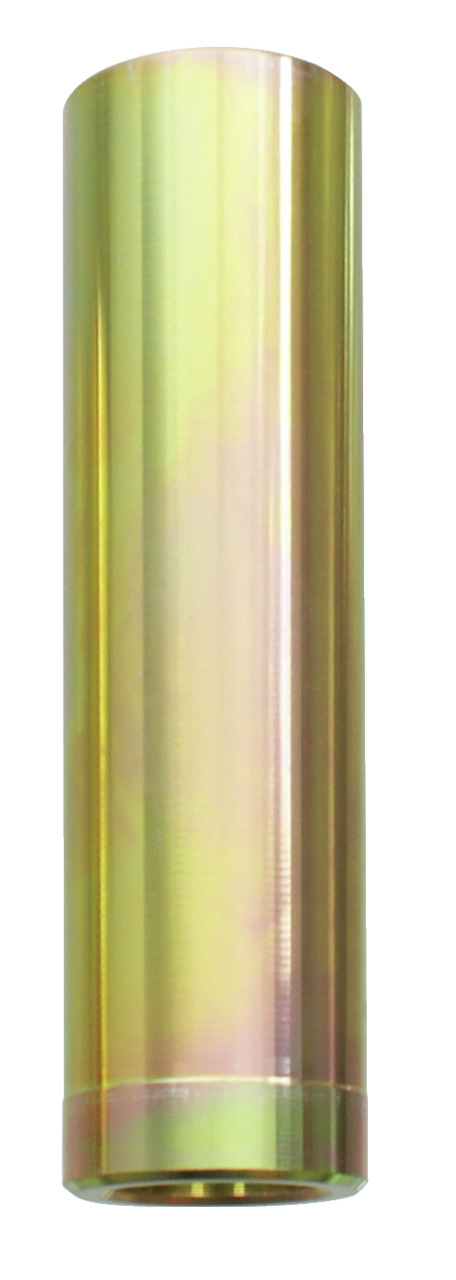

1x KL-0039-1803 - Centring sleeve, long, Ø 29.7mm

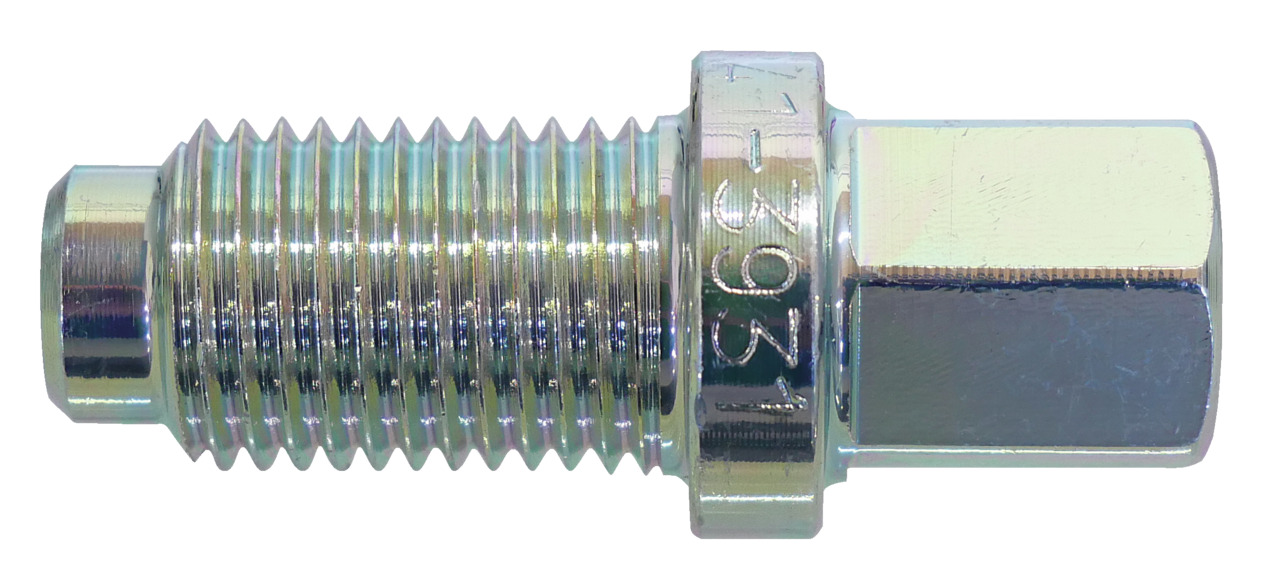

5x KL-0041-3931 - Pressure screw, M14x1.5
1x KL-0041-4400 C - Clamping shells (pair), Ø 72mm

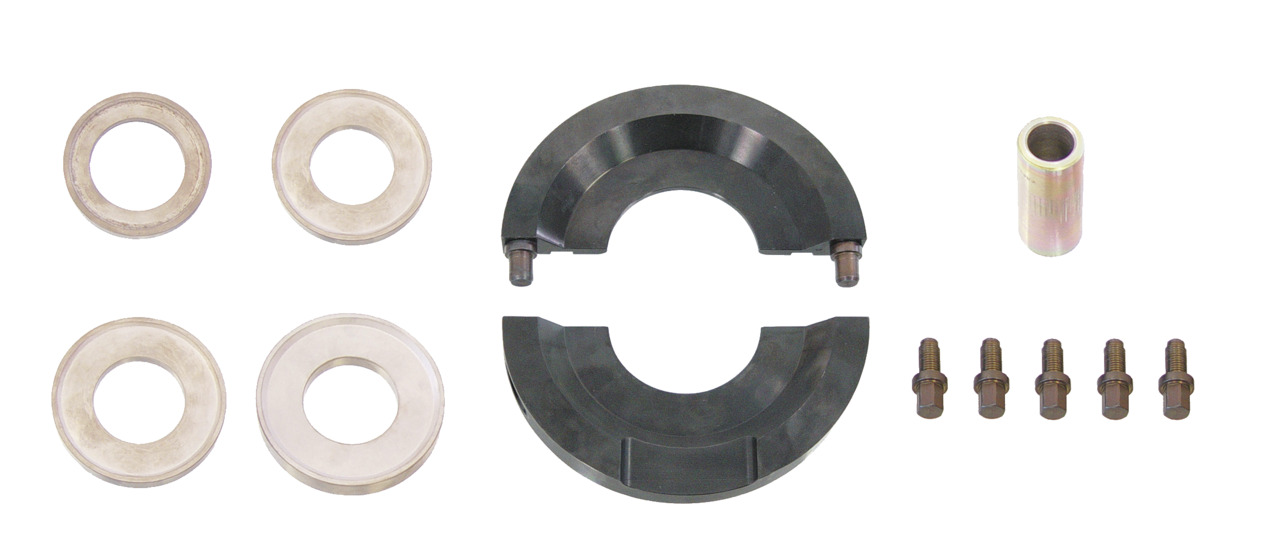

1x KL-0041-4500 B - Clamping shells (pair), Ø 85mm

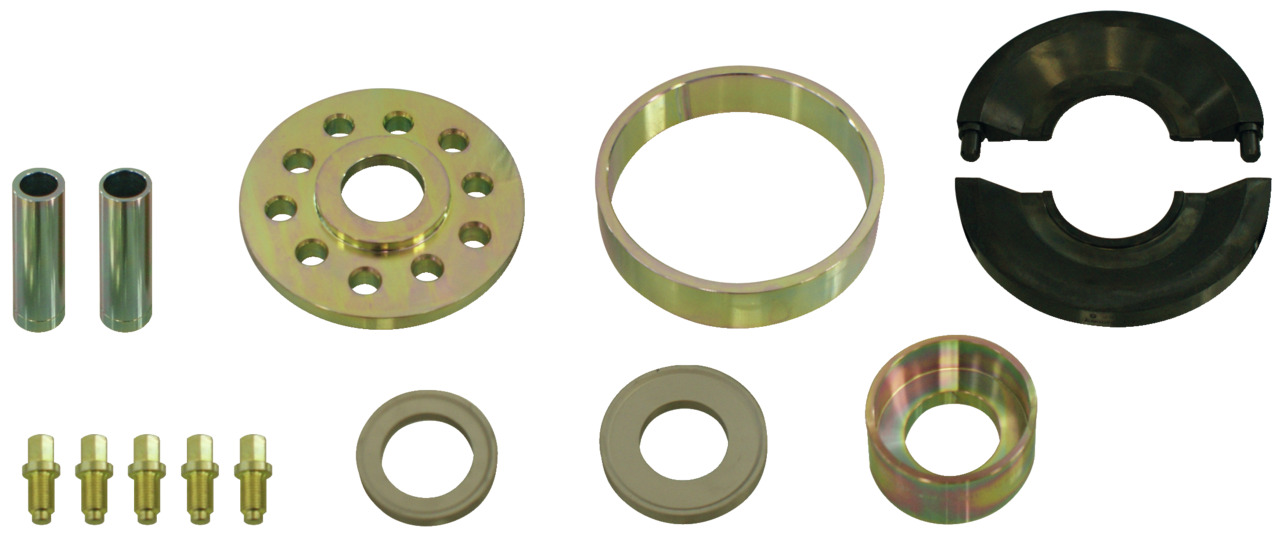

1x KL-0041-4600 E - Clamping shells (pair), Ø 78mm
1x KL-0041-4601 - Pressure/Support sleeve, long, Ø 30/22mm

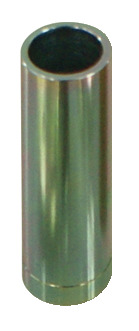

1x KL-0041-4602 - Guide sleeve Ø 26.3mm
1x KL-0041-4607 - Housing
1x KL-0041-4608 D - Cap
