Description

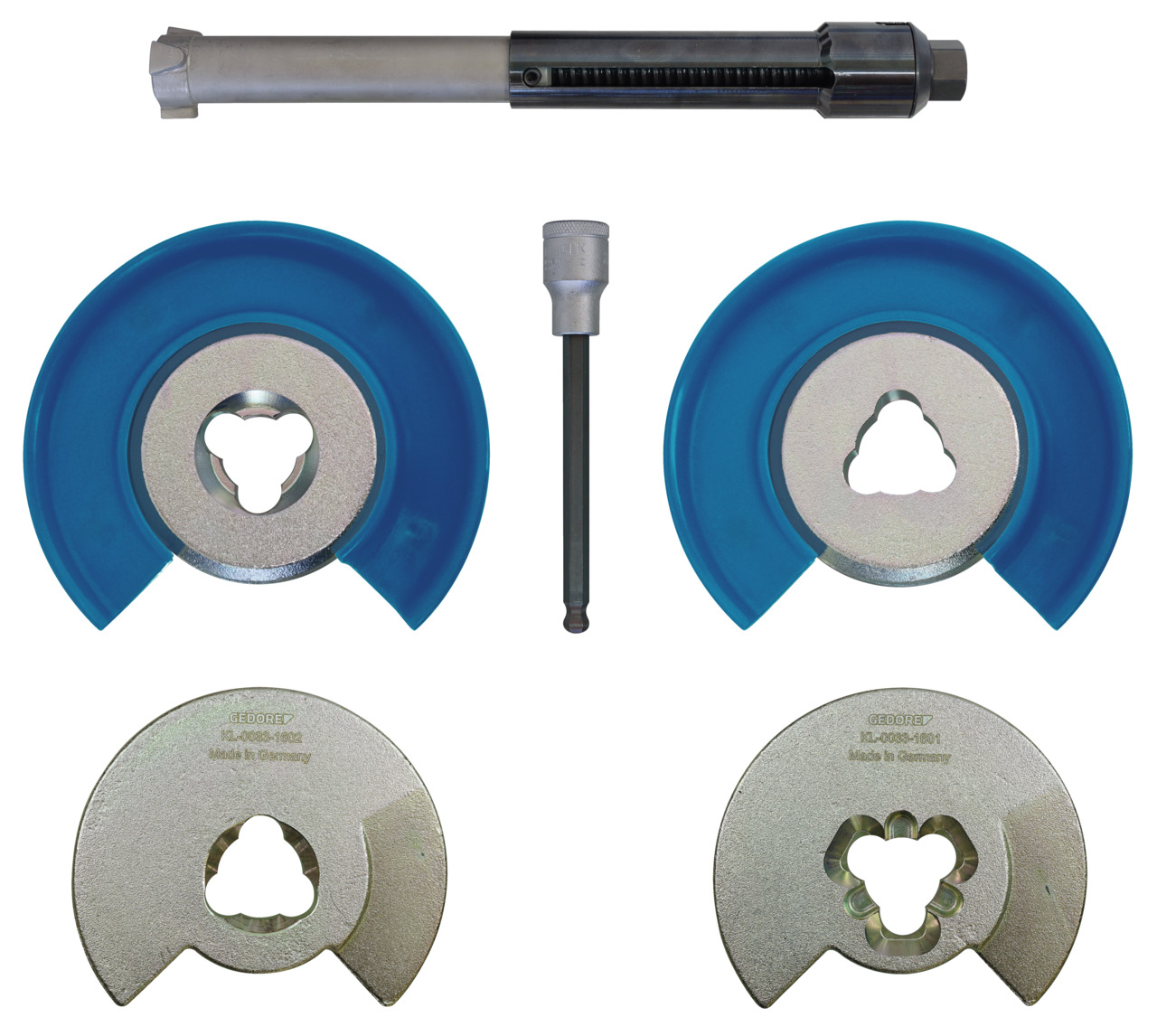

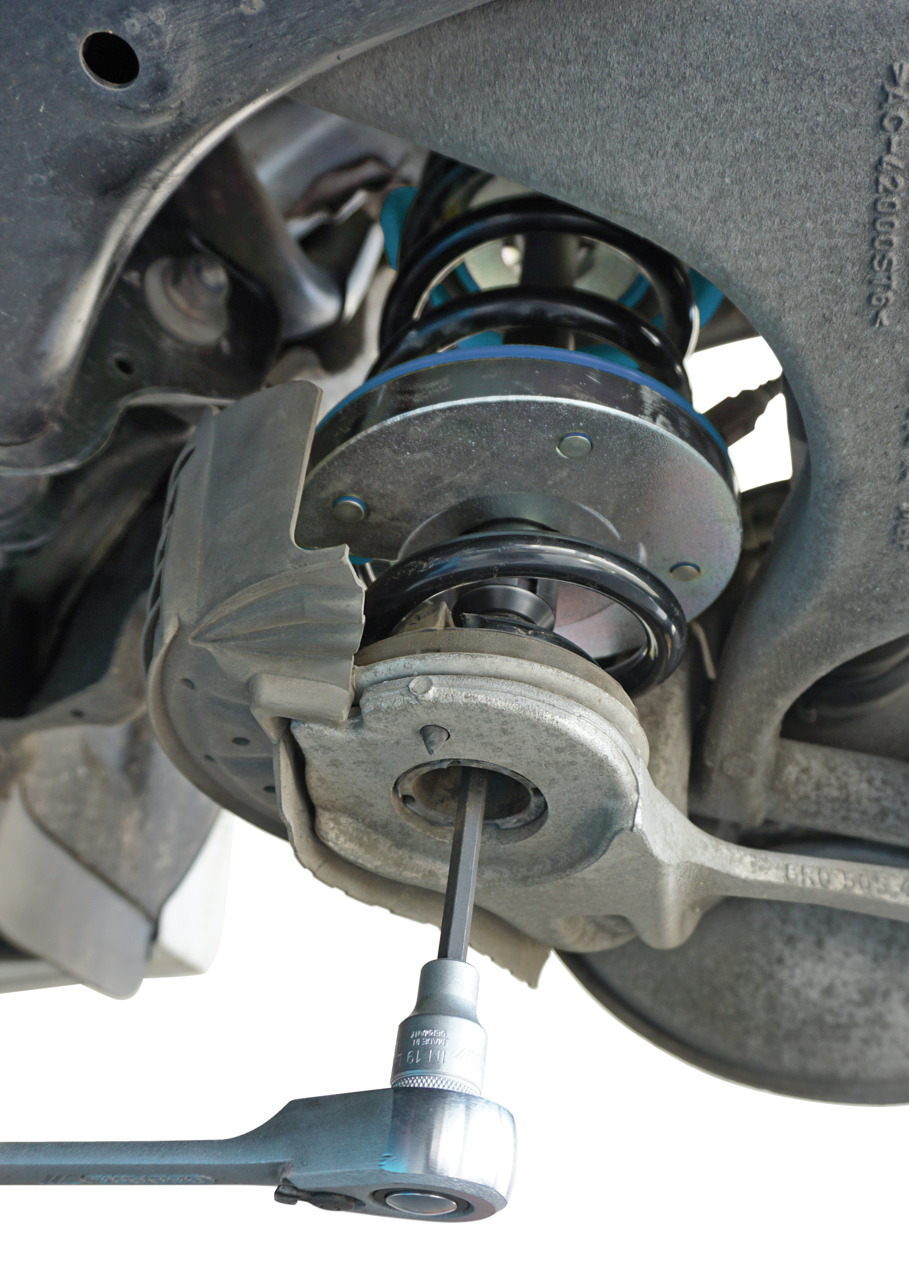

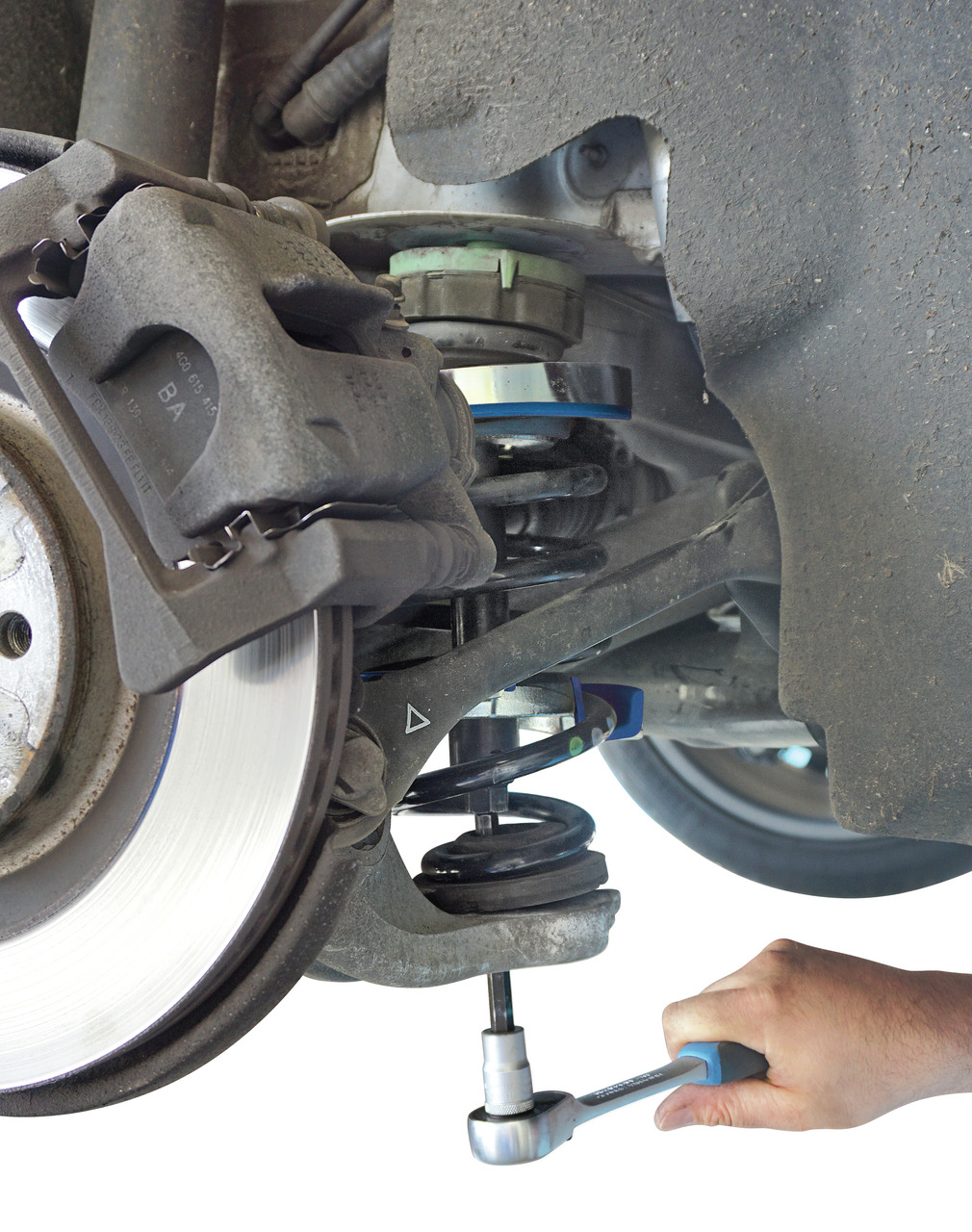

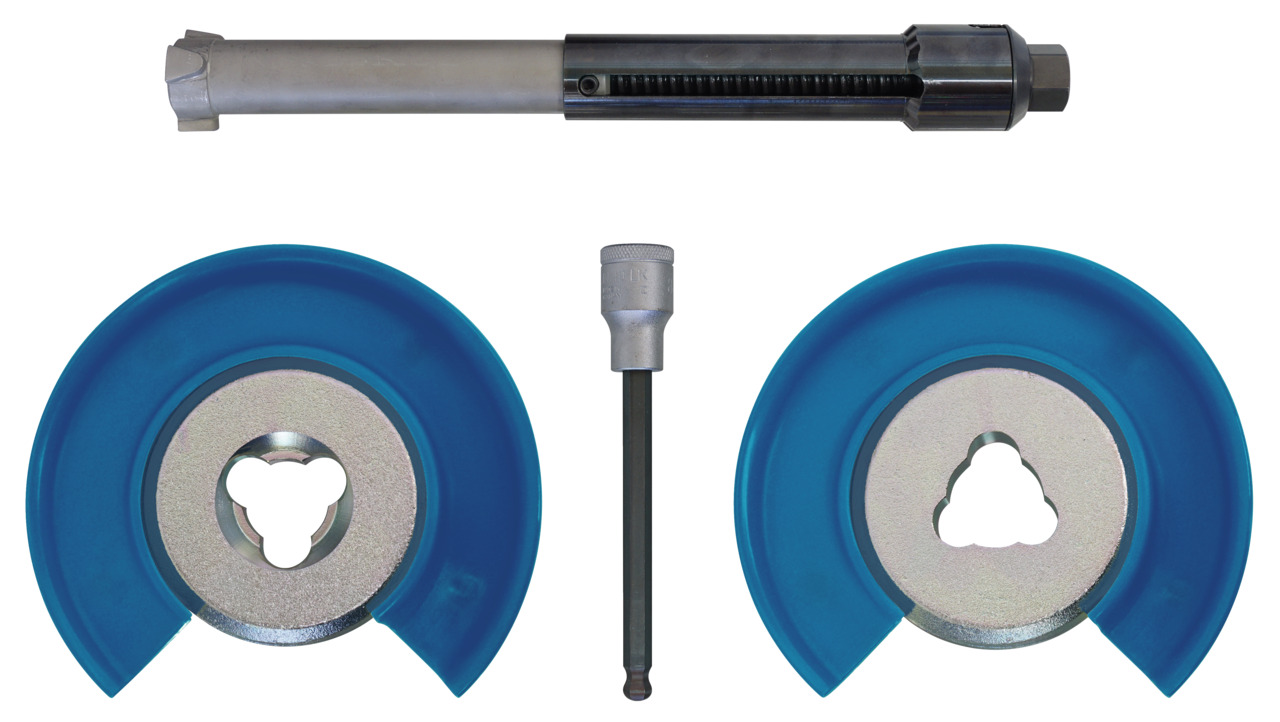

The inner spring compressor enables the quick and safe removal and installation of suspension springs on transverse and trailing arm axles directly on the vehicle.
The particularly compact design of the Internal-type spring compressor allows, for example, also a simple insertion of the compressor cylinder through the wishbone of VAG vehicles with a very small through hole (approx. 34 mm diameter) at the bottom of the wishbone, and thus makes loosening of various axle components as well as a resulting wheel alignment superfluous.
The extremely stable and robust design ensures a very high safety level, , and the unique three-point safety lock as well as the special corrugated profile prevent the pressure plates from rotating in relation to each other when the spring is compressed, thus preventing the spring from popping out. This makes the a installation of additional securing devices against falling out unnecessary!
The pressure plates size 2A are also equipped with anti-slip protective inserts in order to prevent the sensitive spring surface coating from being damaged.
Advantages:
• Particularly compact design
• Removal and installation of suspension springs on transverse and trailing arm axles
• Especially suitable for VAG vehicles with very small through hole in the wishbone
• Loosening of various axle components and the resulting wheel alignment become superfluous
• Very high time saving
• Very safe clamping due to unique 3-point safety locking system
• No additional safety devices against falling out necessary!
• Special wave profile prevents the pressure plates from twisting in relation to each other
• Protective inserts prevent damage to the sensitive spring surface coating
• No moving of the spring while compressed due to anti-slip protective inserts
