Silentbloc Tool, Ø 119mm, BPW
KL-1011-121
3417158

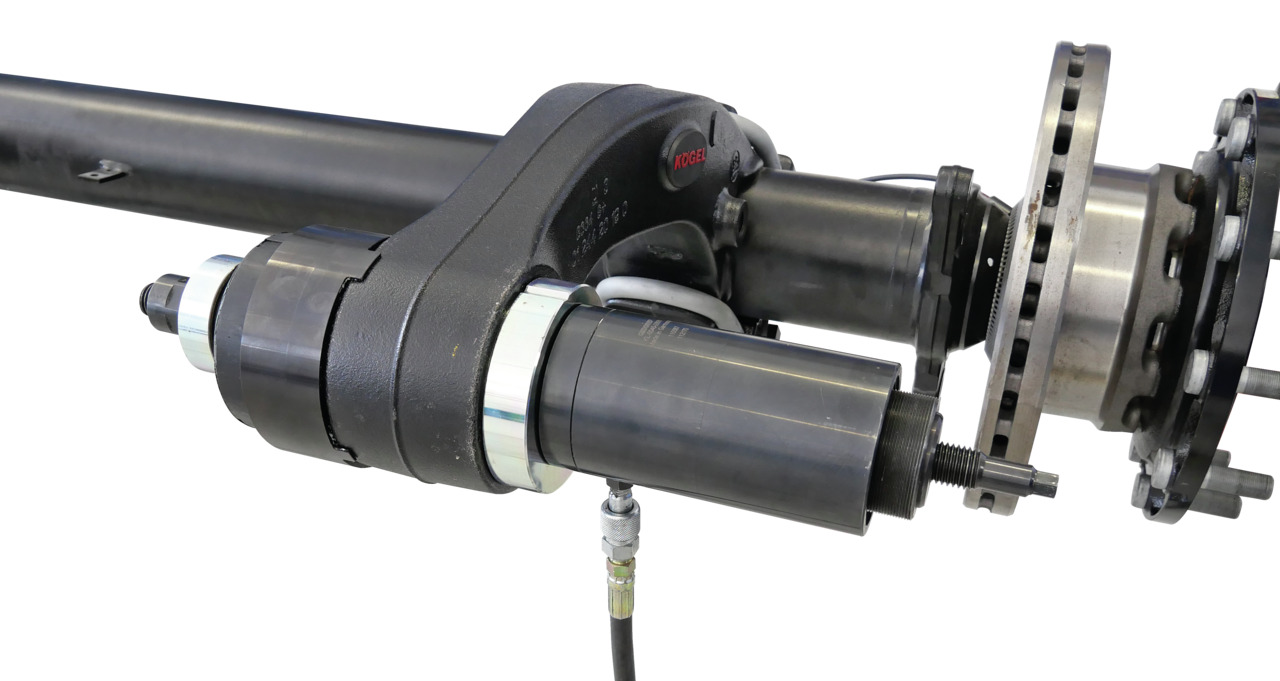

Suitable for silent blocks with an axle bore diameter of 119 mm (removed: 132 mm). E.g. on BPW ECO Air/ECO Air Compact axles.
• For quick and professional insertion and removal on the wishbone
• For steel-rubber bushings No. 02.0314.38.00
• Additional mechanical drive parts necessary!

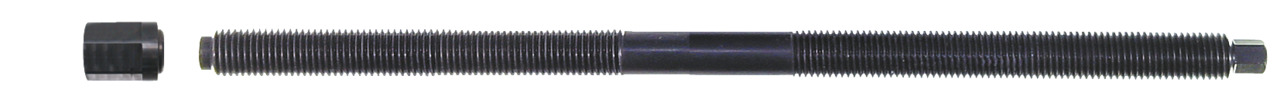

Hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder 28 t KL-0215-35 M28 - Hydraulic pump KL-0040-2841 - Pull spindle with nut M24 Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-1920-1 - Pull spindle M20 KL-0039-2120-2 - Quick-clamping nut M20 KL-0039-1002 - Mounting adapter KL-0039-1340 - Centring ring
99.00.000.9.69
BPW: 02.0314.38.00; 09.8010.81.20S

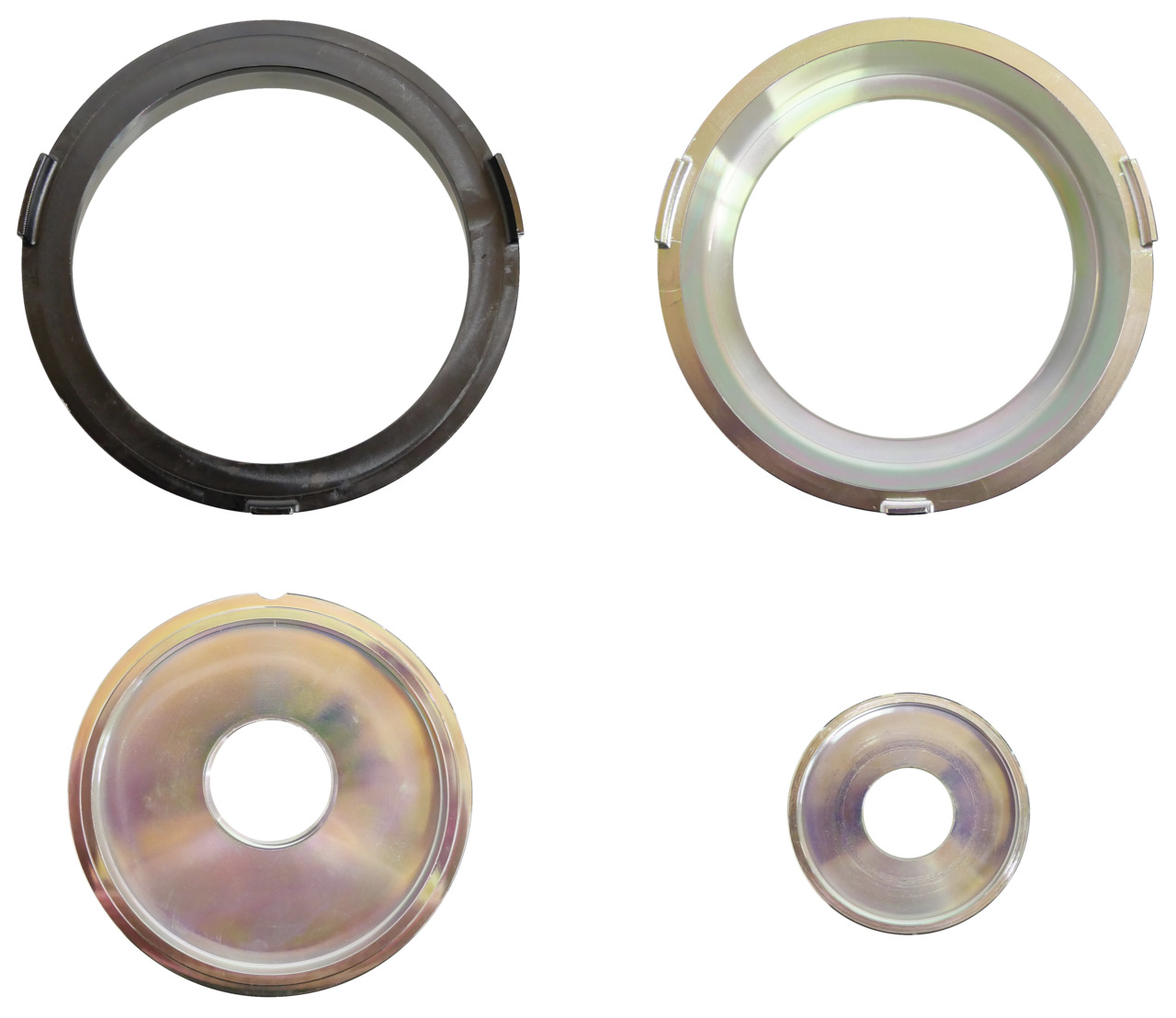

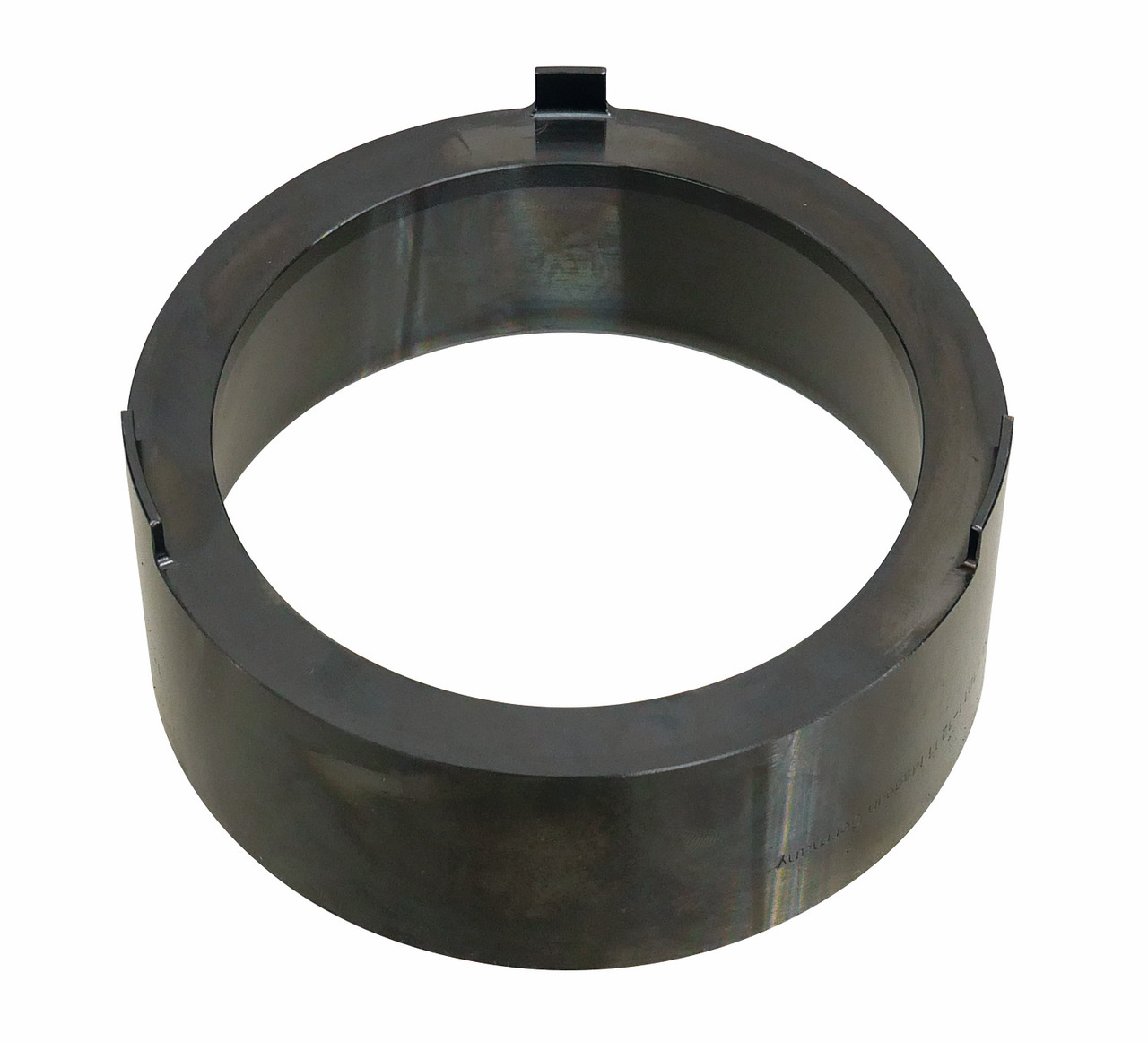

1x KL-1011-1211 - Conical sleeve 119 mm dia.

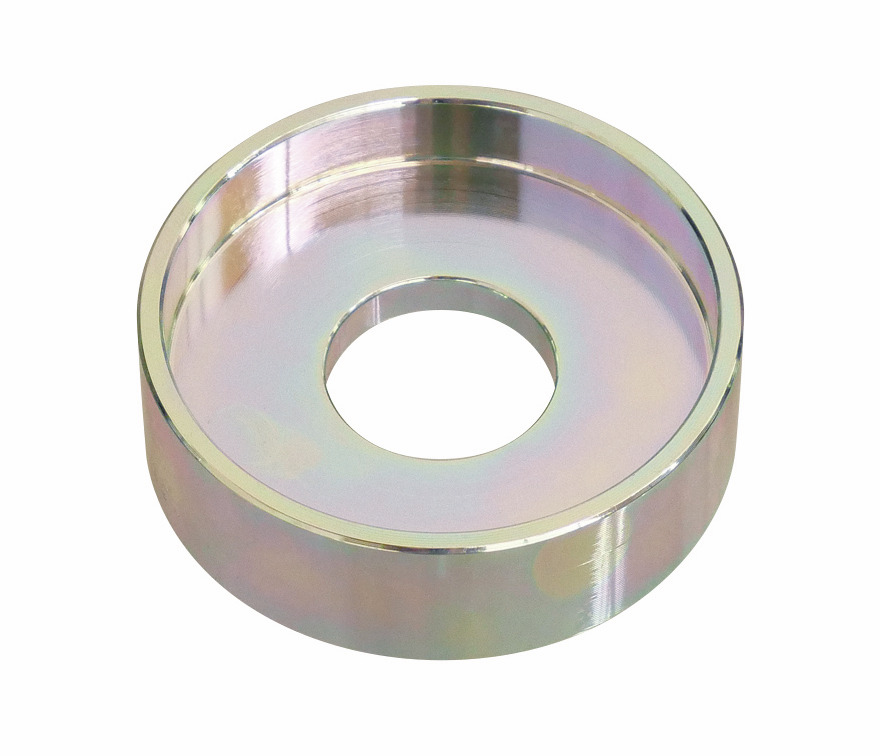

1x KL-1011-1212 - Thrust piece

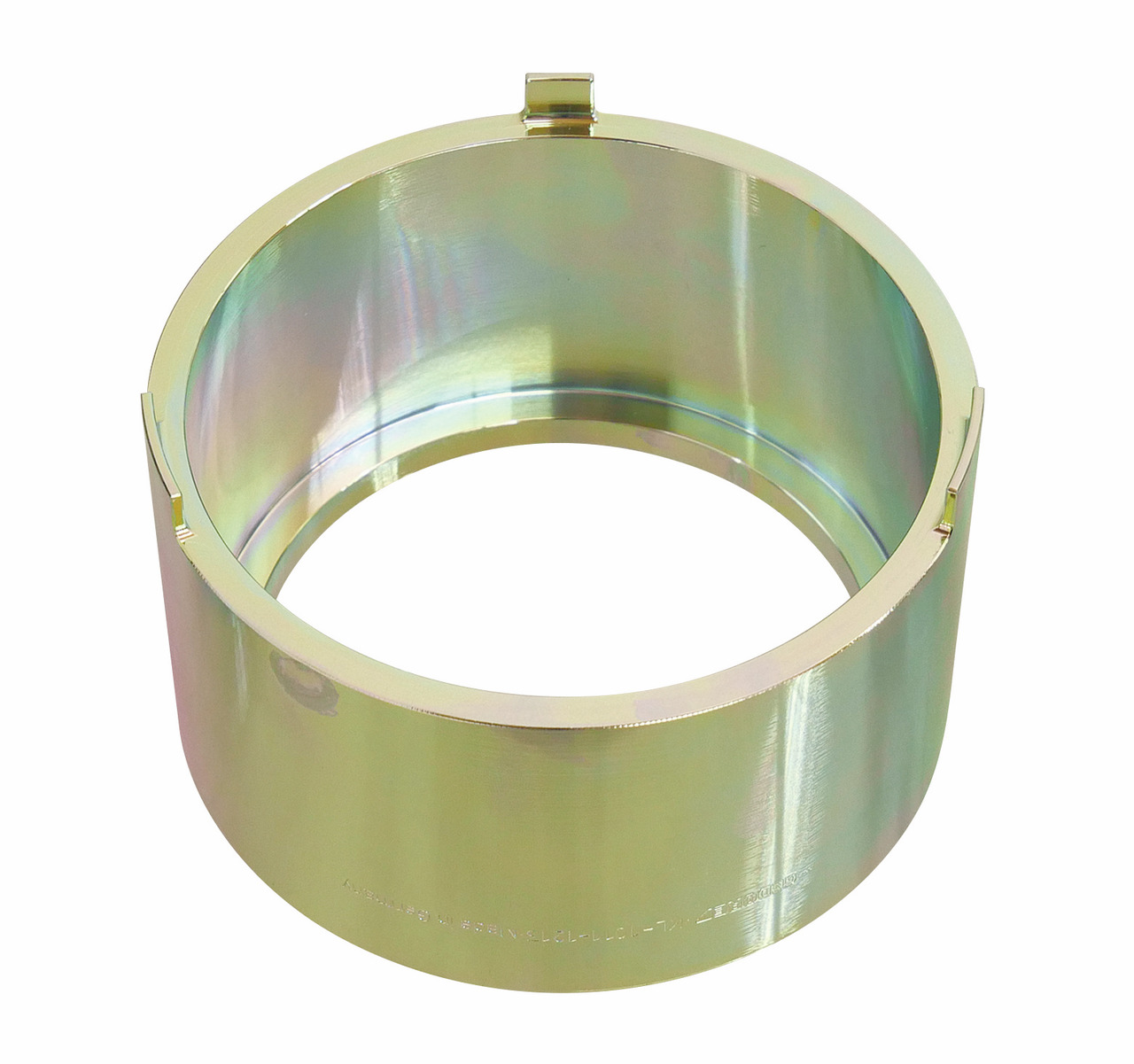

1x KL-1011-1213 - Support sleeve

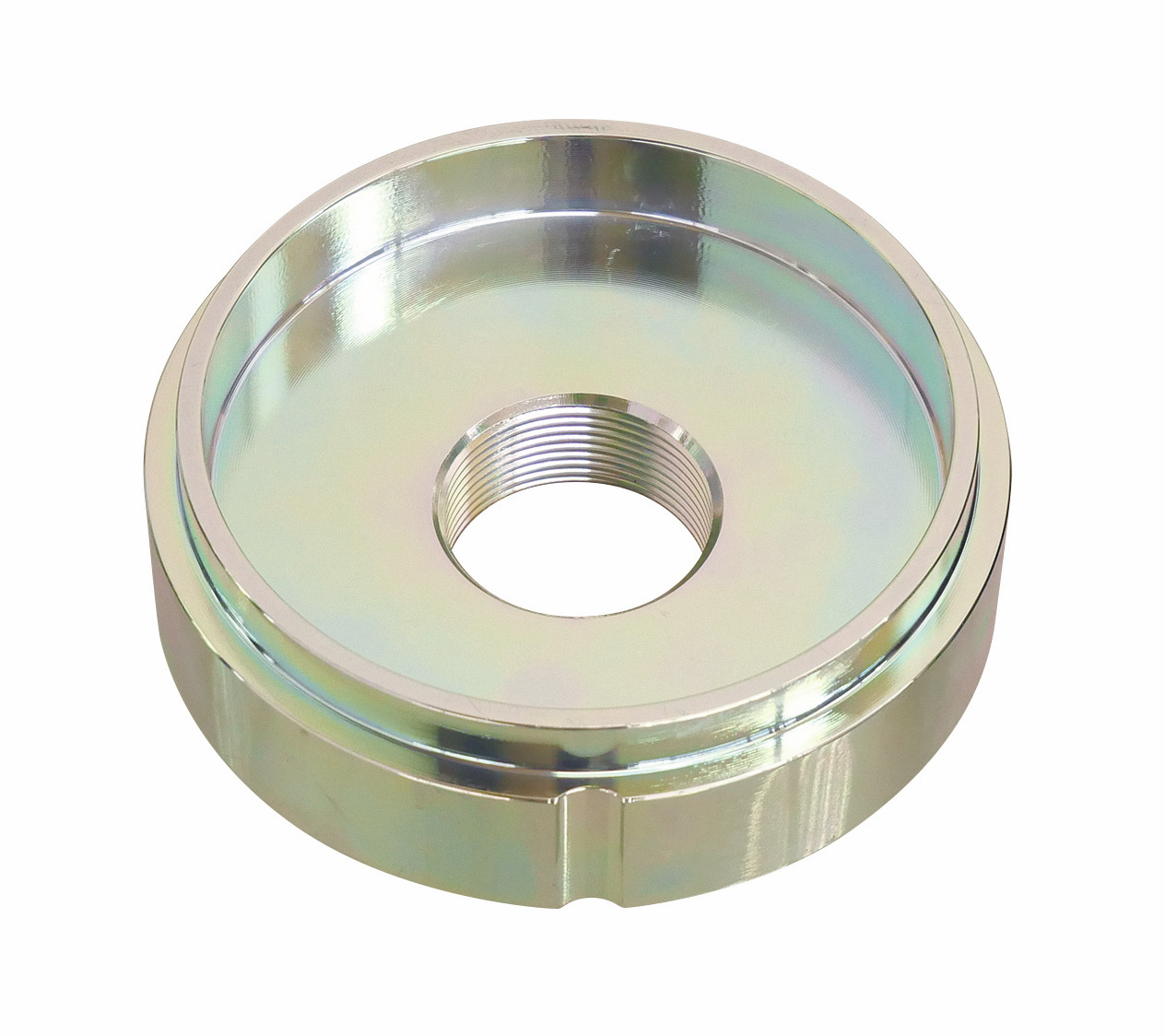

1x KL-1011-1214 - Cover
