Alternator Combination Socket Set
KL-0284-185 E
3293289
Universally suitable for passenger car and van alternators.

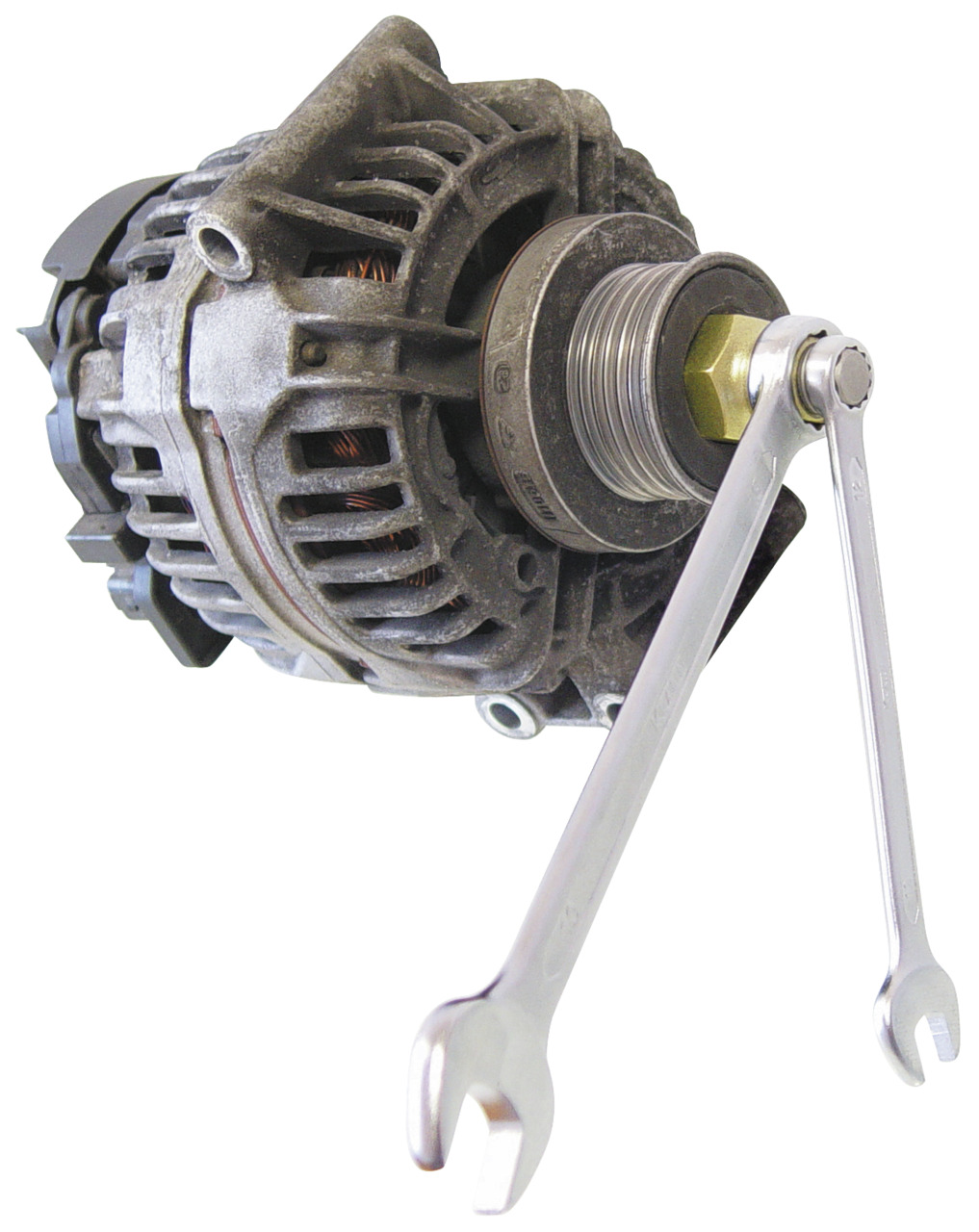

• For loosening, tightening and counterholding the overrunning pulley
• Screwdriver inserts and cap nuts can be combined as required
W 602 589 00 10 00
999-5761
T10474
T10474-1
U-40084
MP-1-309

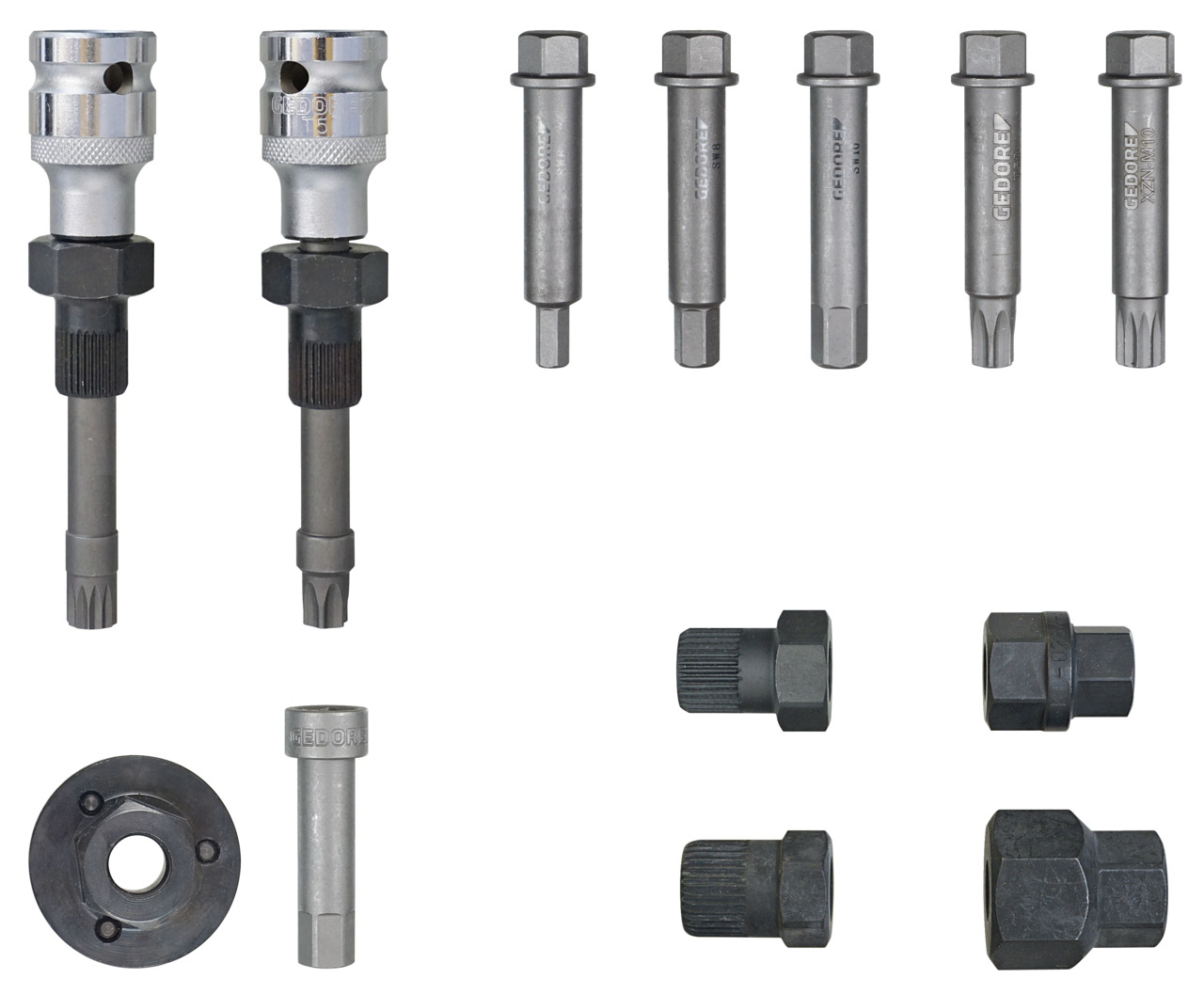

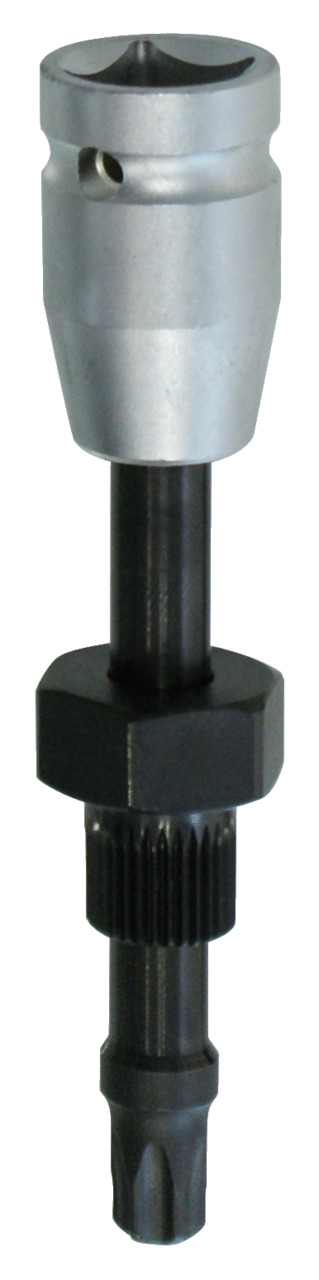

1x KL-0284-40 - Combination spanner (TX50 / 31 teeth - Ø14 mm)

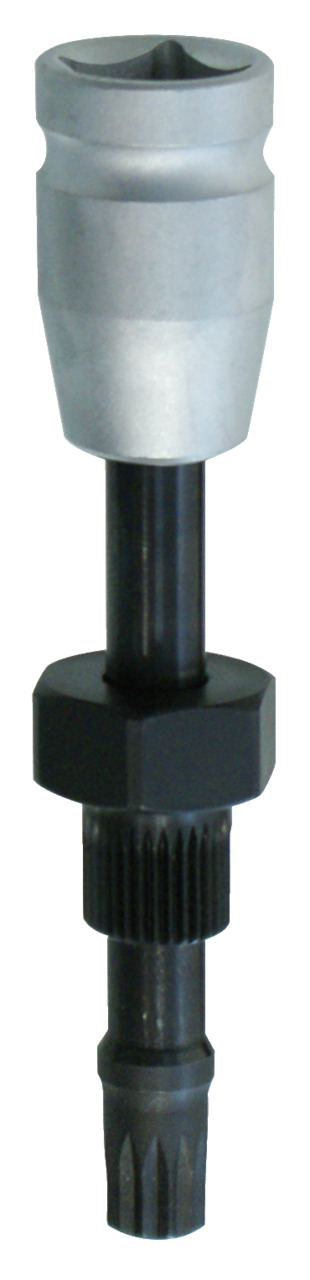

1x KL-0284-41 - Combination spanner (XZN10 / 31 teeth - Ø14 mm)

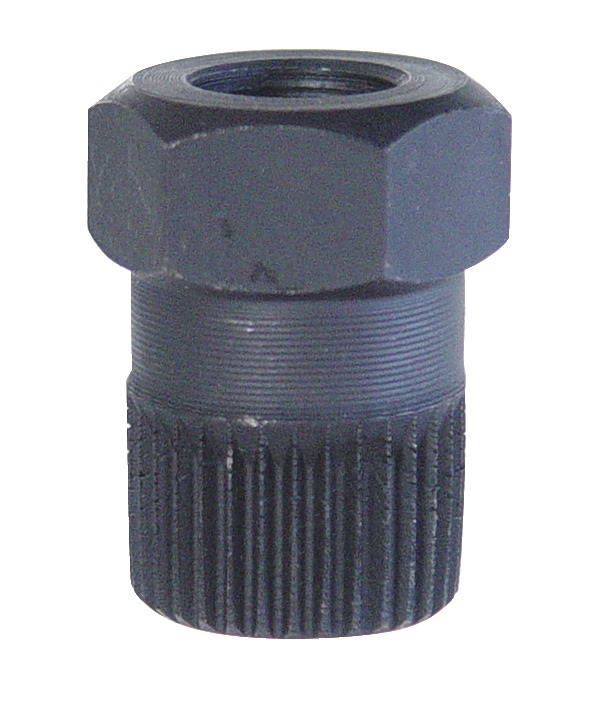

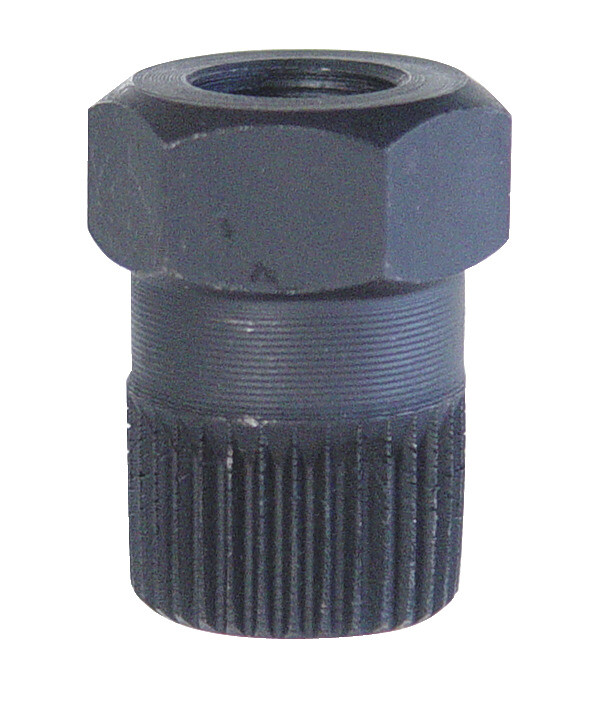

1x KL-0284-1902 - Union nut (33 teeth - Ø19.5 mm)

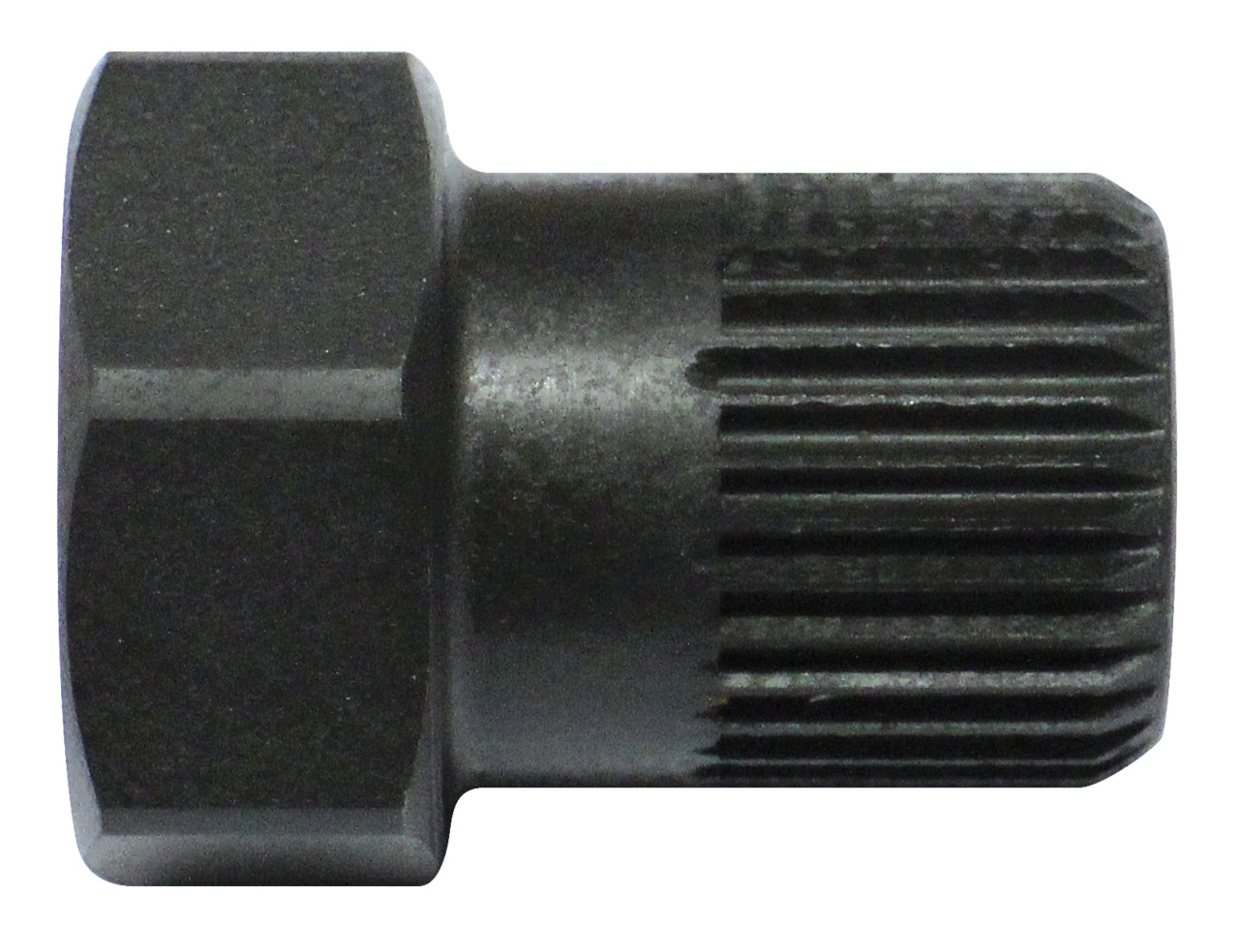

1x KL-0284-4202 - Union nut (32 teeth - Ø17 mm)

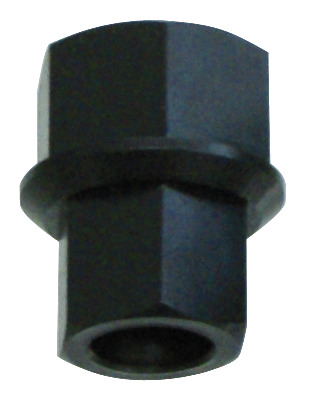

1x KL-0284-3901 - Union nut (inner hex 17 mm)

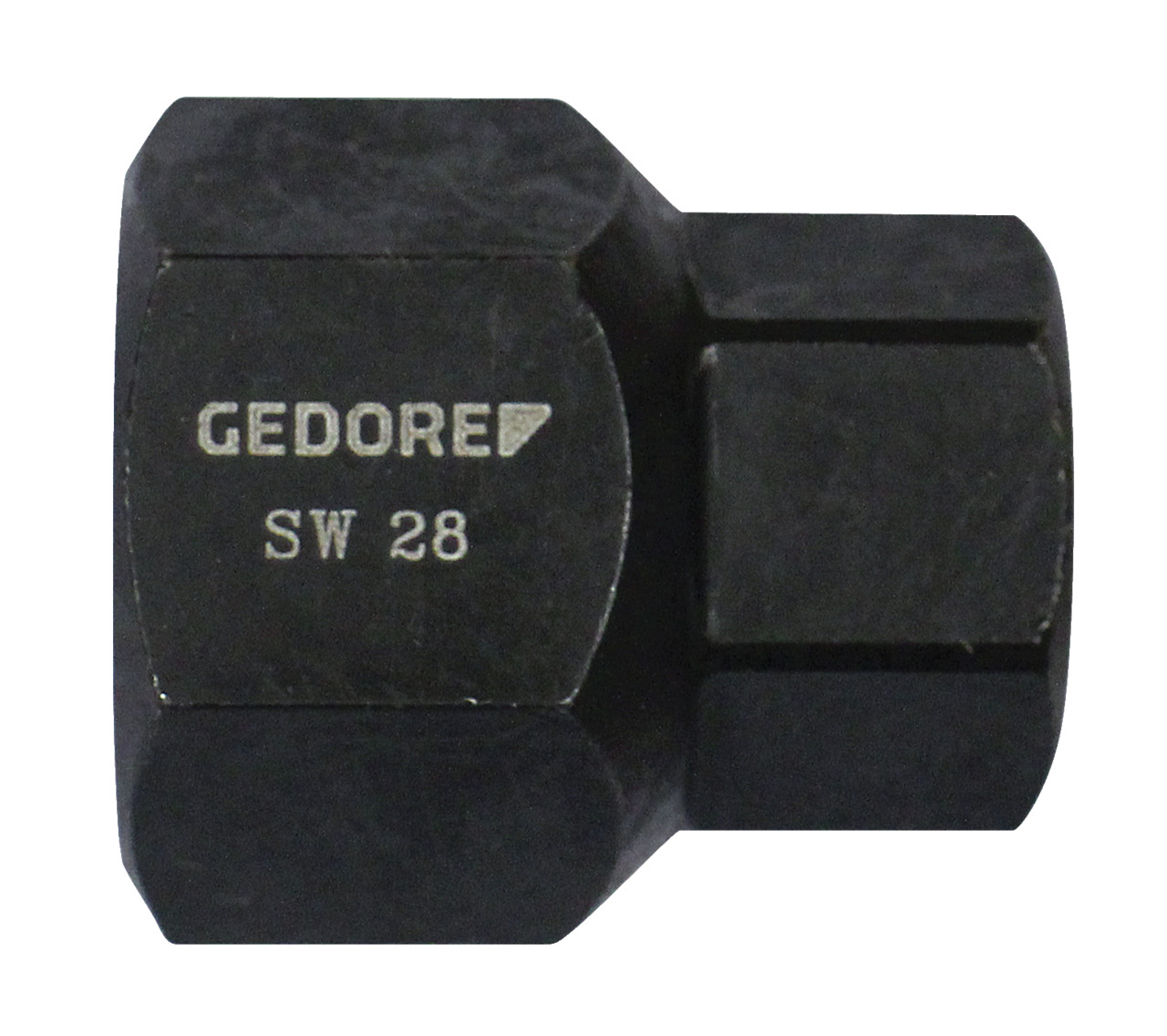

1x KL-0284-2702 - Union nut (inner hex 28 mm)

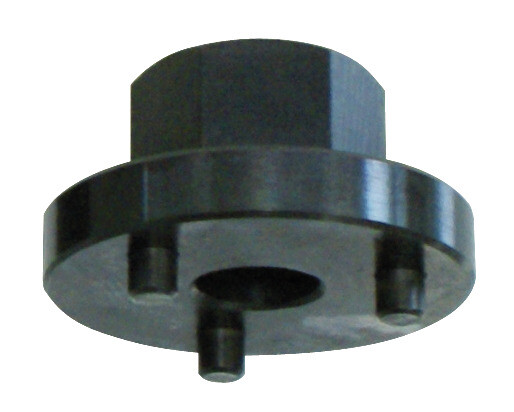

1x KL-0284-3902 - Union nut (3x pin)

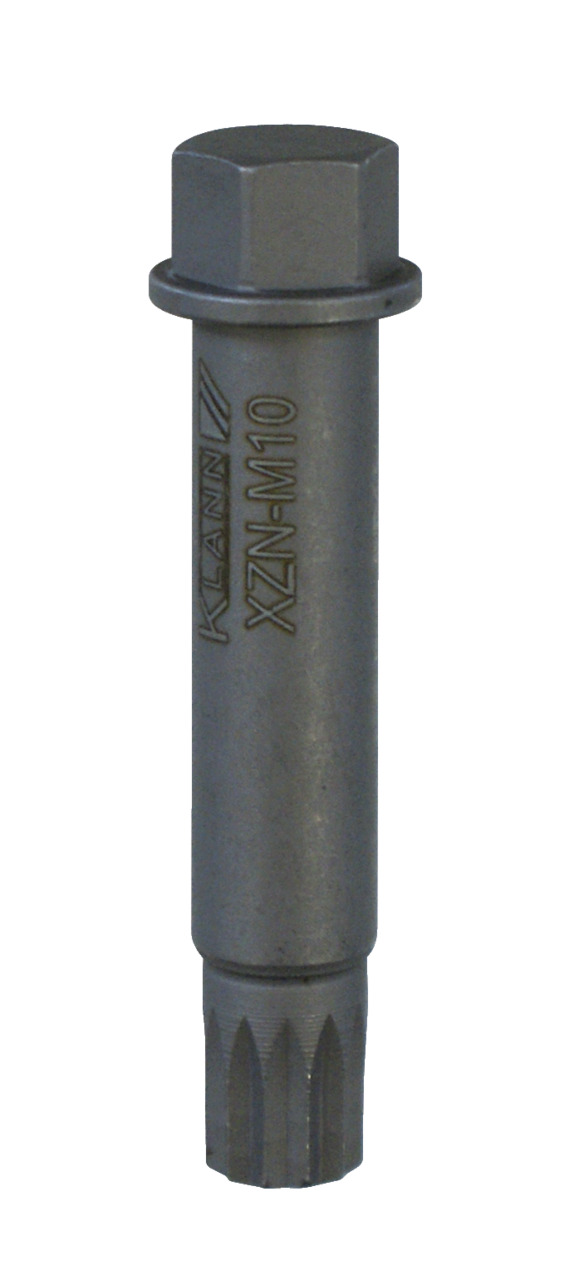

1x KL-0284-2801 - In-hex socket (XZN10)

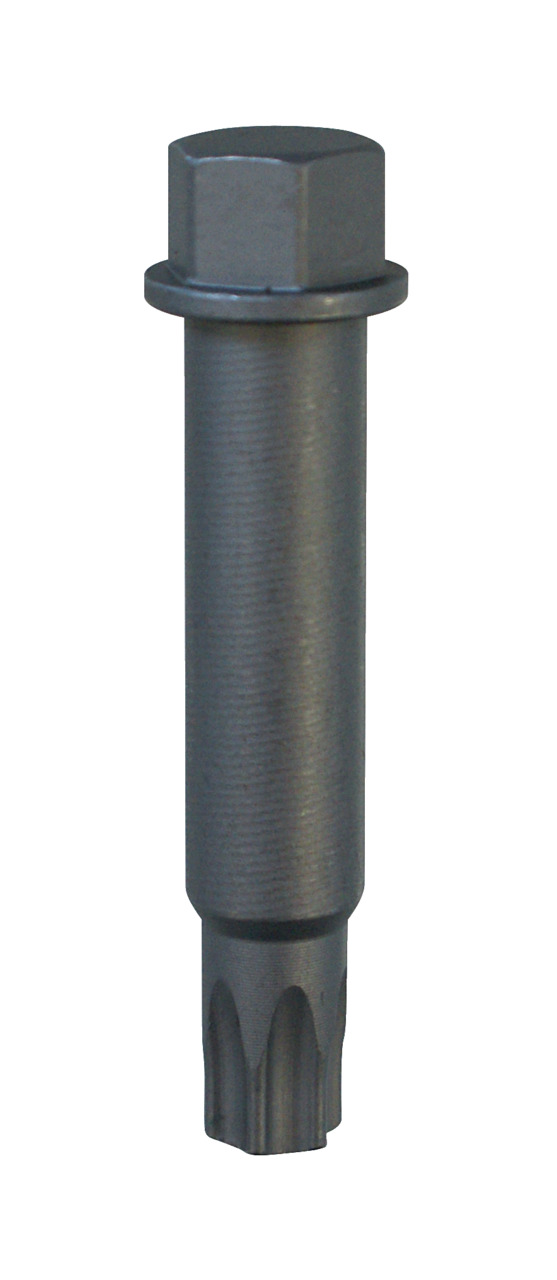

1x KL-0284-2901 - In-hex socket (TX50)

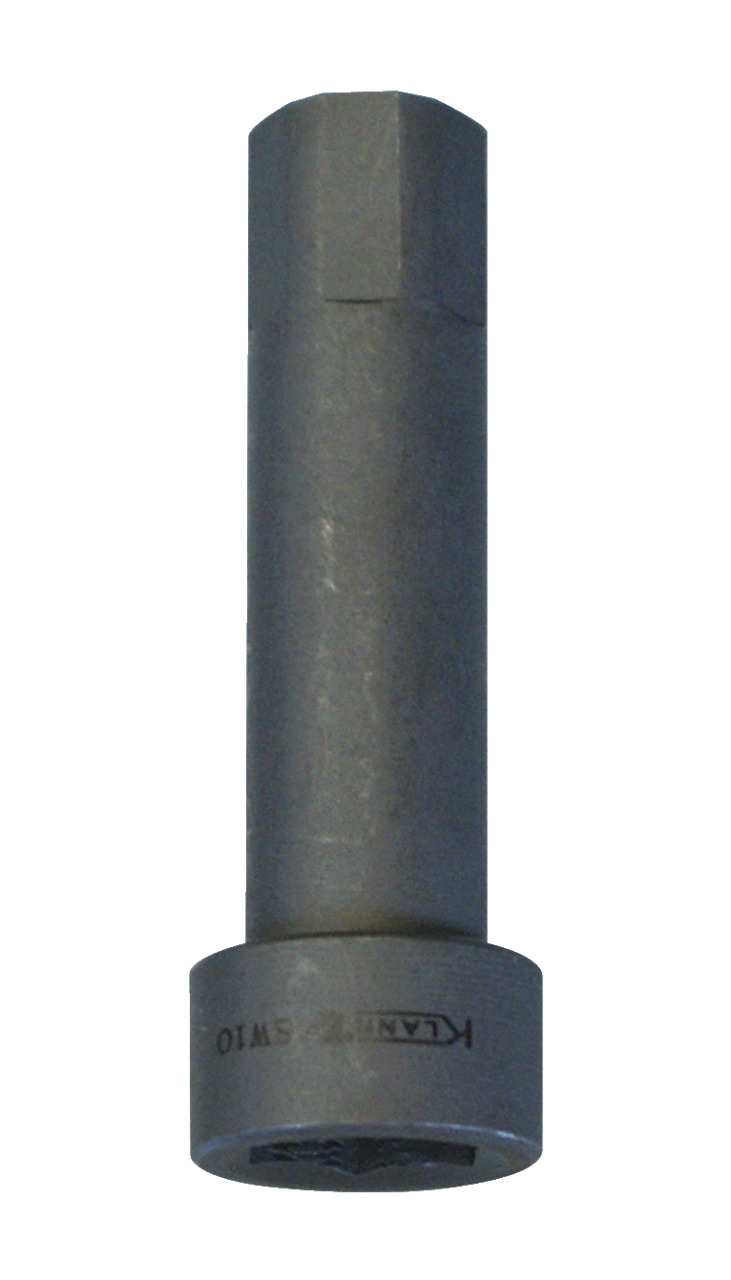

1x KL-0284-2601 - In-hex socket (outer hex 10 mm)

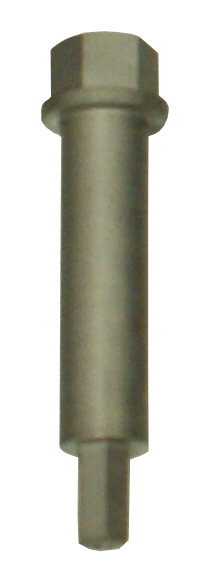

1x KL-0284-2811 - In-hex socket (inner hex 6 mm)

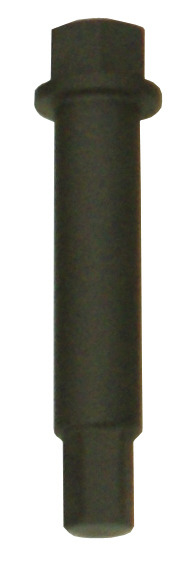

1x KL-0284-2821 - In-hex socket (inner hex 8 mm)

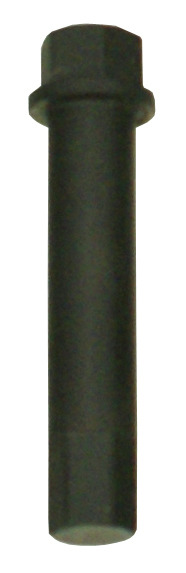

1x KL-0284-2831 - In-hex socket (inner hex 10 mm)

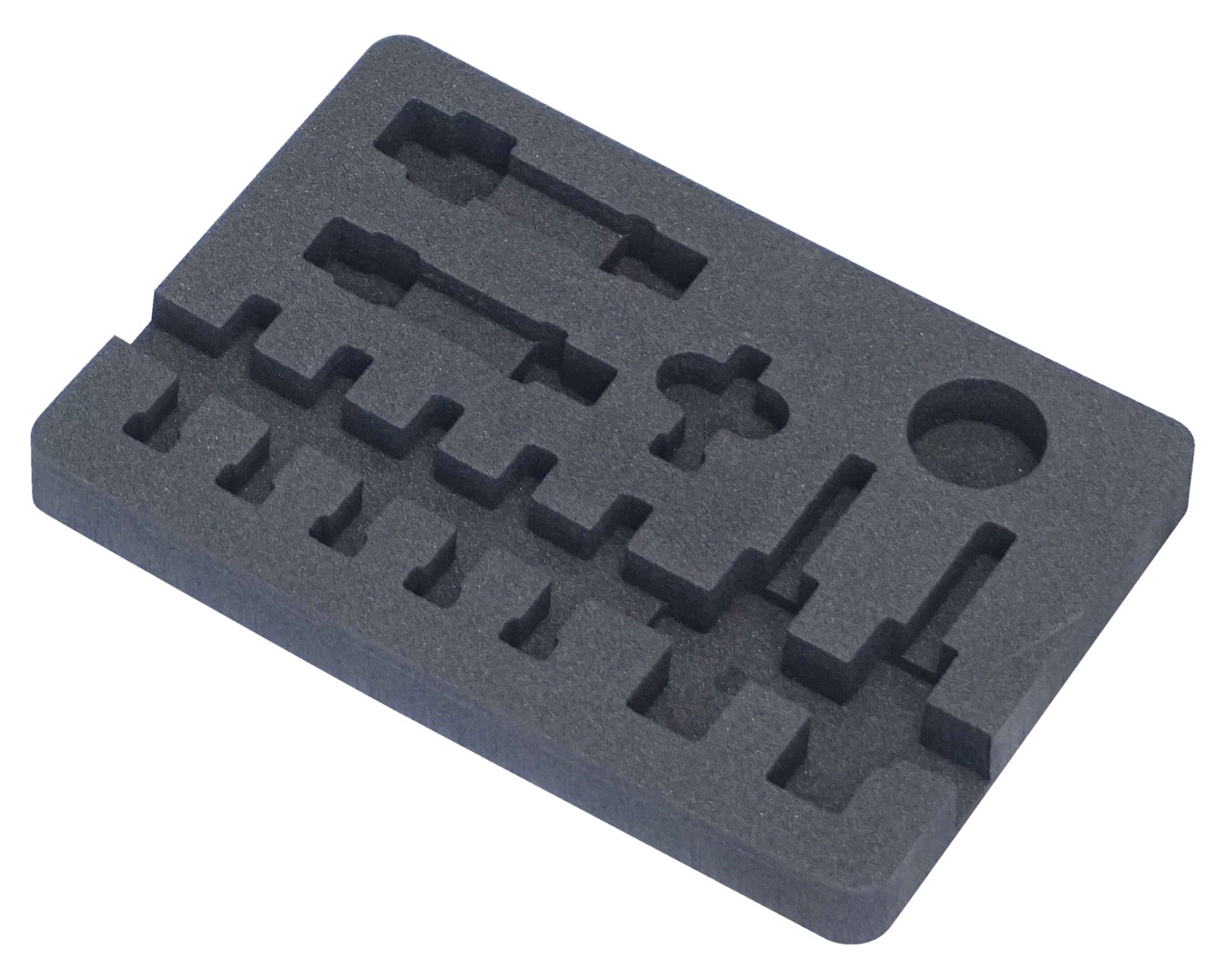

1x KL-0284-1859 - Foam insert
