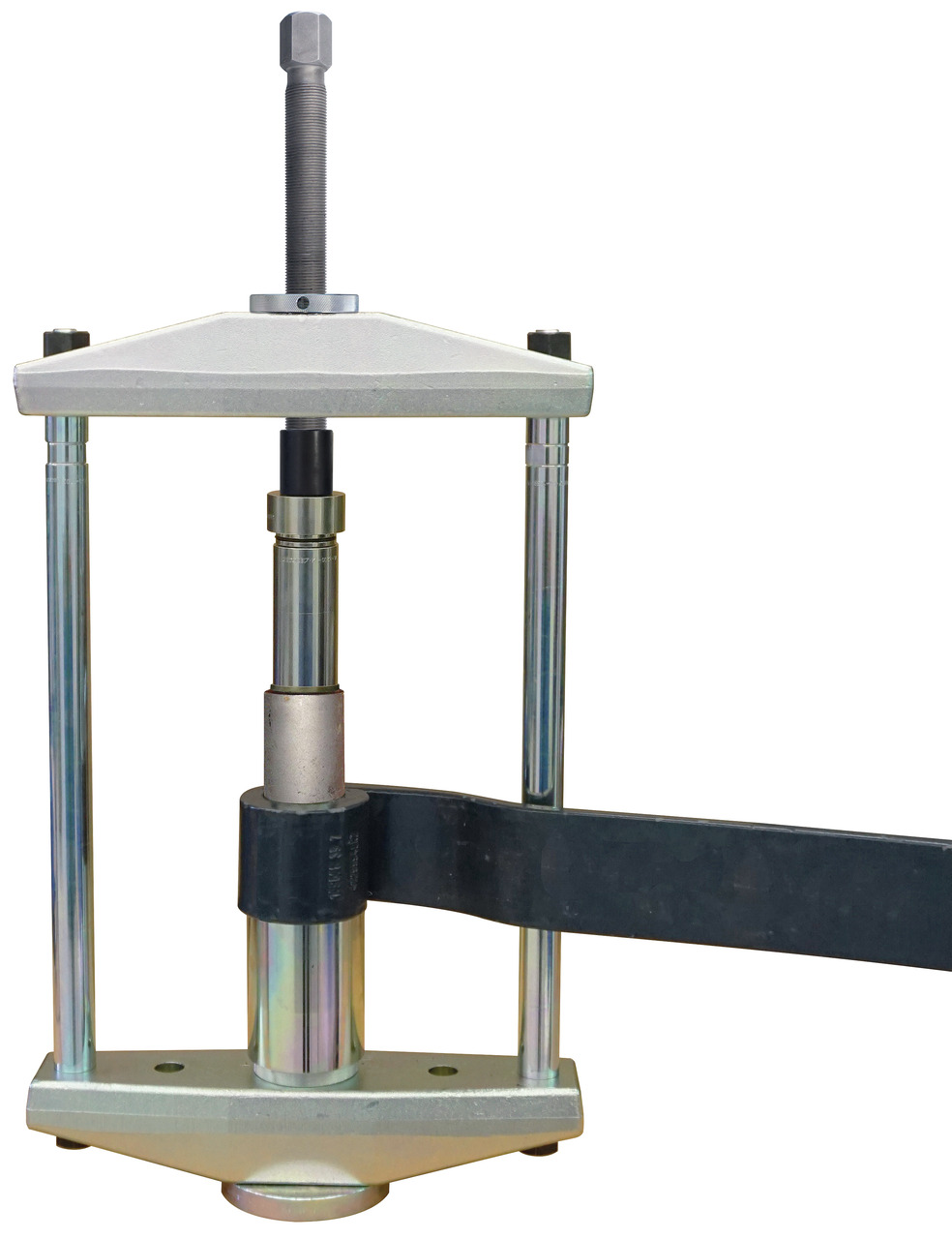

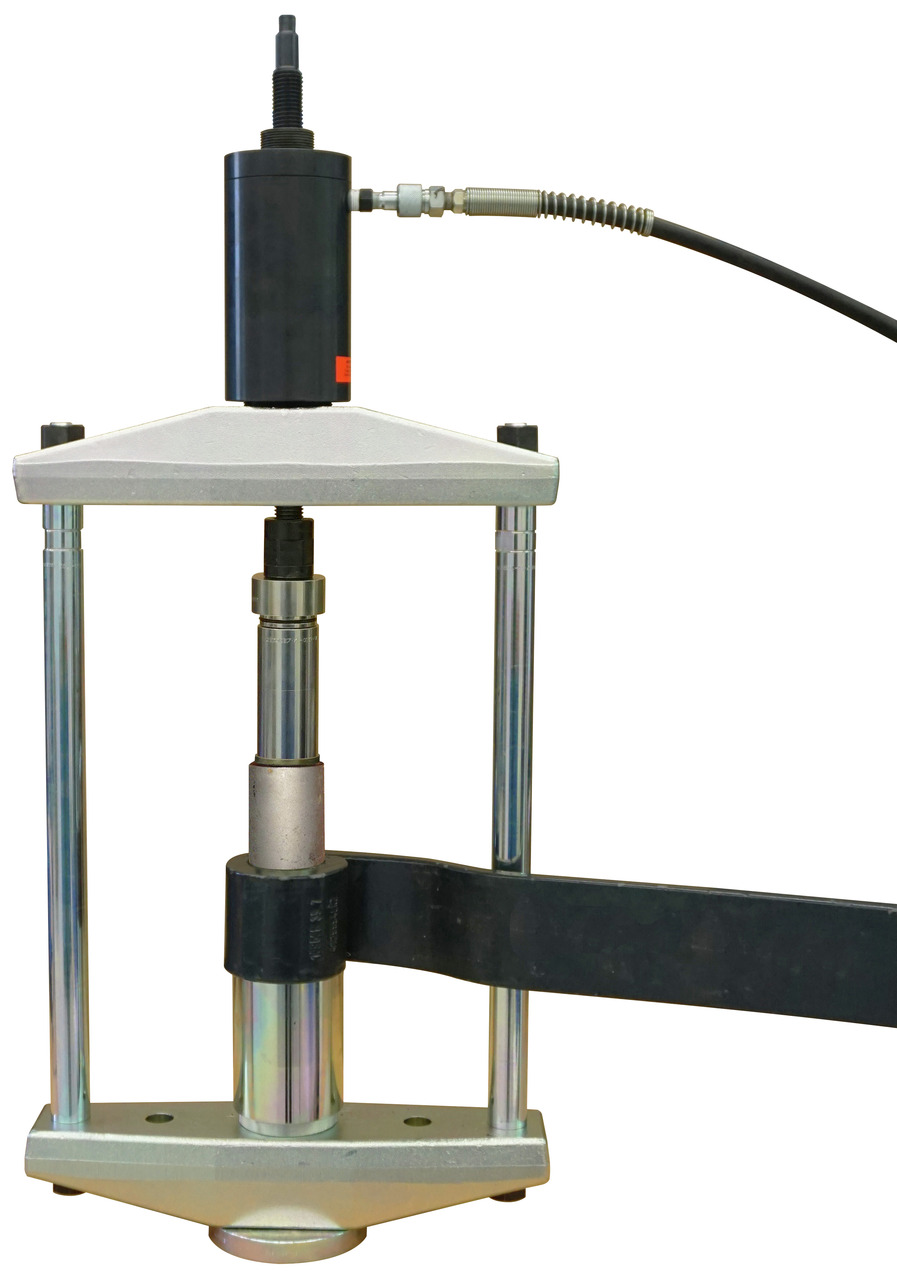

Press Frame, HGV, 28t (without Base Plate KL-1005-100 A)
KL-1039-1111
3275280
Universally suitable for commercial vehicles, construction machinery, agricultural machinery, trailers and semi-trailers.
• For pressing out and pressing in bushings, bearings or bolts directly on the vehicle
• Can be supplemented by pressure/support sleeves from the KL-0039 series
• Can also be used stationary due to mounting foot
• Length and width adjustable
1x KL-1039-1101 - Base plate 2¾"-16 UN
2x KL-1039-1102 - Tie rod M22
2x KL-1005-1014 - Collar nut M22
1x KL-1039-1105 - Adapter 2¾"-16 UNS to Ø 30 mm
2x KL-1039-1103 - Pull rod M22 extension
1x KL-1039-1106 - M24 pressure nut extension
1x KL-1039-1107 - Mounting Foot
1x KL-1039-7110 - Pressure/Support Sleeve, long, Ø 110/102 mm
1x KL-0039-1790 - Pressure/Support Sleeve, long, Ø 90/82 mm
1x KL-0039-1770 - Pressure/Support Sleeve, long, Ø 70/62 mm
1x KL-0039-1750 - Pressure/Support Sleeve, long, Ø 50/42 mm
1x KL-0039-1740 - Pressure/Support Sleeve, long, Ø 40/32 mm
1x KL-0039-1730 - Pressure/Support Sleeve, long, Ø 30/22 mm
