Description

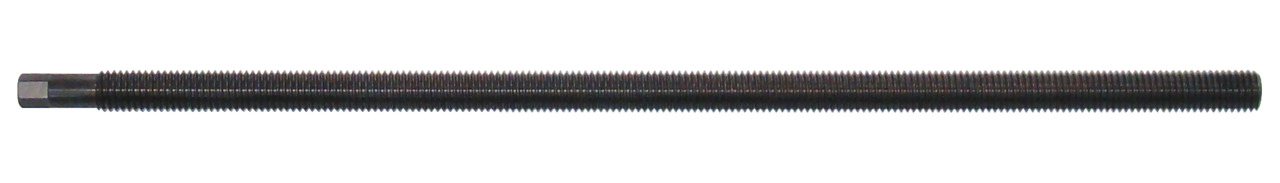

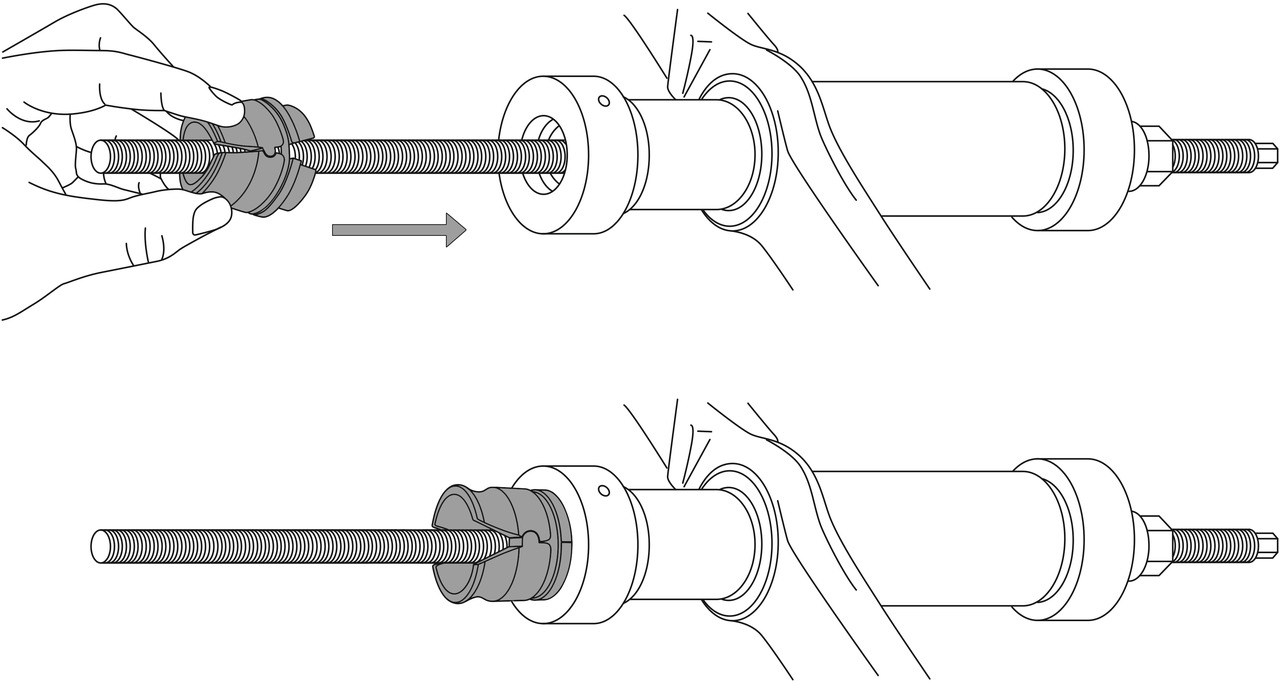

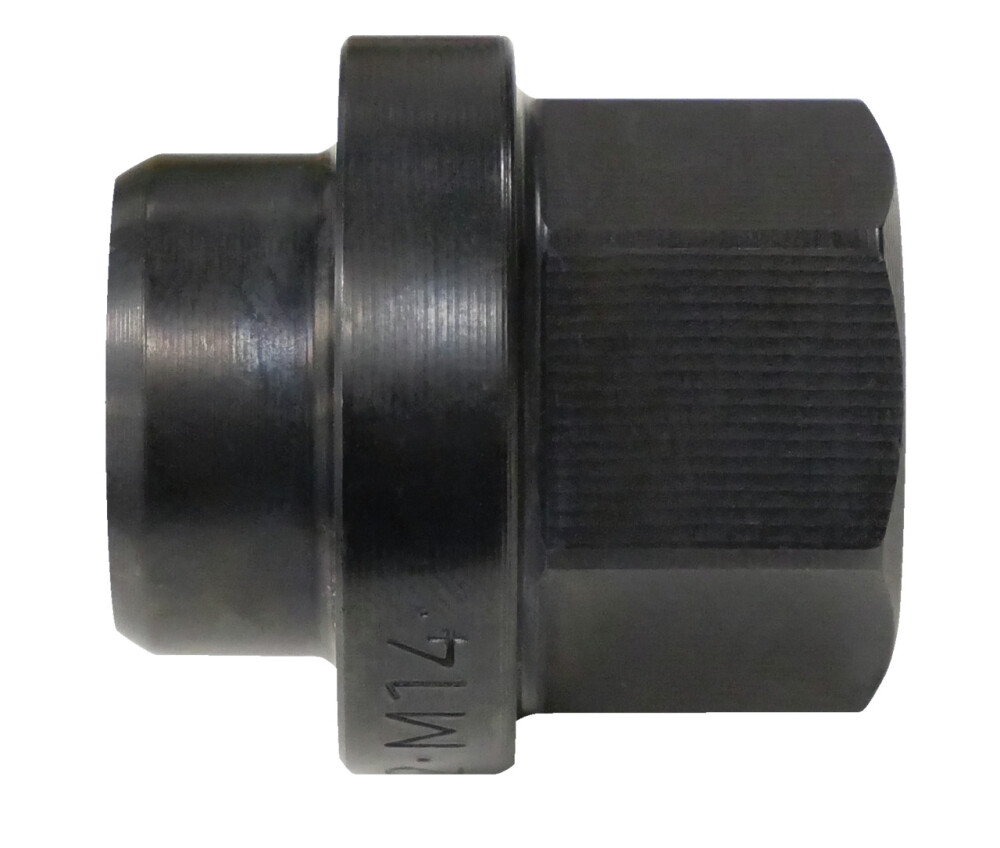

The pull spindle with shoulder nut and quick-action clamping nut is used in conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints etc. to be removed and installed mechanically.

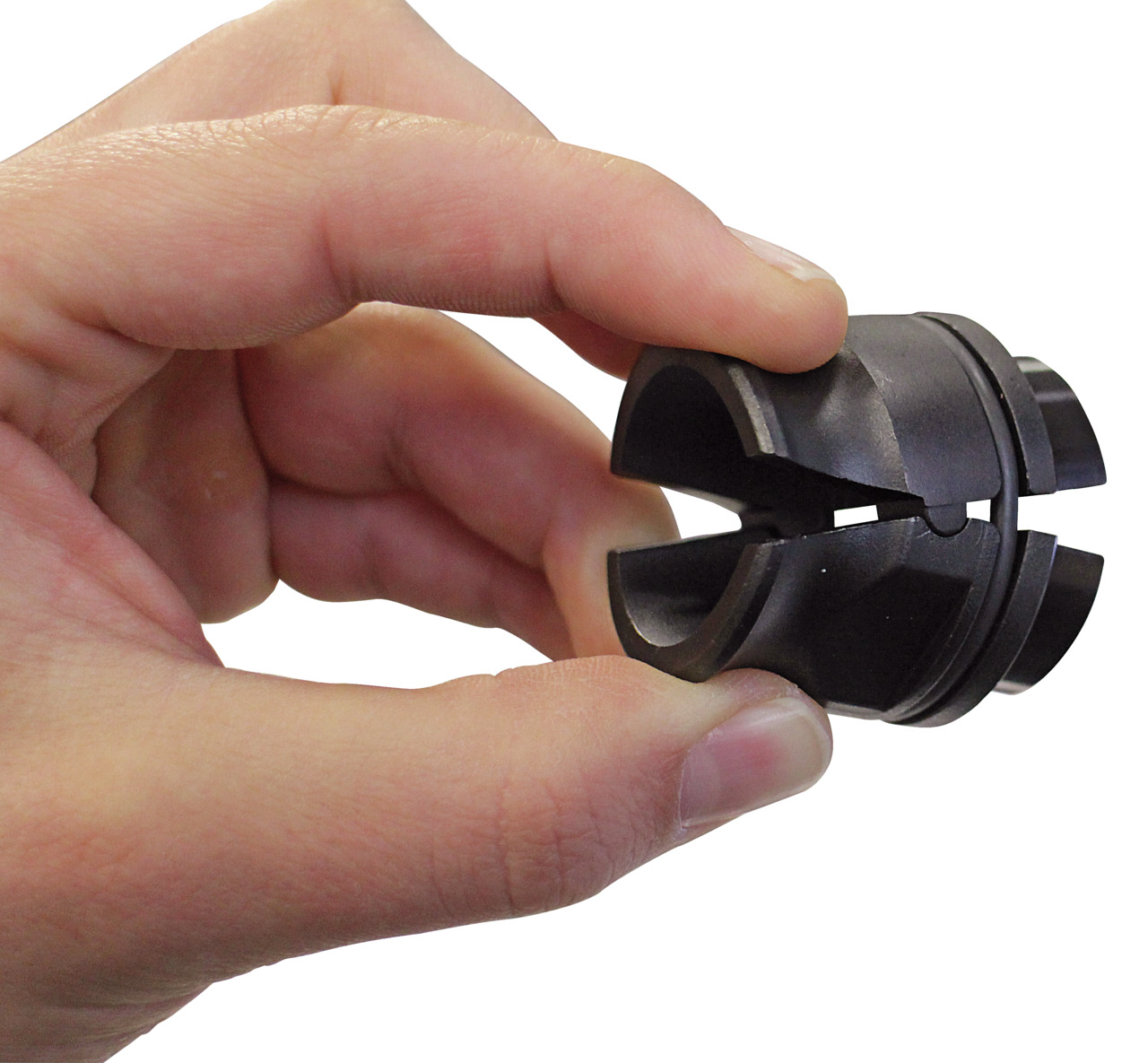

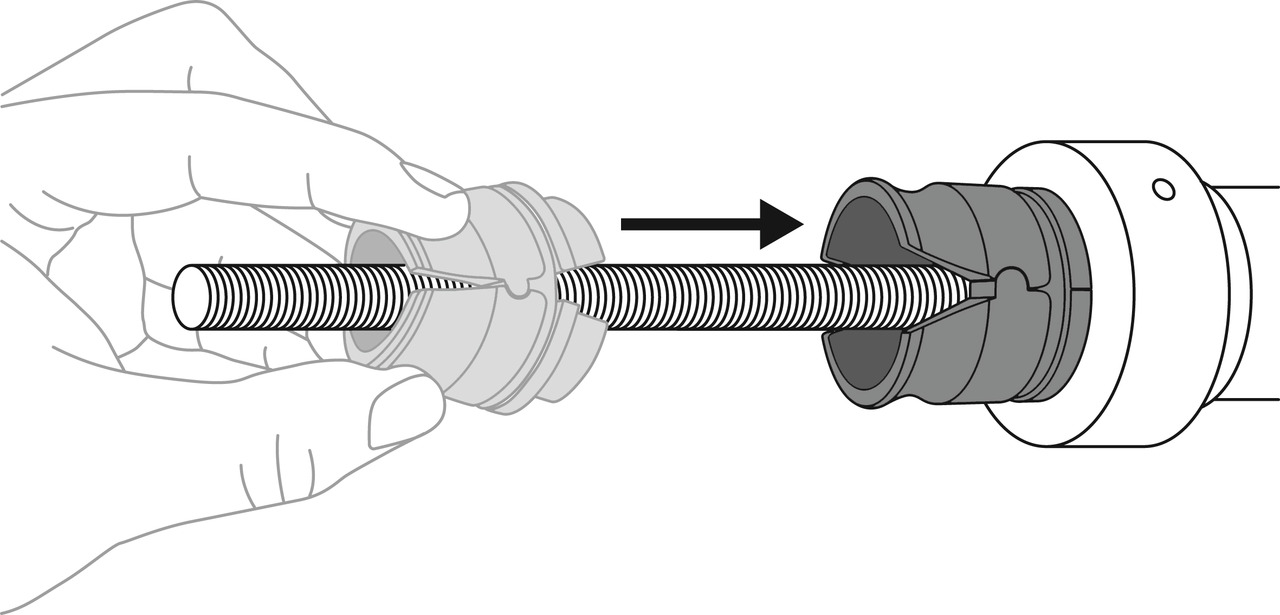

Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement.
This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool.
To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adapter, or a retaining ring.
