Silentbloc Tool, Ø 40mm
KL-1002-221
2727978

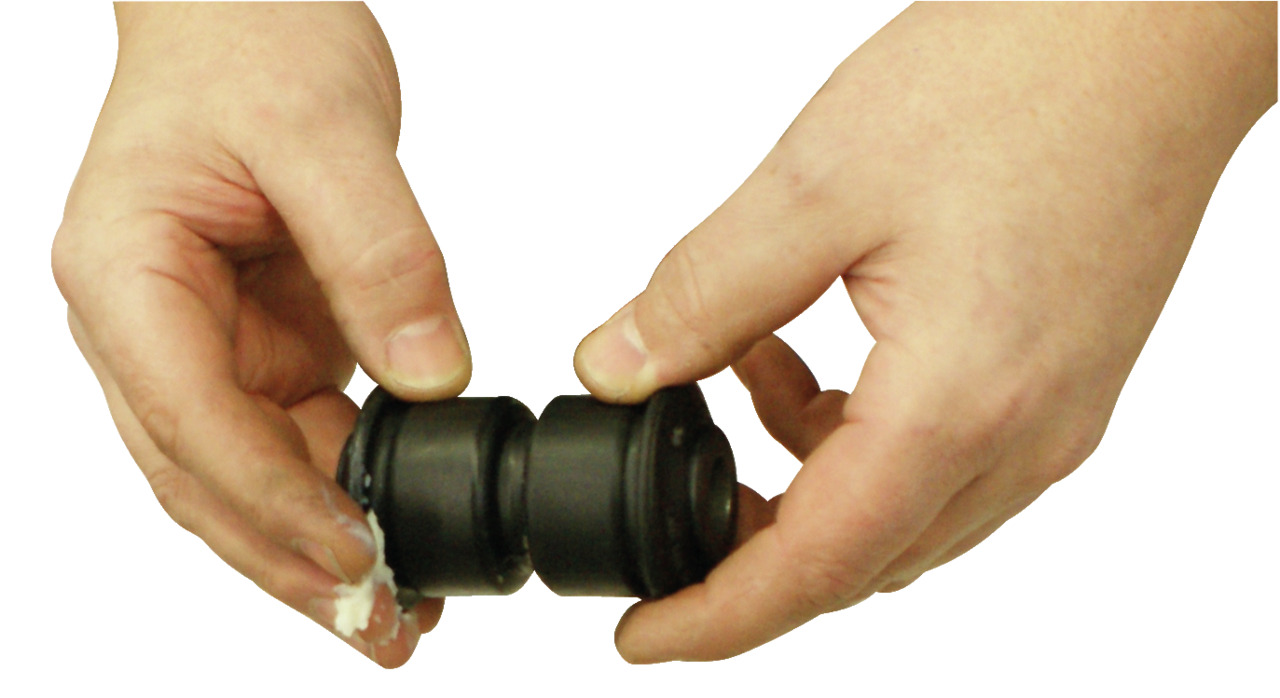

Suitable for silent blocks with a diameter of 40 mm (bead diameter 50 mm).

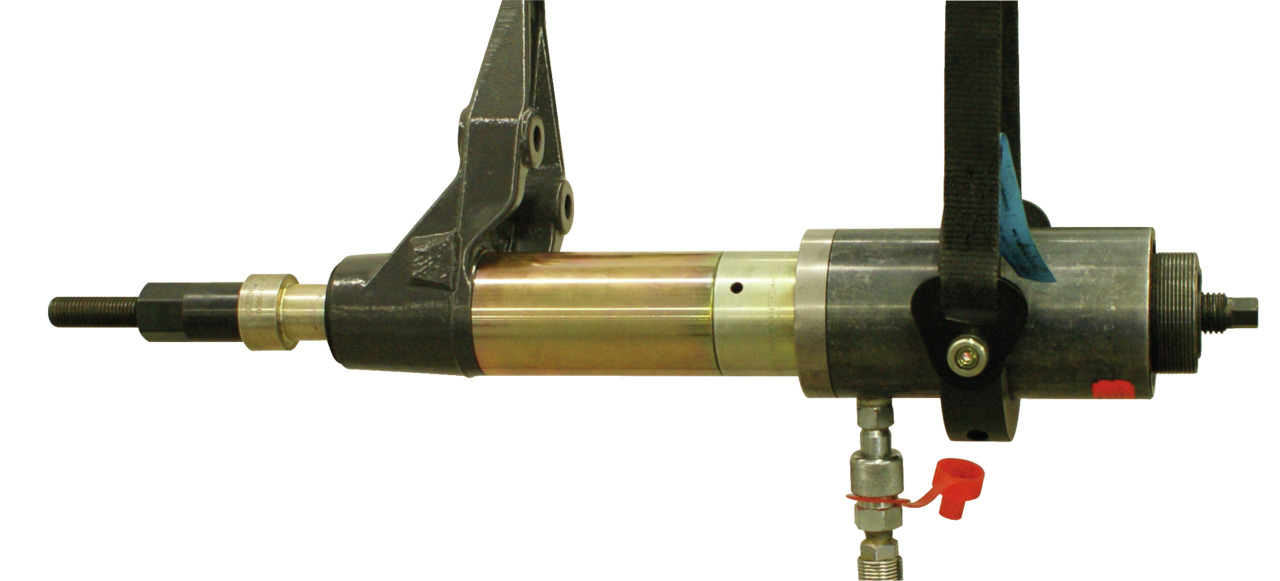

• For removal and installation of silent blocks
• Can be performed on the workbench and on the vehicle
• Additional drive parts required!

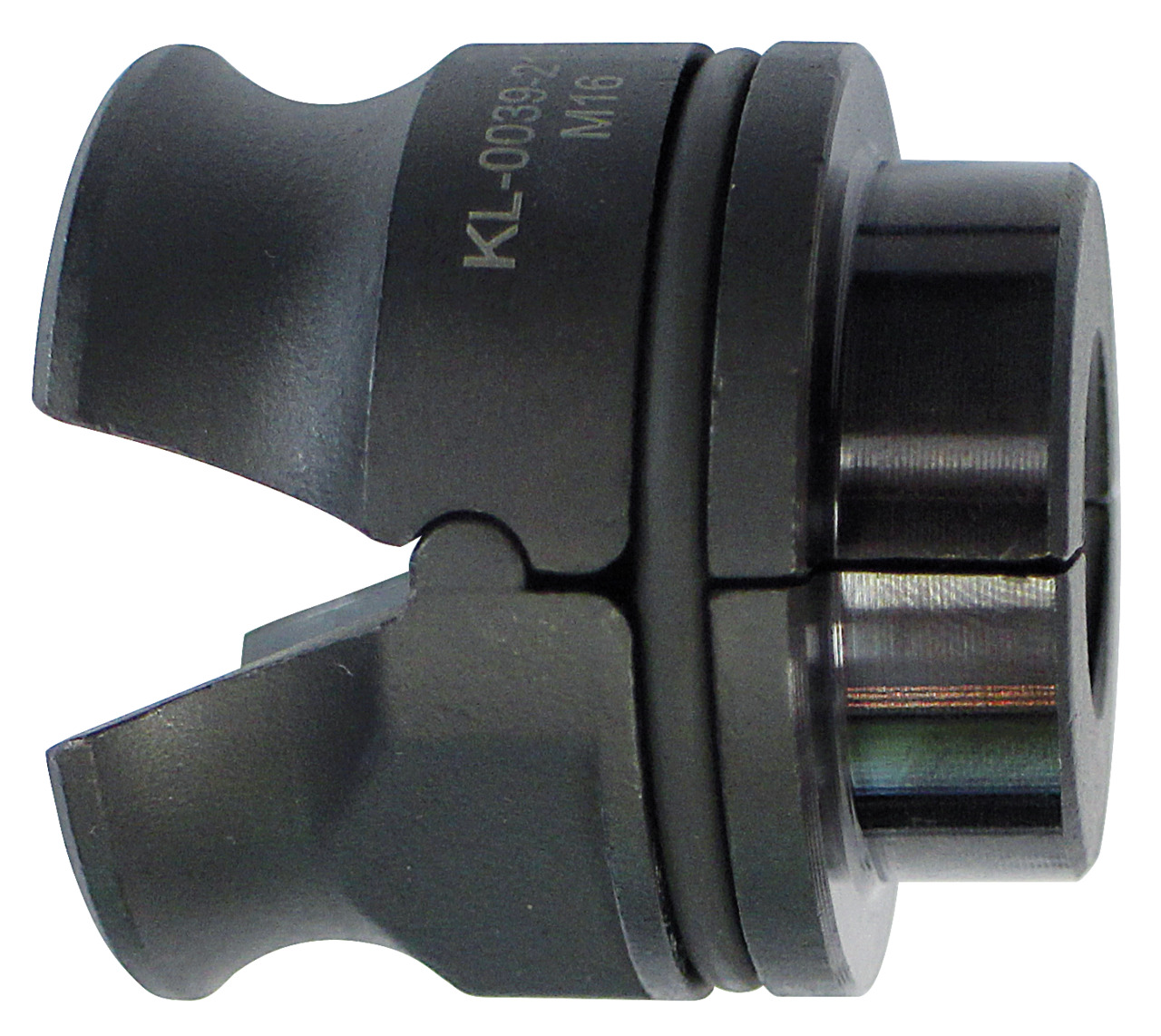

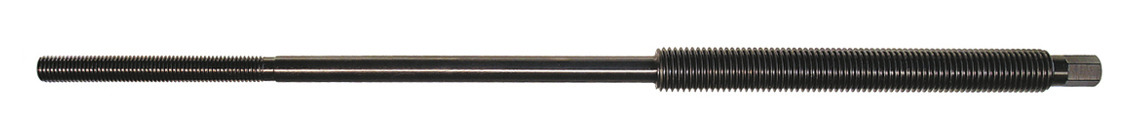

Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump, KL-0039-1916-1 - Pull spindle, KL-0039-2116-2 - Quick-clamping nut KL-0039-1003 - Mounting adapter
74 88 840 165
Renault: 50 10 294 961; 50 00 448 404
Volvo: 20500823
Renault D
Renault Midliner
Renault Midlum
Volvo FL II

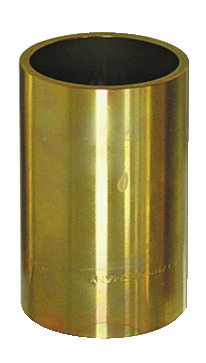

1x KL-0039-1762 - Pressure / support sleeve long 62 mm dia.

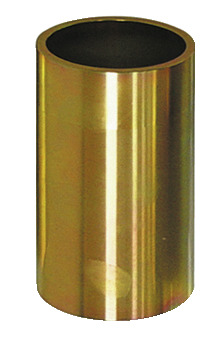

1x KL-0039-1760 - Pressure / support sleeve long 60 mm dia.
1x KL-1002-2201- Thrust piece
1x KL-1002-2202-1 - Support sleeve long 40 mm dia.
1x KL-1002-2202-2 - Support sleeve long 40 mm dia.
1x KL-1002-2203 - Centring ring 40 mm dia.
1x KL-1002-2204 - Support sleeve short 62 mm dia.
