Locking Tool Set, VW-Audi
KL-0280-601 A
2478935
Fits VW-Audi 1.8 and 1.8 T double camshafts as well as 2.4, 2.7 and 2.8 V6 petrol engines.

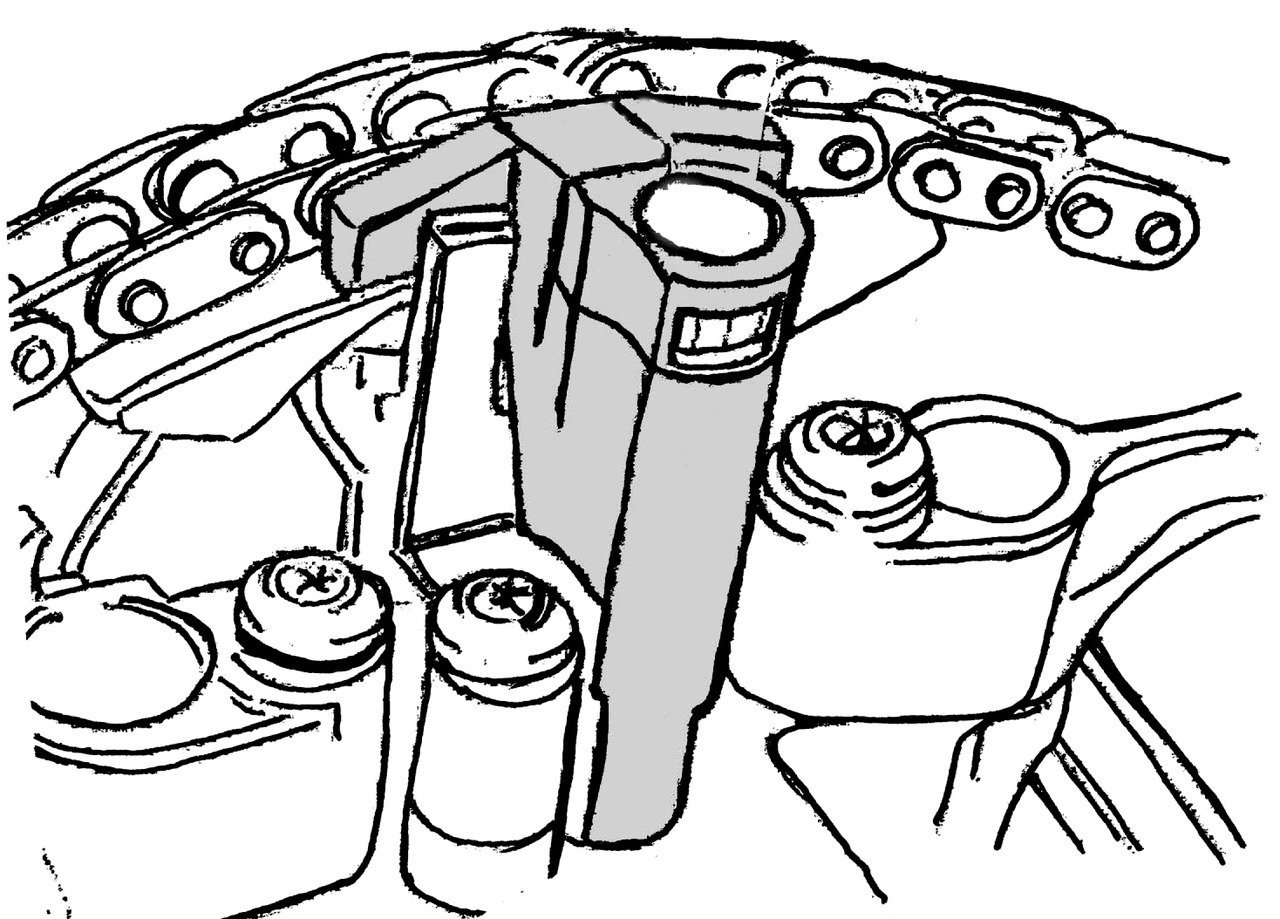

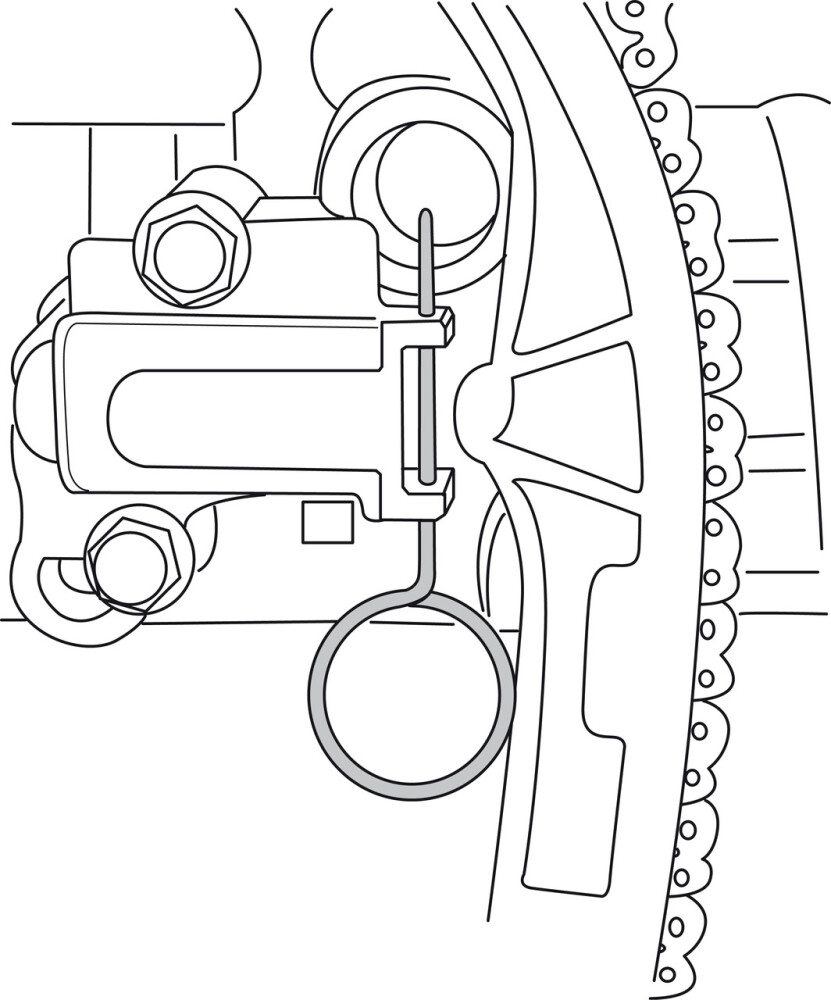

• For setting the camshaft timing chain and the toothed belt tensioning unit
VW-Audi: ADR, AEB, AFY, AGA, AGB, AGE, AGN, AGU, AJG, AJH, AJK, AJL, AJP, AJQ, ALF, ALG, ALW, AMK, AML, AMM, AMX, ANB, APC, APG, APP, APR, APS, APT, APU, APX, APY, APZ, AQA, AQD, AQE, AQX, ARE, ARG, ARH, ARJ, ARN, ARX, ARY, ARZ, ASJ, ASM, AUM, AUQ, AVC, AWC, AWP, AWT, AWU, AWV, AYP, AZA, AZR, BAM, BDV, BES, BFV, BVP, BVR.
T10092
T20044
T20046
3366
Audi A3 (8L)
Audi A4 B5 (8D)
Audi A4 B6 (8E / 8H)
Audi A6 C4 (4A)
Audi A6 C5 (4B)
Audi A8 D2 (4D)
Audi TT (8N)
Seat Alhambra I (7V)
Seat Cordoba I (6K)
Seat Cordoba II (6L)
Seat Ibiza II (6K)
Seat Leon I (1M)
Seat Toledo II (1M)
Skoda Octavia I (1U)
Skoda Superb I (3U)
VW New Beetle I (1C / 1Y / 9C)
VW Bora I (1J)
VW Golf / Golf Plus V (1K / 5M / 52)
VW Golf IV (1E / 1J)
VW Golf VII (5G / AM / AN / BA / BE / BQ / BV)
VW Passat B5 (3B)
VW Sharan I (7M)

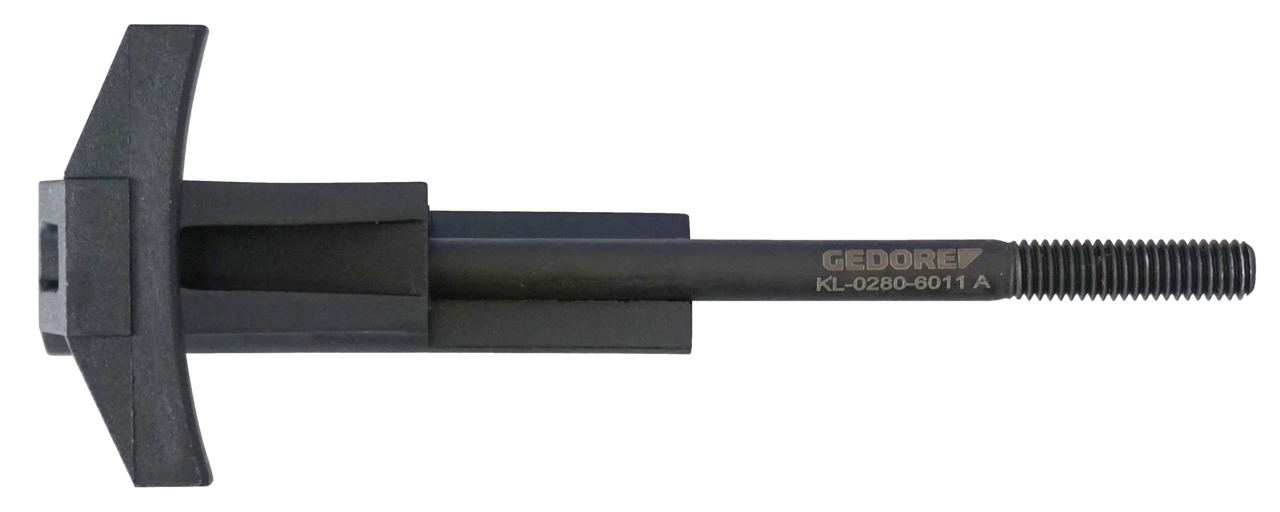

1x KL-0280-6011 A - Holding tool for timing chain tensioner
1x KL-0180-3026 - Locking pin with a diameter of 2.6 mm

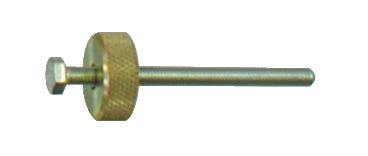

1x KL-0280-6013 A - Clamping screw with sleeve
1x KL-4990-2002 - Plastic box
