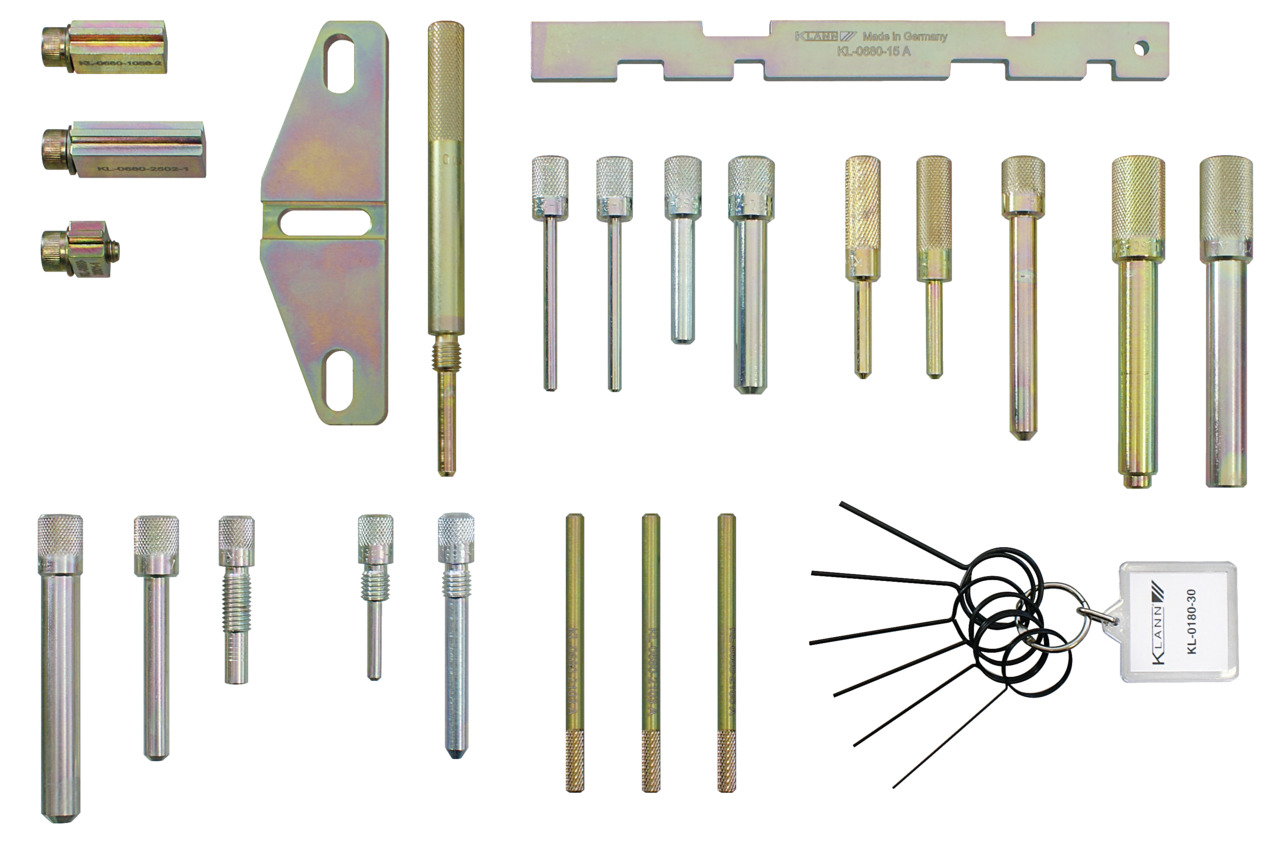

Locking Tool Set, Ford
KL-0680-28 K
2248794
Suitable for Ford, PSA, Mazda, Volvo 1.4, 1.6 HDi (PSA) and 1.4, 1.6 TDCi und 1.6 TDi, 1.8 TDi / TDdi / TDCi, 2.0, 2.4 16V TDdi / TDCi diesel engines.

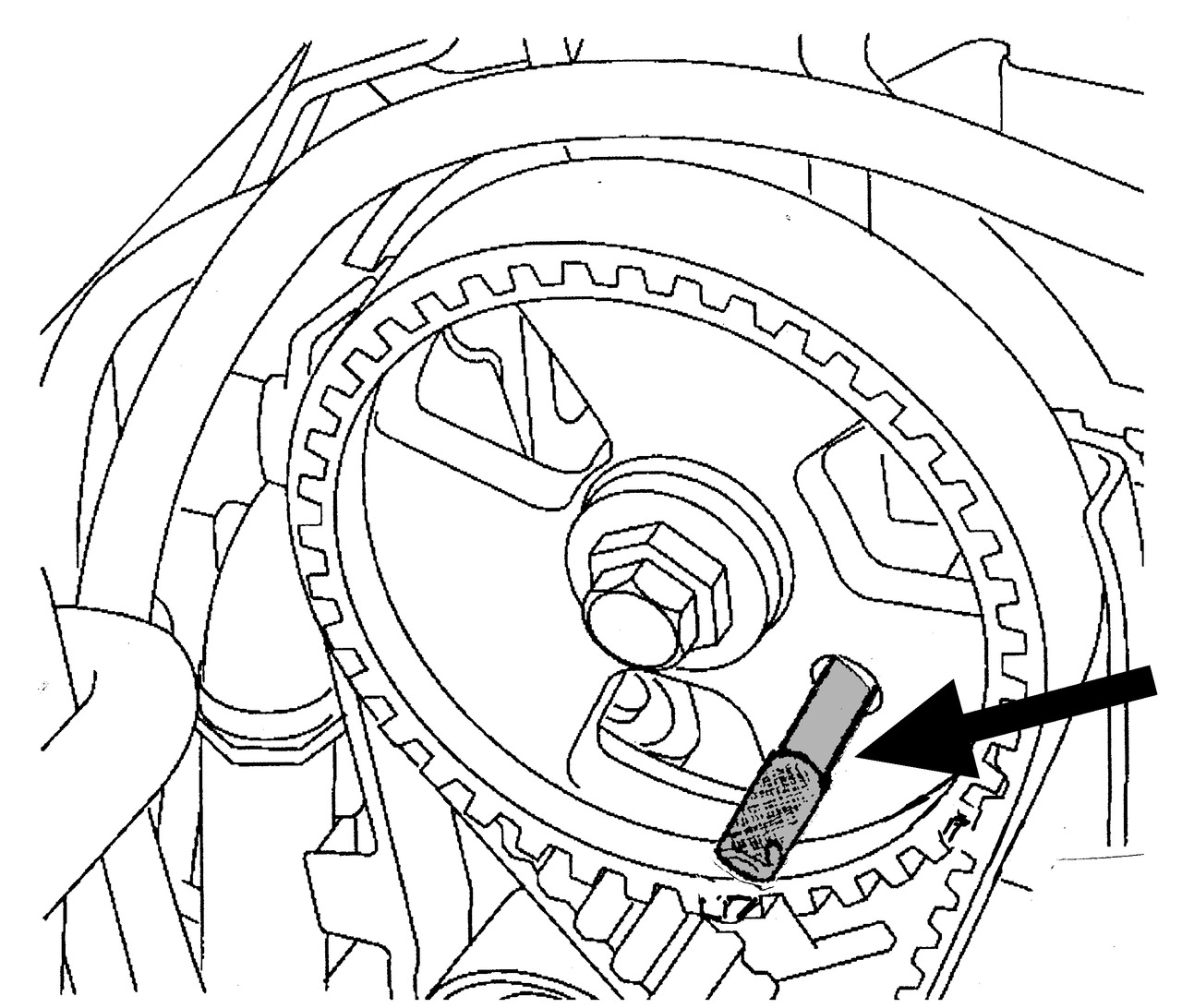

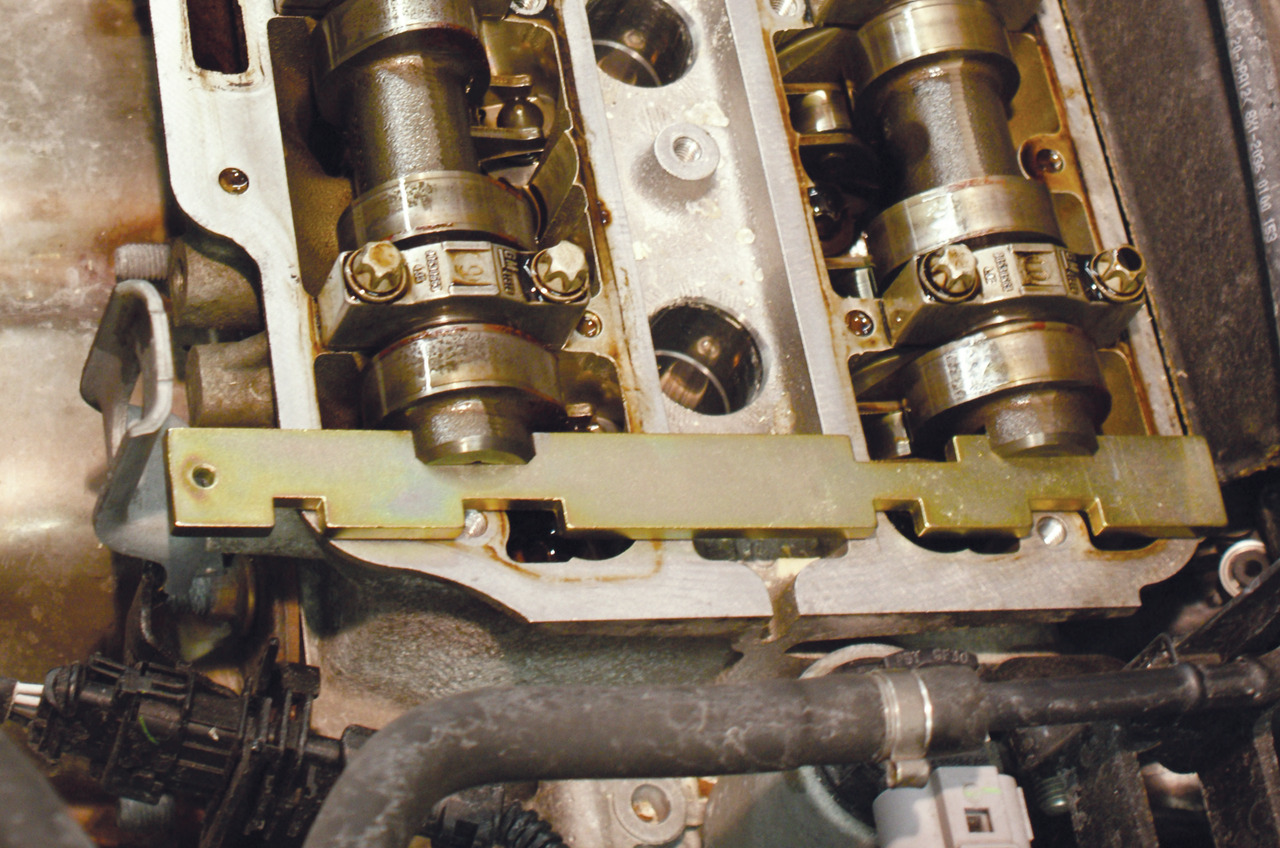

• For locking the camshafts, crankshafts and the injection pump
• For locking the toothed belt tensioning unit
Land Rover: 224DT.
Citroën/Peugeot/PSA: 4AB, 4BA, 4BB, 4BC, 4CA, 4CB, 4CC, 4DA, 4EA, 4EB, 4EC, 4ED, 4FA, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4GF, 4HA, 4HB, 4HC, 4HD, 8HP, 8HR, 8HS, 8HT, 8HV, 8HW, 8HX, 8HY, 8HZ, 9HF, 9HH, 9HJ, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, DV4TD, DV4TED, DV4TED4, DV6ATED4, DV6AUTED4, DV6BTED4, DV6BUTED4, DV6C, DV6DTED, DV6DU, DV6ETED, DV6TED4, DV6TED4B, DV6TED4BU, DV6UC, DV6UTED4.
Ford/Mazda: ABFA, ALDA, AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, AZBA, AZBC, ATWA, BG, BHDA, BHDB, BHPA, BP, C9DA, C9DB, C9DC, CDBB, CGBA, CGBB, CJBA, CJBB, CSDA, CSDB, D2FA, D2FB, D3FA, D4FA, D5BA, D6BA, DOFA, DV4C, E5FA, E5FC, E5SA, E5SB, EDBA, EDBC, EDBB, EDBD, EDDB, EDDC, EDDD, EDDF, EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL, EYPA, EYPC, F3FA, F4FA, F6JA, F6JB, F6JC, F6JD, F8JA, F8JB, F9DA, F9DB, FE, FFBA, FFDA, FFWA, FIFA, FMBA, FMBB, FP, FS, FUJA, FUJB, FXFA, FXJA, FXJB, FYJA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, G8DA, G8DB, G8DD, GPDA, GZ, GZFA, GZFB, GZFC, H9FA, H9FB, HCPA, HCPB, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, HJBA, HJBB, HJBC, HJBE, HMDA, HXDA, HXJA, HXJB, IQDA, IQDB, IQDB, IXDA, JQDA, JQDB, JTBA, JTBB, JTDA, JTDB, JXFA, KGBA, KHBA, KKDA, KKDB, KL, KLBA, KNBA, L1L, L1N/Q, L3, L5, L8, LF, LPBA, MZ-CD 1.6, MZR 1.8, N4JB, N7BA, N7BB, NGB, NGC, NGD, P7PA, P8FA, P9PA, P9PB, PHFA, PNBA, PNDA, Q4BA, Q7DA, QJBA, QJBB, QJBC, QJBD, QQDA, QQDB, QQDC, QVFA, QWFA, QXBA, QXBB, QXWA, QXWB, QYBA, QYWA, R2PA, R3PA, RFD, RFK, RFS, RHBA, RKF, RKH, RKJ, RKK, RTE, RTF, RTH, RTJ, RTJA, RTJB, RTK, RVA, RWPA, RWPC, SAFA, SEBA, SEWA, SIDA, SNJA, SNJB, SPJA, SPJC, STJA, STJB, SYDA, T1BA, T1BB, T1BC, T1DA, T1DB, TBBA, TBBB, TBWA, TBWB, TNBA, TXBA, TXDA, TXDA, TXDB, TXDB, TXWA, TYBA, TYDA, TYWA, TZJA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA, Y6, YF, ZVSA.
Volvo: D4162T, D4164T, D4204T.
23-019
23-020
23-029
303-193
303-367
303-376
303-376 B
303-393
303-393 A
303-393-01
303-393-02
303-465
303-507
303-574
303-620
303-675
303-681
303-681-01
303-698
303-732
303-734
303-735
303-748
310-018
310-019
310-033
49 JE01 050
21-260
49 JE01 054
49 JE01 061
21-263
49 JE01 063
49 JE02 018
49 JE02 020
49 JE02 021
49 JE02 024
49 JE02 061
49 N010 101
49 UN30 3376
995-208
303-235
21-104
21-123
21-162
JE01 054
21-162 B
JE01 061
21-163
21-168
21-168 A
21-210
21-234
21-251
21-259
21-262

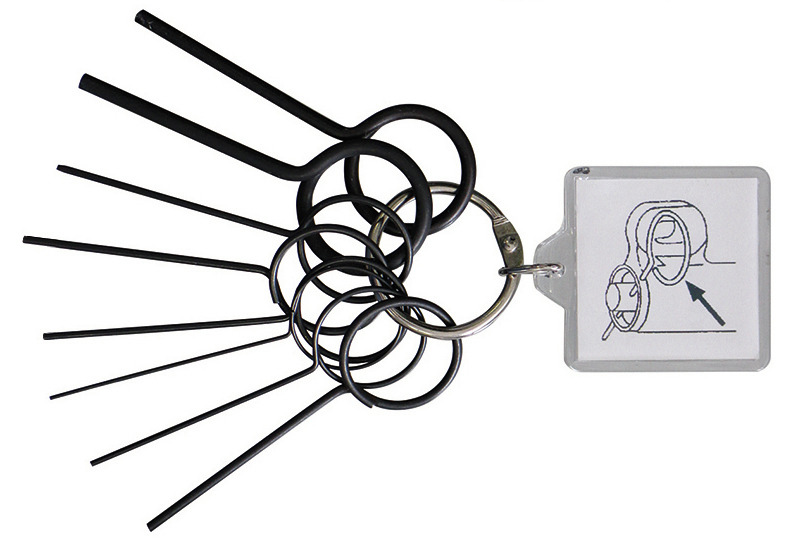

1x KL-0180-30 B - Locking pin kit 0,8 mm - 2,6 mm

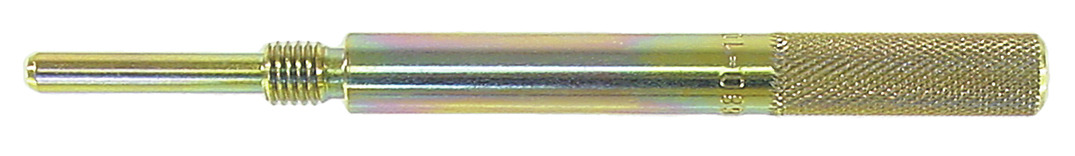

1x KL-0680-10 - Locking mandrel with a diameter of 6 mm, for crankshaft

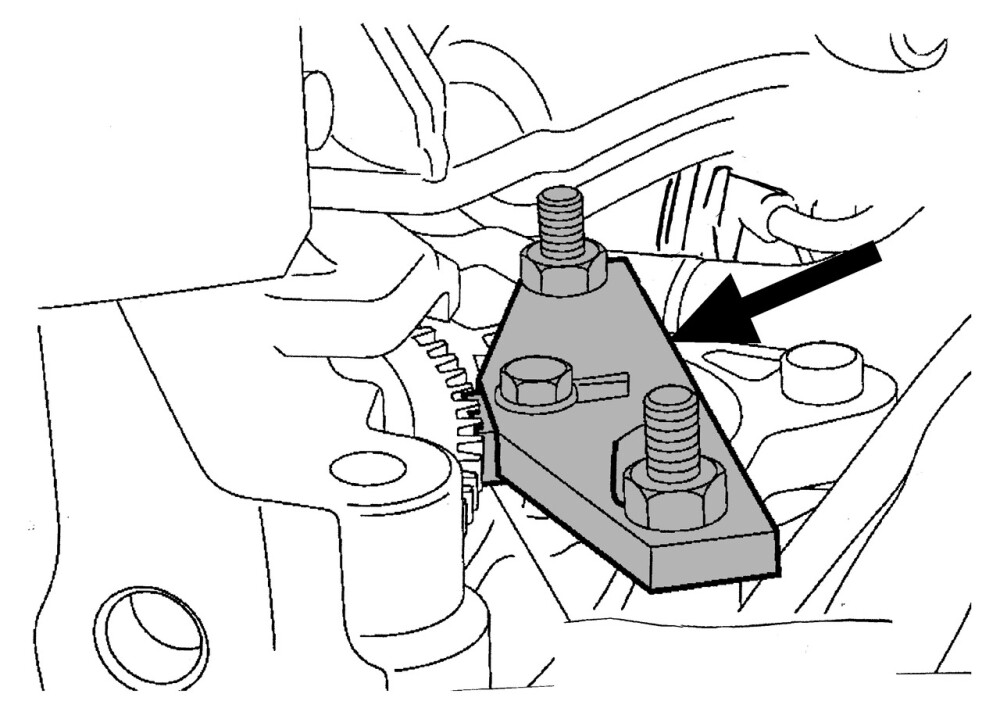

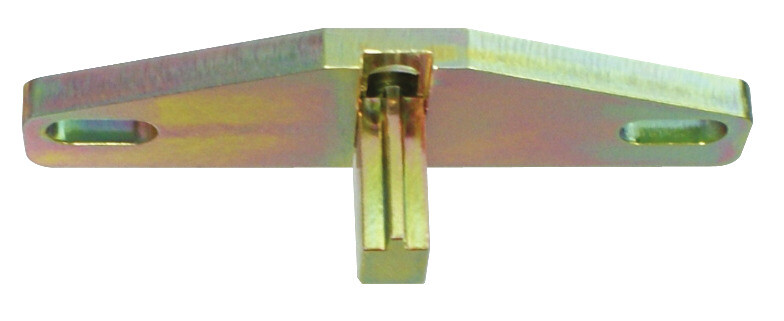

1x KL-0680-1058 A - Holding device with adapter 1.6, 1.8 diesel

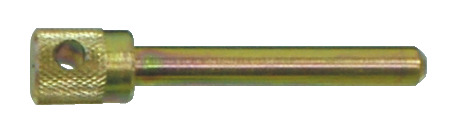

1x KL-0680-11 A - Locking mandrel with a diameter of 8.3 mm, for crankshaft

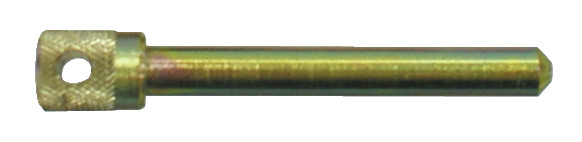

1x KL-0680-12 A - Locking mandrel with a diameter of 9.5 mm, for injection pump

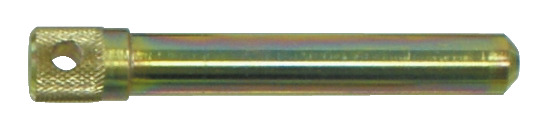

1x KL-0680-13 A - Locking mandrel with a diameter of 12.9 mm, for flywheel

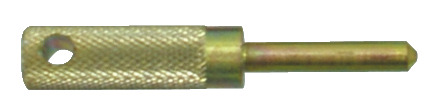

1x KL-0680-14 A - Locking mandrel with a diameter of 6 mm, for camshaft and injection pump (2 pieces)

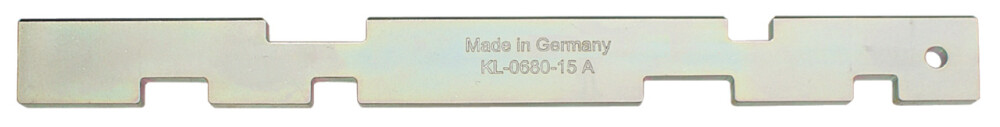

1x KL-0680-15 A - Feeler gauge for camshafts

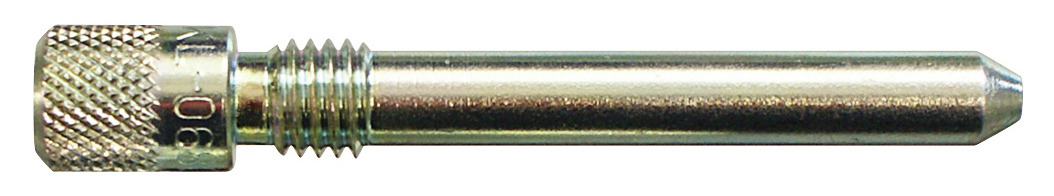

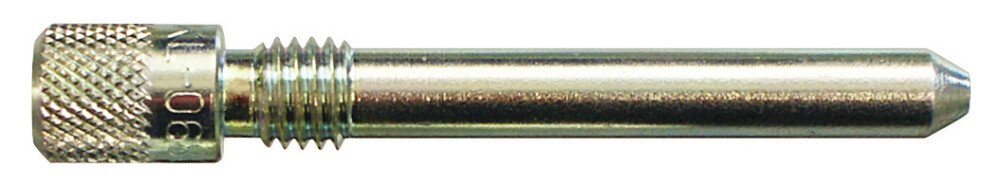

1x KL-0680-16 A - Locking mandrel with a diameter of 7.9 mm, for crankshaft

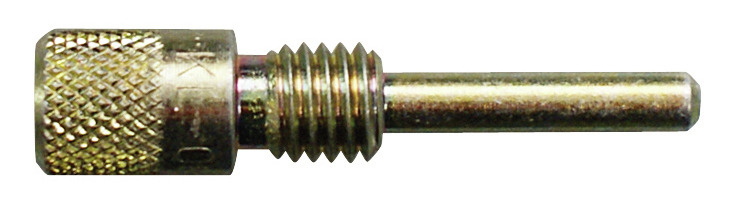

1x KL-0680-17 - Locking mandrel with a diameter of 5 mm, for crankshaft

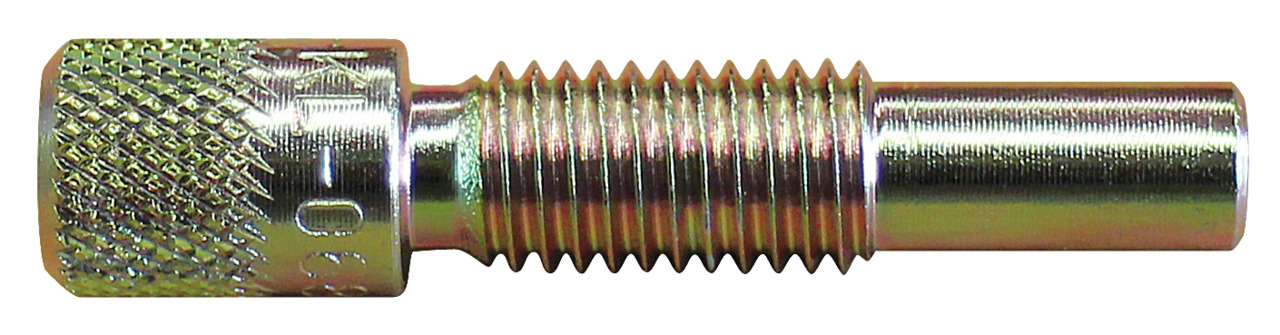

1x KL-0680-18 - Locking mandrel with a diameter of 7.95 mm for crankshaft

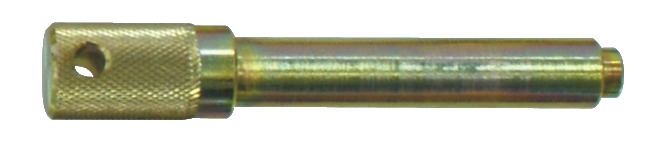

1x KL-0680-2101 A - Locking mandrel with a diameter of 14 mm, for flywheel

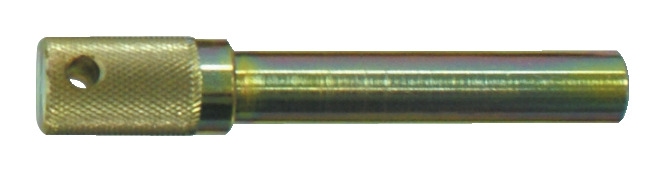

1x KL-0680-2102 A - Locking mandrel with a diameter 14 / 10 mm, for flywheel
1x KL-0680-2103 A - Locking mandrel with a diameter of 6 mm, for camshafts and injection pump (3 pieces)

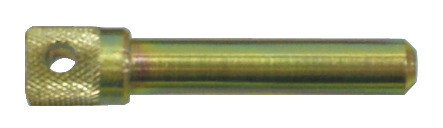

1x KL-0680-2201 A - Locking mandrel with a diameter of 11 mm, for flywheel

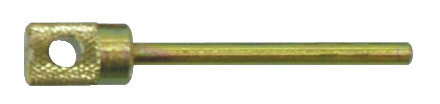

1x KL-0680-2202 A - Locking mandrel with a diameter of 4.5 mm, for crankshaft and injection pump (2 pieces)

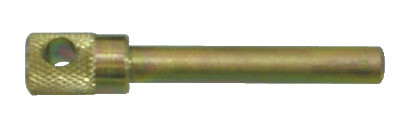

1x KL-0680-2203 B - Locking mandrel with a diameter of 8 mm, for camshaft
1x KL-0680-2501 A - Adapter 2.0 TDCi for KL-0680-1058 A

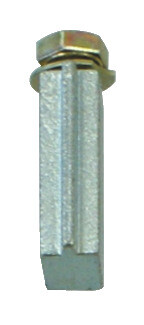

1x KL-0680-2502 A - Adapter 1.6 Ti-VCT for KL-0680-1058 A

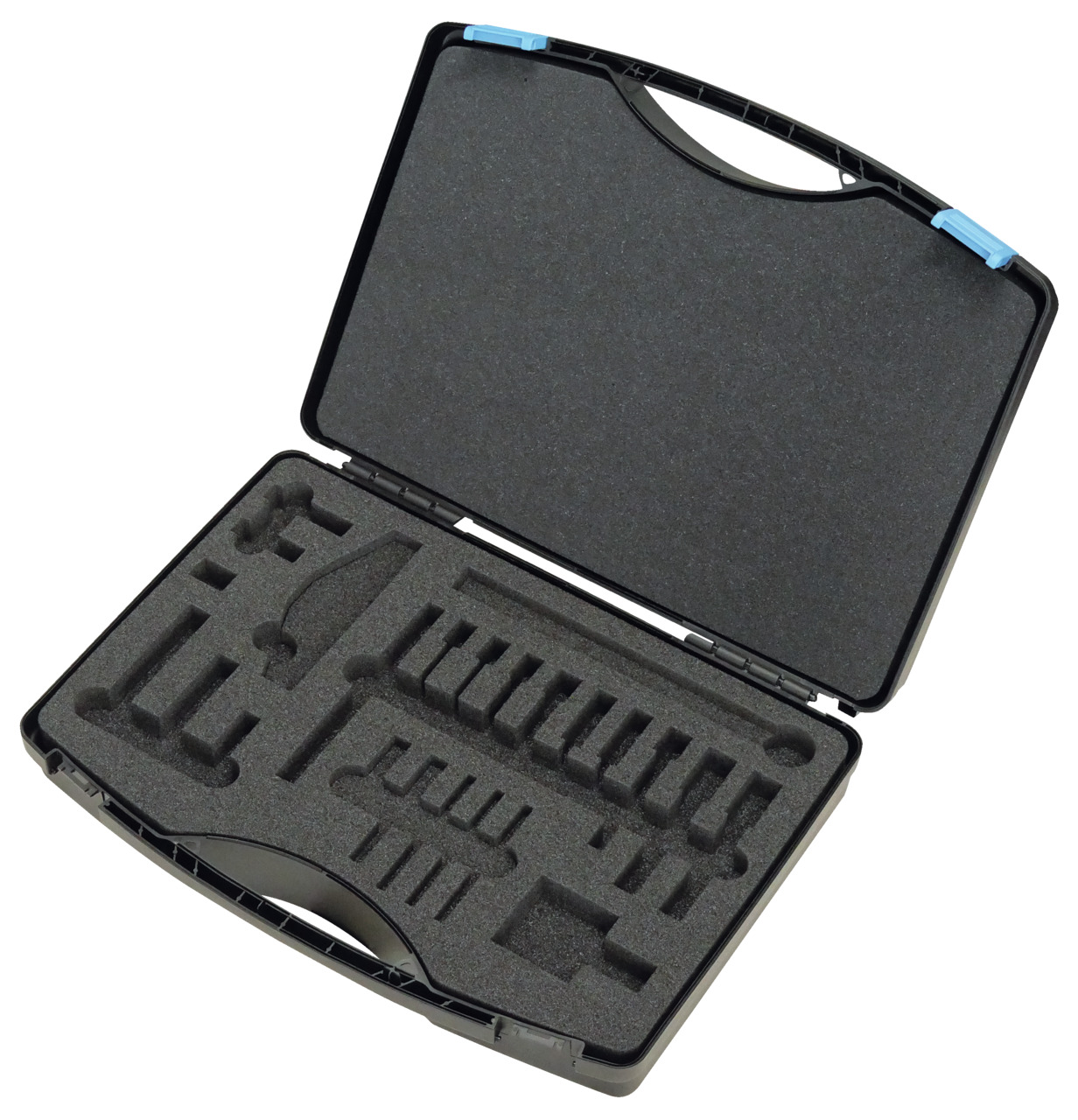

1x KL-0680-2890 - Plastic case
