Clutch-Centring Pin Set
KL-0500-405
2102781
Suitable for SAC clutches, e.g. on vehicles without guide bearing.

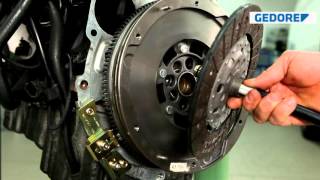

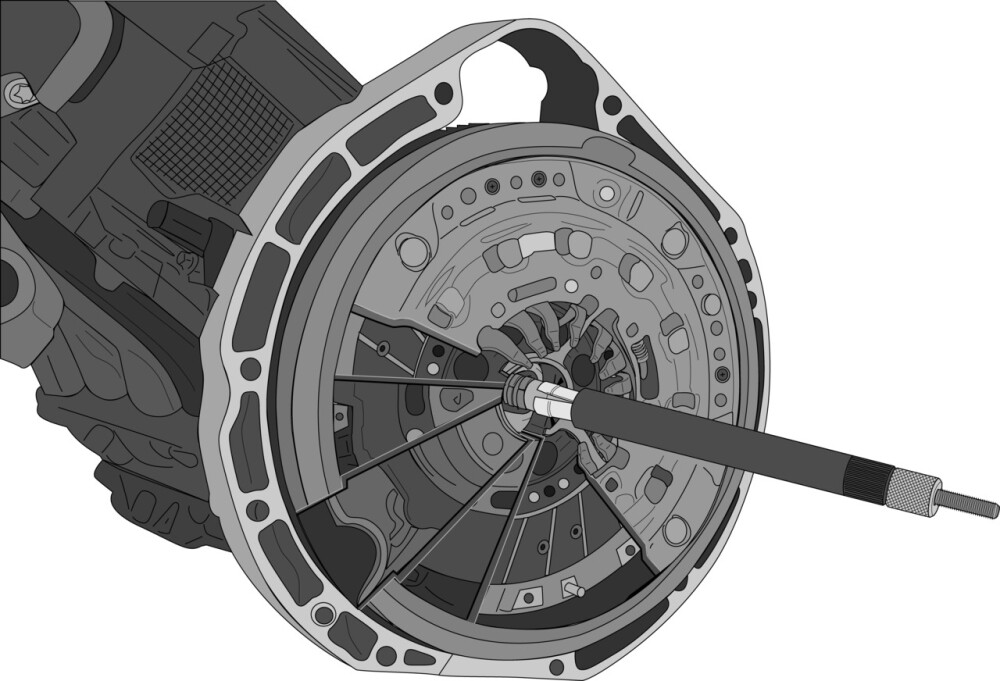

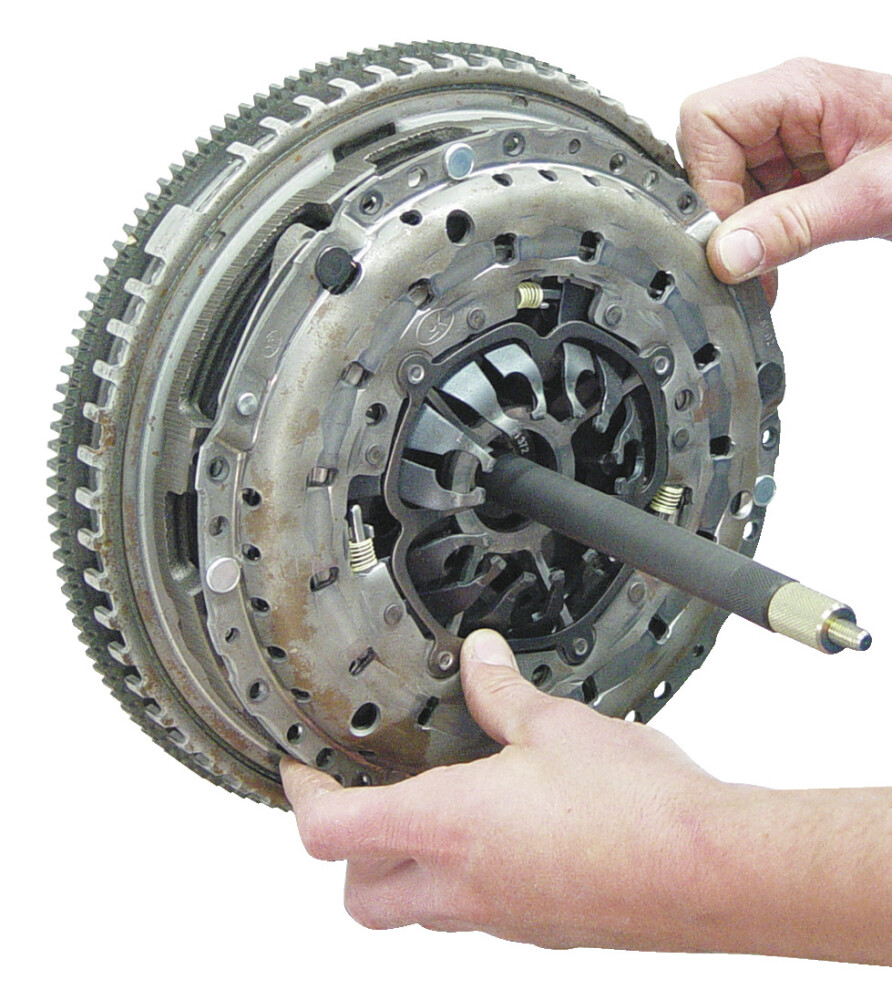

• For a precise centring of the clutch disc

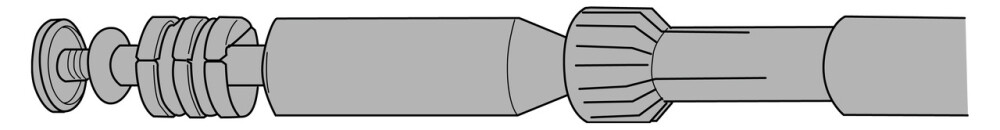

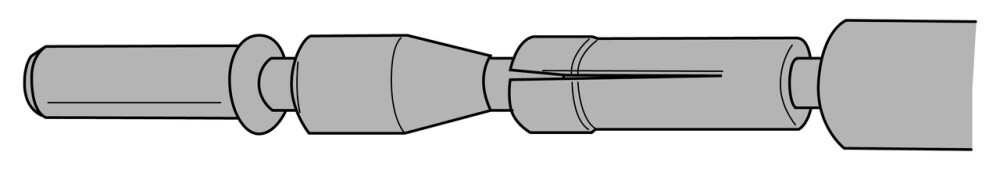

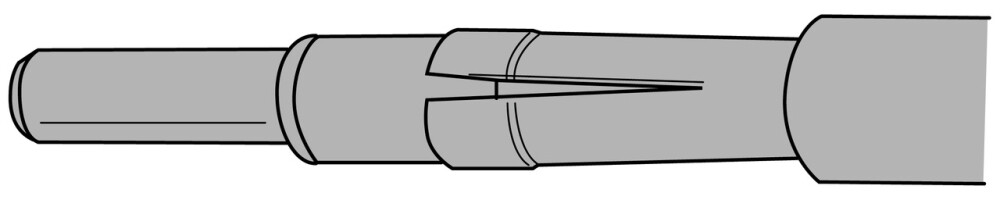

• Two clamping / centring elements (for clutch disc and guide bearing / crankshaft bore)
• Clutches with a larger crankshaft bore as the clutch disc hub diameter can be centred.

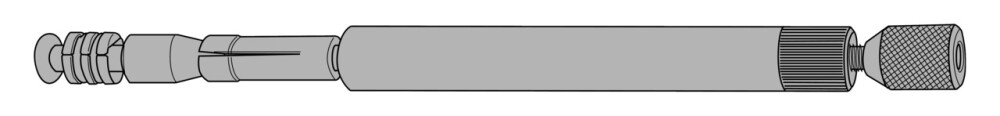

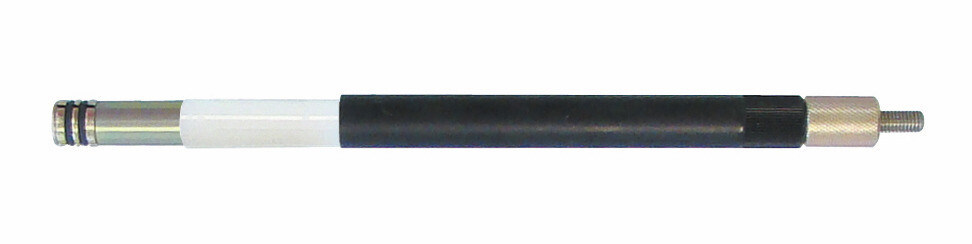

1x KL-0500-4050 - Guide tube complete

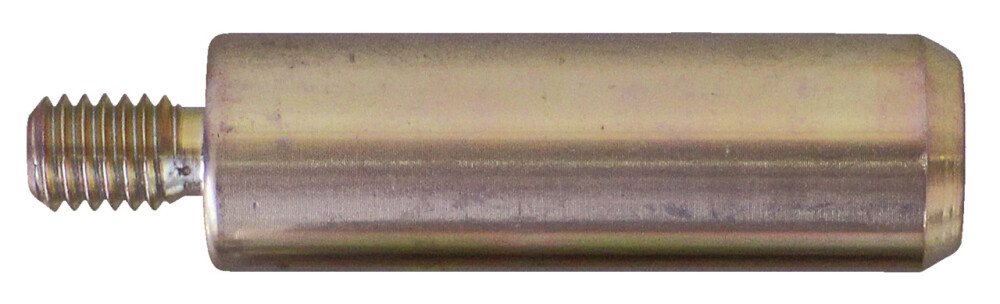

1x KL-0500-4057-1 - Centring mandrel Ø 12 mm

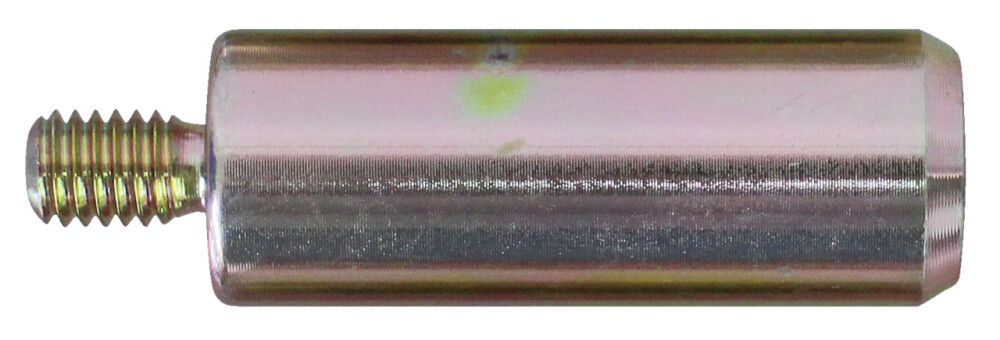

1x KL-0500-4057-2 - Centring mandrel Ø 14 mm

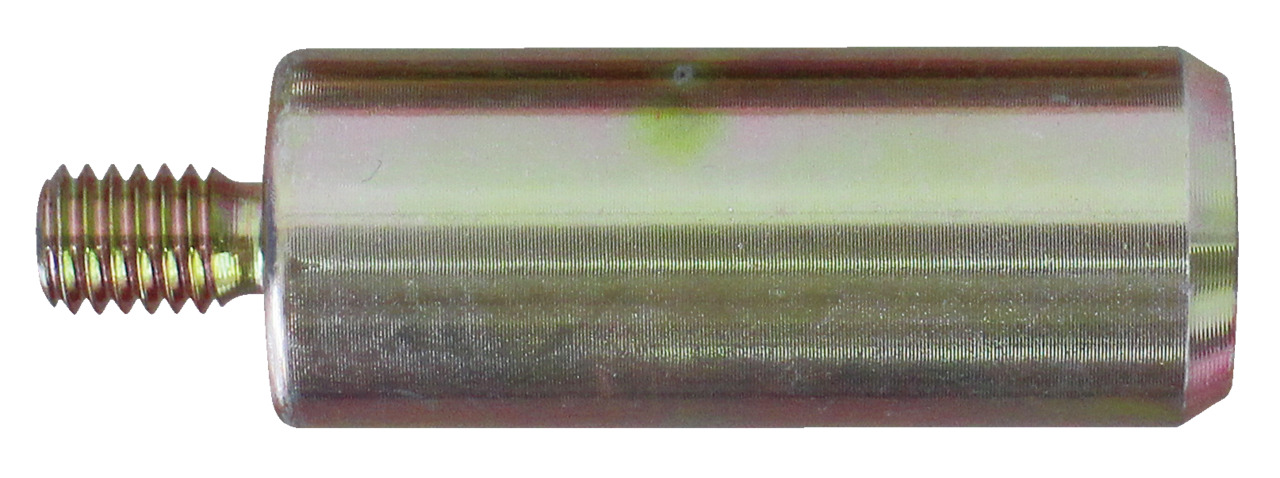

1x KL-0500-4057-3 - Centring mandrel Ø 15 mm

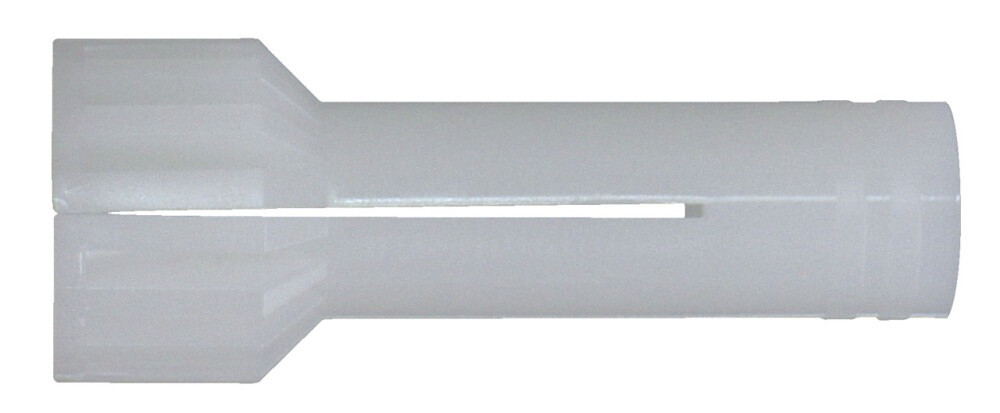

1x KL-0069-0006 - Clamping cone size 2, 22 mm
1x KL-0500-4055 - Cone attachment
1x KL-0500-4054 - Clamping set with a diameter 20 mm

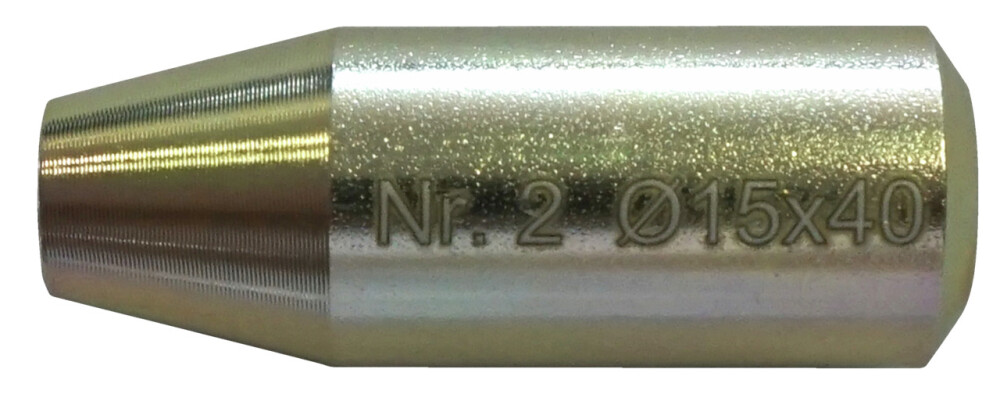

1x KL-0500-4056-2 - Sliding cone Ø 15 mm, 40 mm long
1x KL-0500-4056-3 - Sliding cone Ø 15 mm, 67 mm long
1x KL-0500-4056-4 - Sliding cone Ø 15 mm, 75 mm long
1x KL-0500-4056-6 - Sliding cone Ø 18 mm, 75 mm long
1x KL-0500-4056-5 - Sliding cone Ø 18 mm, 67 mm long
