Supplement wheel bearing tool, Mercedes / VW, front axle
KL-4999-2504 E
3441504
Suitable for the front axle of Mercedes Vito / Viano / V-Class (W639, W447), Sprinter (W906) and VW Crafter (2E/2F) with front-wheel drive, rear drive or all-wheel drive.

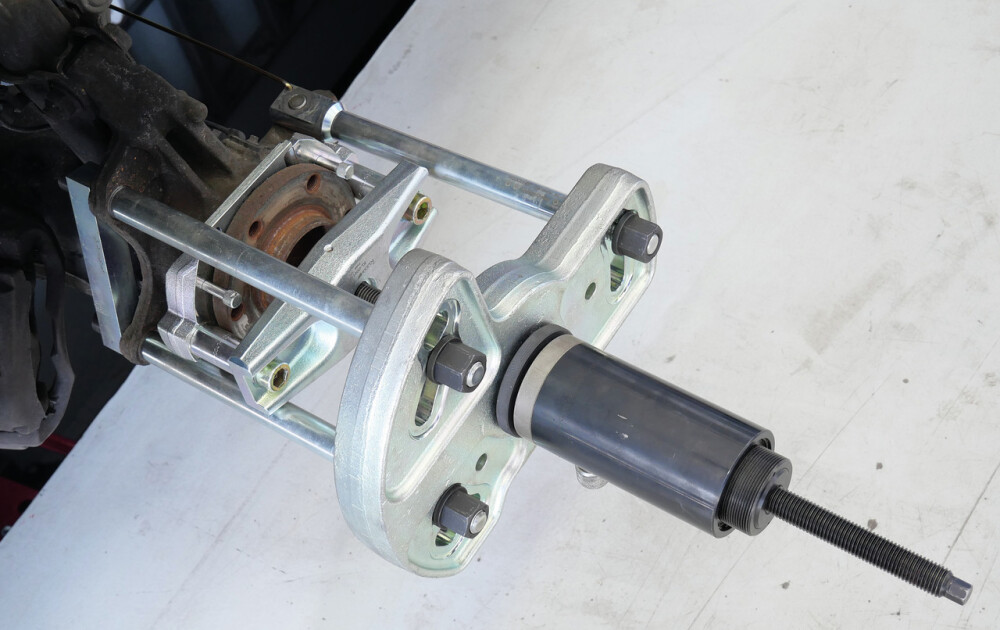

• For removal and installation of the wheel bearing unit or of the wheel bearing with wheel hub directly on the vehicle
• For wheel hubs with and without centre bore
• No need to replace the entire steering knuckle
• No wheel alignment required
• As supplement for Modulo KL-4999-250 / -260

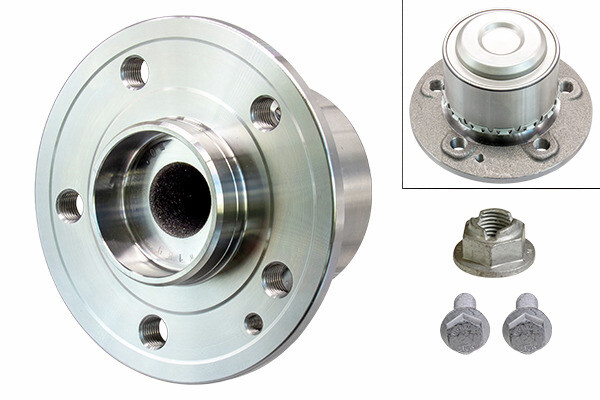

Mercedes: A 447 330 06 20; A 447 330 07 20; A 639 330 02 20; A 639 330 03 20; A 639 330 04 20; A 639 330 05 20; A 639 330 06 32; A 639 330 07 32; A 639 330 12 32; A 639 330 13 32; A 639 330 14 32; A 639 330 15 32; A 639 330 18 32; A 639 330 19 32; A 639 981 04 27; A 906 330 10 20; A 906 330 11 20; A 906 330 24 20; A 906 330 25 20; A 906 330 28 20; A 906 330 29 20; A 906 330 30 20; A 906 330 31 20; A 906 330 34 20; A 906 330 35 20; A 906 330 36 20; A 906 330 37 20; A 906 330 38 20; A 906 330 39 20; A 906 330 40 20; A 906 330 41 20; A 906 330 42 20; A 906 330 43 20; A 906 330 45 20; A 906 330 46 20; A 906 330 49 20; A 906 330 50 20
VW: 2E0 407 303 AA; 2E0 407 303 P; 2E0 407 303 Q; 2E0 407 303 R; 2E0 407 304; 2E0 407 304 M; 2E0 407 304 N; 2E0 407 304 P; 2E0 407 304 Q; 2E0 407 304 SK1
Mercedes Sprinter II (B906)
Mercedes Vito / Viano II (W639)
Mercedes Vito / V-Klasse III (W447)
VW Crafter I (2E / 2F)
1x KL-0041-5001 - Base plate
1x KL-0041-5002 - Support rod, cross hole
2x KL-0041-5009 - Support rod, 275 mm
3x KL-0041-5006 - Collar nut M18
1x KL-0041-5010 - Adapter
4x KL-0041-5004 - Washer, Ø 19 mm
1x KL-0041-5012 - Steering knuckle retaining bracket
2x KL-0041-5005 - Cylinder screw, M14x70
1x KL-0041-5003 - Screw with cone, M16
1x KL-0041-5014 - Screw with cone, M12
1x KL-0035-0023 - Nut, M12
1x KL-0066-0004 - Washer, Ø 12 mm
1x KL-0041-5007 - Reinforcement slat, 140 mm
1x KL-0041-5008 - Reinforcement slat, 196 mm
1x KL-0041-5013 - Clamping nut
1x KL-0041-5030-2 - Closing plate
3x KL-0041-5024 - Knurled screw, M14
2x KL-0041-5025 - Retaining pin
1x KL-0041-503 - Pull / pressure plate, Ø 92 mm
1x KL-0041-5020 - Pull / pressure plate, Ø 96 mm
1x KL-0039-1352 - Centring ring, Ø 52 mm
1x KL-0039-1920-4 - Clamping nut, Ø 38 mm
1x KL-0039-1350 - Centring ring, Ø 50 mm
1x KL-0039-1403 - Housing
1x KL-0039-1290 - Thrust ring, Ø 90 mm
1x KL-0039-1270 - Thrust ring, Ø 70 mm
1x KL-0039-1291 - Thrust ring, Ø 91 mm
1x KL-0041-5041 - Clamping nut
1x KL-0039-1501 - Centring ring
1x KL-4999-2504-9 - Foam insert
