Wheel Bearing Tool, VW-Audi, Ø 78 mm
KL-0041-442
3479498
Suitable for VW-Audi vehicles with a bearing diameter of 78 mm at the front axle.
Installed e.g. in VW Polo VI, T-Cross, Taigo; Audi A1 (GB); Seat Ibiza V (KJ1), Arona (KJ7); Skoda Scala (NW1), Kamiq (NW4).
• For a quick and secure installation of wheel hub bearing units

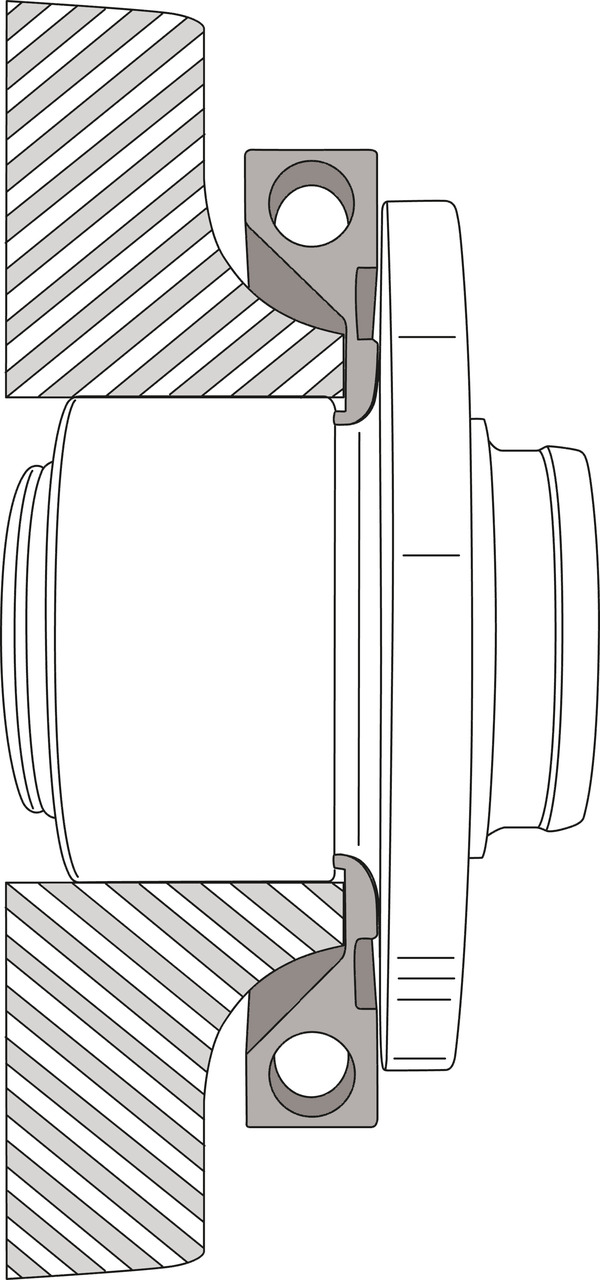

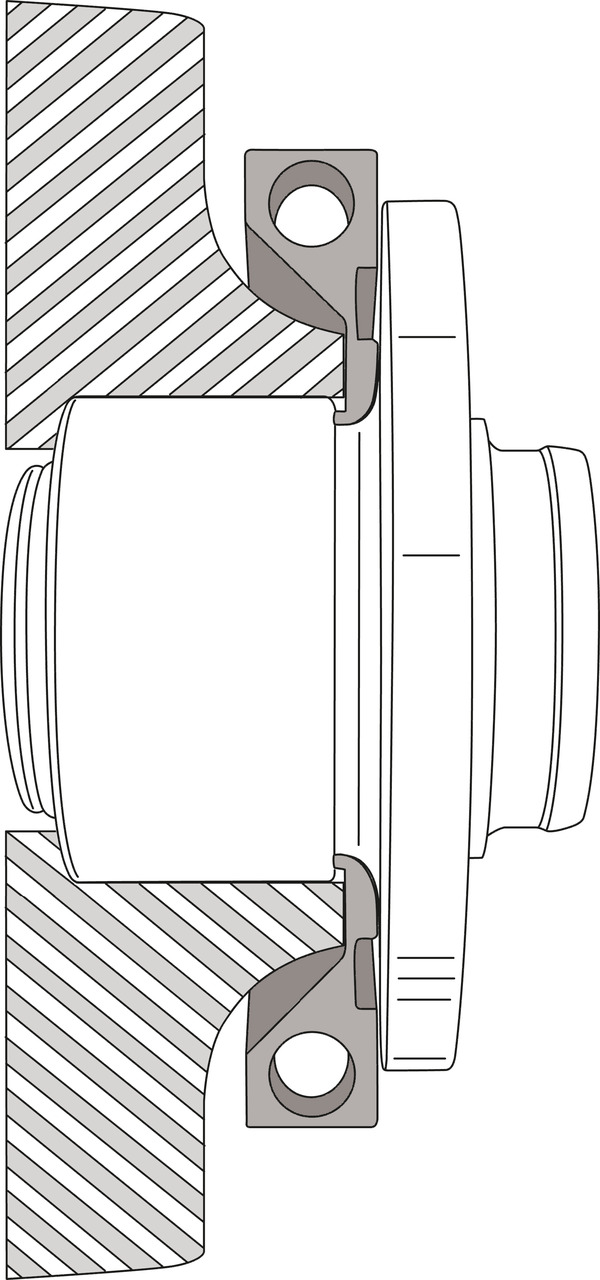

• No damage to the bearing as pressure is only applied via the outer bearing ring
• Additional drive parts required!
Hydraulic drive (17 t):
KL-0040-2500 - Hydraulic cylinder 17 t
KL-0215-35 M25 - Hydraulic pump
KL-0039-2120 - Pull spindle with quick-clamping nut
KL-0039-1002 - Mounting adapter
KL-0039-1003 - Mounting adapter
Audi A1 (GB)
Seat Arona (KJ)
Seat Ibiza V (KJ)
Skoda Kamiq (NW)
Skoda Scala (NW)
VW Polo VI (AE / AW / BZ)
VW T-Cross (C1 / D3)
VW Taigo (CS)

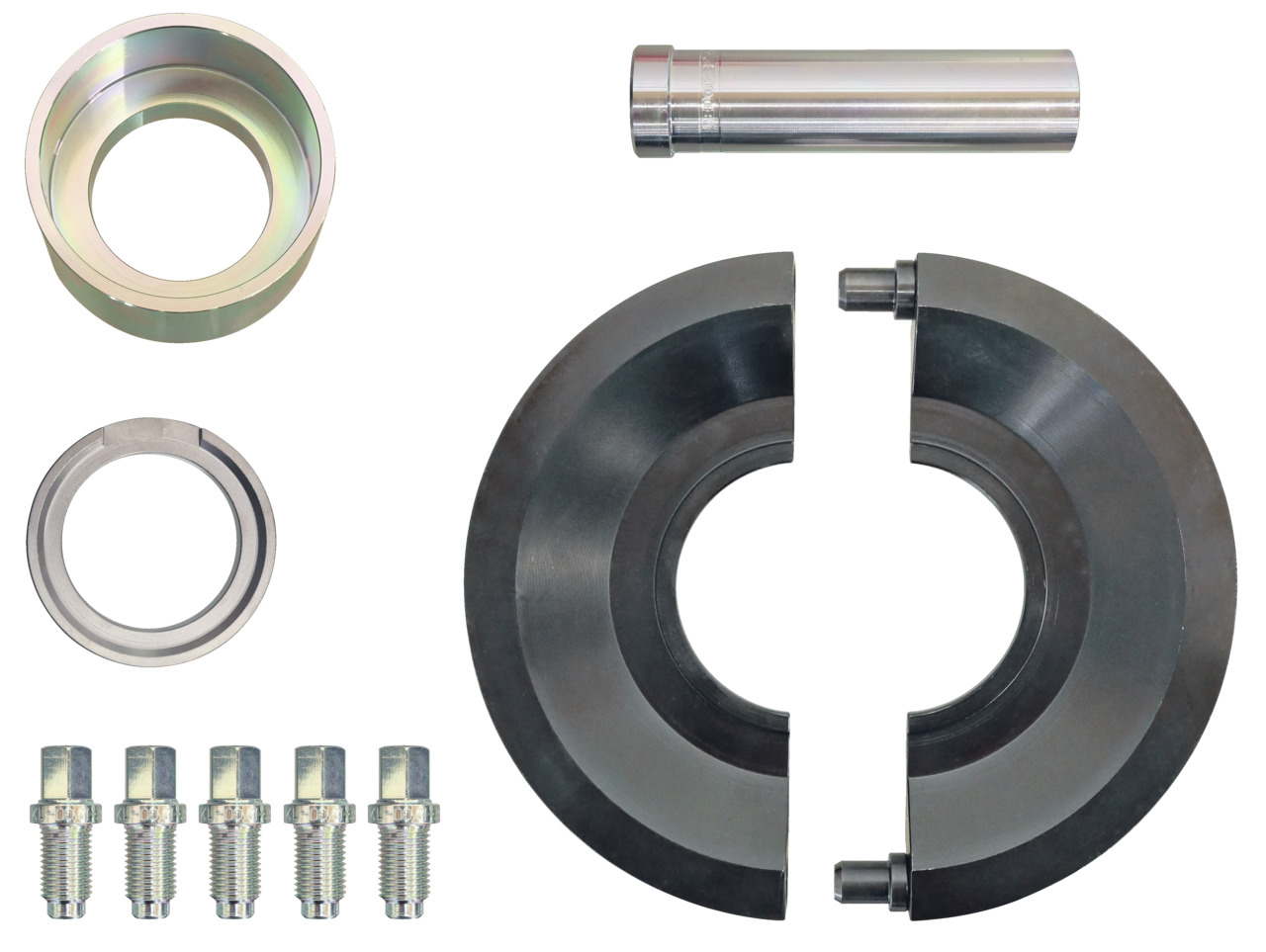

1x KL-0041-4600 E - lamping jaw pair, Ø 78mm
5x KL-0041-3931 - Thrust screw, M14x1.5
1x KL-0039-1802 - Centring sleeve, long, Ø 27.4mm
1x KL-0039-1265 - Thrust ring, Ø 65mm
1x KL-0039-1676 - Pressure / support sleeve short, Ø 76/68mm
